System Diagram: Notes

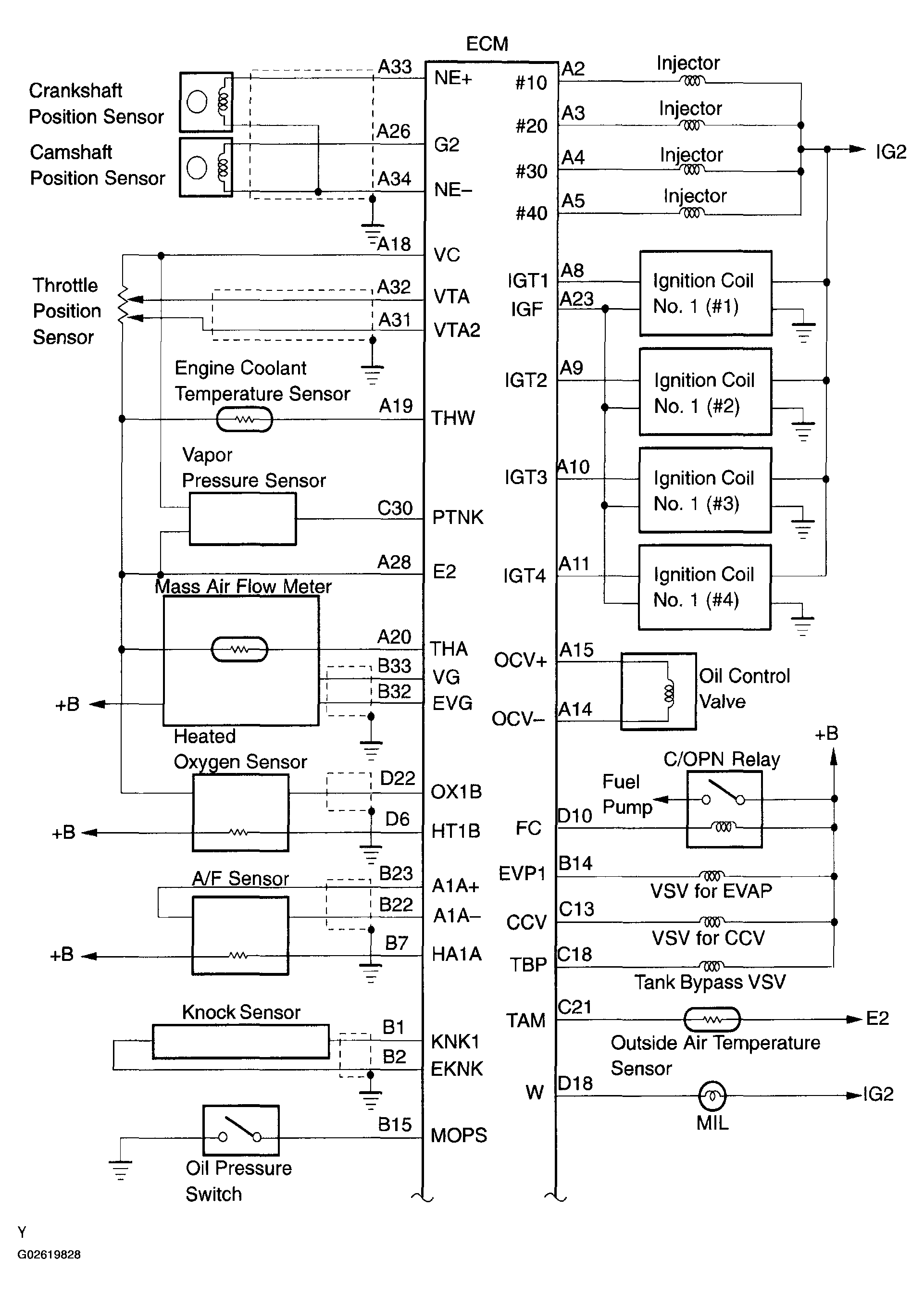

Fig 1: SFI System Diagram (1 Of 2)
G02619828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

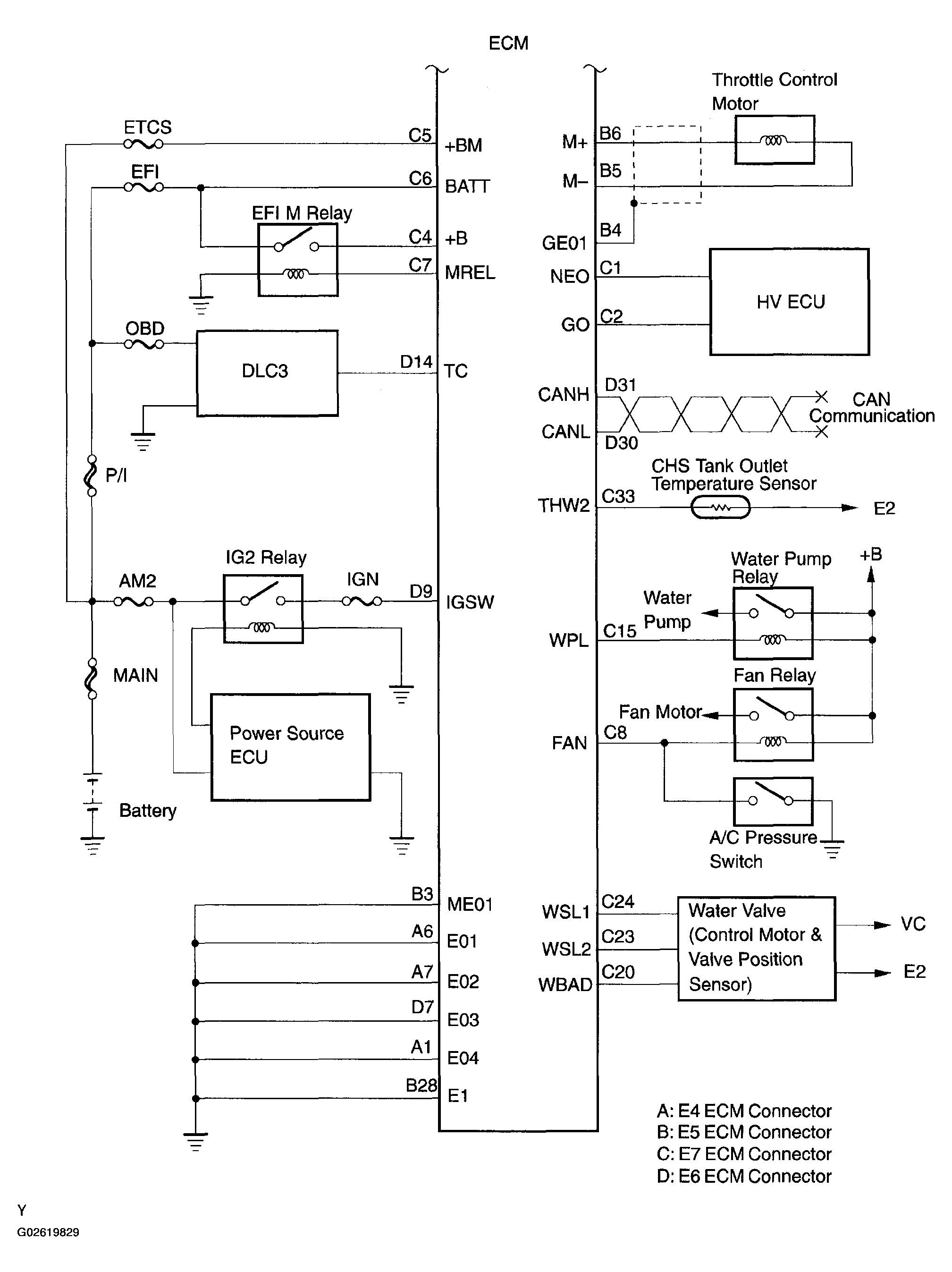

Fig 2: SFI System Diagram (2 Of 2)
G02619829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
