Customize Parameters

HINT:

The following can be customized.

NOTE:
  • After confirming whether the items of the customer's request are applicable or not for the customized items, perform the customize operation.
  • Be sure to record the current value before customizing.
  • In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function" is displayed, check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

AIR CONDITIONER

AIR CONDITIONER CHART

DISPLAY (ITEM) DEFAULT CONTENTS SETTING
SET TEMP SHIFT (Set Temperature Shift) NORMAL To control with the shifted temperature against the display temperature. +2C/+1C/NORMAL -1C/-2C
AIR INLET MODE (Air Inlet Mode) AUTO In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATED mode. MANUAL/ AUTO
COMPRESSOR MODE (Compressor Mode) AUTO Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF. MANUAL/AUTO
COMPRS/DEF OPER (Compressor/Air Inlet DEF operation) LINK Function to turn the A/C ON automatically linking with the FRONT DEF button when the A/C is OFF. NORMAL/LINK
FOOT/DEF MODE (Foot/DEF auto mode) ON Function to turn the air flow from FOOT/DEF to ON automatically when AUTO MODE is ON. OFF/ON
FOOT AIR LEAK (Foot air leak) ON Function to cut off the airstream felt underfoot while the vehicle is moving OFF/ON
AMBINT TMP SFT (Ambient Temperature Shift) NORMAL To control with the shifted ambient temperature against the display ambient temperature. +3C/+2C/+1C NORMAL/-1C/-2C/-3C

ILLUMINATED ENTRY

ILLUMINATED ENTRY CHART

DISPLAY (ITEM) DEFAULT CONTENTS SETTING
LIGHTING TIME 15s Changes the lighting time after closing the doors (the light quickly fades out when the ignition switch is turned on). 7.5s/15s/30s
I/L AUTO OFF ON Function to turn off the interior light automatically after specified time for prevent the battery loss when the interior light switch is "DOOR" position and the door is open. ON/OFF
I/L ONUNLOCK ON Function to light the interior light, etc. when the door is unlocked with a transmitter, door key or door lock control switch. ON/OFF
I/L ONACC OFF ON Illuminates the interior light when the ignition switch is turned from the ACC to LOCK position. ON/OFF

LIGHT CONTROL

LIGHT CONTROL CHART

DISPLAY (ITEM) DEFAULT CONTENTS SETTING
SENSITIVITY NORMAL To adjust the sensitivity of the lighting illumination. Refer to the *1 illustration. LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
DISP EX ON SEN NORMAL Changes the brightness when lowering lights such as the combination meter indicator lamp, A/C indicator lamp, and clock lamp. Refer to the illustration *2. LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
DISP EX OFF SEN NORMAL Changes the brightness when lowering lights such as the combination meter indicator lamp, A/C indicator lamp, and clock. Refer to the . LIGHT2/LIGHT1/NORMAL/DARK1/DARK2
DRL FUNCTION ((1)) ON ON/OFF of the DRL function. ON/OFF
(1) w/Daytime Running Light for U.S.A.

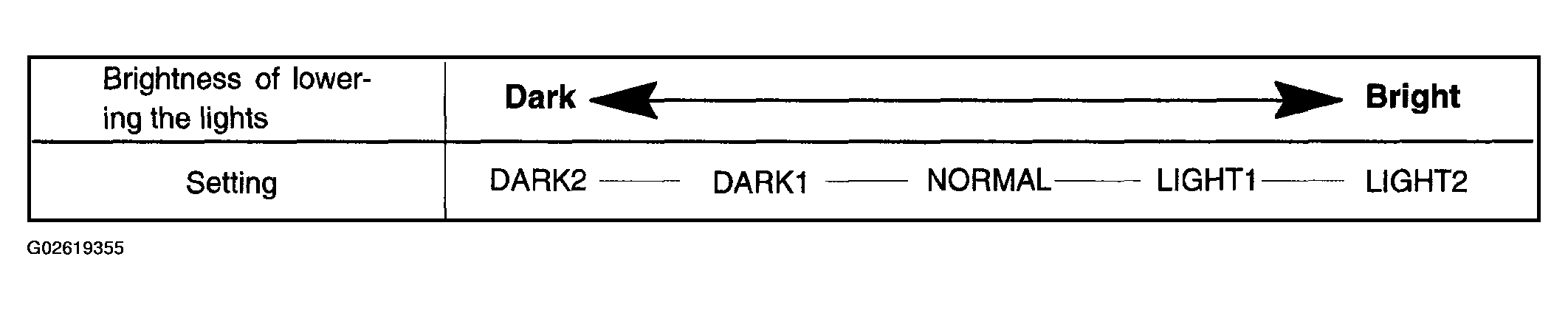

Illustration of *1

Fig 1: Diagnostic Table (1 Of 3)
G02619355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

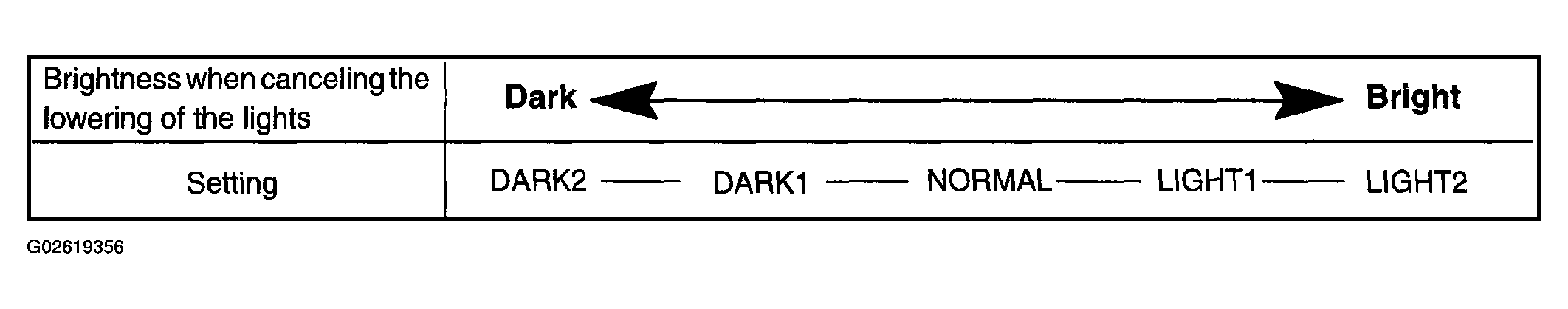

Illustration of *2

Fig 2: Diagnostic Table (2 Of 3)
G02619356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

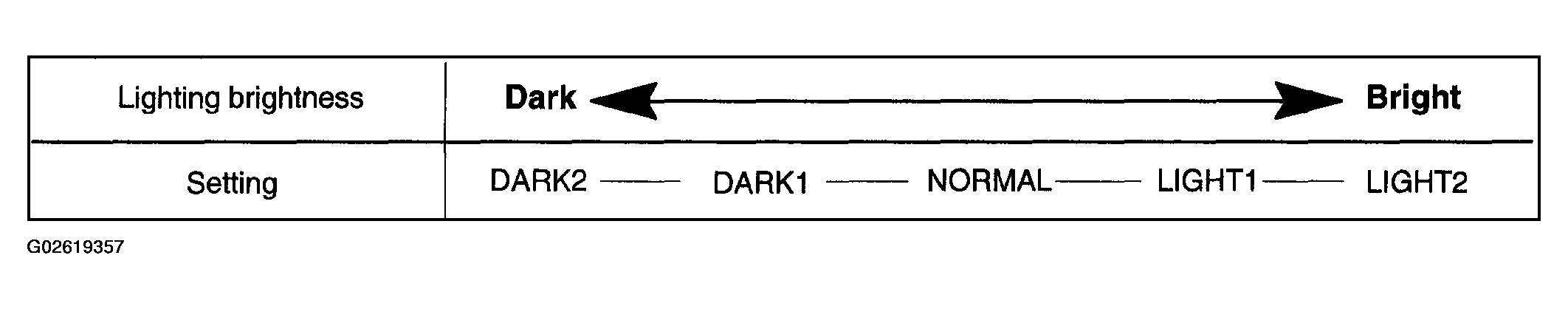

Illustration of *3

Fig 3: Diagnostic Table (3 Of 3)
G02619357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BUZZER CANCEL SETTING

  1. Check that the ODO display is on, and turn the power switch off and then on. If other display is on, change it to the ODO display.
  2. Within 6 seconds, push and hold the ODO/TRIP switch for 10 seconds or more.
  3. Following the table below, set the buzzer cancel setting.

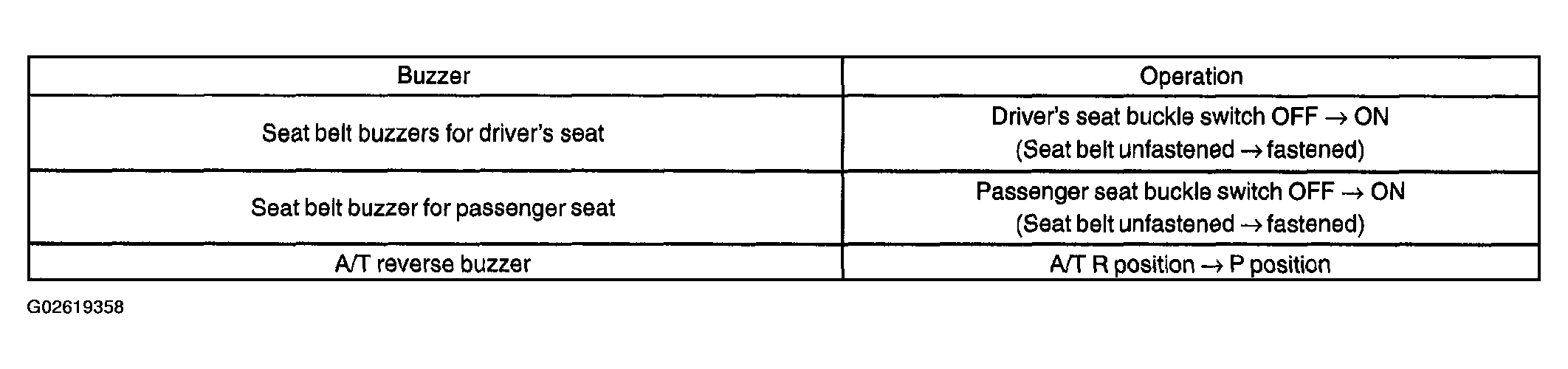

    Fig 4: Buzzer Cancel Setting Table
    G02619358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    The ODO/TRIP display changes from "b-on" to "b-off", entering the cancel mode.

  4. During the cancel mode, each time the ODO/TRIP switch is pushed, the setting is switched between *1 b-on and *2 b-off.

    HINT: *1 b-on: Cancel is invalid

    • *2 b-off: Cancel is valid
    • After the setting, the mode will be canceled by either not operating the switch for 10 seconds or more, or turning the power switch from on to off.

      HINT:

      The setting can be reset when reconnecting the battery connector or removing/installing the meter connector (Buzzer on).

      SMART ENTRY SYSTEM

      SMART ENTRY SYSTEM

      Display (Item) Default Contents Setting
      SMART WARN 1 (Warn key is taken from D-door with P position) ON Function that warns driver that key is taken out from driver's door when shift position is in P and power switch is not OFF ON/OFF
      SMART WARN2 (Warn key is taken from D-door with P position) ON Function that warns driver that key is taken out from driver's door when shift position is not in P and power switch is not OFF ON/OFF
      SMART WARN3 (Warn key is taken out by other passengers) ON Function that warns driver that key is taken out from any door except driver's door by passenger when power switch is not OFF ON/OFF
      SMART BUZ NUM (Setting number of warning buzzer sounds) 3 TIMES Function that sets number of warning buzzer sounds when key taken out of vehicle OFF/3TIMES/5TIMES/7TIMES
      SMART WARN 4 (Warn locking door when Engine is idling) 2s Function that sets warning time for locking doors while engine is idling OFF/1s/2s
      SMART WARN 5 (Warn when key is left in vehicle) 2s Function that sets warning time for locking doors while key is inside vehicle OFF/1s/2s
      SMART WARN 6 (Warn starting E/G when key is out of detection range) ON Function that warns driver that smart ignition control is being attempted to be activated while key is out of detection range ON/OFF
      KEY LOW-BATT WRN (Warn when key battery becomes weak) ON Function that warns driver that key's battery power is low ON/OFF
      SMART UNLOCK (Smart door unlock mode) EACH Function that makes smart unlock operation available. AKK/EACH/D-door
      TRANSMIT INTVAL (Transmission interval) 300ms Function that sets smart signal transmission intervals when vehicle is stopped and key is outside vehicle 150ms/300ms/450ms/600ms
      PARK WAIT TIME (Wait time to permit opening door after locking) 3.0s Function that sets waiting time to permit opening door after door is locked with smart lock function 0.5s/1.5s/2.5s/5s
      SMART BACK DOOR (Backdoor opening operation when vehicle is locked) LONG Function that enables back door to open when key is inside luggage compartment LONG/TWICE/OFF

      WIRELESS DOOR LOCK: w/ Smart Entry System

      WIRELESS DOOR LOCK CHART

      Display (item) Default Contents Setting
      OPEN DOOR WARN (Open door warning) ON If door is not completely closed and transmitter LOCK switch is pressed, this function makes buzzer sound for 10 seconds. ON/OFF
      WIRLS BUZZ OPER (Buzzer answer-back of wireless) ON Function that makes wireless buzzer sound for answer-back when transmitter lock/unlock switch is pressed. ON/OFF
      WIRELESS OPER (Wireless door lock control function) ON Function that turns wireless door lock function ON/OFF. ON/OFF
      ALARM FUNCTION (Panic function) ON Function that operates theft deterrent system when transmitter panic switch on transmitter is held for 0.8 seconds. ON/OFF
      UNLOCK/2OPER (2 times operation wireless unlock) ON Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice.
      If on OFF setting, pressing unlock switch once makes all doors unlock.      		 ON/OFF
      AUTO LOCK DELAY (Auto lock time) 30s This function controls amount of time from unlocking doors to automatic re-locking function. 30s/60s
      HAZARD ANS BACK (Hazard answer-back of wireless) ON When lock switch on transmitter is pressed, this function illuminates all hazard warning lamps once, when unlock switch is pressed, all hazard warning lamps illuminate twice. ON/OFF

      WIRELESS DOOR LOCK w/o Smart Entry System

      WIRELESS DOOR LOCK CHART

      Display (item) Default Contents Setting
      OPEN DOOR WARN (Open door warning) ON If door is not completely closed and transmitter LOCK switch is pressed, this function makes buzzer sound for 10 seconds. ON/OFF
      WIRELESS OPER (Wireless door lock control function) ON Function that turns wireless door lock function ON/OFF. ON/OFF
      ALARM FUNCTION (Panic function) ON Function that operates theft deterrent system when transmitter panic switch on transmitter is held for 0.8 seconds. ON/OFF
      UNLOCK/2OPER (2 times operation wireless unlock) ON Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice.
      If on OFF setting, pressing unlock switch once makes all doors unlock.      		 ON/OFF
      AUTO LOCK DELAY (Auto lock time) 30s This function controls amount of time from unlocking doors to automatic re-locking function. 30s/60s
      HAZARD ANS BACK (Hazard answer-back of wireless) ON When lock switch on transmitter is pressed, this function illuminates all hazard warning lamps once, when unlock switch is pressed, all hazard warning lamps illuminate twice. ON/OFF

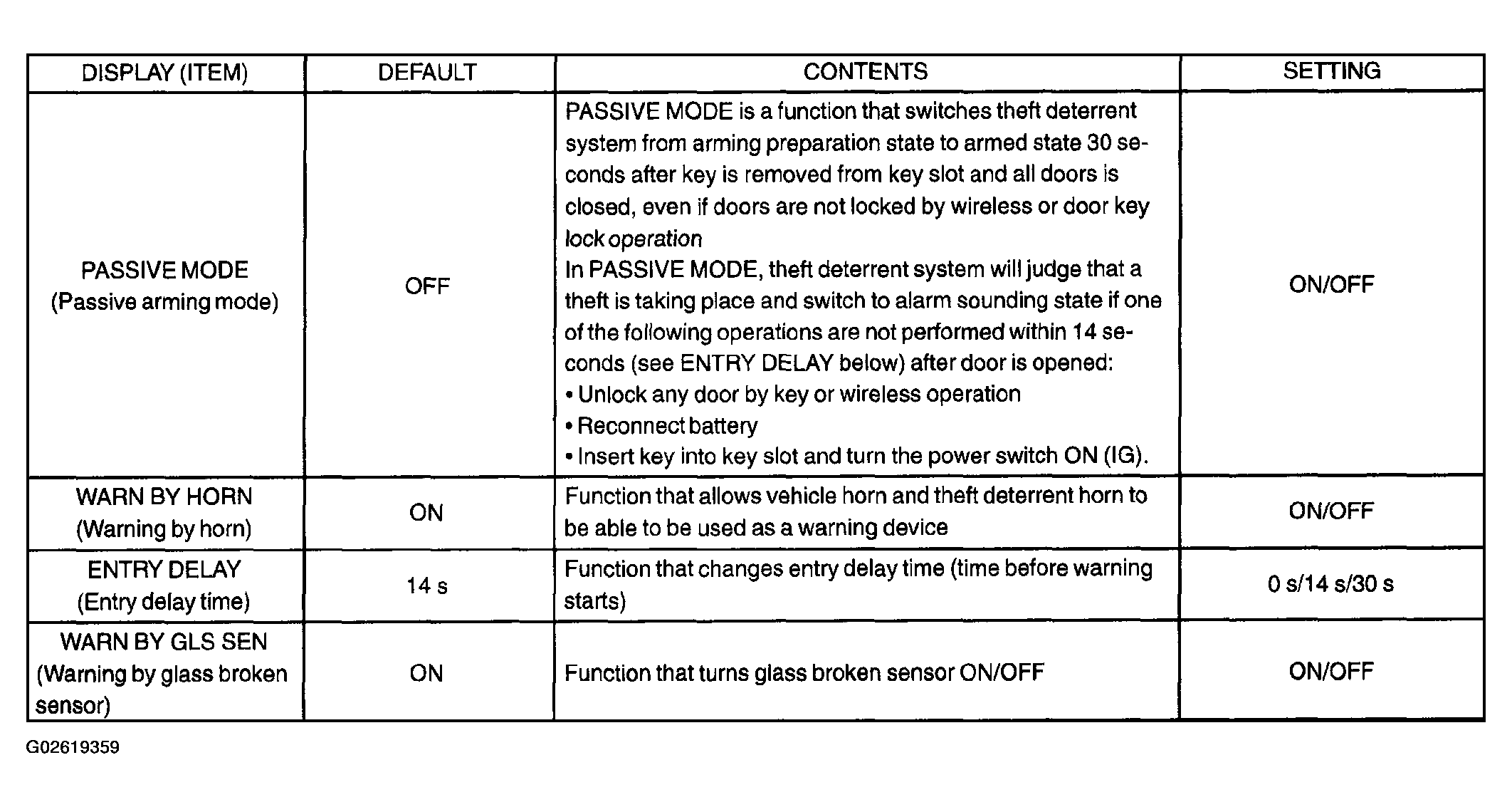

      Theft deterrent system

      Fig 5: Theft Deterrent System Table
      G02619359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
