Steering Control Systems: Preparation: Brake: Preparation: SST

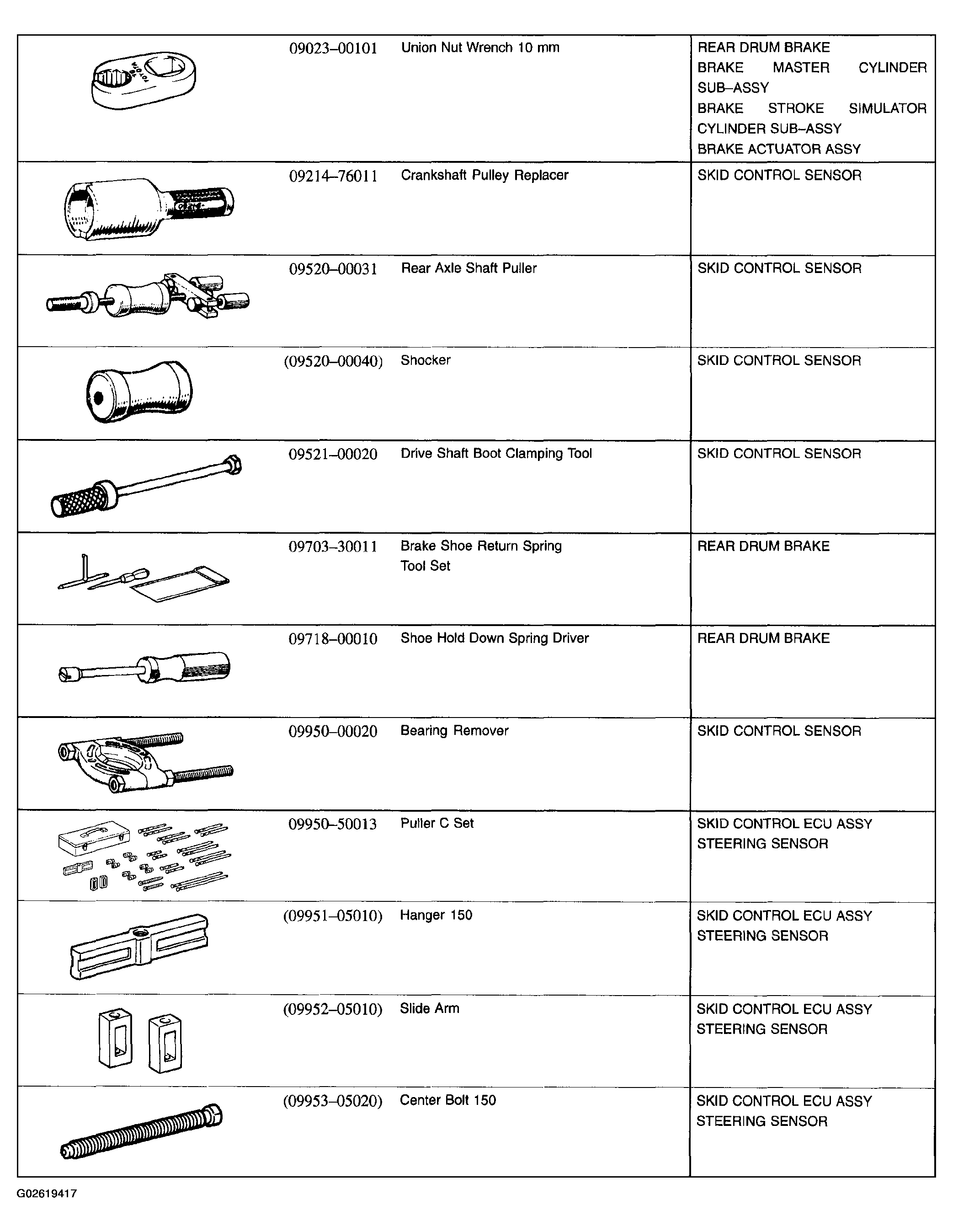

Fig 1: Identifying SST - Brake (1 Of 2)
G02619417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

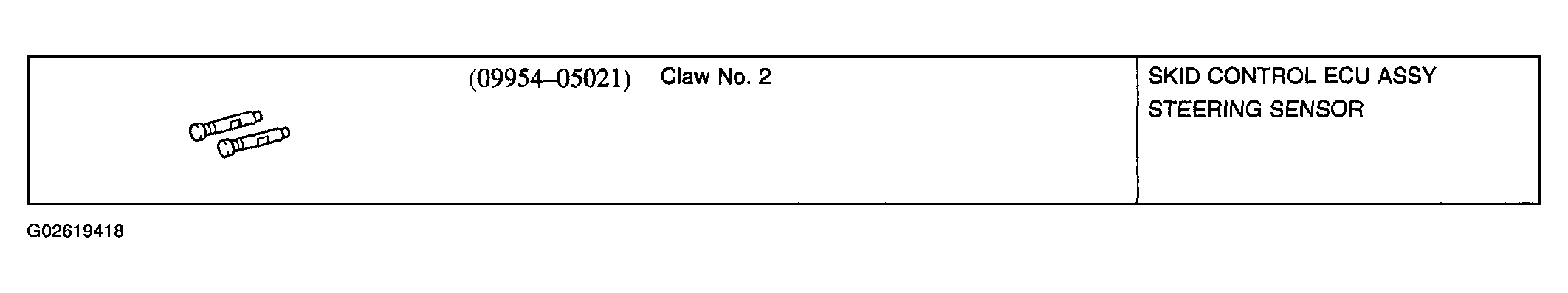

Fig 2: Identifying SST - Brake (2 Of 2)
G02619418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
