SST (Special Service Tools)

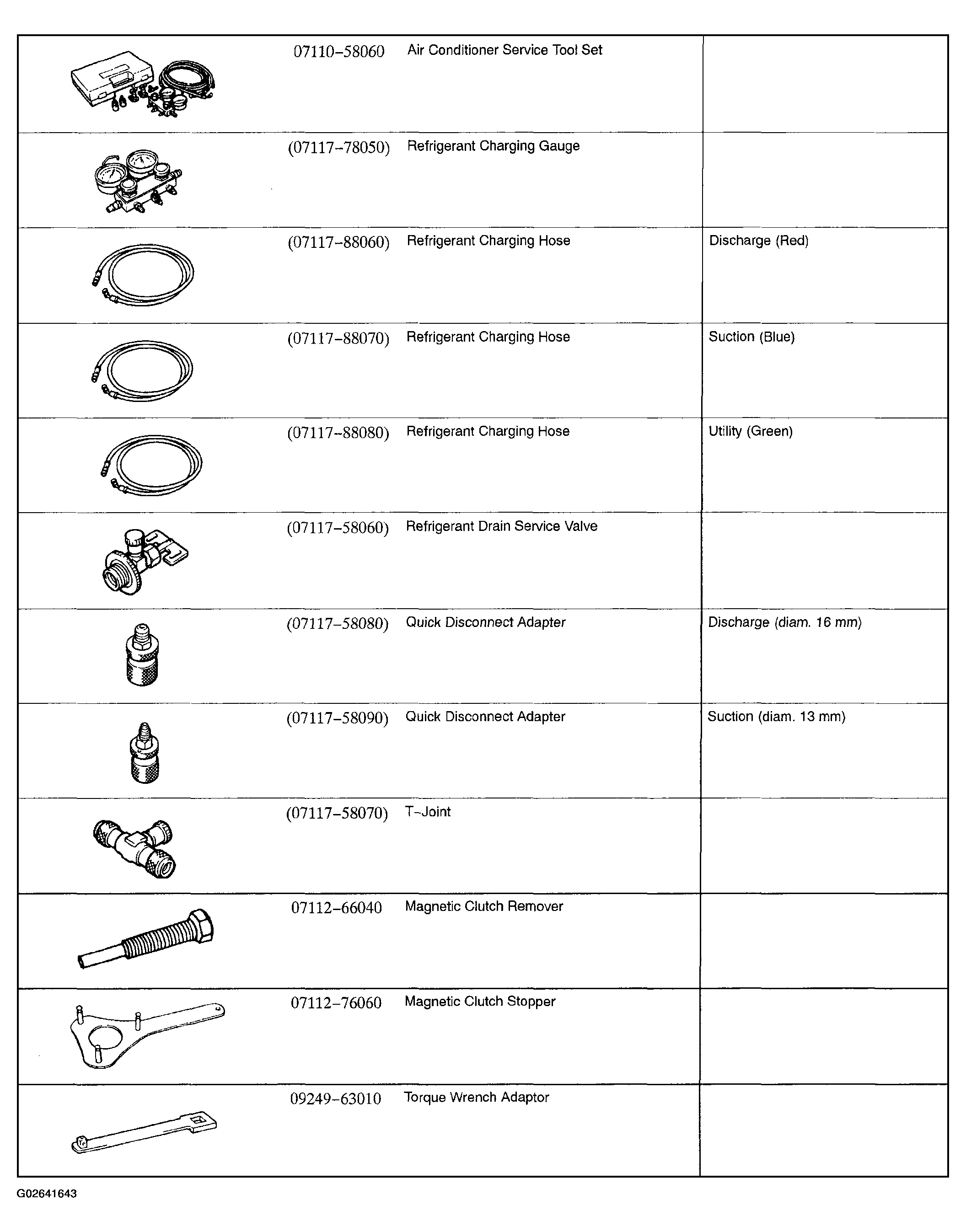

Fig 1: Identifying SST Special Service Tools (Air Conditioning) (1 Of 2)
G02641643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

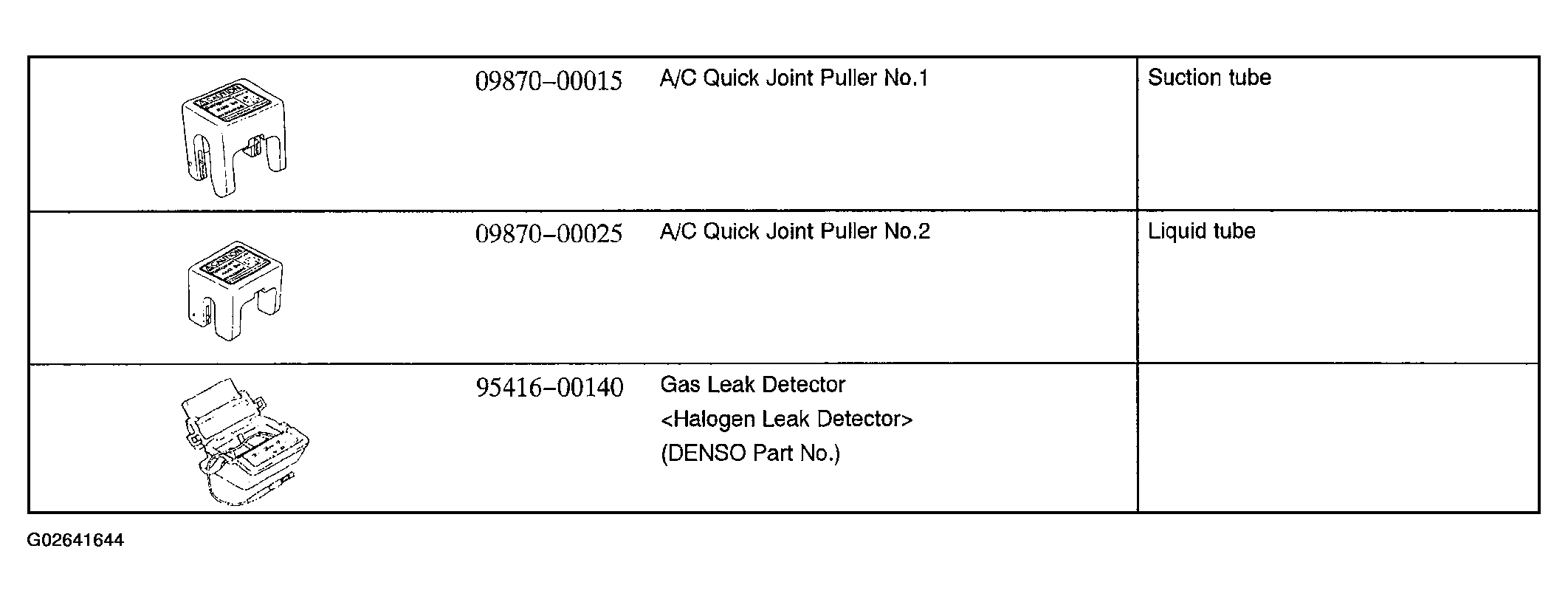

Fig 2: Identifying SST Special Service Tools (Air Conditioning) (2 Of 2)
G02641644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
