SST (Special Service Tools)

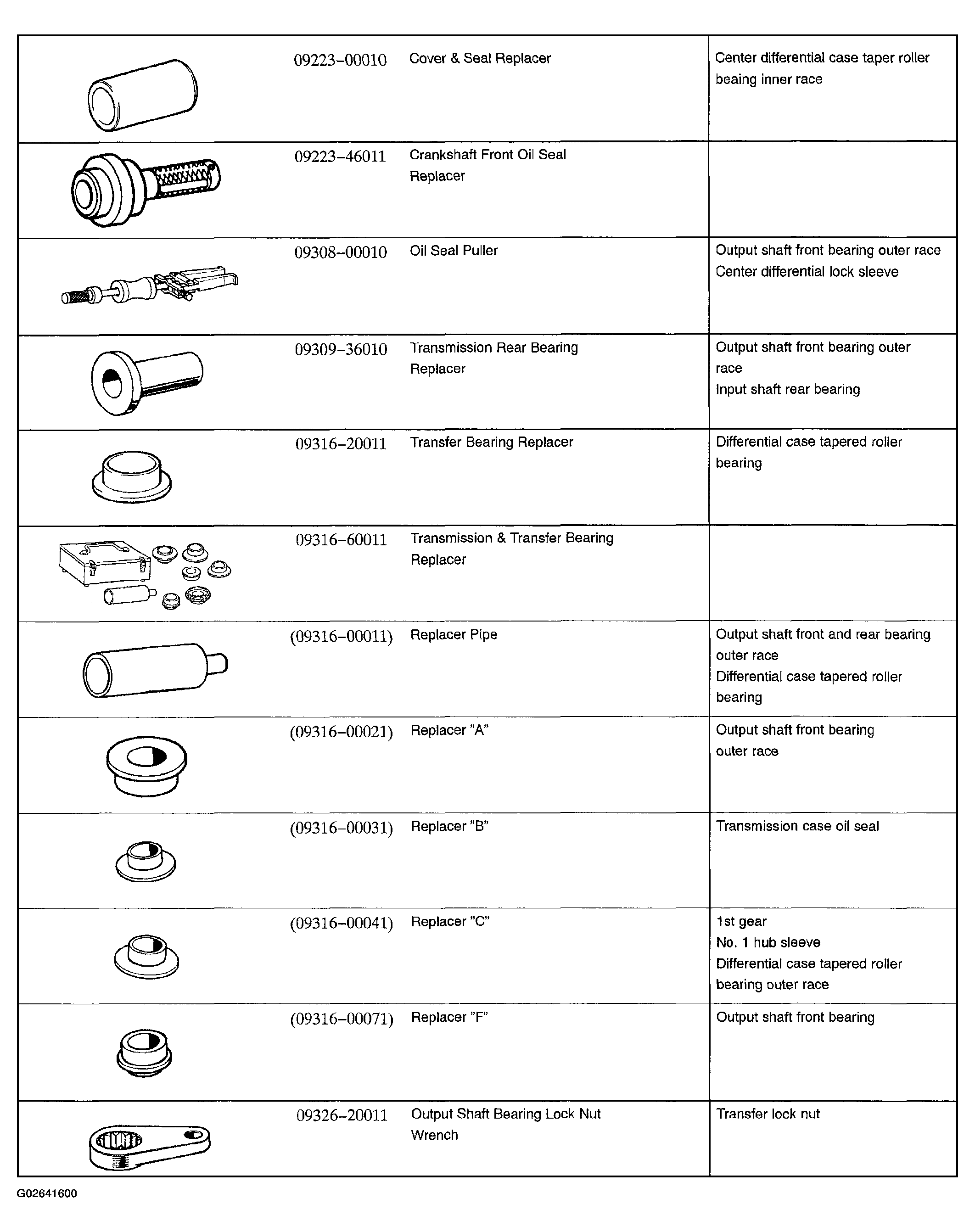

Fig 1: Identifying SST Special Service Tools (Manual Transaxle) (1 Of 5)
G02641600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

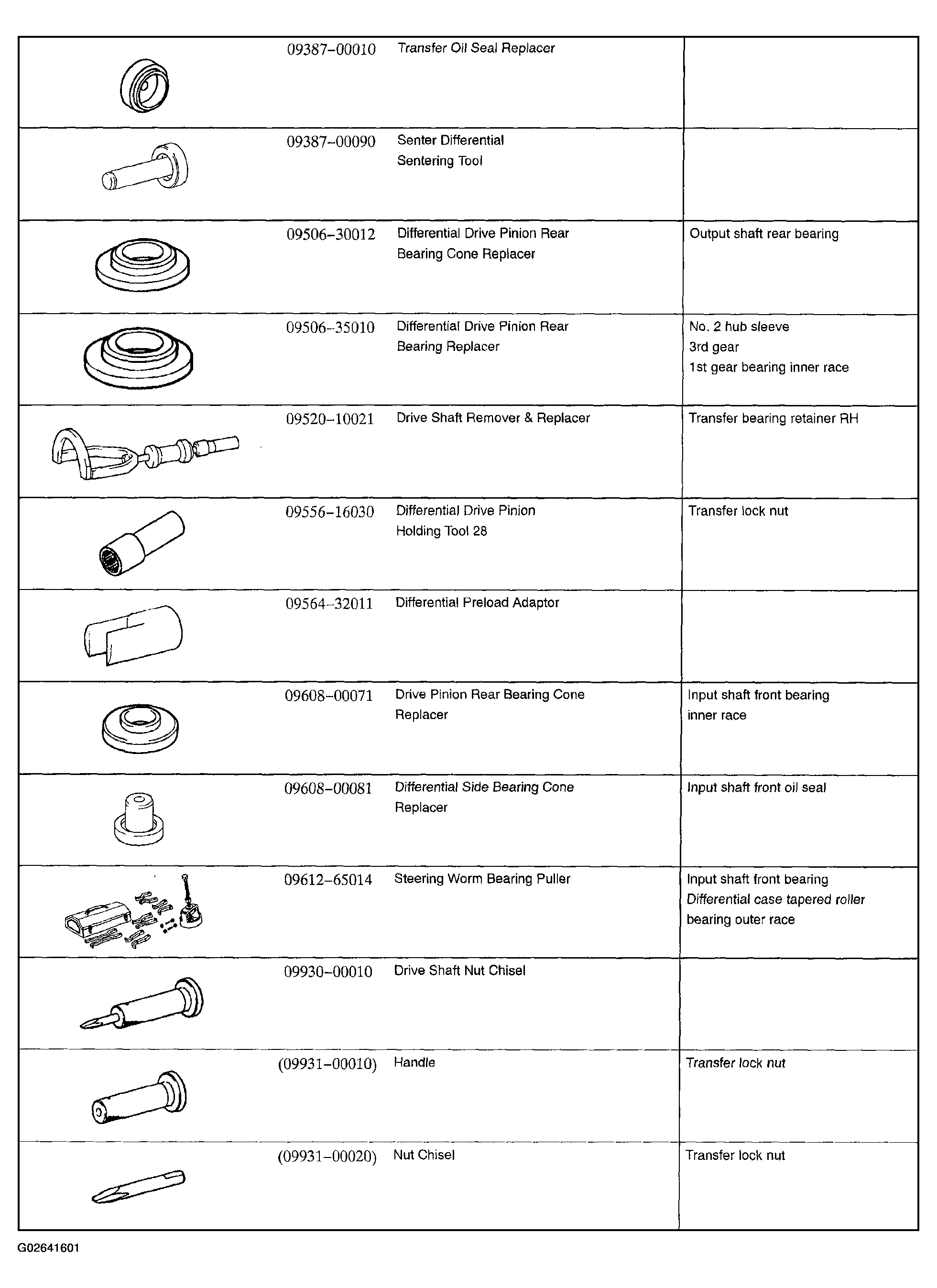

Fig 2: Identifying SST Special Service Tools (Manual Transaxle) (2 Of 5)
G02641601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

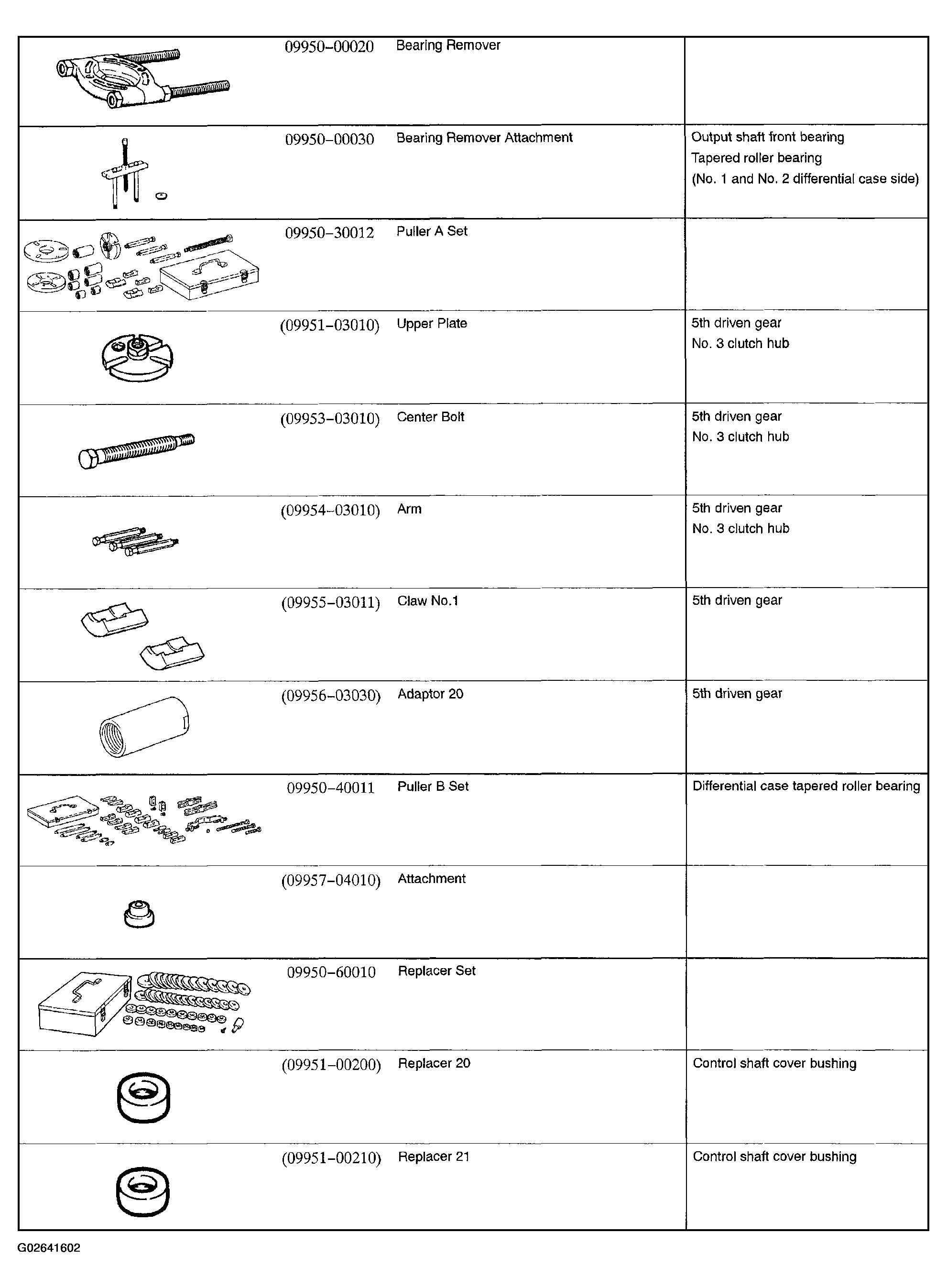

Fig 3: Identifying SST Special Service Tools (Manual Transaxle) (3 Of 5)
G02641602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

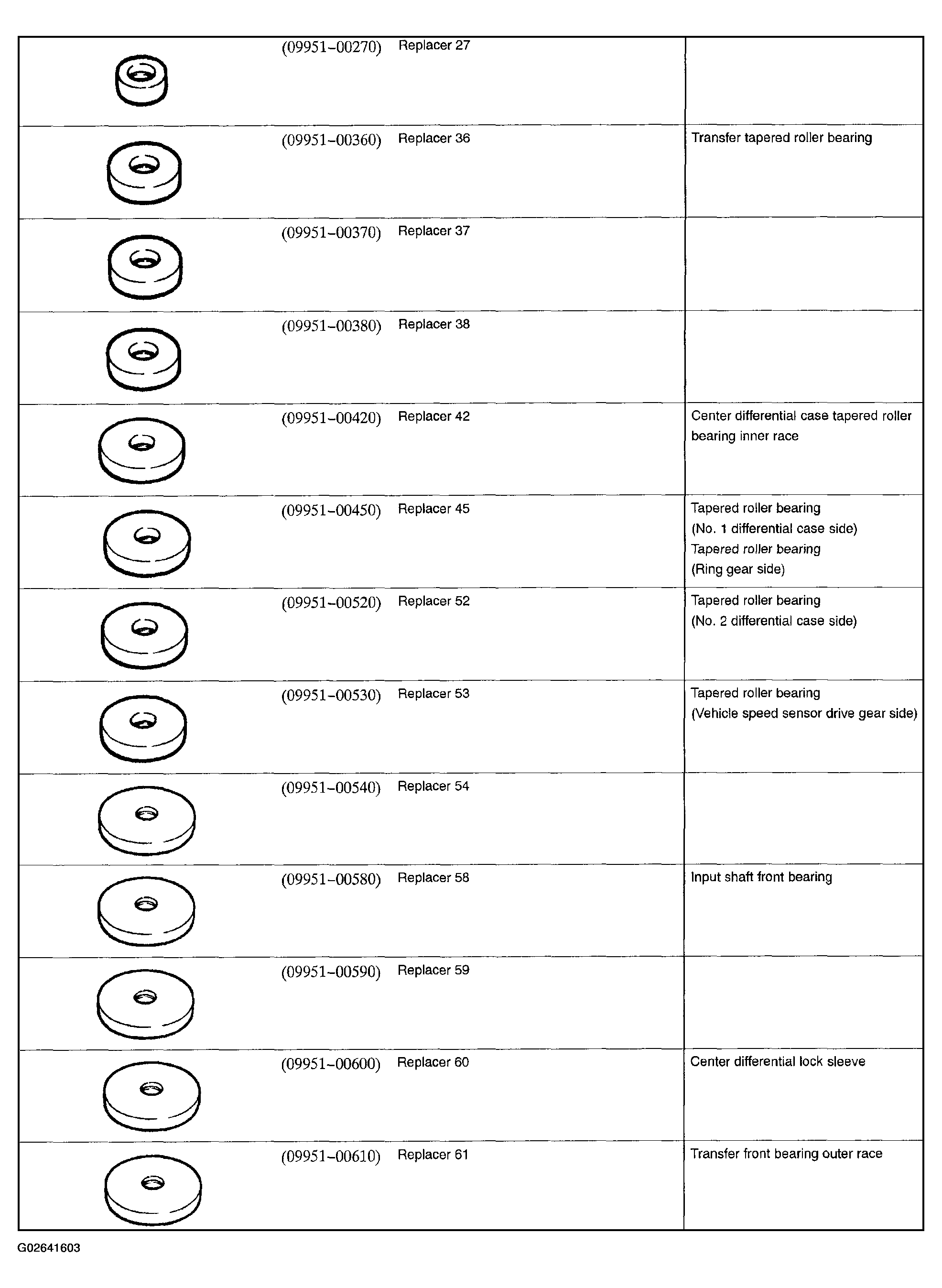

Fig 4: Identifying SST Special Service Tools (Manual Transaxle) (4 Of 5)
G02641603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

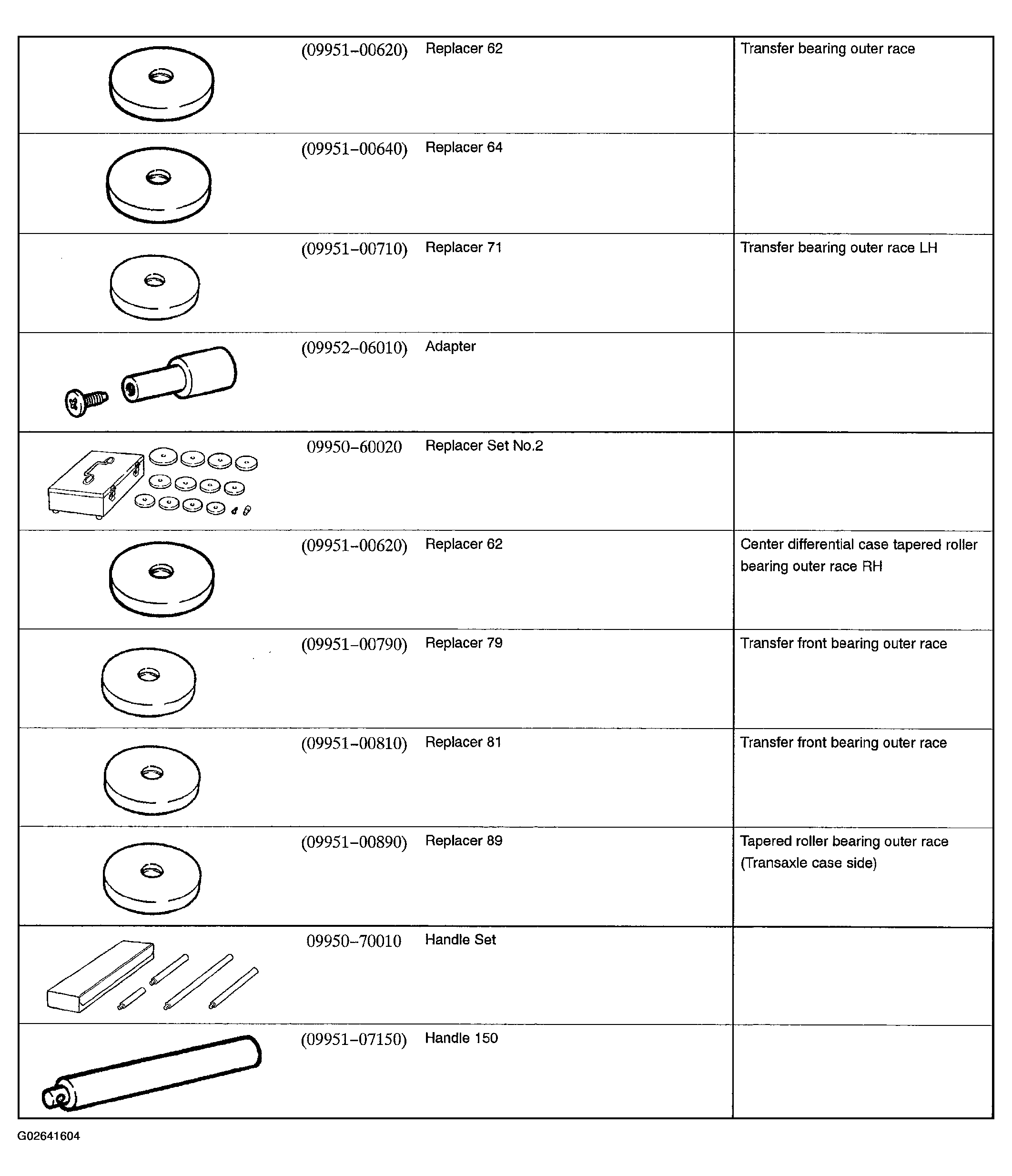

Fig 5: Identifying SST Special Service Tools (Manual Transaxle) (5 Of 5)
G02641604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
