SST (Special Service Tools)

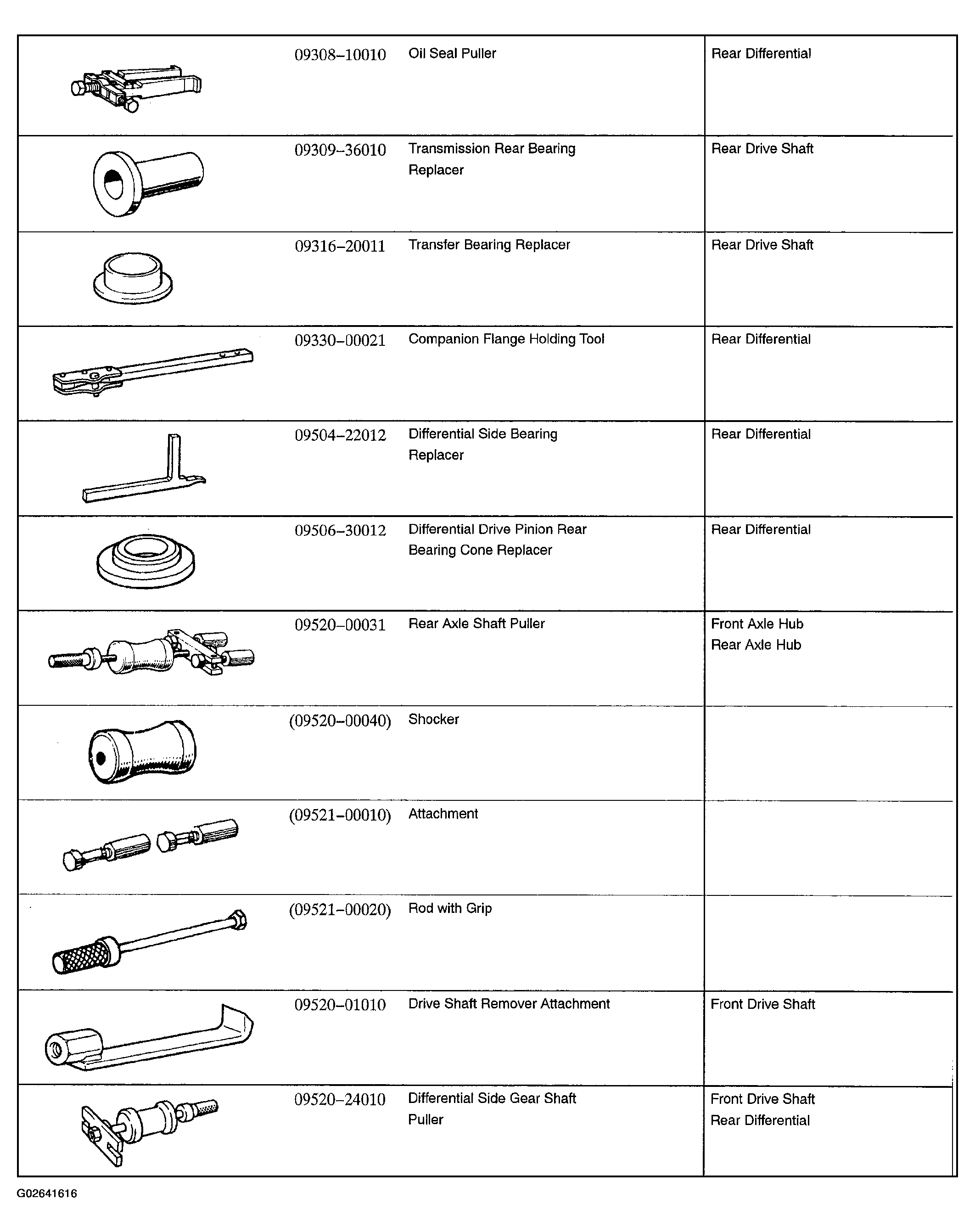

Fig 1: Identifying SST Special Service Tools (Suspension And Axle) (1 Of 6)
G02641616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

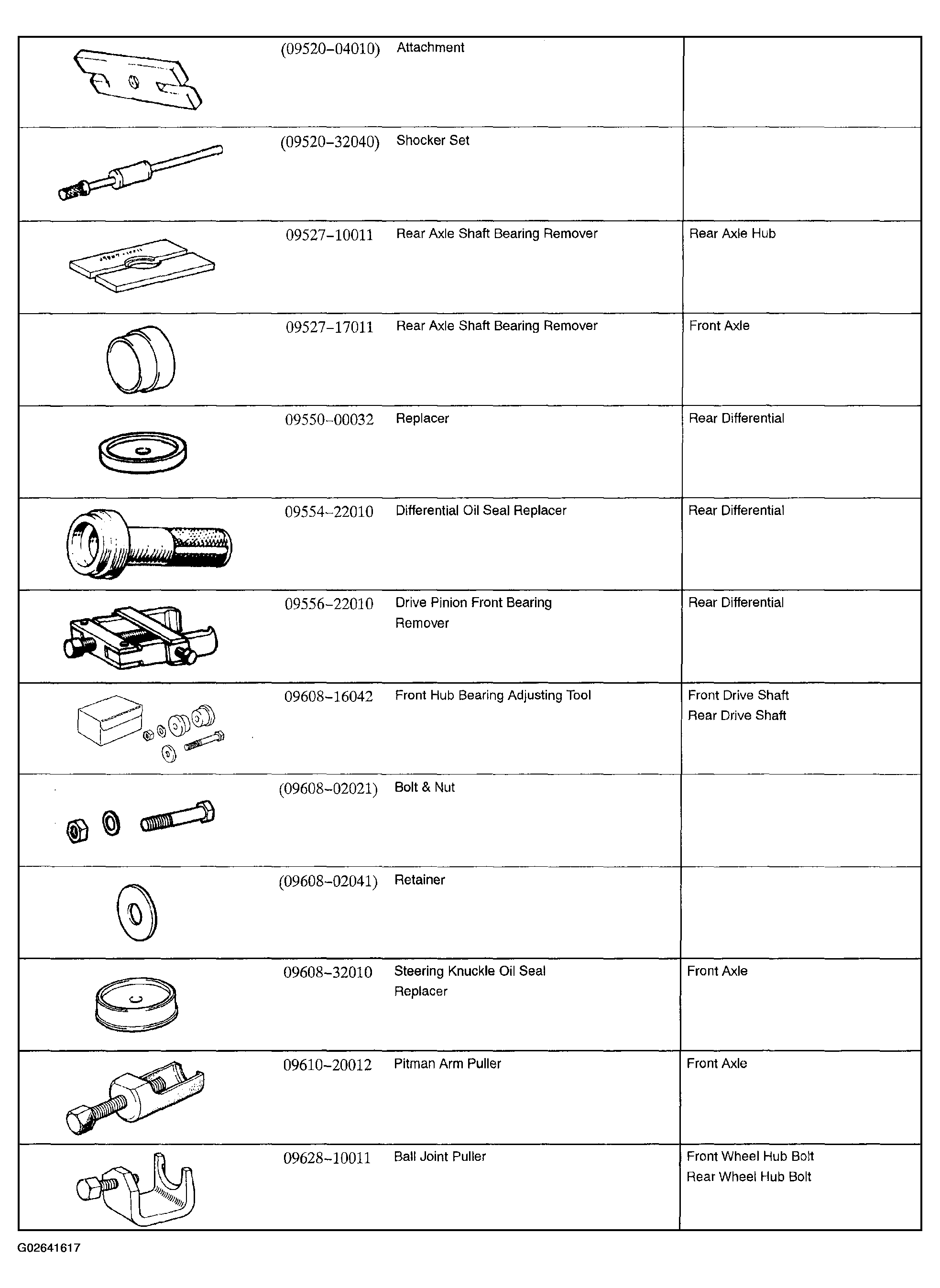

Fig 2: Identifying SST Special Service Tools (Suspension And Axle) (2 Of 6)
G02641617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

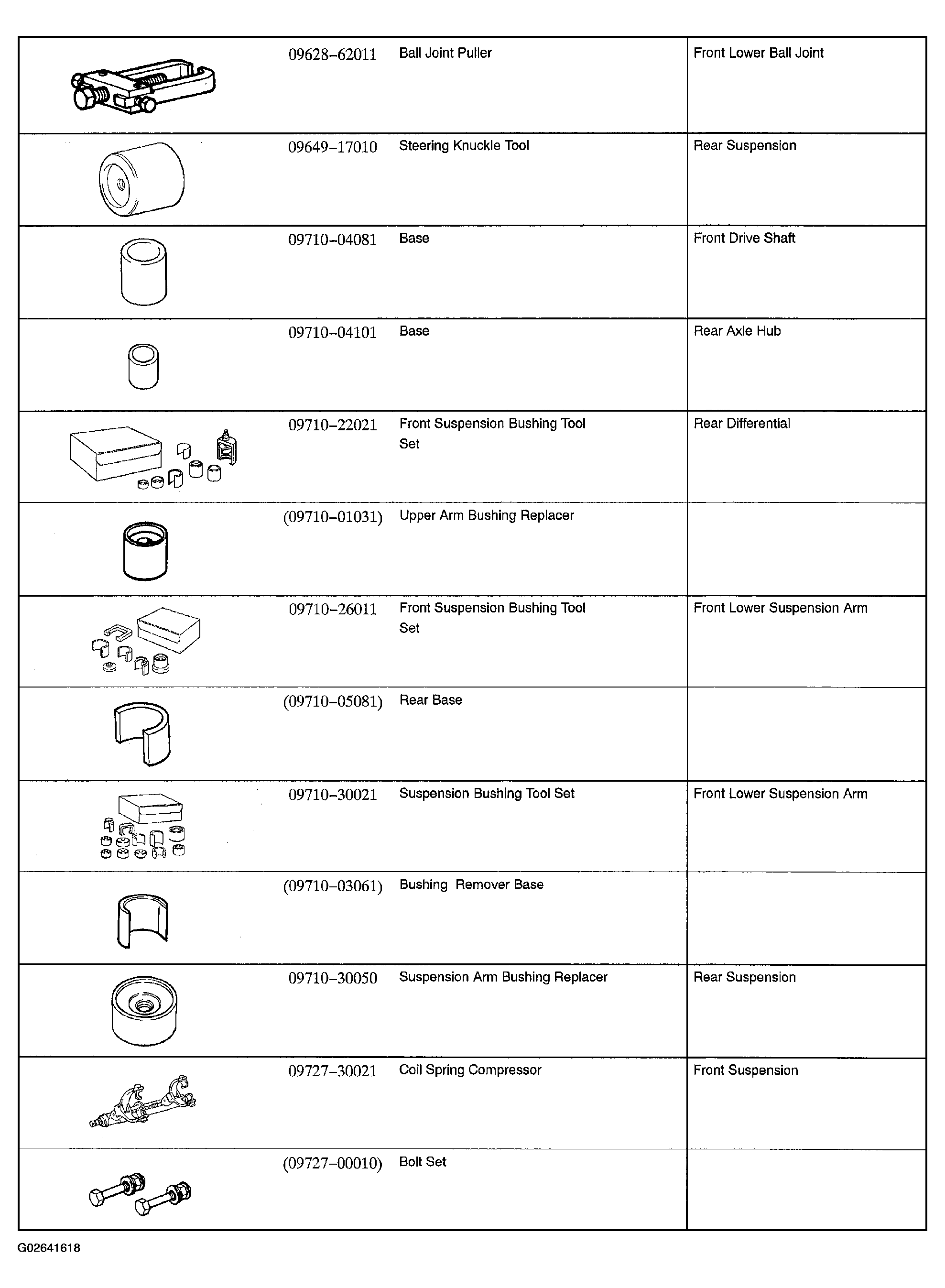

Fig 3: Identifying SST Special Service Tools (Suspension And Axle) (3 Of 6)
G02641618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

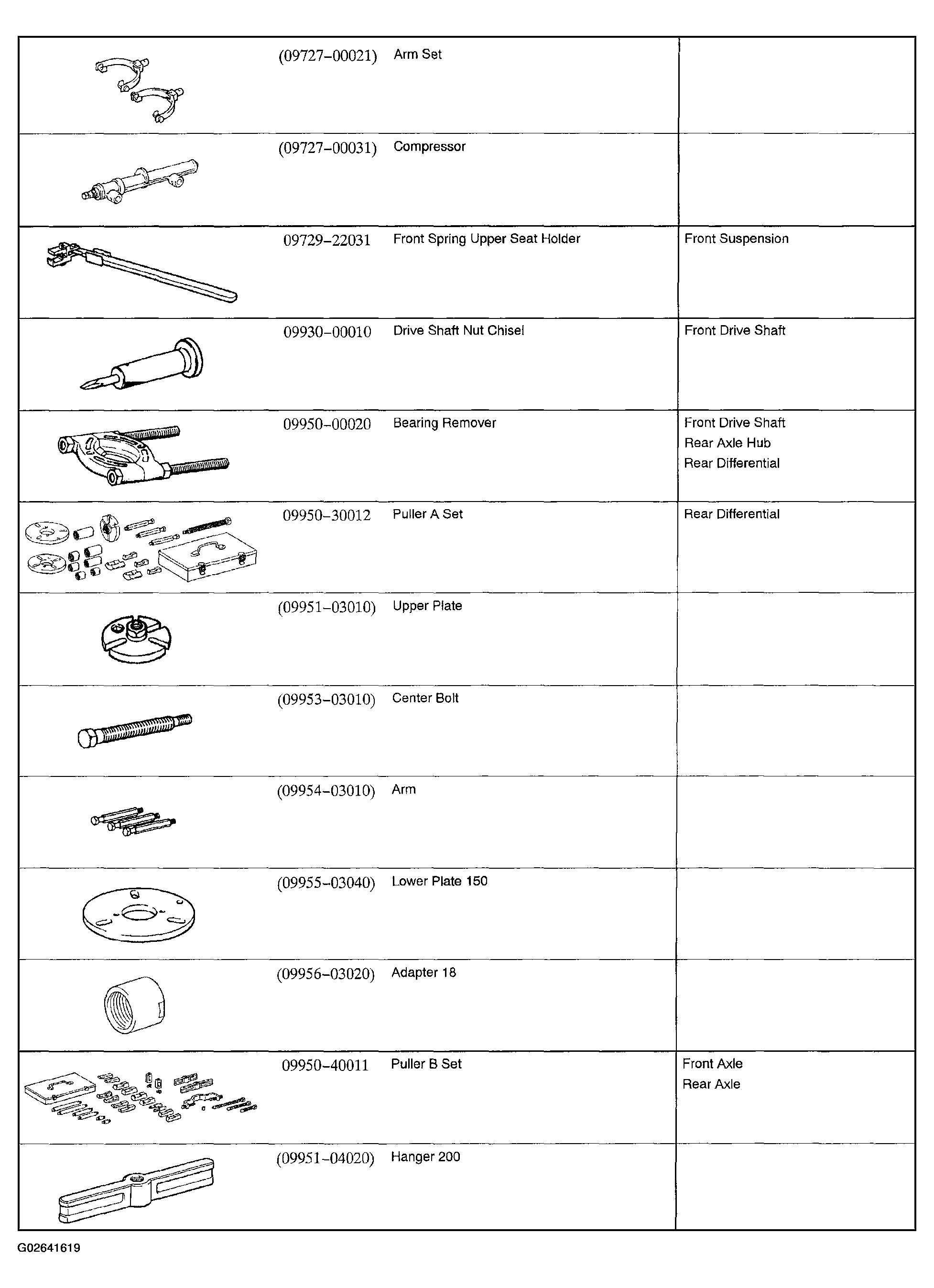

Fig 4: Identifying SST Special Service Tools (Suspension And Axle) (4 Of 6)
G02641619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

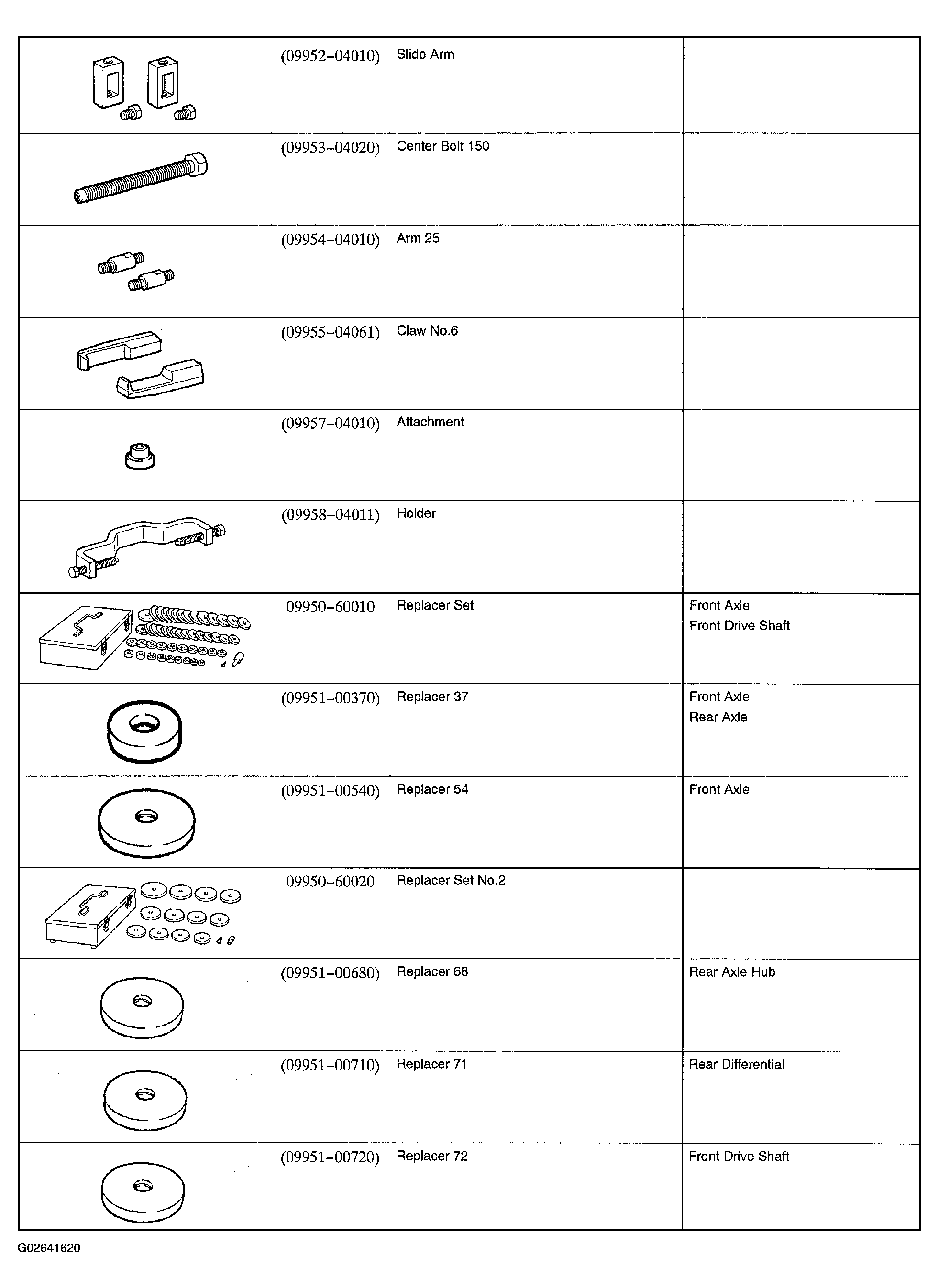

Fig 5: Identifying SST Special Service Tools (Suspension And Axle) (5 Of 6)
G02641620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

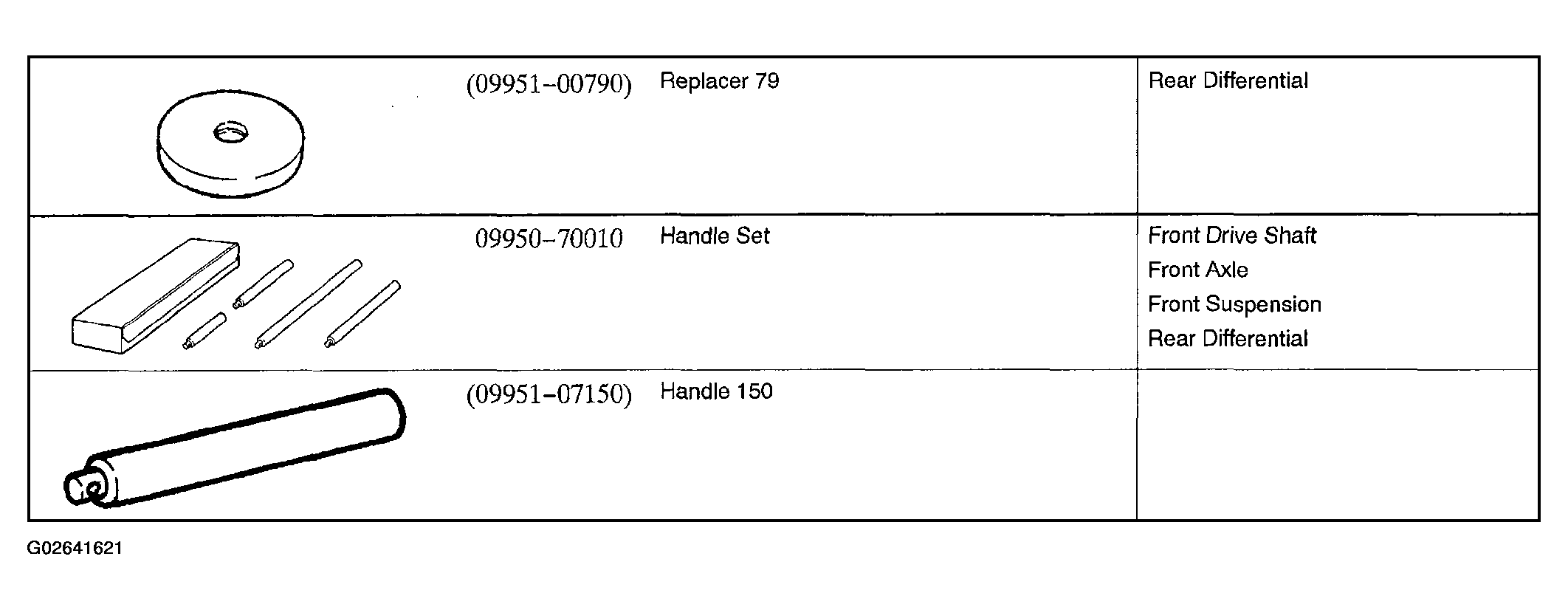

Fig 6: Identifying SST Special Service Tools (Suspension And Axle) (6 Of 6)
G02641621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
