Ignition Switch And Key Unlock Warning Switch: Inspection

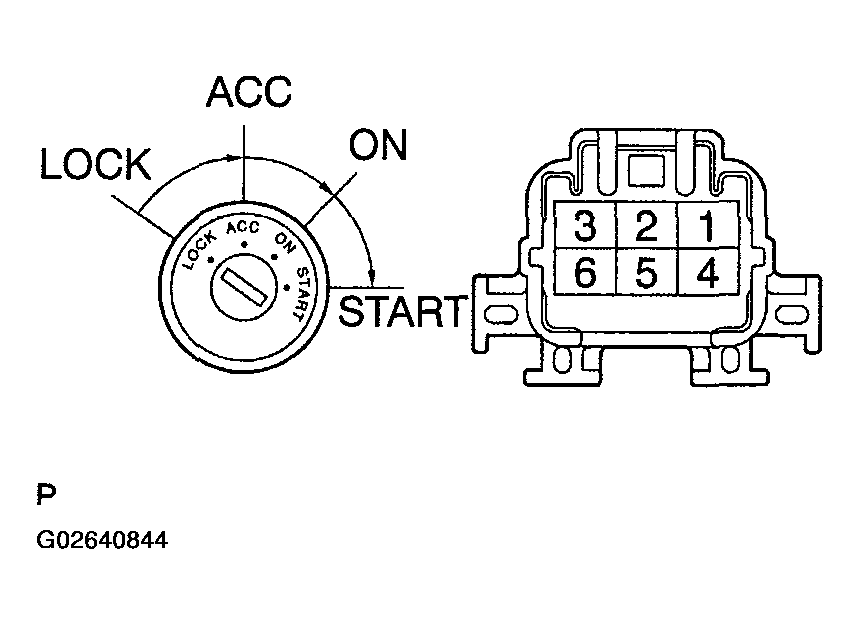

- INSPECT IGNITION SWITCH CONTINUITY IGNITION SWITCH CONTINUITY
Switch Position Tester Connection Specified Condition ACC 1 - 3 Continuity ON 1 - 2 - 3
5 - 6Continuity START 1 - 2
4 - 5 - 6Continuity If the continuity is not as specified, replace the switch.

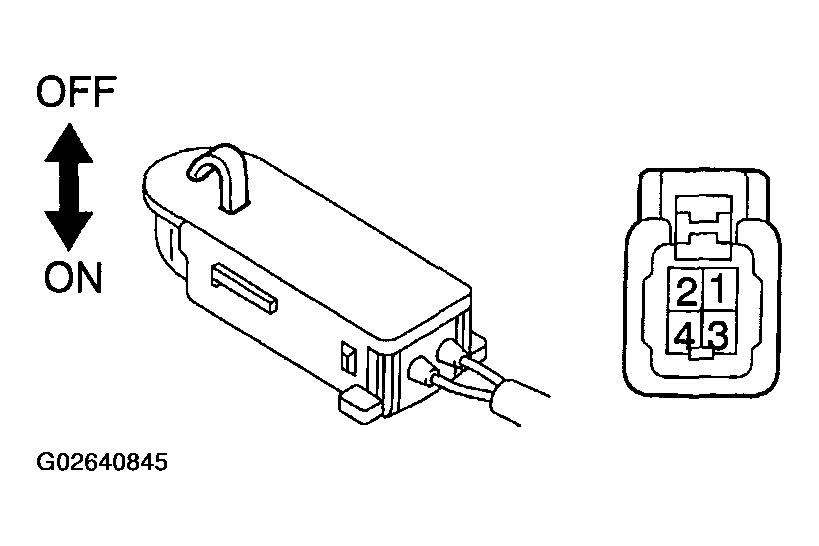

- INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY KEY UNLOCK WARNING SWITCH CONTINUITY
Switch Position Tester Connection Specified Condition OFF (Key removed) 1 - 2 No continuity ON (Key set) 1 - 2 Continuity If the continuity is not as specified, replace the switch.

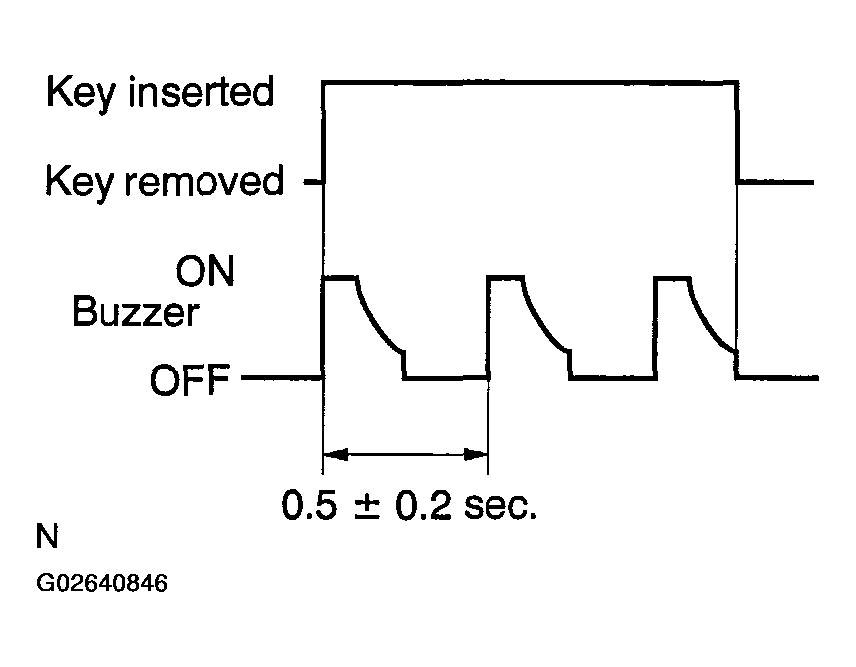

- INSPECT KEY UNLOCK WARNING BUZZER
Check the buzzer sound when the driver's door is opened and the key is inserted.
If operation is not as specified, replace the combination meter (See REMOVAL ).
