Body & Frame: Windows: Windshield: Components

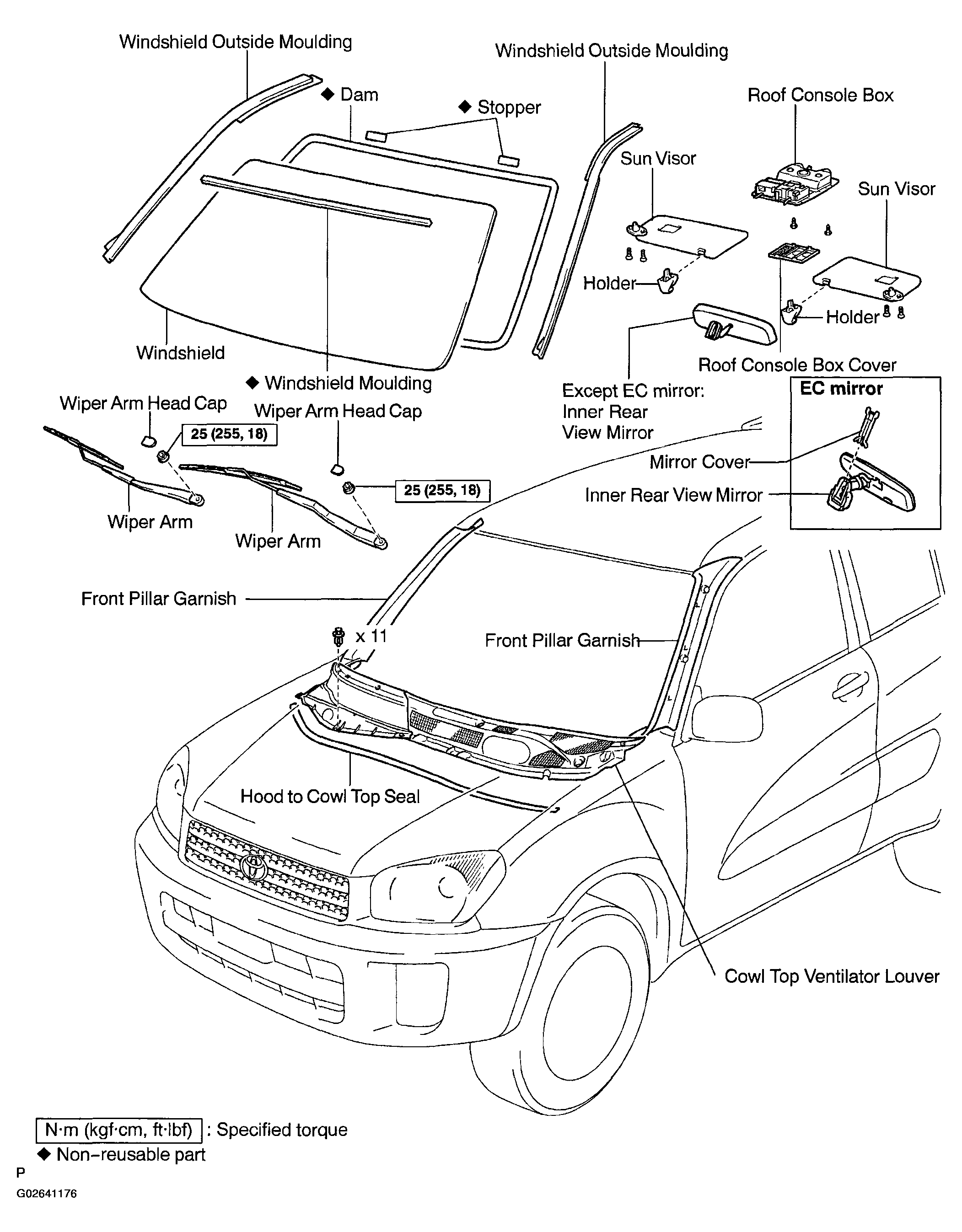

Fig 1: Windshield Replacement Components With Torque Specifications
G02641176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
