Recommended Tools

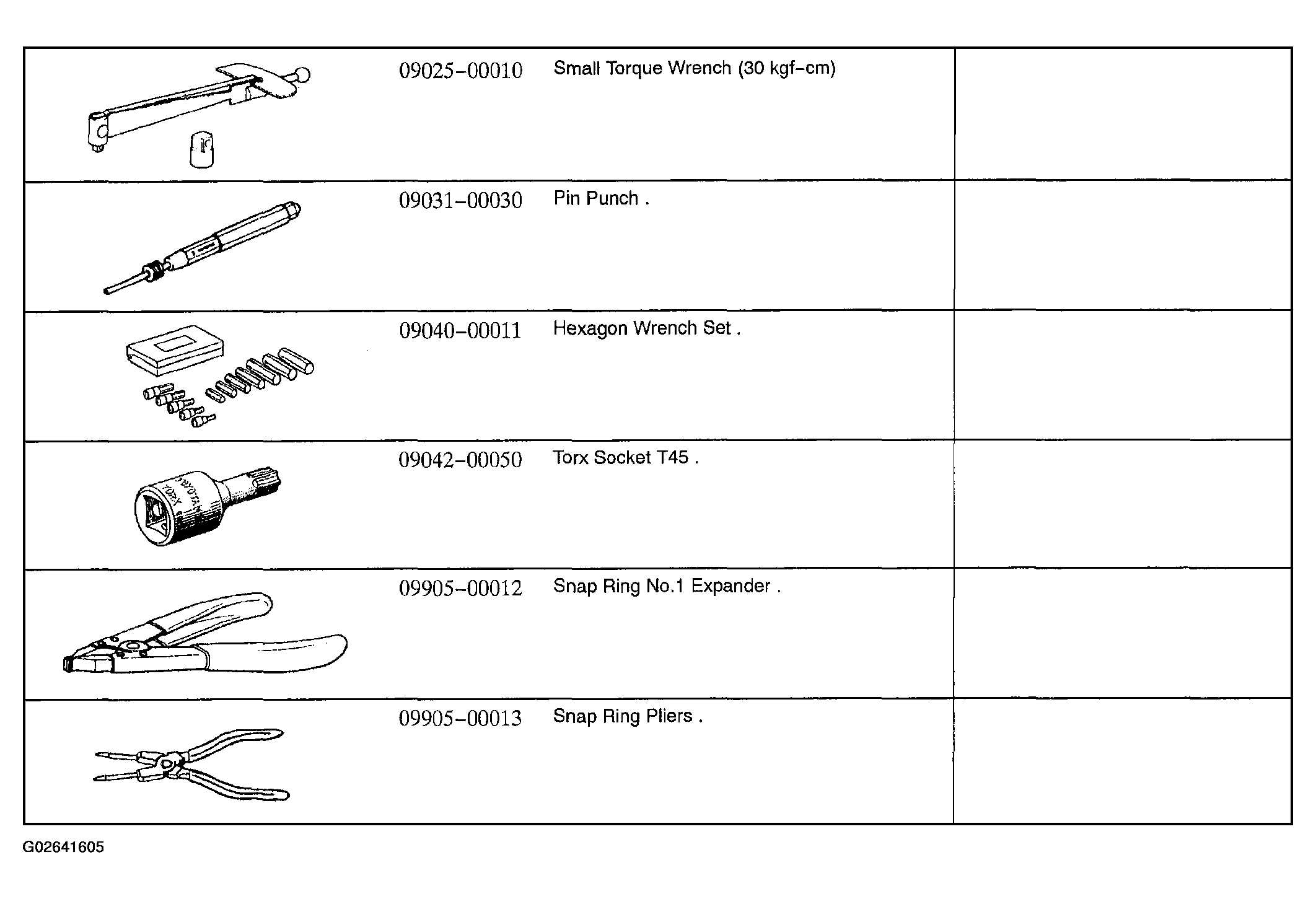

Fig 1: Identifying Recommended Tools
G02641605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc
