SFI System: Injector: Components

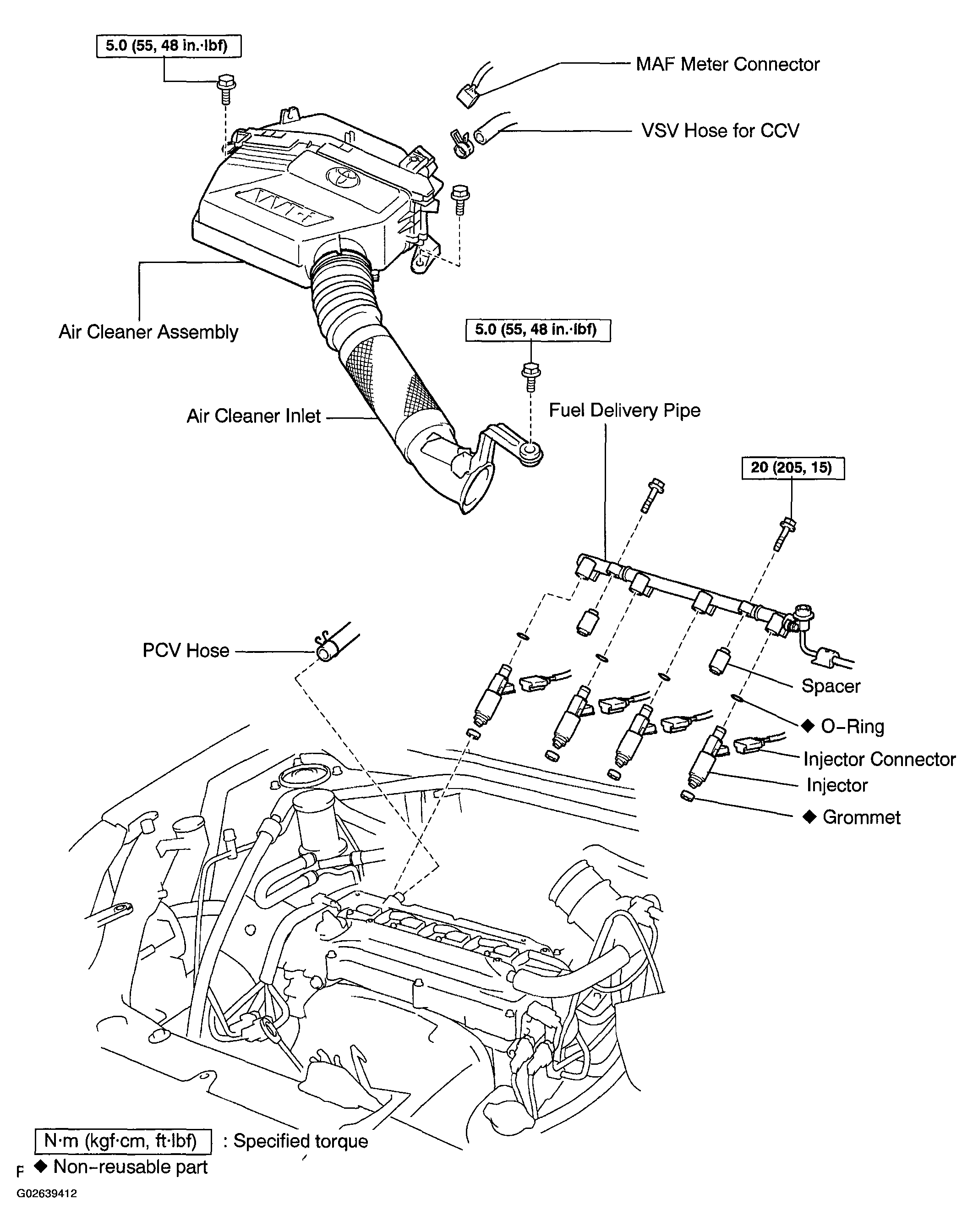

Fig 1: Injector Replacement Components With Torque Specifications
G02639412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
