Engine - Diagnostics: Registration

HINT:

The VIN is in the form of a 17-digit alphanumeric vehicle identification number. A hand-held tester is required to register the VIN.

1. DESCRIPTION

   This registration section consists of three parts, Input Instructions, Read VIN and Write VIN.

   1. Input Instructions: Explains the general VIN input instructions using a hand-held tester.
   2. Read VIN: Explains the VIN reading process in a flowchart. This process allows the VIN stored in the ECM to be read, in order to confirm that the two VINs, provided with the vehicle and stored in the vehicle's ECM, are the same.
   3. Write VIN: Explains the VIN writing process in a flowchart. This process allows the VIN to be input into the ECM. If the ECM is changed, or the VIN and VIN do not match, the VIN can be registered, or overwritten in the ECM by following this procedure.
2. INPUT INSTRUCTIONS
   1. Hand-held tester

      The arrow buttons (UP, DOWN, RIGHT and LEFT) and numerical buttons (0 to 9) are used, in order to input the VIN.

   2. Cursor Operation

      To move the cursor around the tester screen, press the RIGHT and LEFT buttons.

   3. Alphabetical Character Input
      1. Press the UP and DOWN buttons to select the desired alphabetical character.
      2. After selection, the cursor should move.
   4. Numeric Character Input
      1. Press the numerical button corresponding to the number that you want to input.
      2. Select or input the correct character using the UP/DOWN buttons, or the numerical buttons.

      HINT:

      Numerical characters can be selected by using the UP and DOWN buttons.

   5. Correction
      1. After input, the cursor should move.
      2. When correcting the input character(s), put the cursor onto the character using the RIGHT or LEFT buttons.
   6. Finishing Input Operation
      1. Make sure that the input VIN matches the vehicle VIN after input.
      2. Press the ENTER button on the tester.
3. READ VIN (Vehicle Identification Number)
   1. Read VIN using a hand-held tester.

   READ:

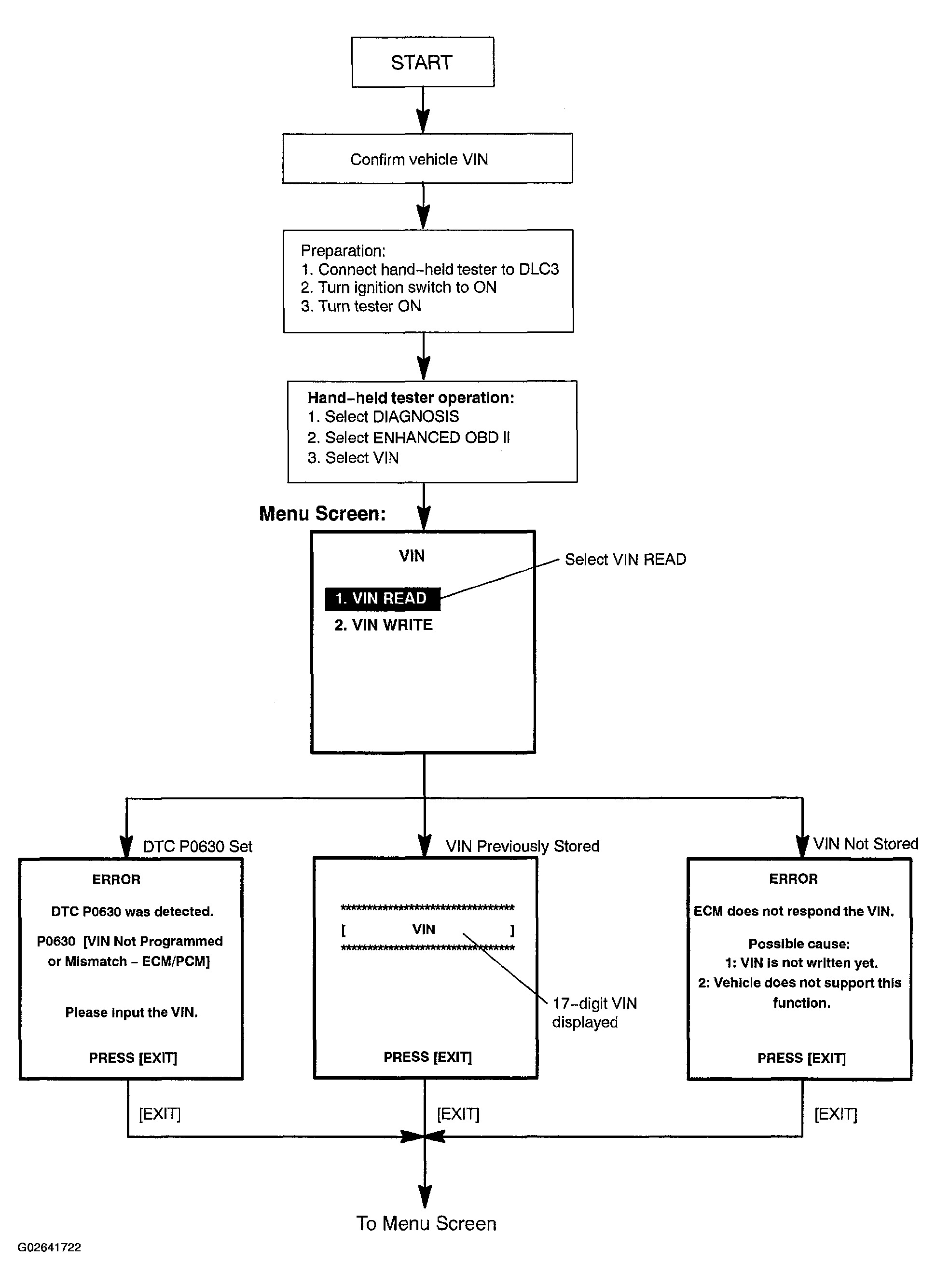

   Fig 1: Vehicle Identification Number Reading Flow Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. WRITE VIN
   1. Write VIN using the hand-held tester.

   Write:

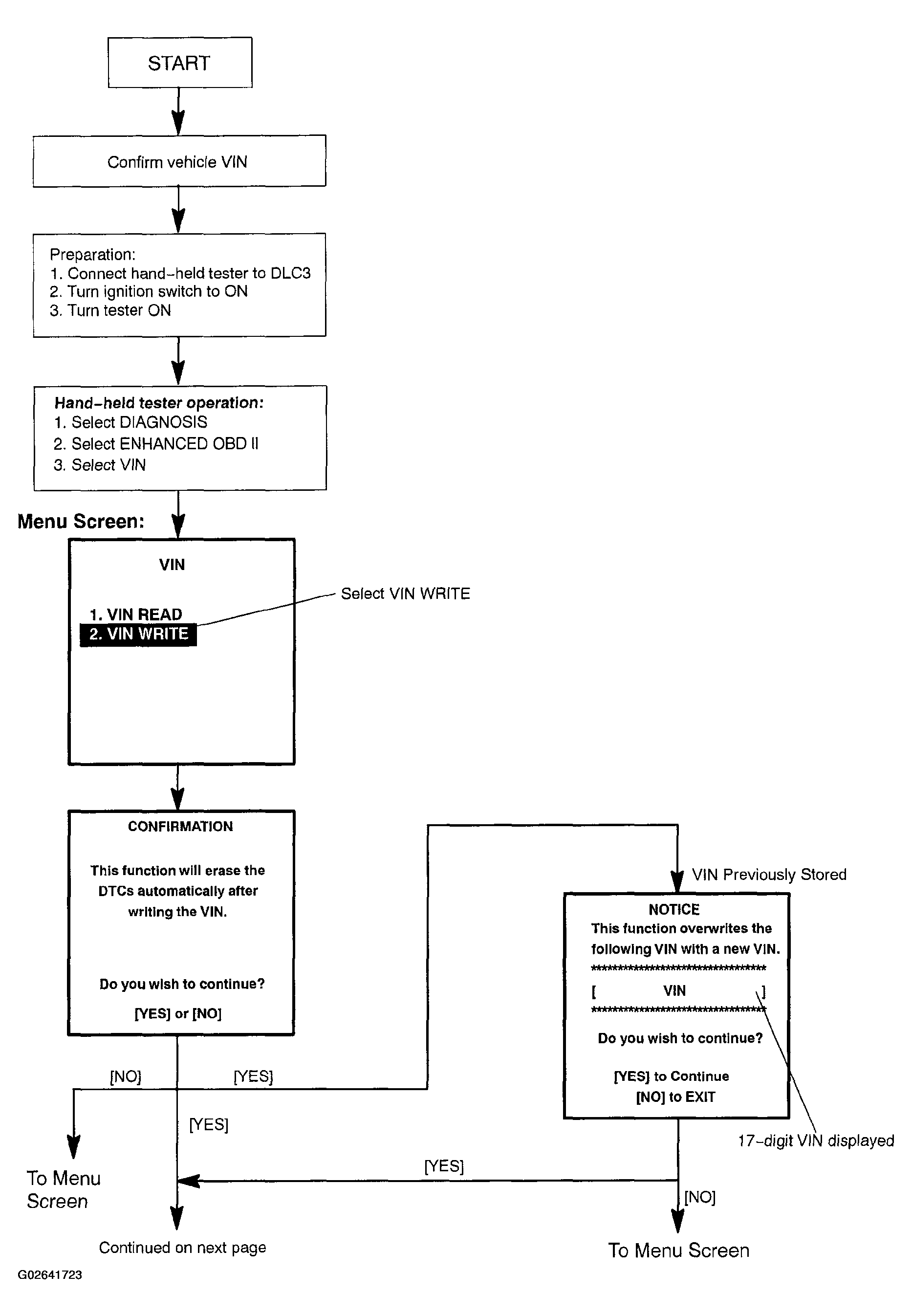

   Fig 2: Vehicle Identification Number Writing Flow Chart (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

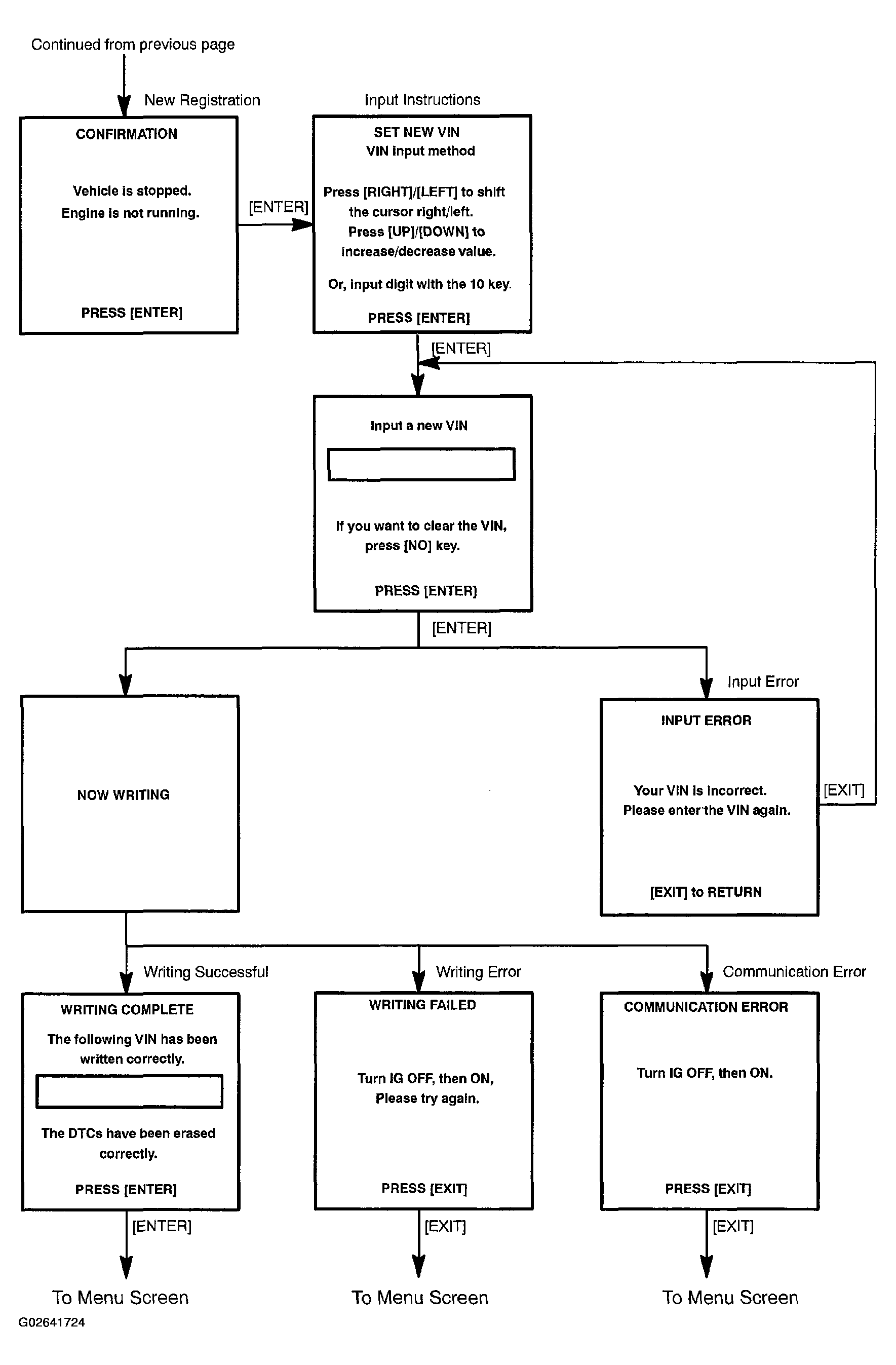

   Fig 3: Vehicle Identification Number Writing Flow Chart (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
