Terminals Of ECM

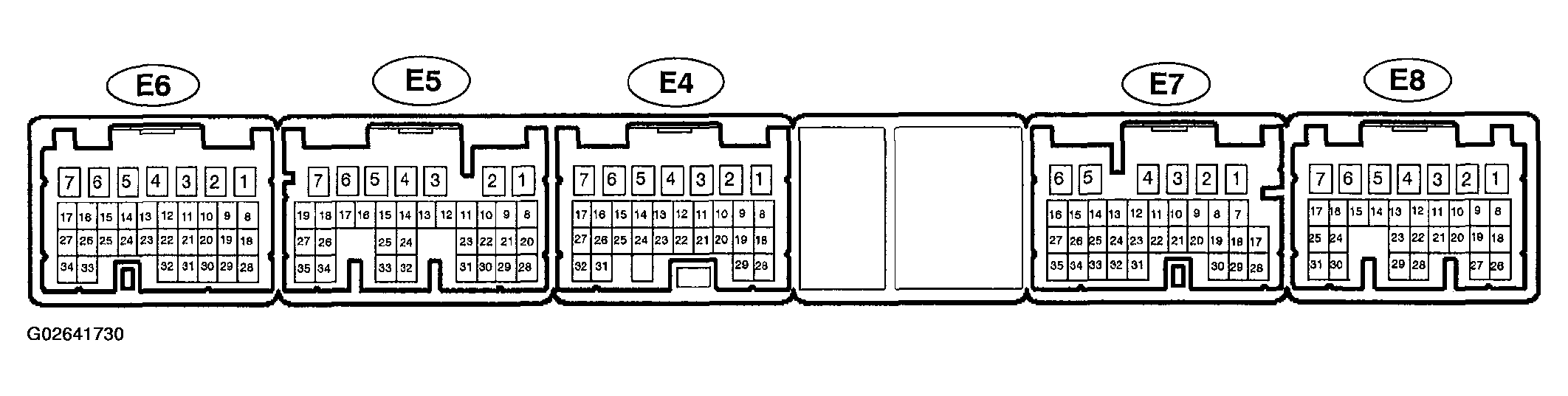

Fig 1: Identifying ECM Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each ECM terminal's standard voltage are shown in the following charts below.

In the table, first follow the information under "Condition". Next look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specified Condition". Use the illustration above as a reference for the ECM terminals. (See Fig 1)

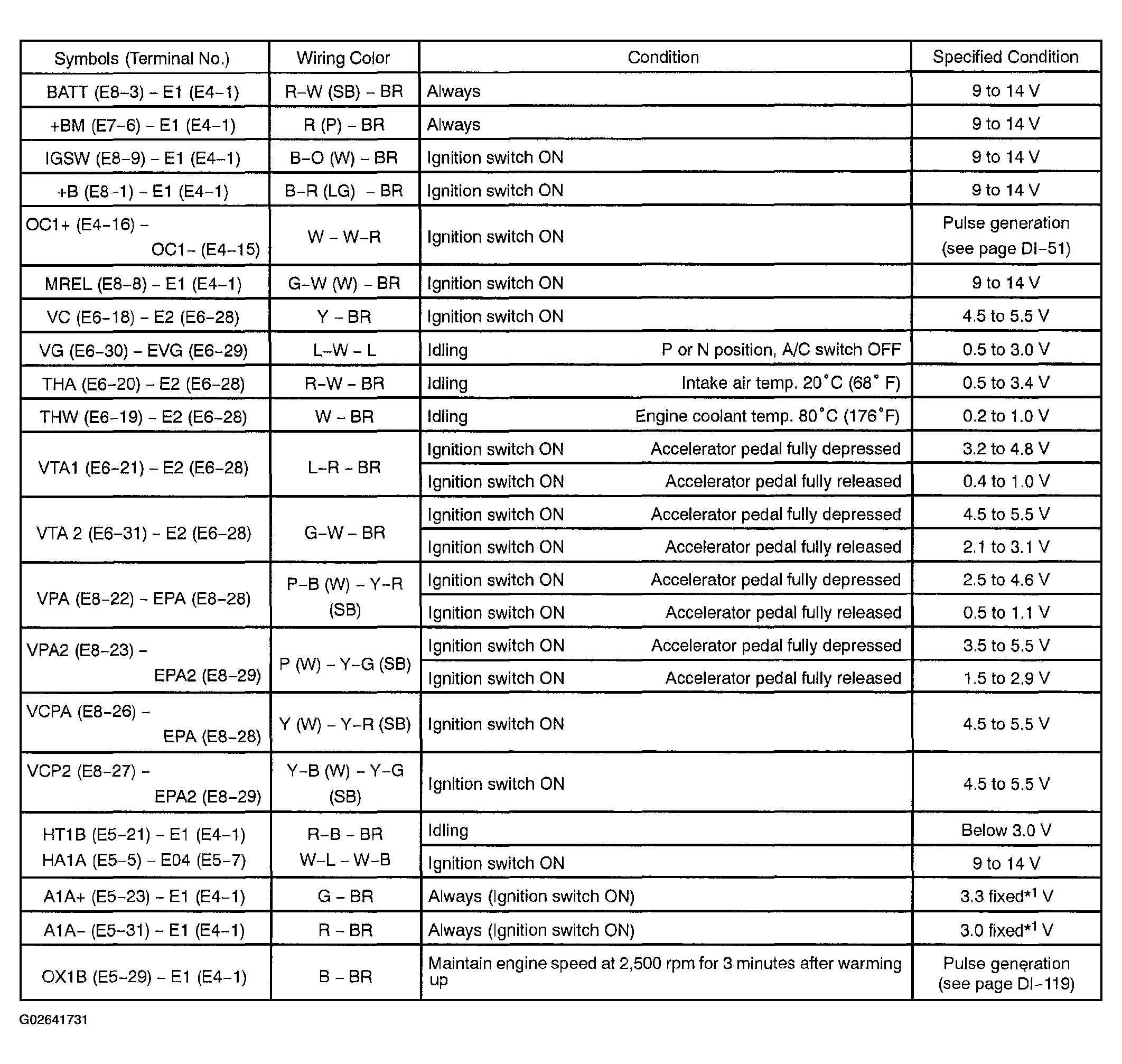

Fig 2: ECM Terminals Voltage Chart (1 Of 2)

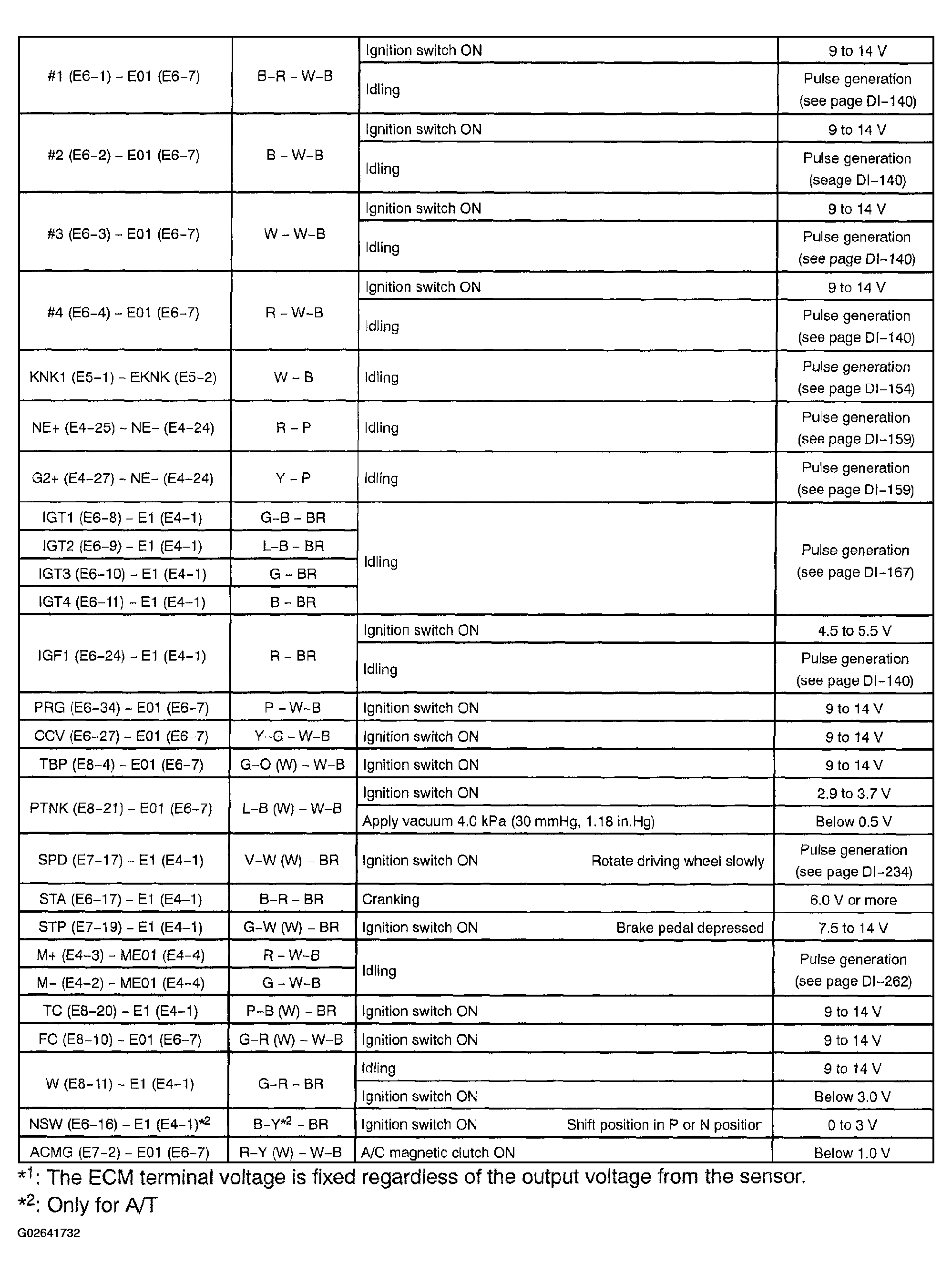

Fig 3: ECM Terminals Voltage Chart (2 Of 2)
