Vehicle Identification And Engine Serial Number

  1. VEHICLE IDENTIFICATION NUMBER

    The vehicle indentification number is stamped in the following 2 places:

    A: Engine compartment (Vehicle Identification Number)

    B: Certification Label

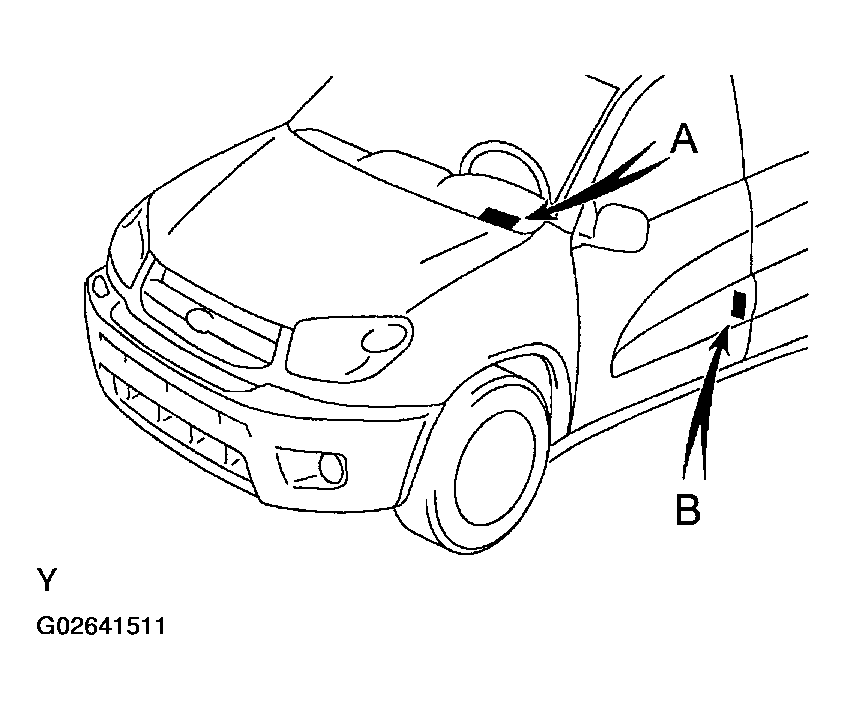

    Fig 1: Identifying Vehicle Identification Number (VIN)
    G02641511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER

    The engine serial number is stamped on the engine block, as shown.

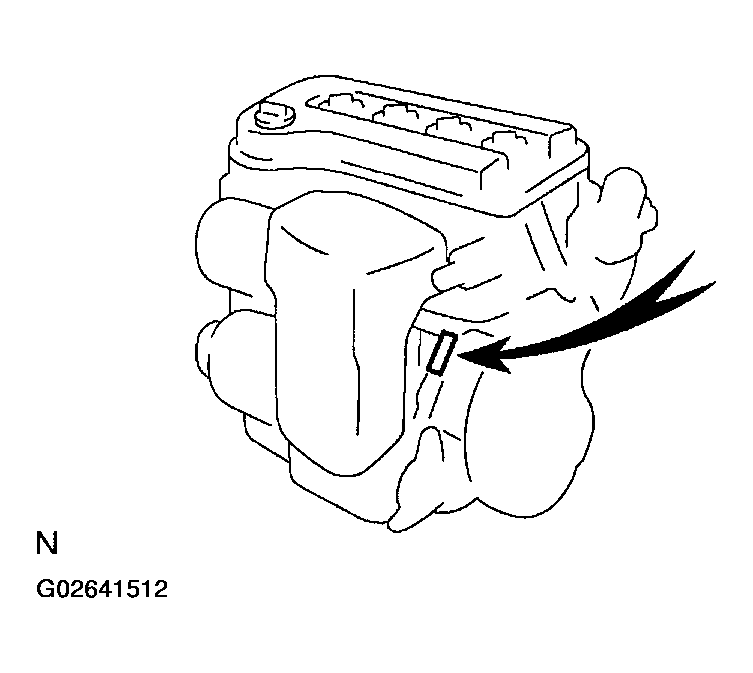

    Fig 2: Identifying Engine Serial Number
    G02641512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
