Parts Location

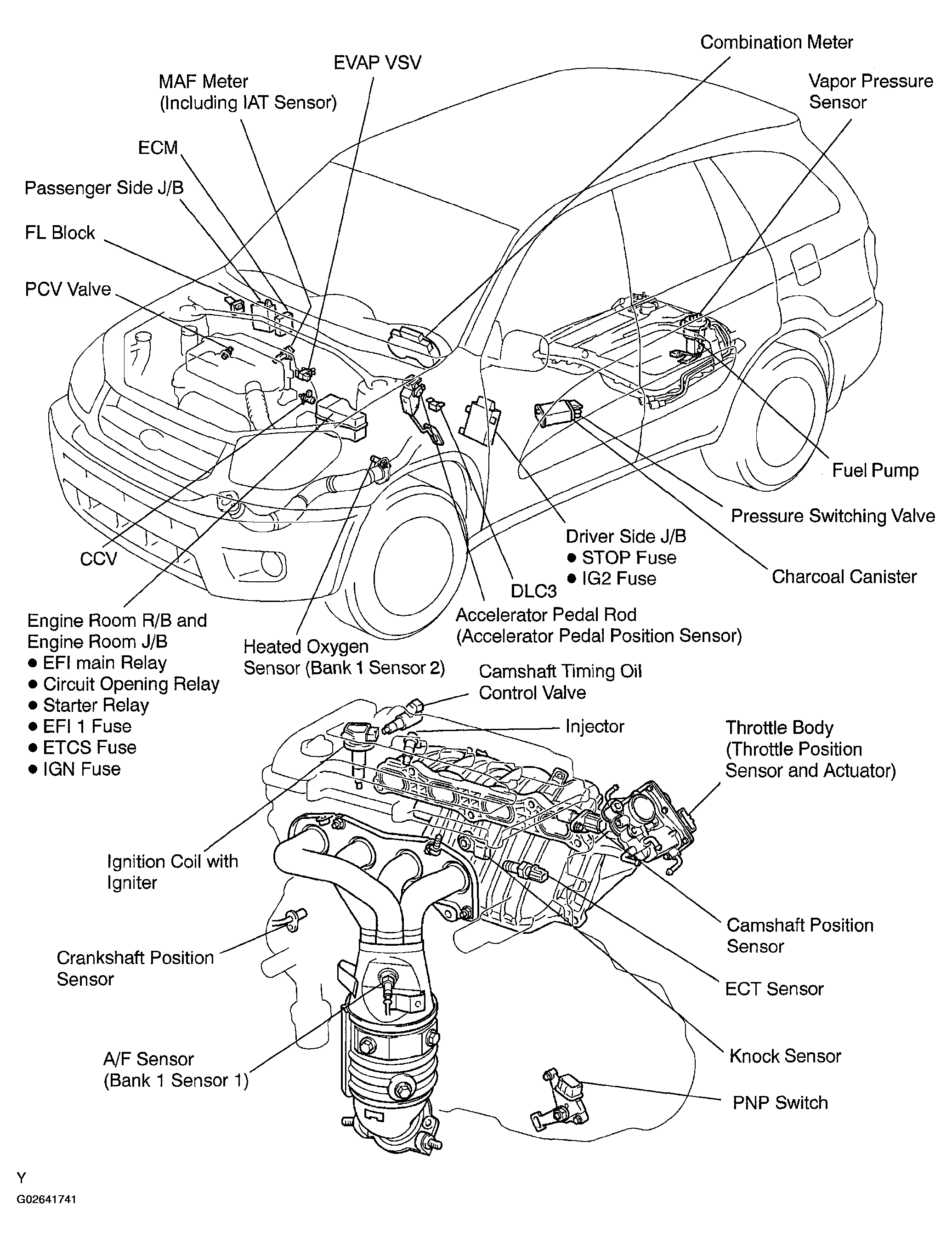

Fig 1: Identifying Location Of Engine Management Electrical Components
G02641741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
