Accelerator Pedal Rod ASSY: Replacement

  1. REMOVE ACCELERATOR PEDAL ROD ASSY
    1. Disconnect the accelerator position sensor connector.
    2. Remove the 2 bolts and the accelerator pedal rod.

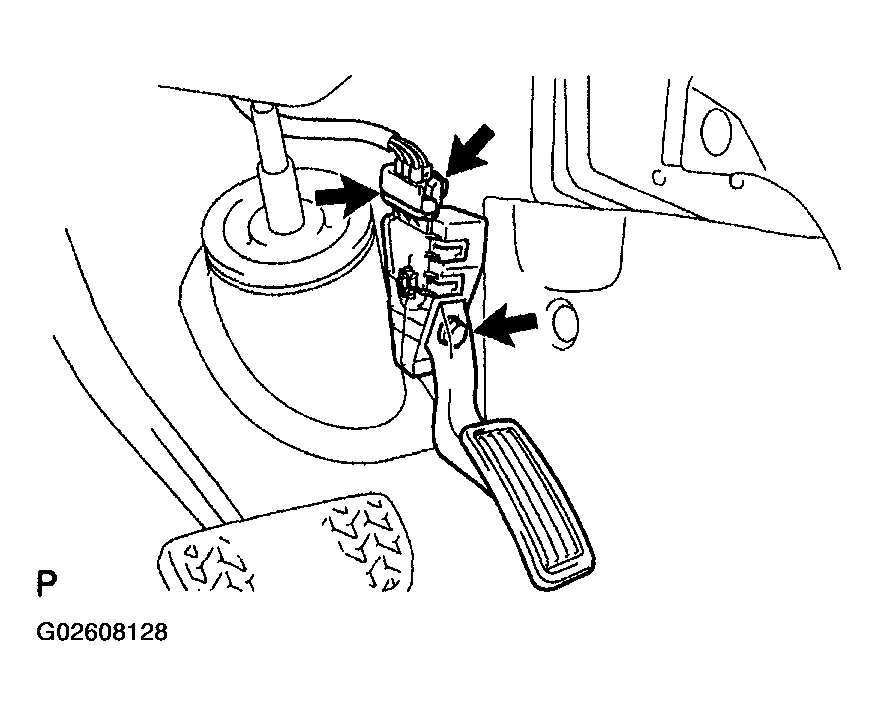

    Fig 1: Removing Accelerator Pedal Rod Assy
    G02608128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ACCELERATOR PEDAL ROD ASSY

    Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
