Crankshaft Position Sensor: Replacement

1. Using a clip remover, remove the clip.
2. Remove the 2 bolts and the front fender apron seal.

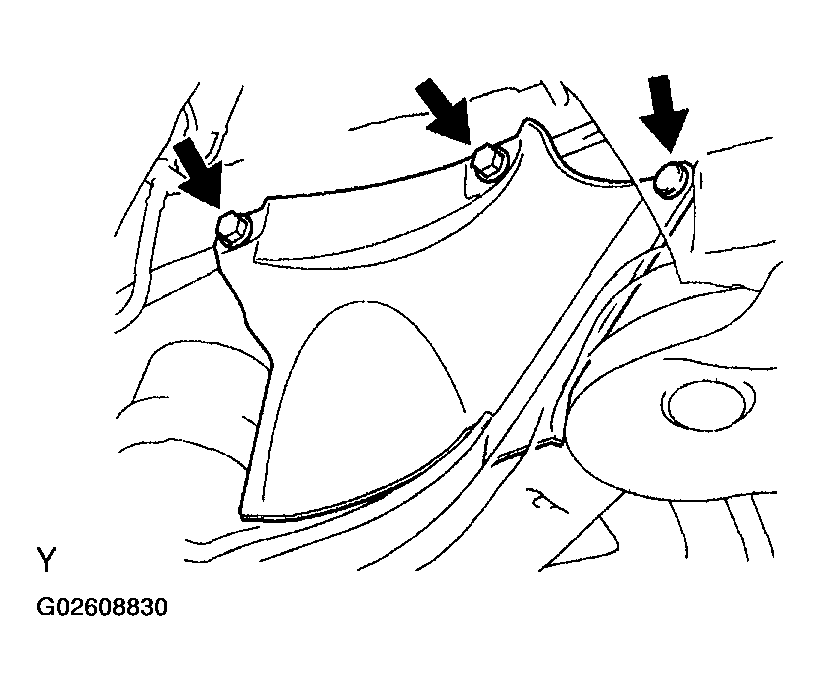

Fig 1: Removing Front Fender Apron Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the crankshaft position sensor connector.
2. Remove the bolt and the crankshaft position sensor.

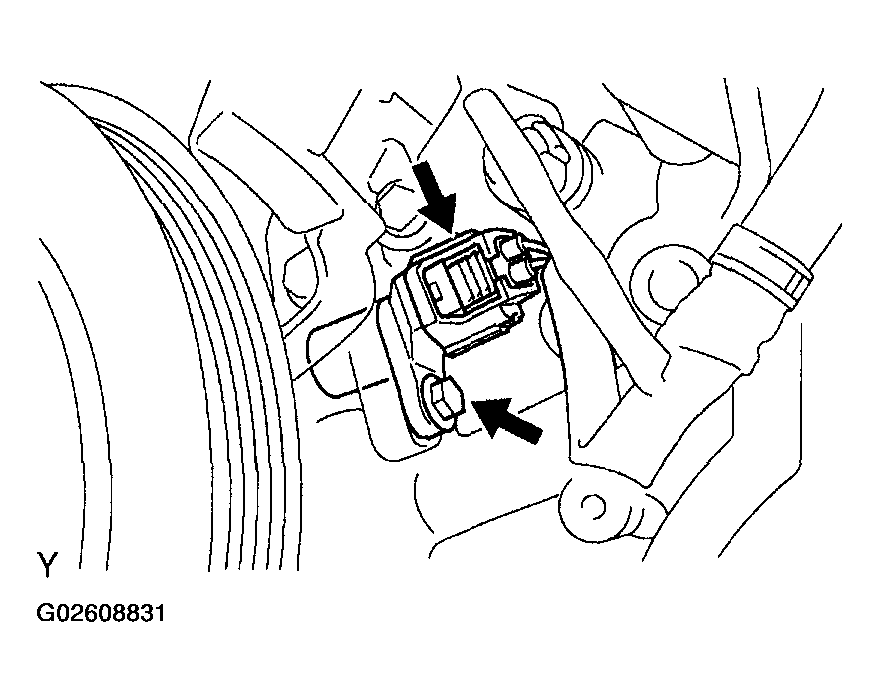

Fig 2: Removing Crankshaft Position Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 8.0 N.m (80 kgf.cm, 71 in..lbf)
