Camshaft Timing Oil Control Valve Assembly: Inspection
- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
- Using an ohmmeter, measure the resistance between the terminals.

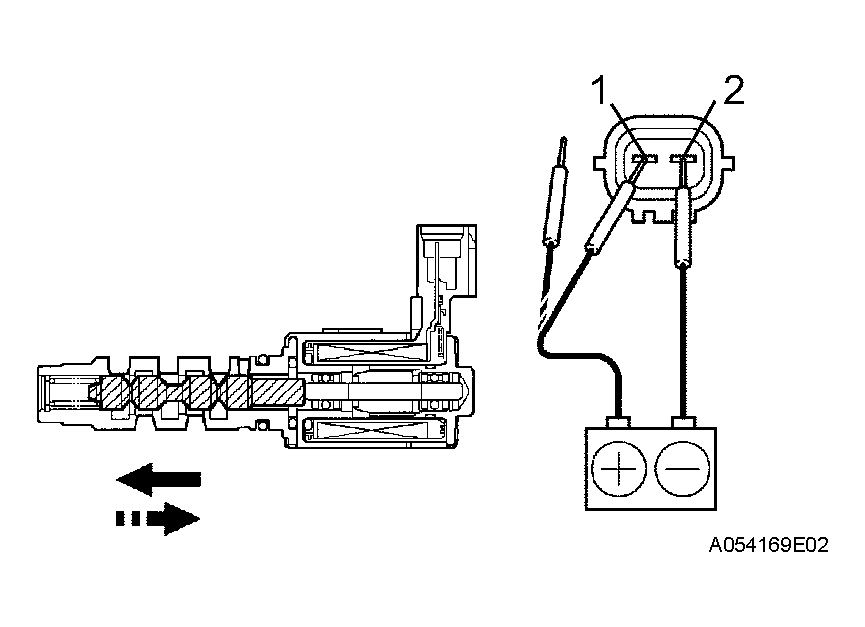

- Connect the battery's positive (+) lead to terminal 1 and negative (-) lead to terminal 2. Check the movement of the valve.
OK:
CONDITION RESULTCondition Result Battery positive voltage is applied Valve moves in left arrow direction shown in Fig 1 Battery positive voltage is cut off Valve moves in right arrow direction shown in Fig 1 If operation is not as specified, replace the valve.
