Crankshaft Position Sensor: Inspection

INSPECT CRANKSHAFT POSITION SENSOR
1. Using an ohmmeter, measure the resistance between the terminals.
  Resistance:

  1,630 to 2,740 at cold

  2,065 to 3,225 at hot

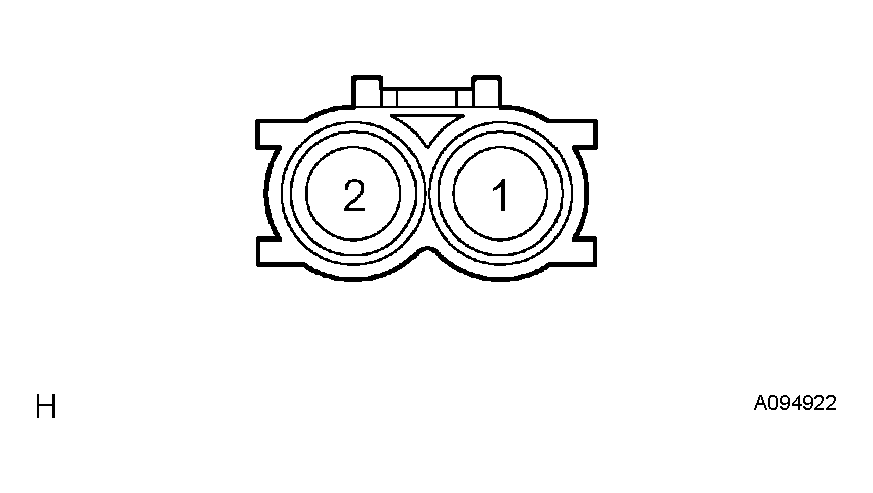

  Fig 1: Identifying Crankshaft Position Sensor Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
