Crankshaft Position Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FAN AND GENERATOR V BELT (See  REMOVAL  )
  3. REMOVE GENERATOR ASSEMBLY (See  REMOVAL  )
  4. DISCONNECT COOLER COMPRESSOR ASSEMBLY (See  REMOVAL  )
  5. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.

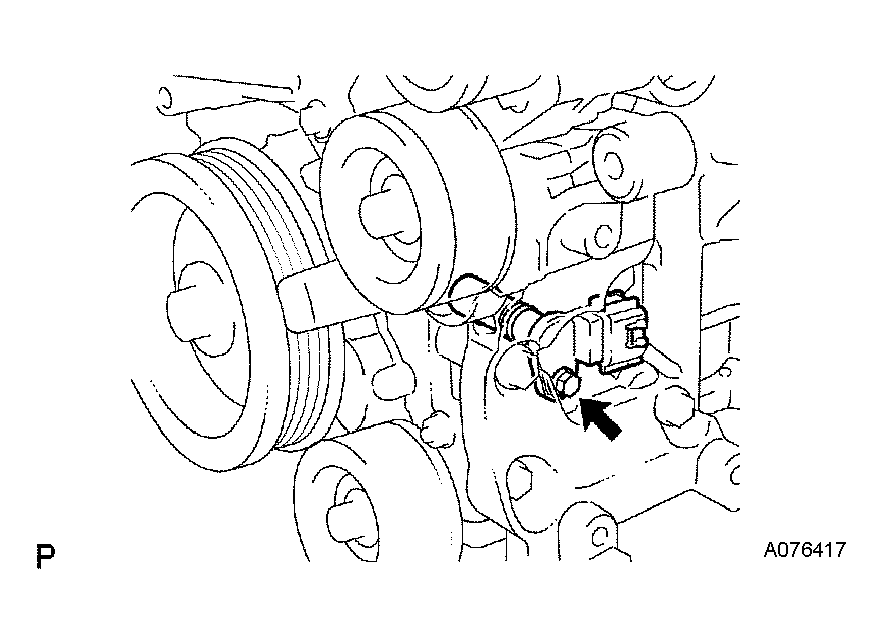

      Fig 1: Removing Crankshaft Position Sensor
      G04375240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
