Engine Control System: ECM: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT DOOR SCUFF PLATE RH (See  REMOVAL  )
  3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (See  REMOVAL  )
  4. REMOVE INSTRUMENT PANEL UNDER COVER SUBASSEMBLY NO.2 (See  REMOVAL  )
  5. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH (See  REMOVAL  )
  6. REMOVE ECM
    1. Disconnect the 5 connectors from the ECM.
    2. Remove the 2 nuts, bolt and ECM.
    3. Remove the 2 screws to separate the ECM bracket from the ECM.
    4. Remove the 2 screws to separate the ECM bracket No. 2 from the ECM.

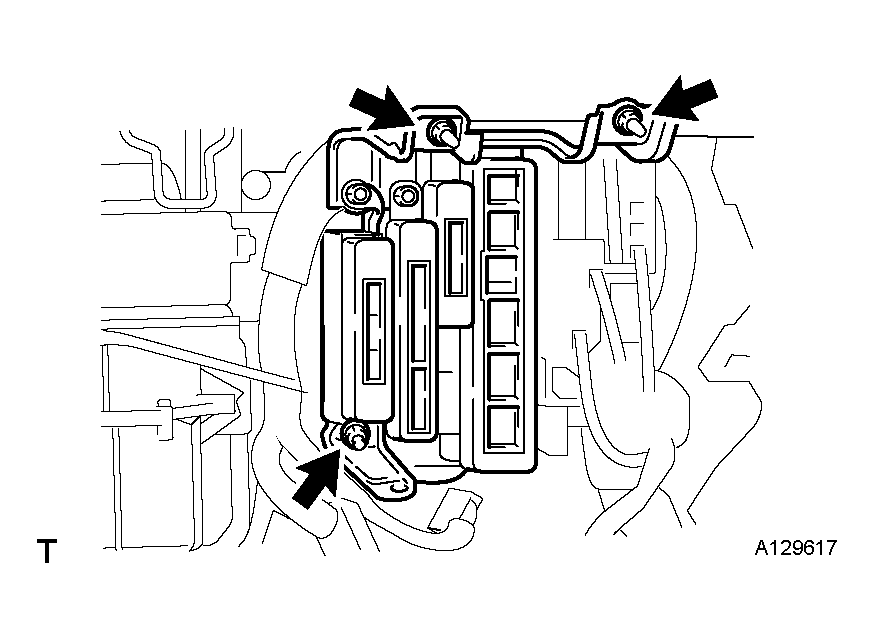

      Fig 1: Removing ECM
      G04375263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
