Active Control Engine Mount System: Wiring Diagram

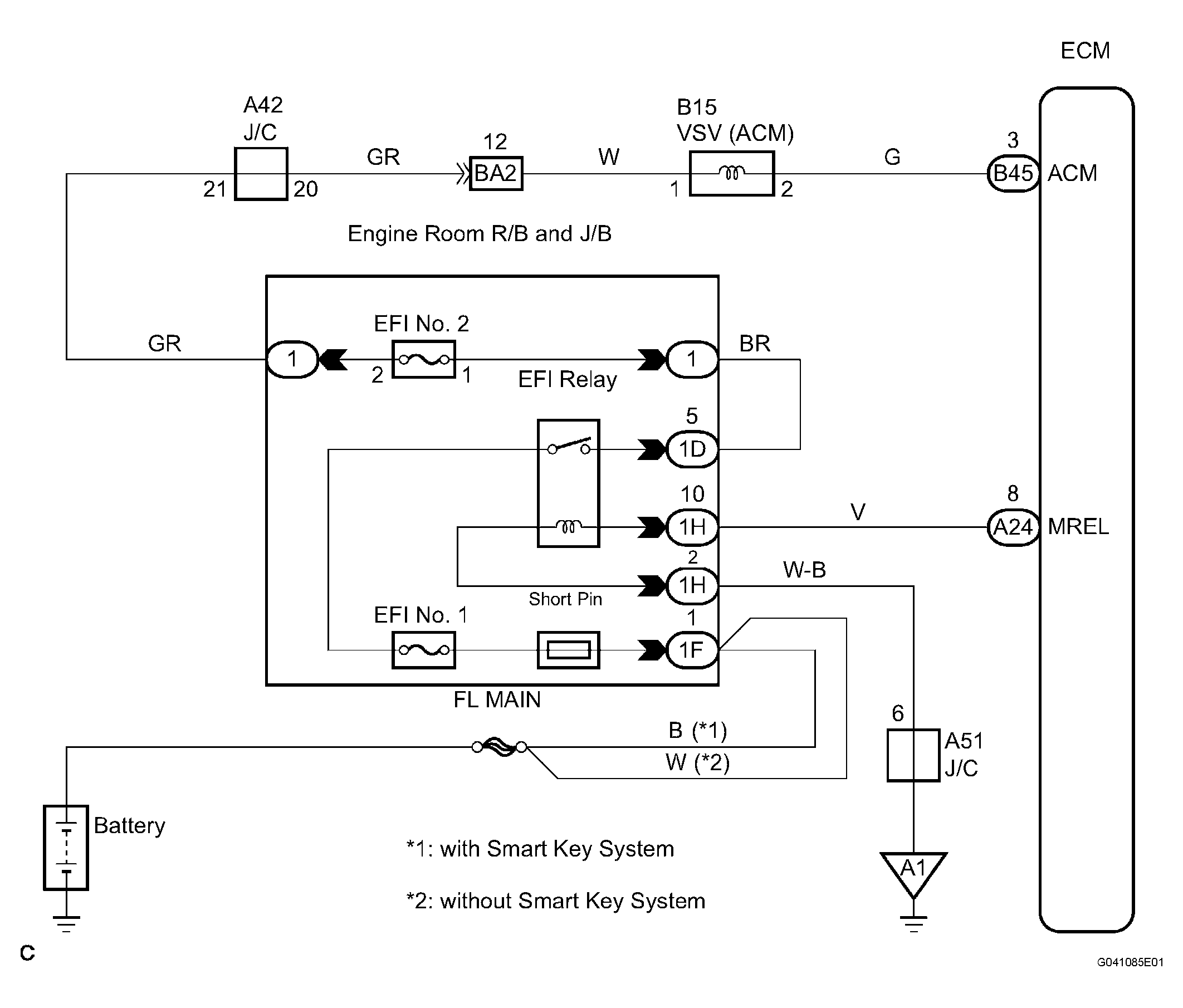

Fig 1: Active Control Engine Mount System Wiring Diagram
G04375162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
