Air Intake Control Circuit: Wiring Diagram

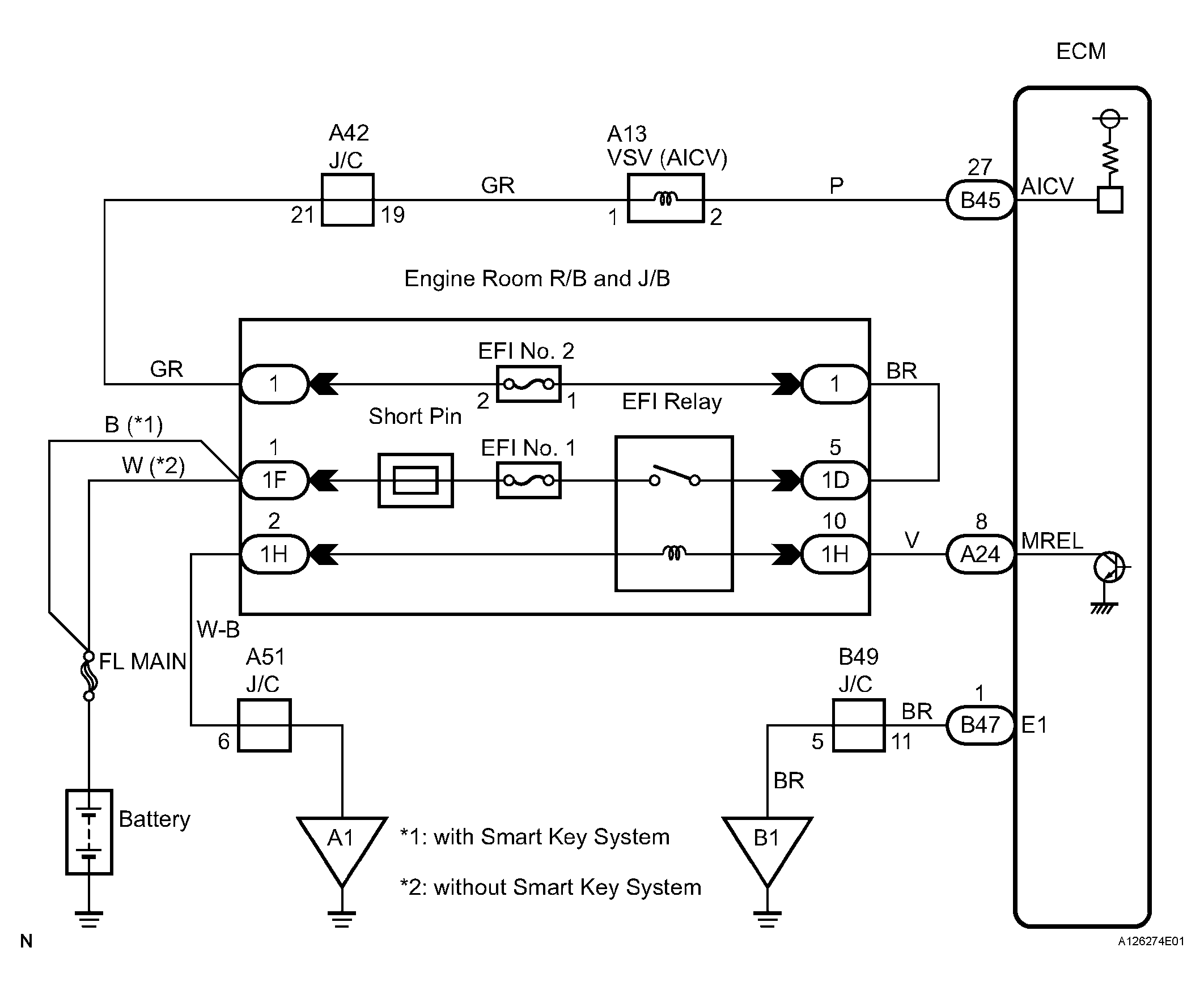

Fig 1: Air Intake Control Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
