System Diagram

Without Smart Key System:

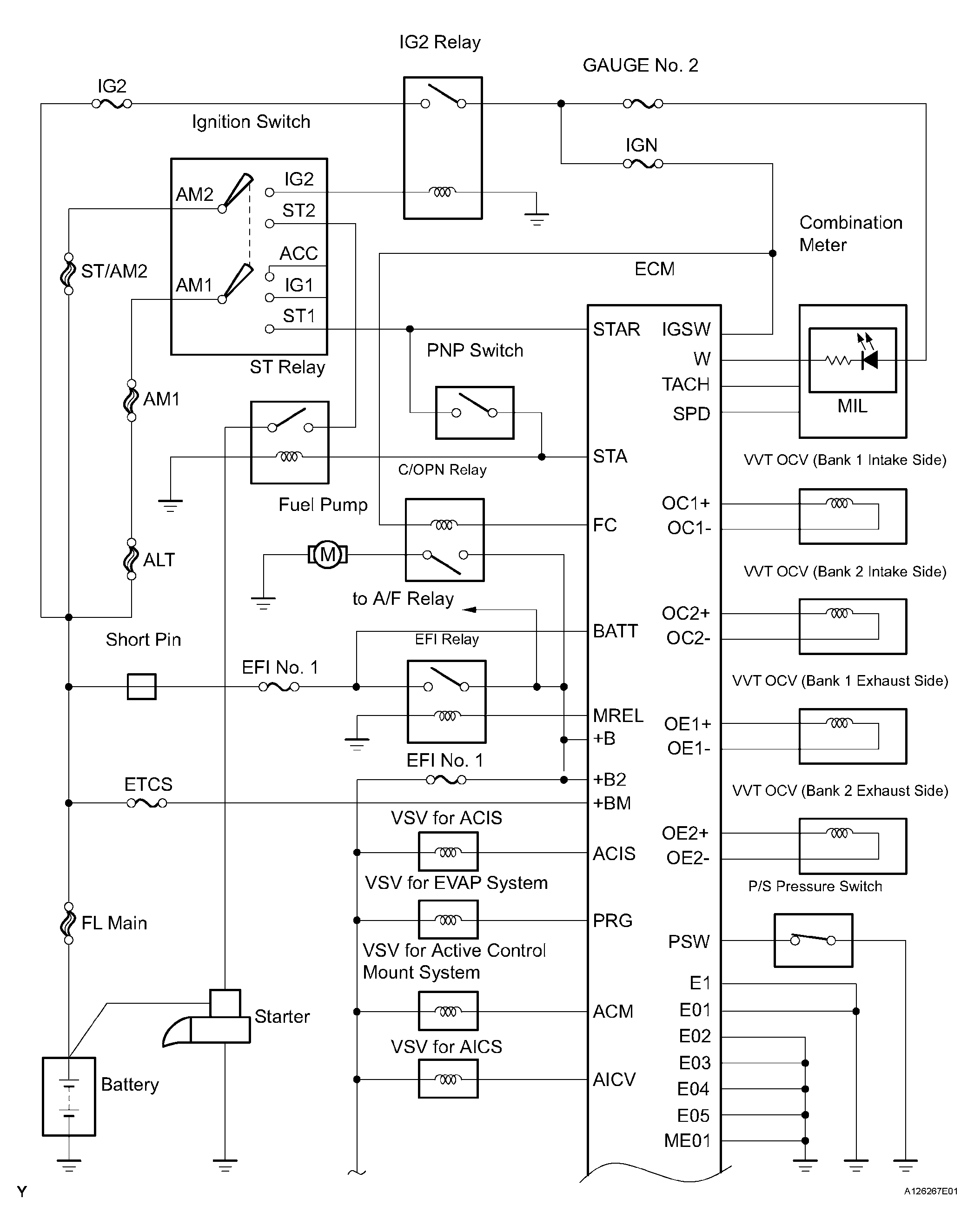

Fig 1: Without Smart Key System - SFI System Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

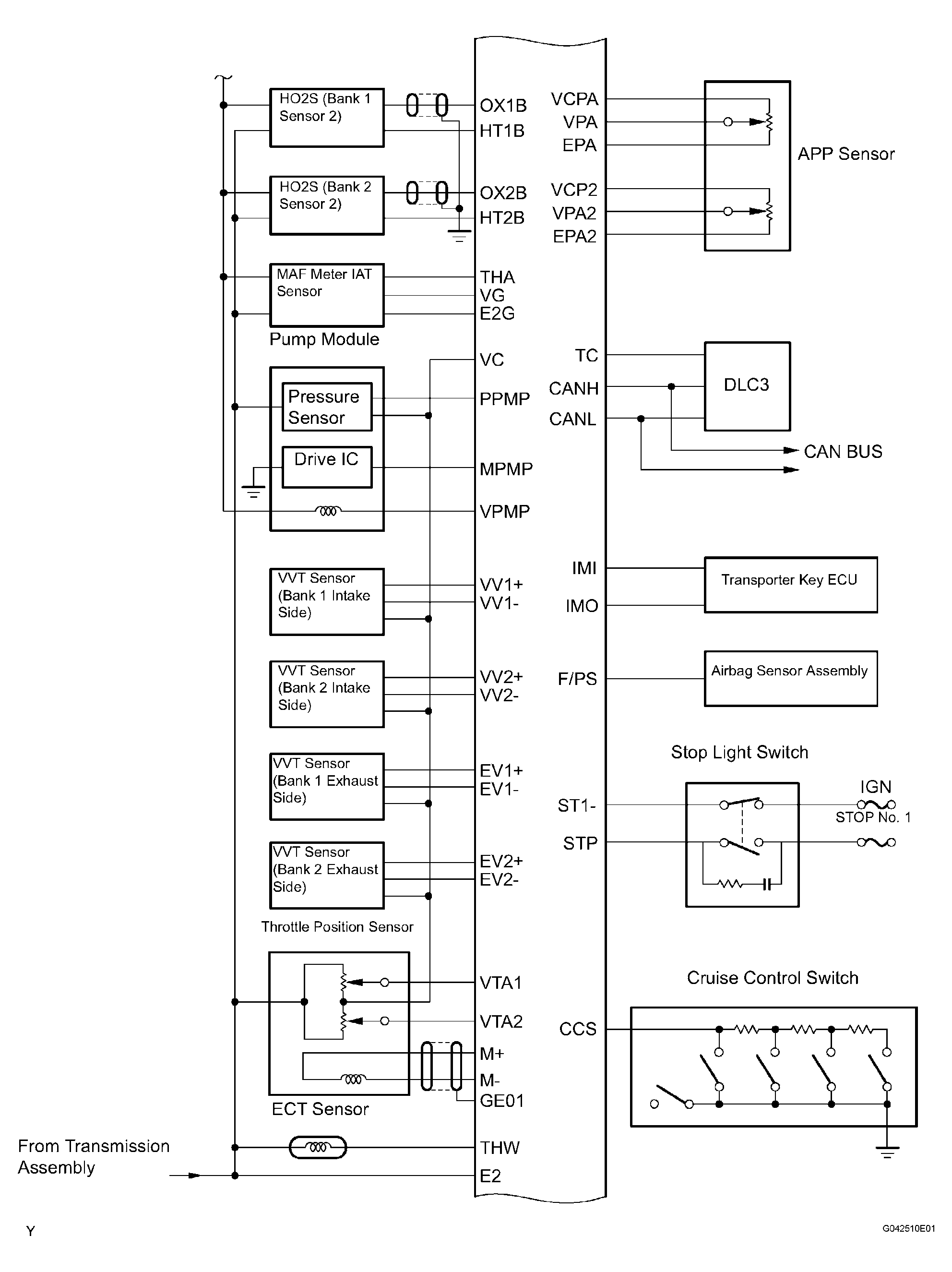

Fig 2: Without Smart Key System - SFI System Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

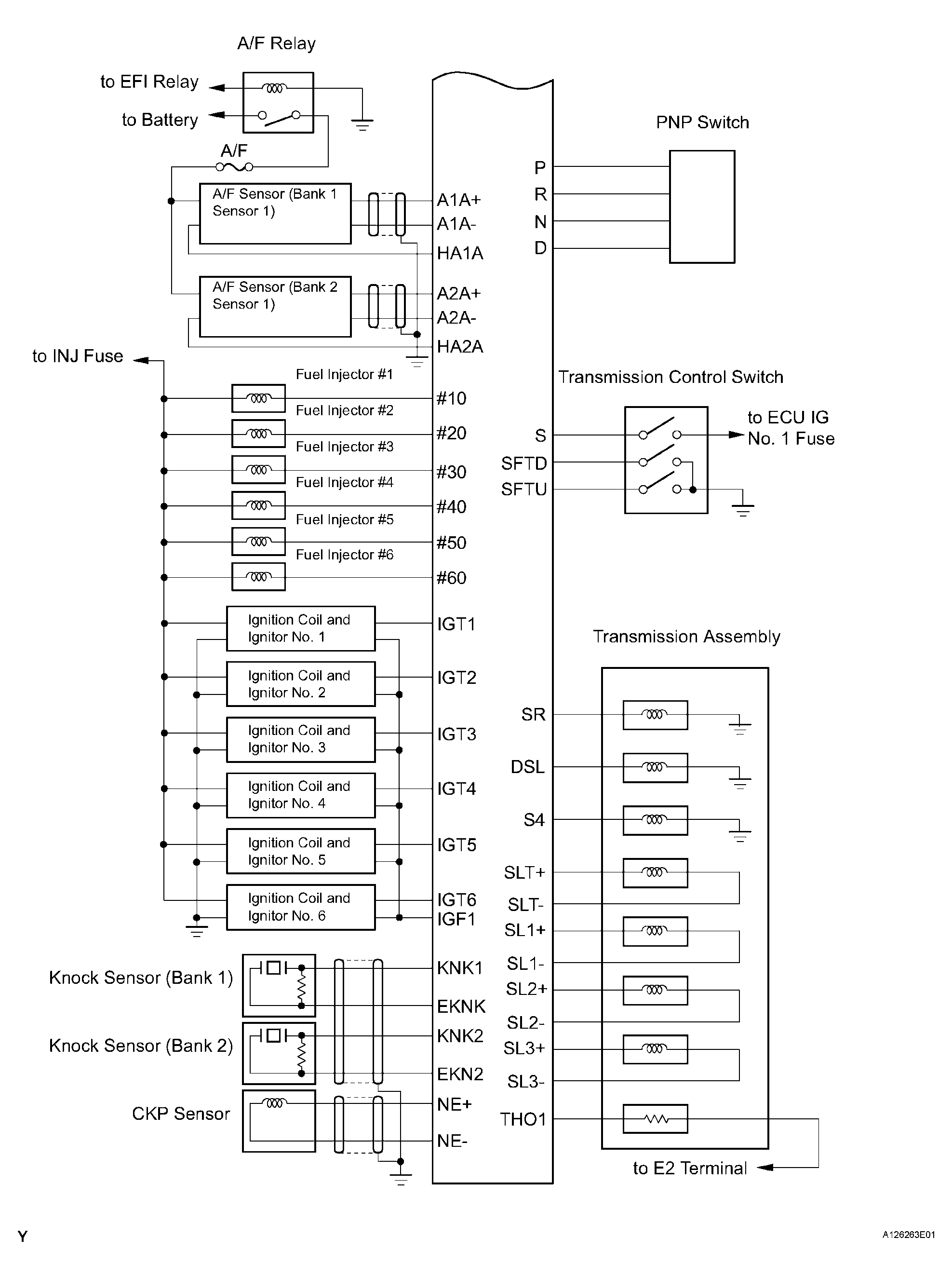

Fig 3: Without Smart Key System - SFI System Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
With Smart Key System:

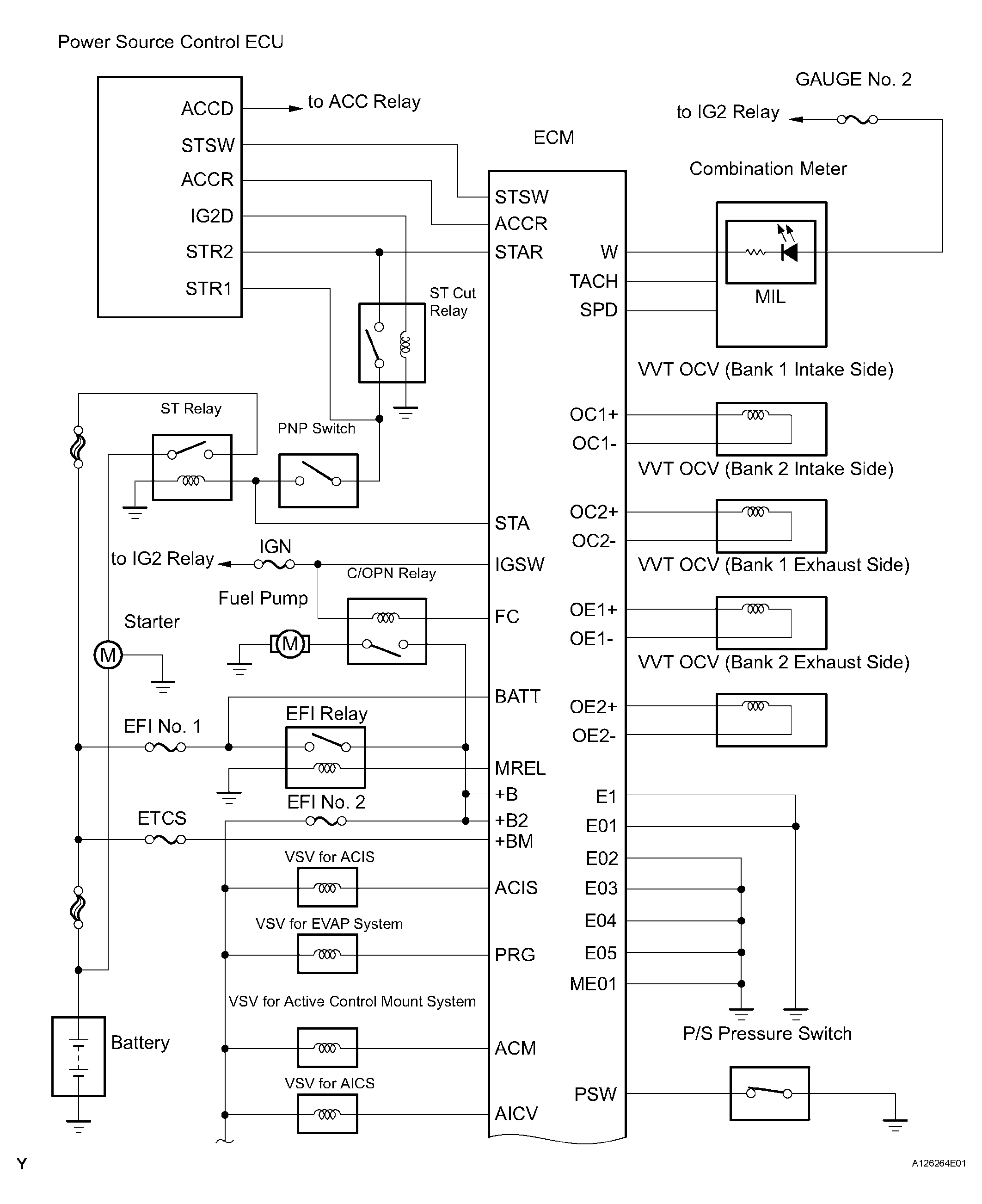

Fig 4: With Smart Key System - SFI System Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

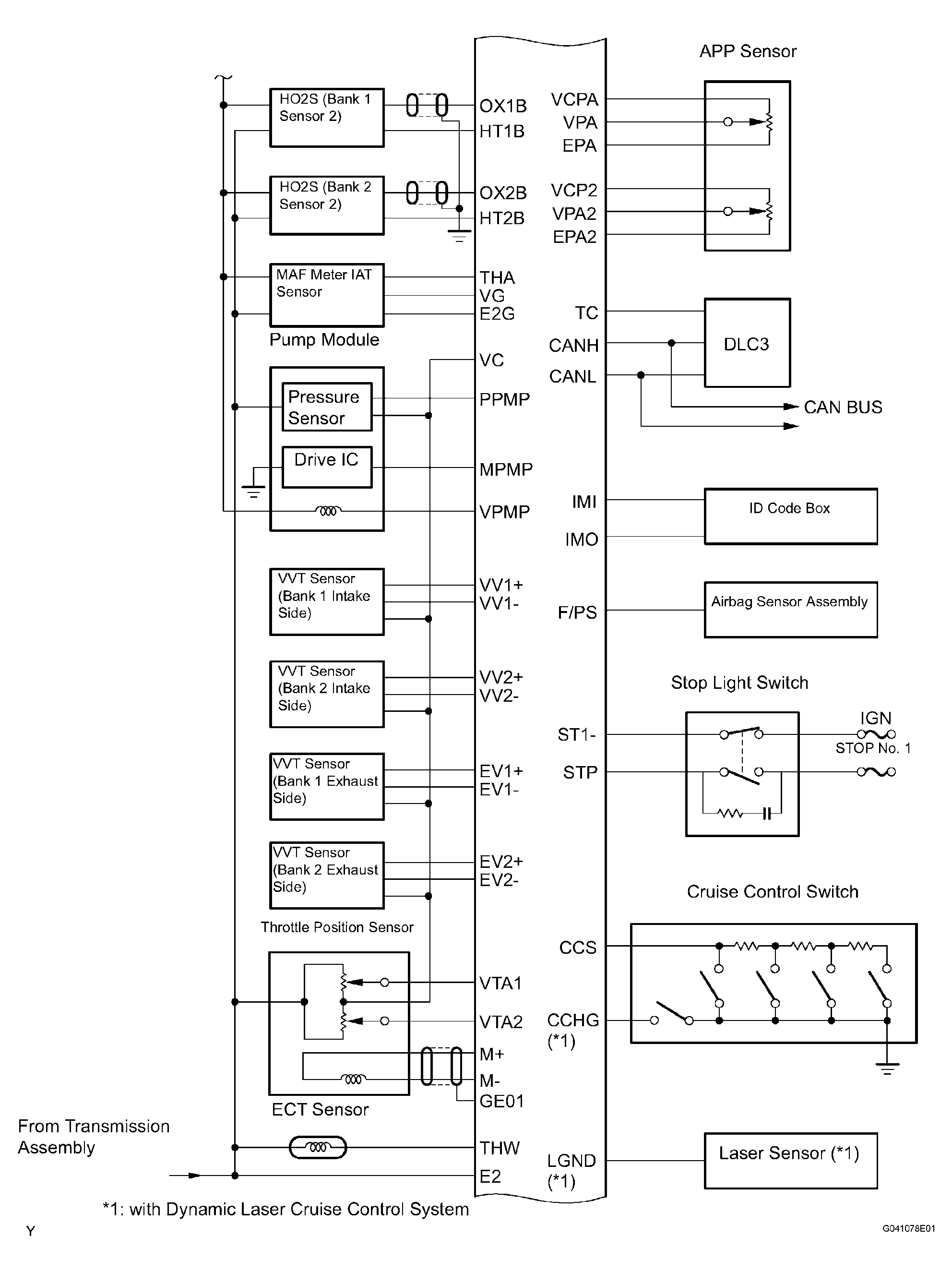

Fig 5: With Smart Key System - SFI System Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

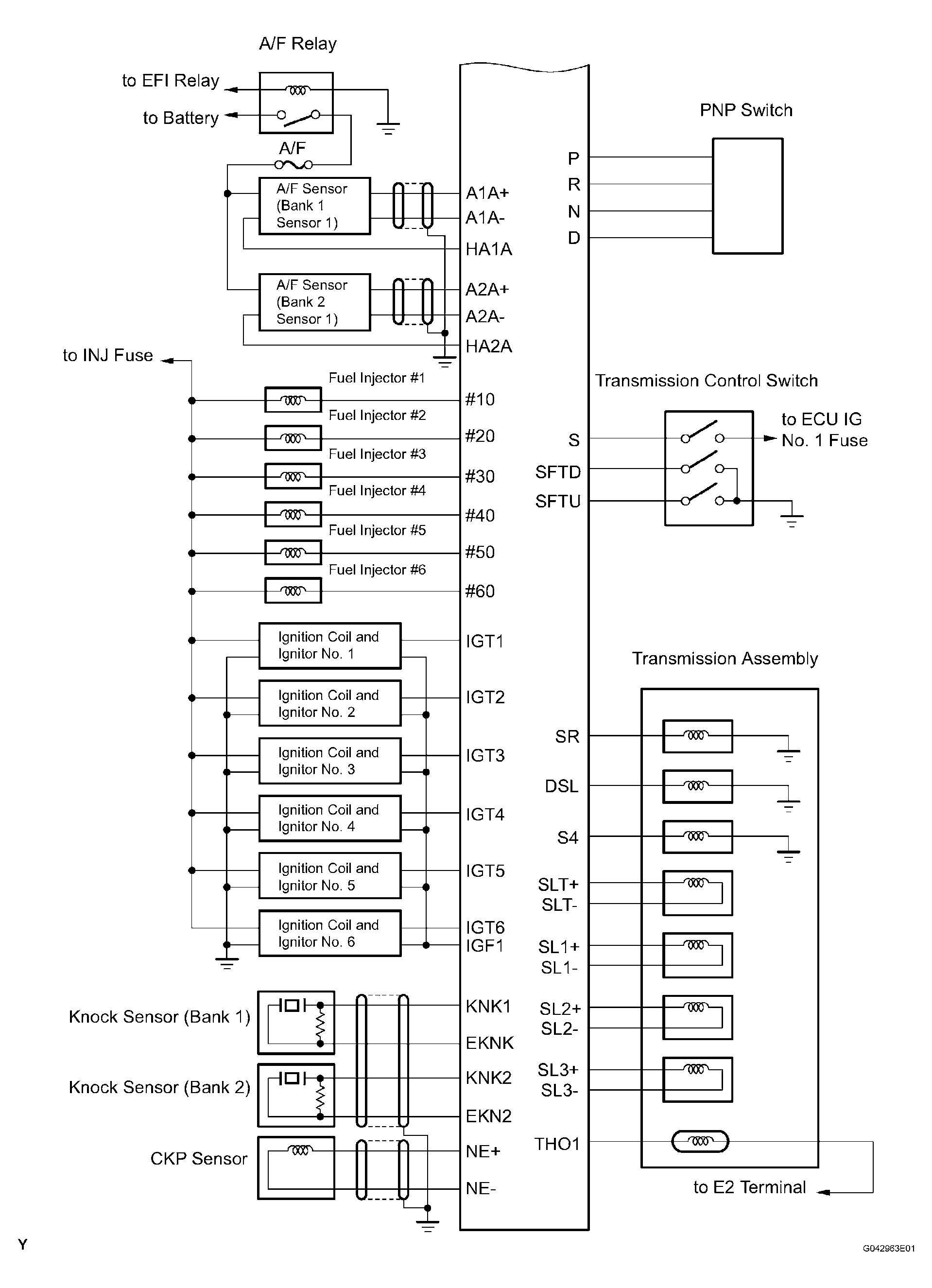

Fig 6: With Smart Key System - SFI System Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION WITH OTHER COMPUTERS

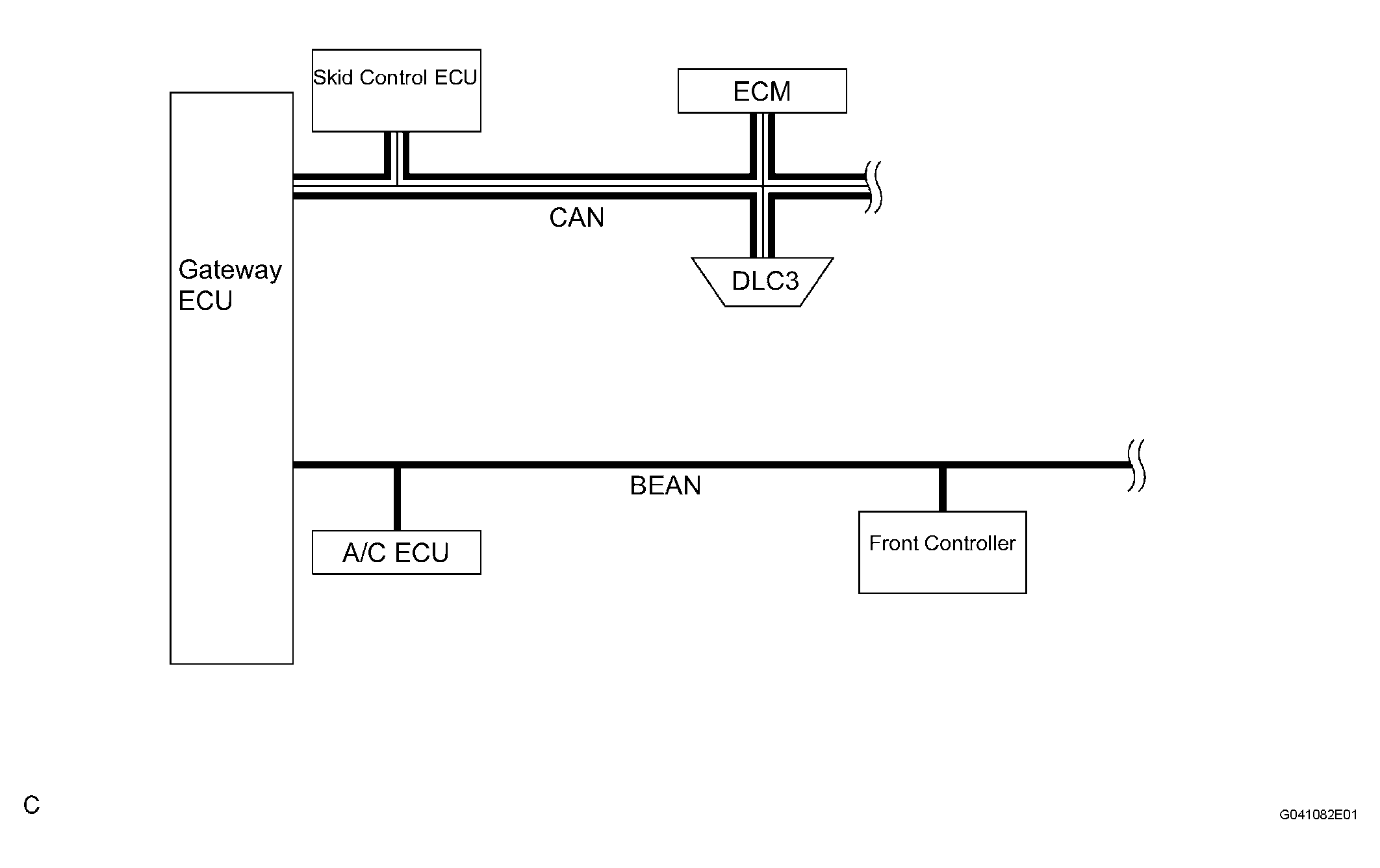

Fig 7: Communication With Other Computers Flow Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATIONS

The ECM communicates with the following ECU using the signals listed below. The following table explains receiving and sending signals by the ECM or ECU.

COMMUNICATION LINE REFERENCE

Transmitter	Receiver	Signal	Communication Line
ECM	Front Controller	Radiator cooling fan control signal	CAN --> BEAN
ECM	A/C ECU	A/C control signal (compressor control for turning off) A/C and engine co-operation control signal (compressor control for deceleration)	CAN --> BEAN
A/C ECU	ECM	Idle up request signal	BEAN --> CAN
Skid control ECU	ECM	Throttle closing request signal Ignition retard angle request signal Engine torque reduction request signal	CAN
