Throttle Body: Inspection

INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY

Measure the resistance between the terminals.

Resistance

TESTER CONNECTIONS AND SPECIFIED CONDITIONS

Tester Connection	Condition	Specified Condition
2 (M+) - 1 (M-)	20°C (68°F)	0.3 to 100
5 (VC) - 3 (E2)	20°C (68°F)	1.2 to 3.2 k

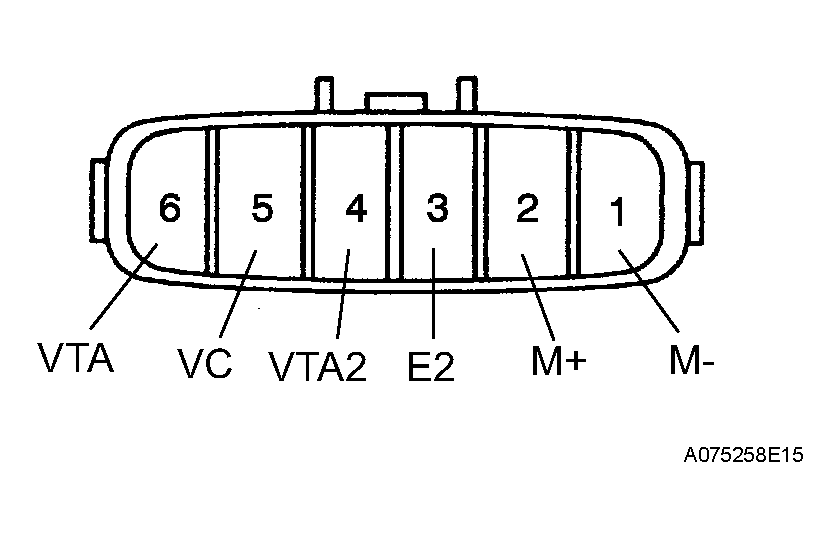

Fig 1: Inspecting Throttle With Motor Body Assembly

If the result is not as specified, replace the throttle body assembly.
