Throttle Body: Installation

INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY
1. Install a new throttle body gasket to the intake air surge tank.

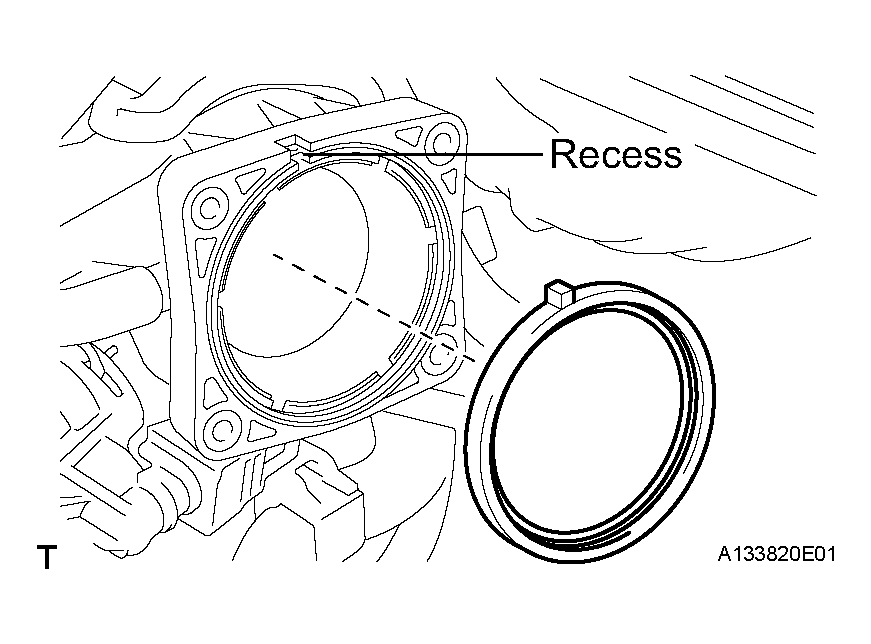

  Fig 1: Installing Throttle With Motor Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the throttle w/ motor body assembly and wire harness clamp stay to the intake air surge tank with the 4 bolts.

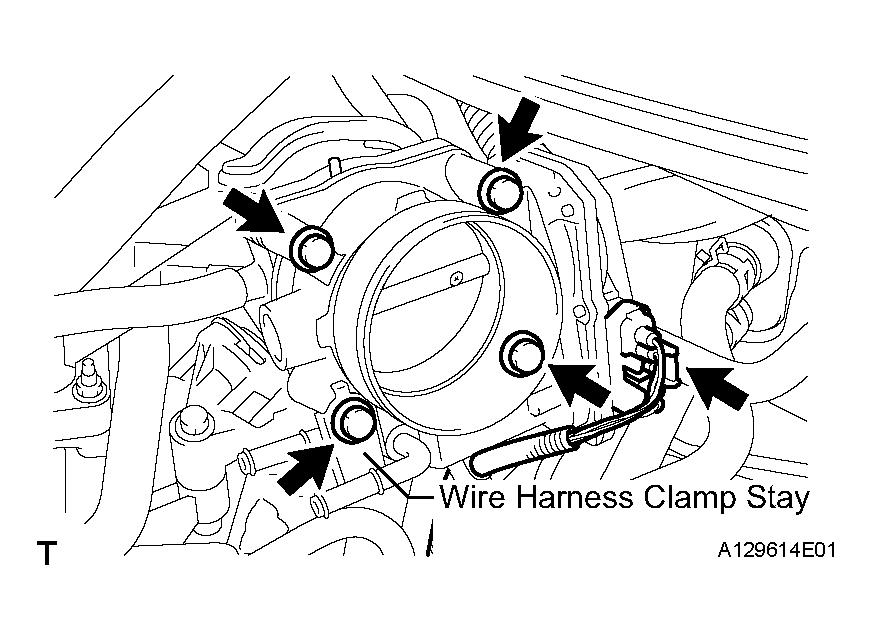

  Fig 2: Installing Throttle W/ Motor Body Assembly And Wire Harness Clamp Stay To Intake Air Surge Tank With 4 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
3. Connect the throttle w/ motor body assembly connector.
CONNECT WATER BY-PASS HOSE
1. Connect the 2 water by-pass hoses to the throttle w/motor body assembly.
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKS (See REPLACEMENT )

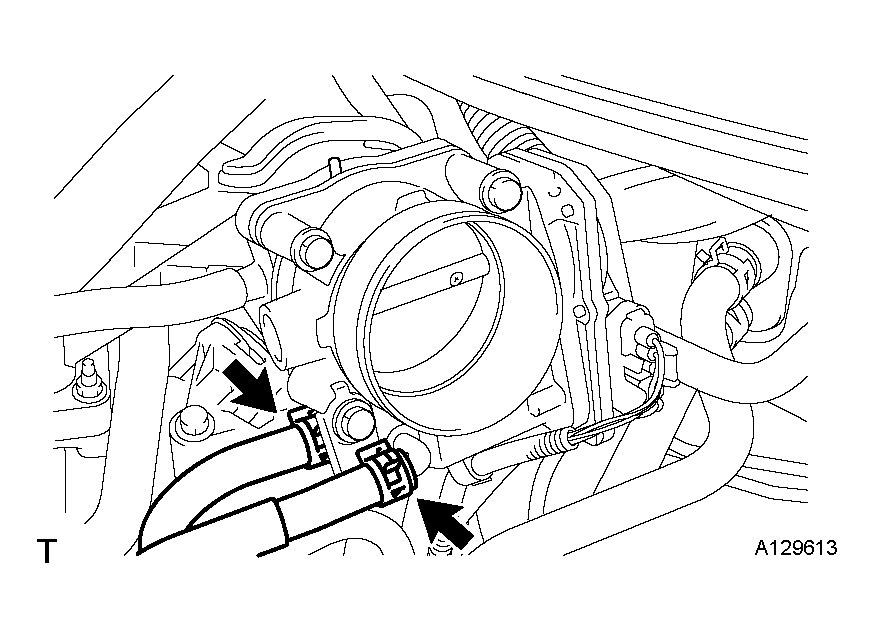

Fig 3: Connecting 2 Water By-Pass Hoses To Throttle W/Motor Body Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
PERFORM SYSTEM INITIALIZE
Some systems need initialization when disconnecting the battery terminal.
CHECK FUNCTION OF THROTTLE BODY (See ON-VEHICLE INSPECTION )
