Supplemental Restraint System: SST

SUPPLEMENTAL RESTRAINT SYSTEM SST CHART

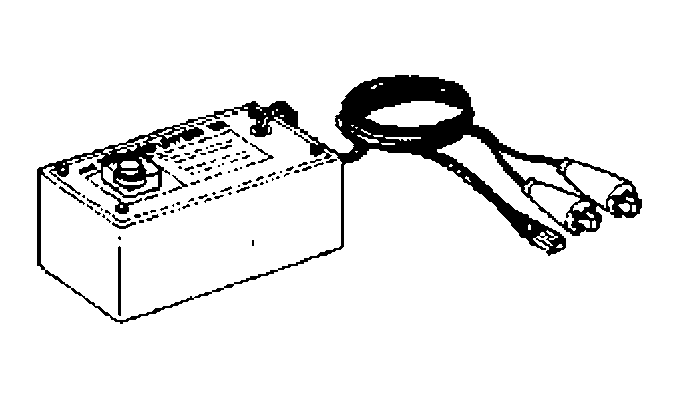

G04376446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00700 SRS Airbag Deployment Tool
G04376447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00750 Airbag Deployment Wire Sub-harness No.3

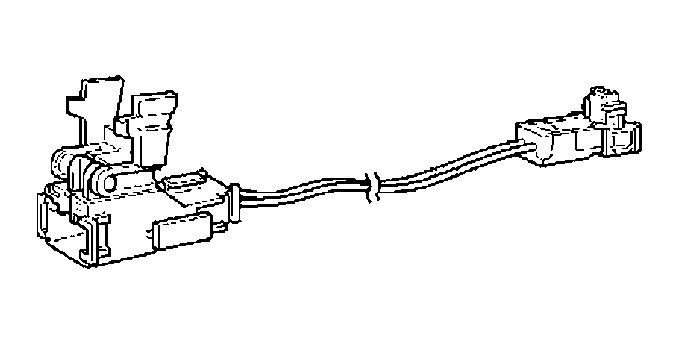

G04376448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00770 Airbag Deployment Wire Sub-harness No.5
G04376449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00780 Airbag Deployment Wire Sub-harness No.6
G04376450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00802 Airbag Deployment Wire Sub-Harness No. 8

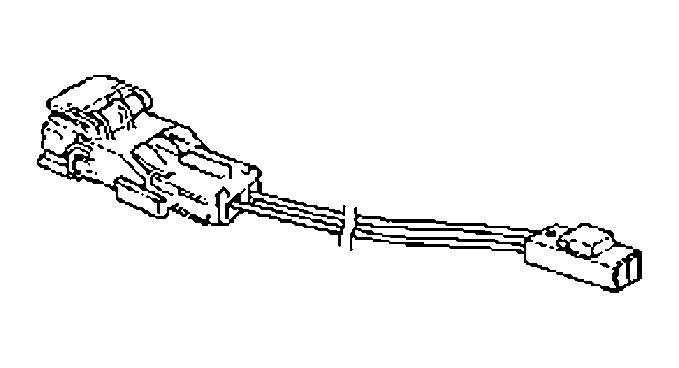

G04376451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-10801) Wire A

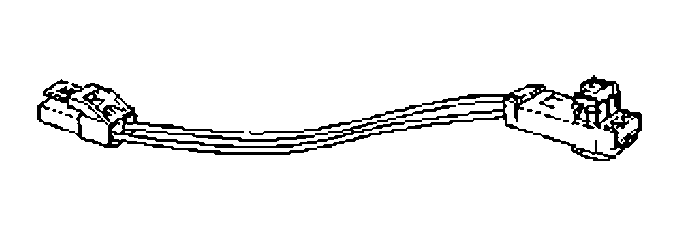

G04376452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-20801) Wire B

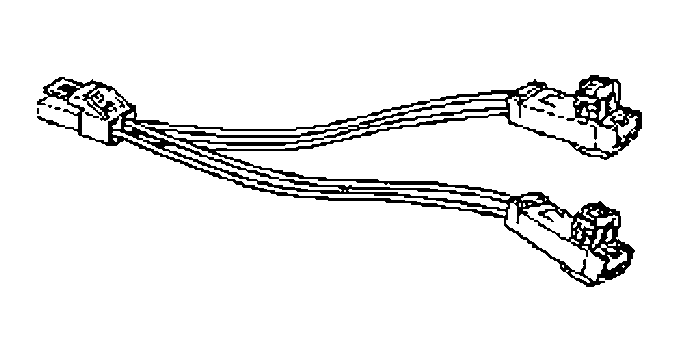

G04376453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-30801) Wire C

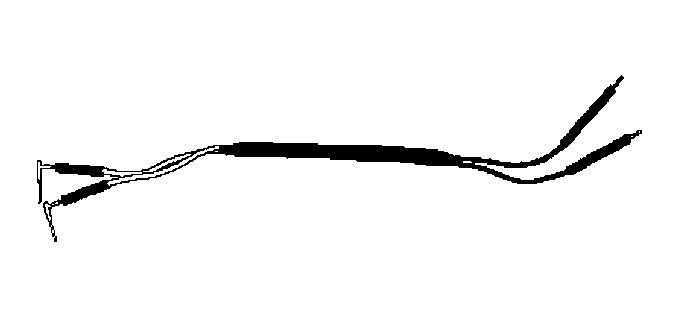

G04376454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18060 SRS Check Wire
