Fuel Injector, Intake Manifold: Components

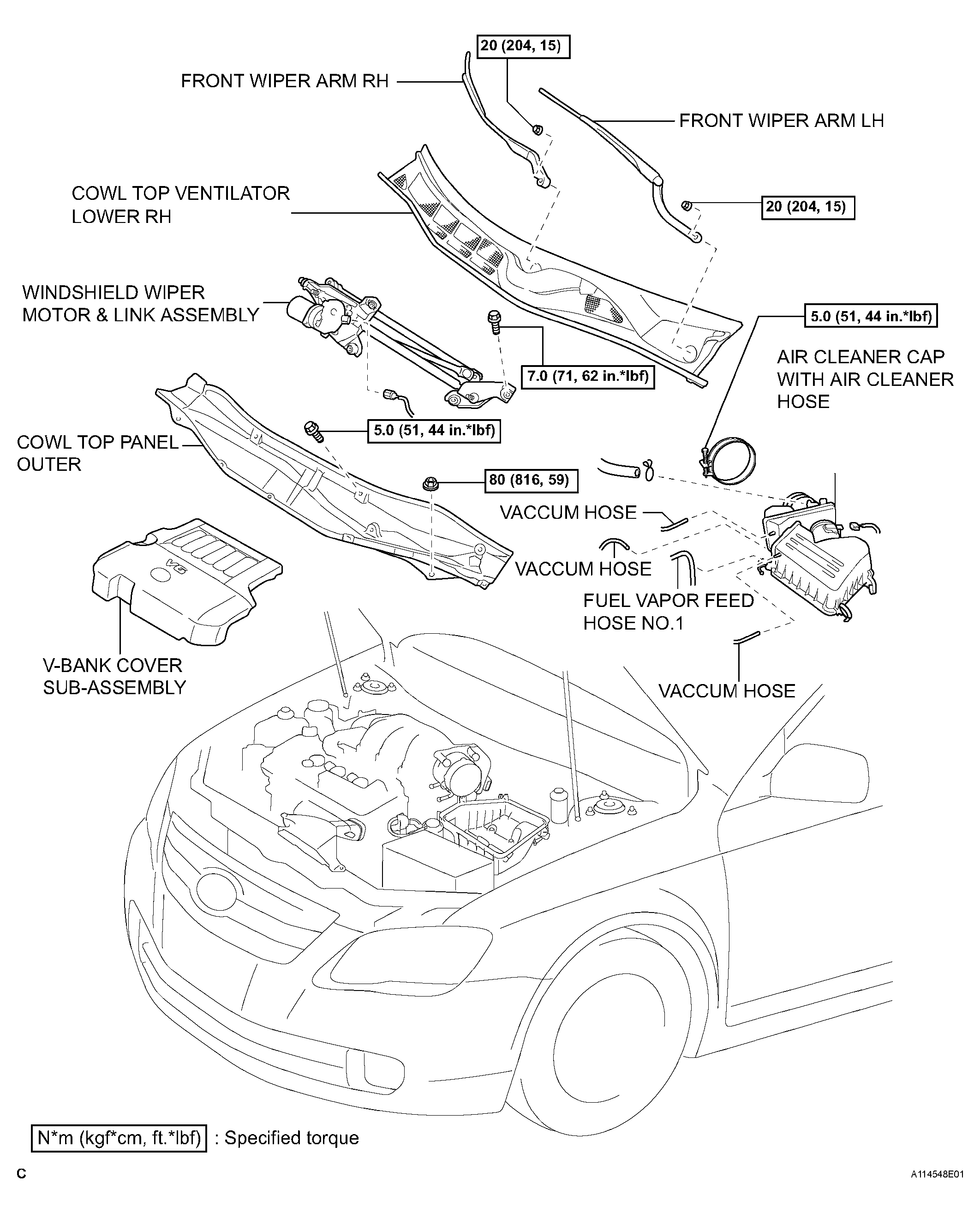

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 3)
G04376963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

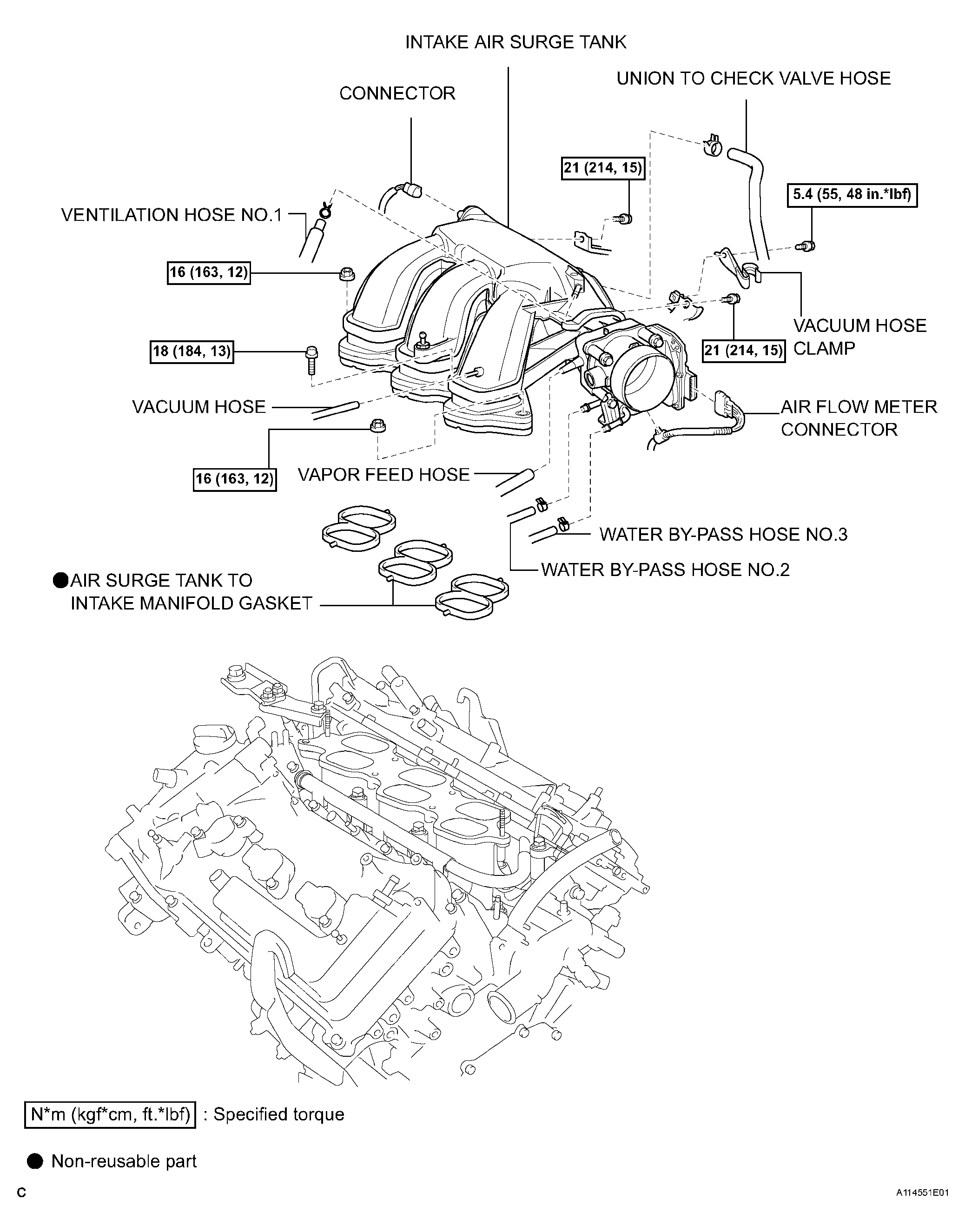

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 3)
G04376964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

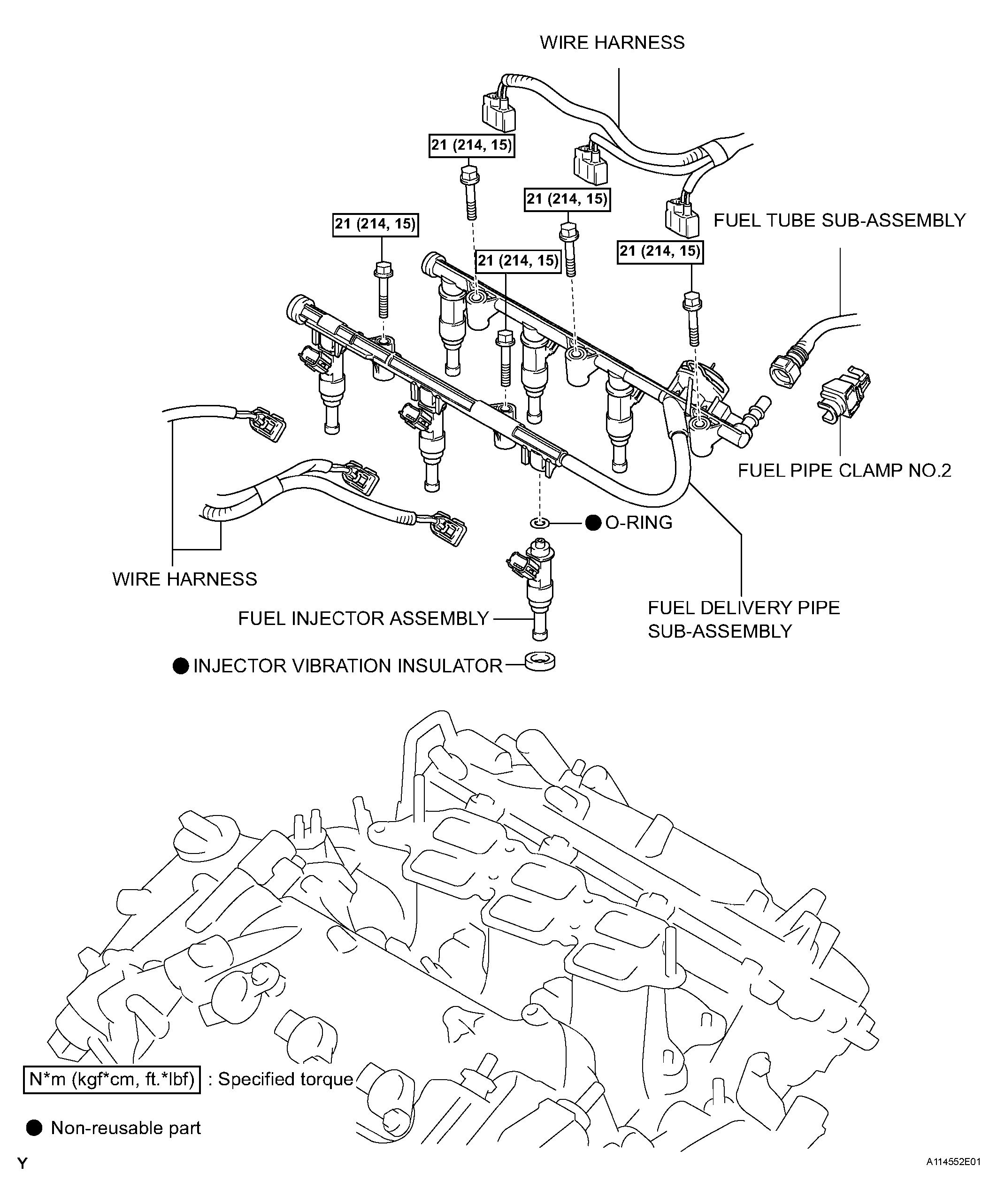

Fig 3: Fuel Injector Replacement Components With Torque Specifications (3 Of 3)
G04376965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
