Fuel Pump: Disassembly

REMOVE FUEL SUCTION SUPPORT NO.2
1. Using a screwdriver with its tip wrapped with tape, disengage the 5 snap claws from the claw holes, and remove the fuel suction support.
  NOTE: Do not damage the fuel suction support.

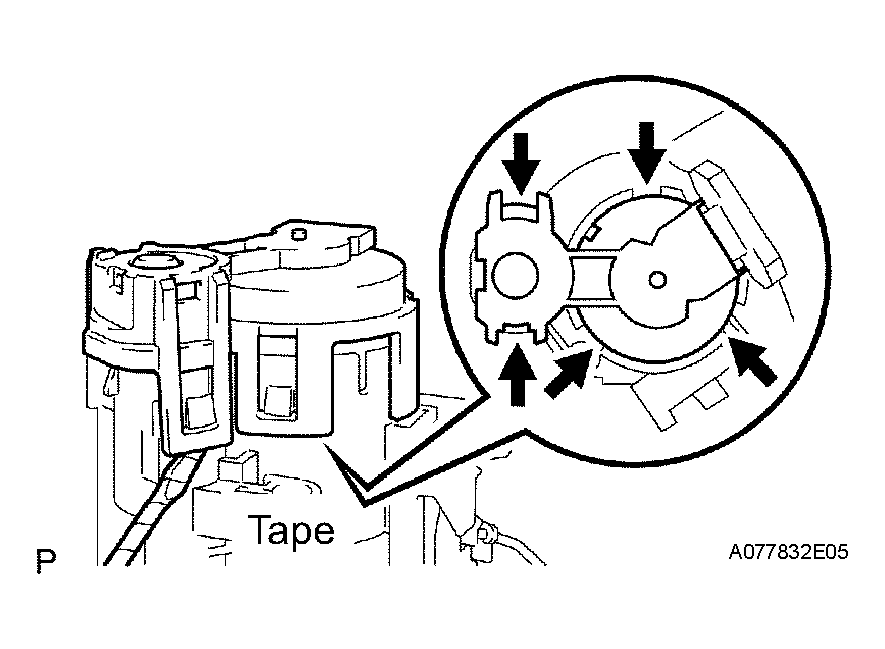

  Fig 1: Removing Fuel Suction Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP CUSHION RUBBER
1. Remove the fuel pump cushion rubber from the fuel pump.

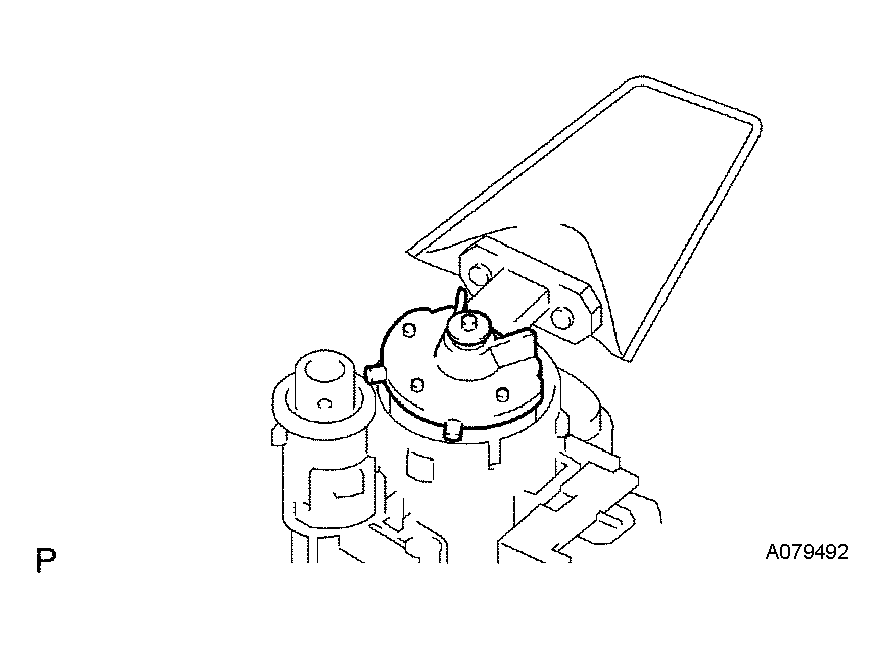

  Fig 2: Removing Fuel Pump Cushion Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL SENDER GAUGE ASSEMBLY
1. Disconnect the fuel sender gauge connector.
2. Unlock the fuel sender gauge, and slide it to remove.

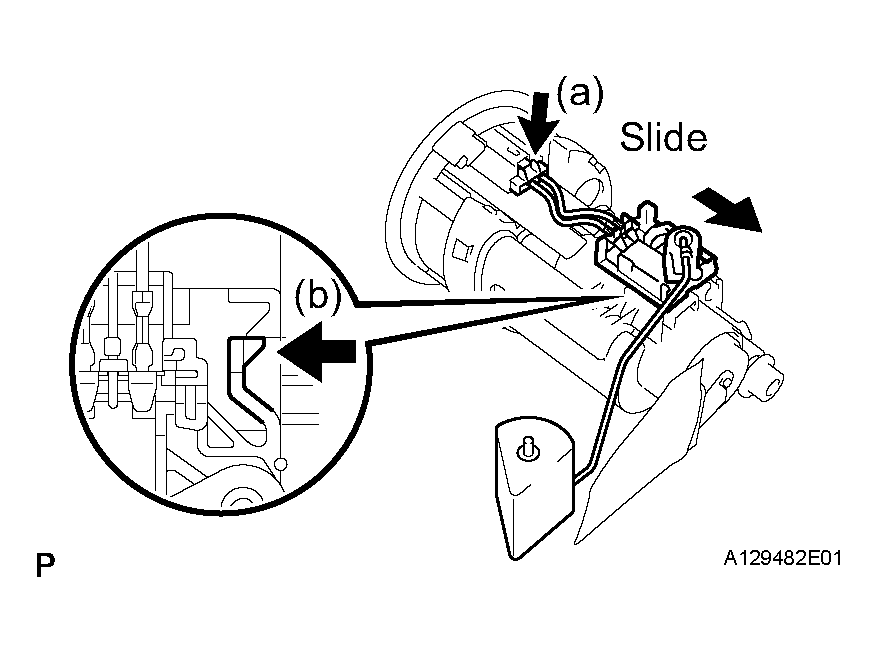

  Fig 3: Disconnecting Fuel Sender Gauge Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY
1. Disconnect the fuel pump connector.
2. Using a screwdriver with its tip wrapped with tape, disengage the 4 snap claws from the claw holes, and pull out the fuel suction plate.
  NOTE: Do not damage the fuel suction support.

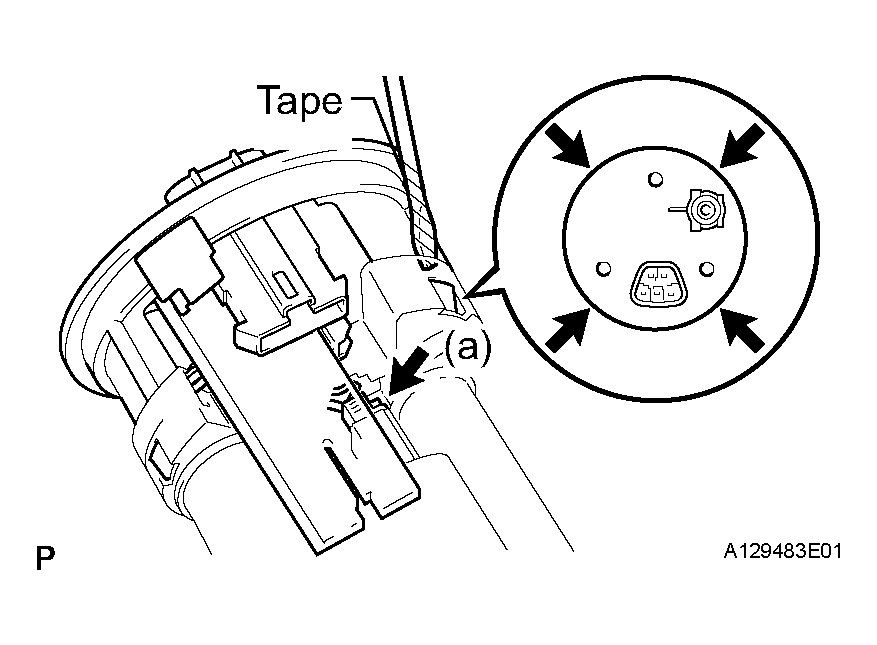

  Fig 4: Prying Fuel Suction Plate Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP HARNESS
1. Disconnect the connector.

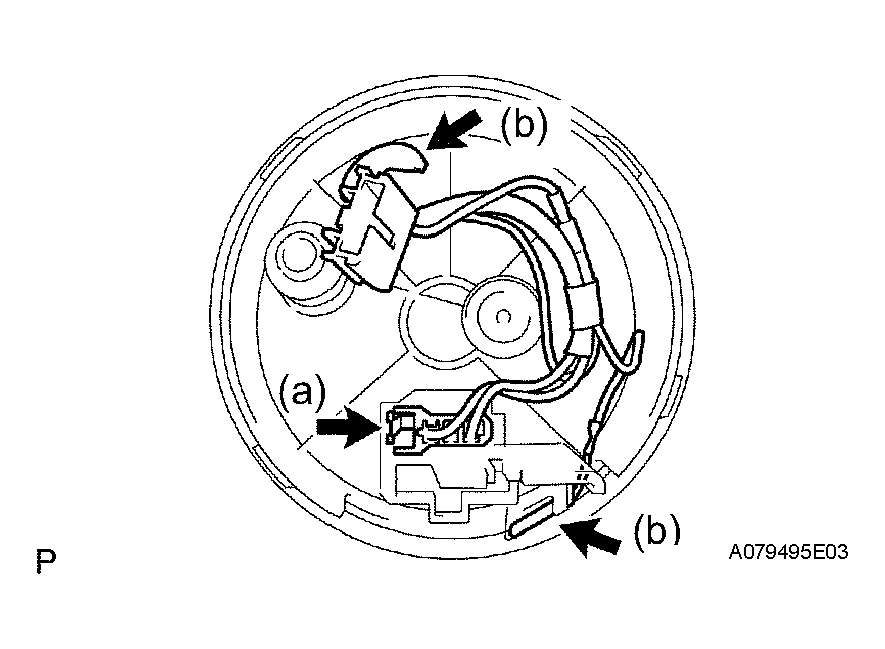

  Fig 5: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, pry out the fuel pump harness.
REMOVE FUEL PUMP
1. Pull out the fuel pump from the fuel tank fuel filter.

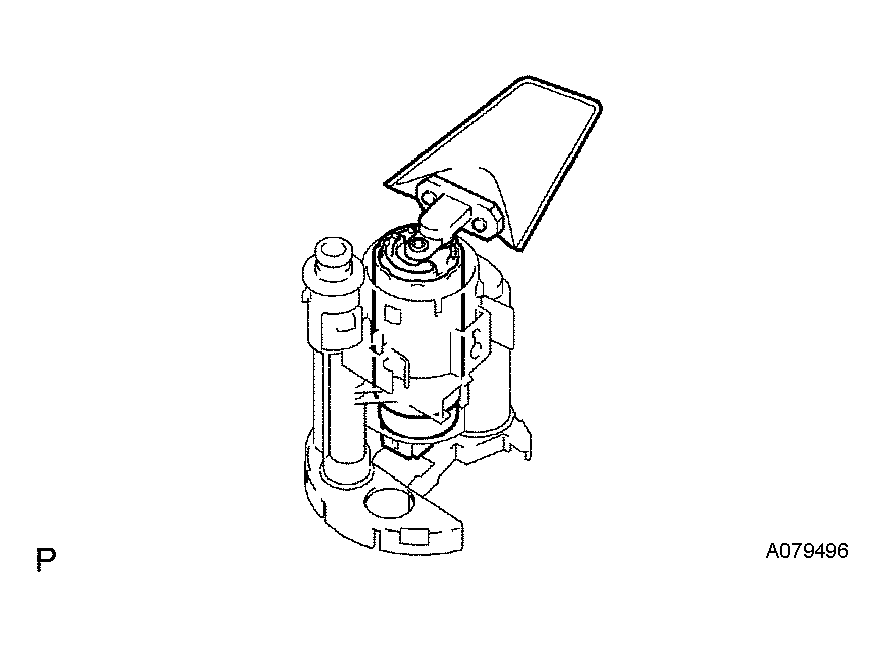

  Fig 6: Removing Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP FILTER
1. Using a screwdriver, pry out the clip.
2. Pull out the fuel pump filter from the fuel pump.

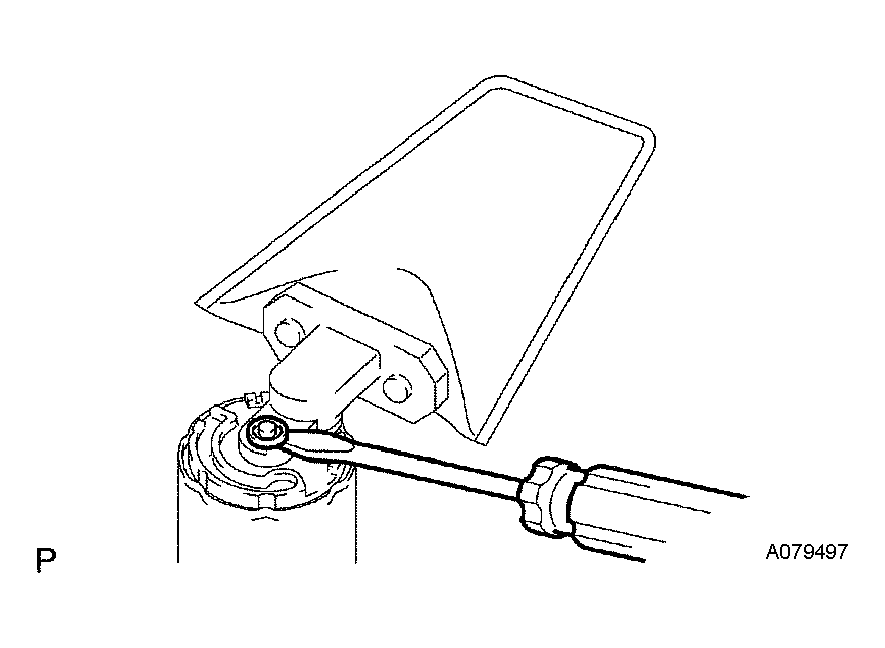

  Fig 7: Prying Out Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
1. Pull out the fuel pressure regulator from the fuel tank fuel filter.
2. Remove the O-ring from the fuel pressure regulator.

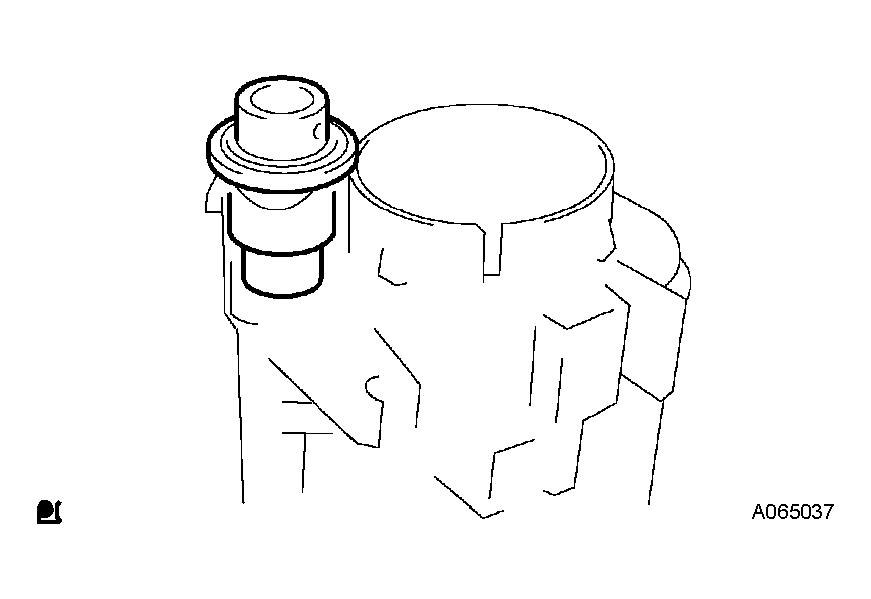

  Fig 8: Removing Fuel Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
