Fuel Pump: Reassembly

INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
1. Apply a light coat of spindle oil or gasoline to a new O-ring, and install it to the fuel pressure regulator.
2. Push in the fuel pressure regulator to the fuel tank fuel filter.

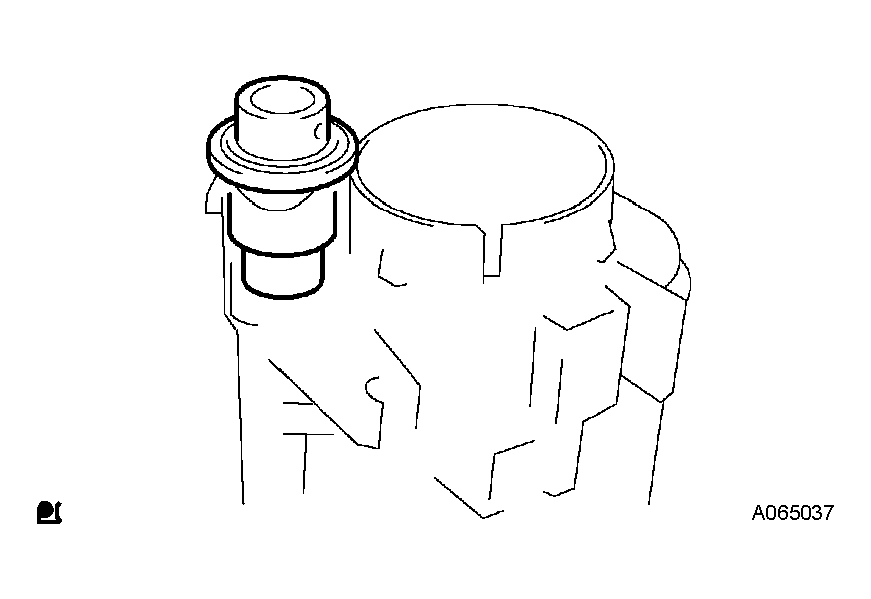

  Fig 1: Installing Fuel Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP FILTER

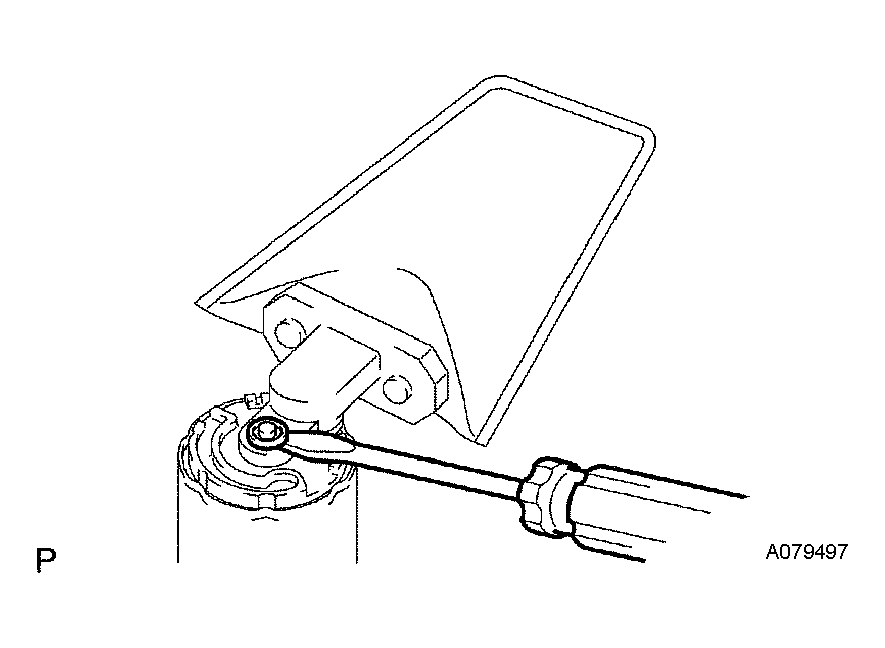

Fig 2: Installing Fuel Pump Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the fuel pump filter with a new clip.
INSTALL FUEL PUMP
1. Apply a light coat of gasoline or grease to the O-ring of the fuel pump.
2. Push in the fuel pump to the fuel tank fuel filter.

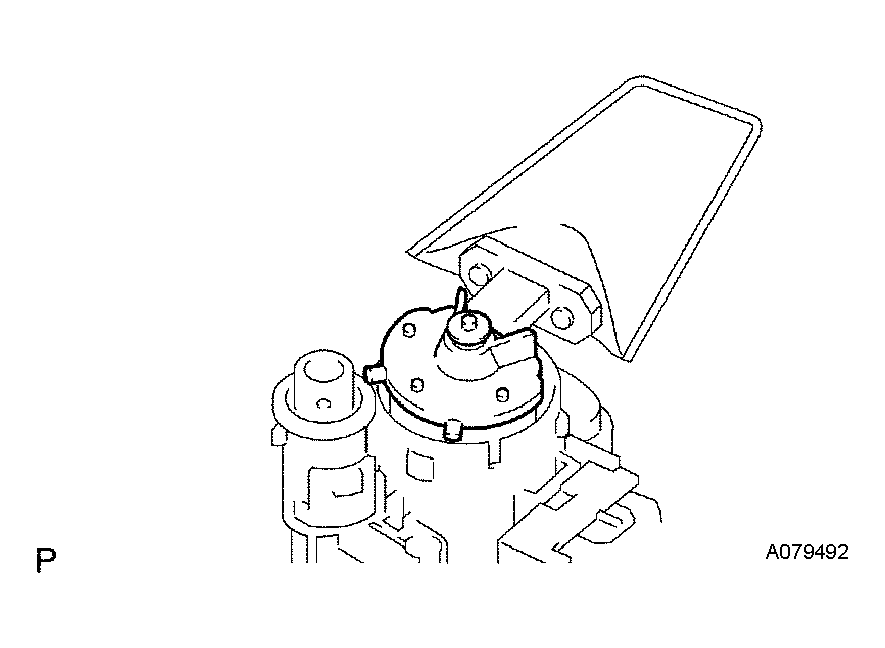

  Fig 3: Installing Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP HARNESS
1. Install the fuel pump harness.
2. Connect the connector.

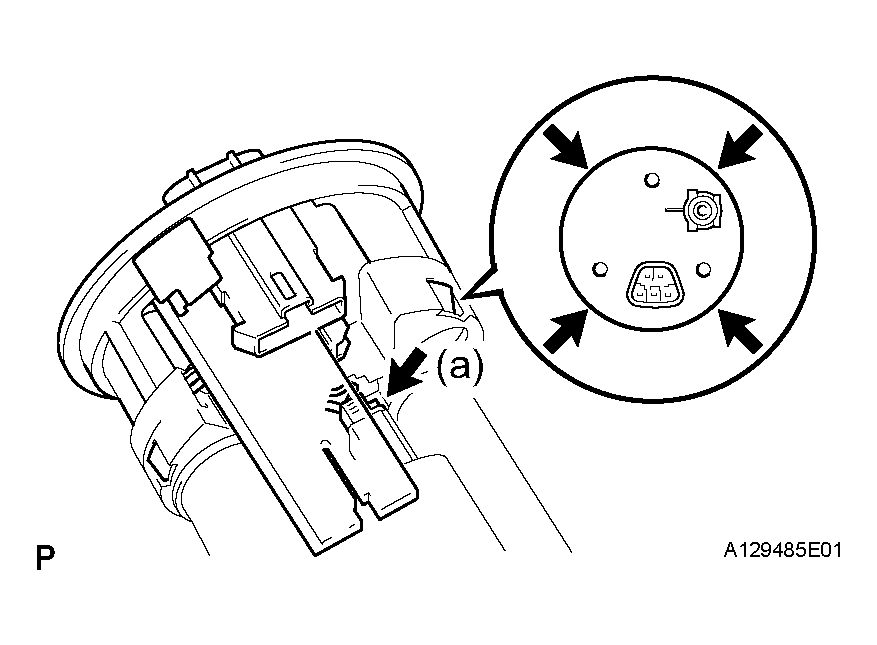

  Fig 4: Installing Fuel Pump Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY
1. Install the fuel suction plate.
2. Connect the fuel pump connector.

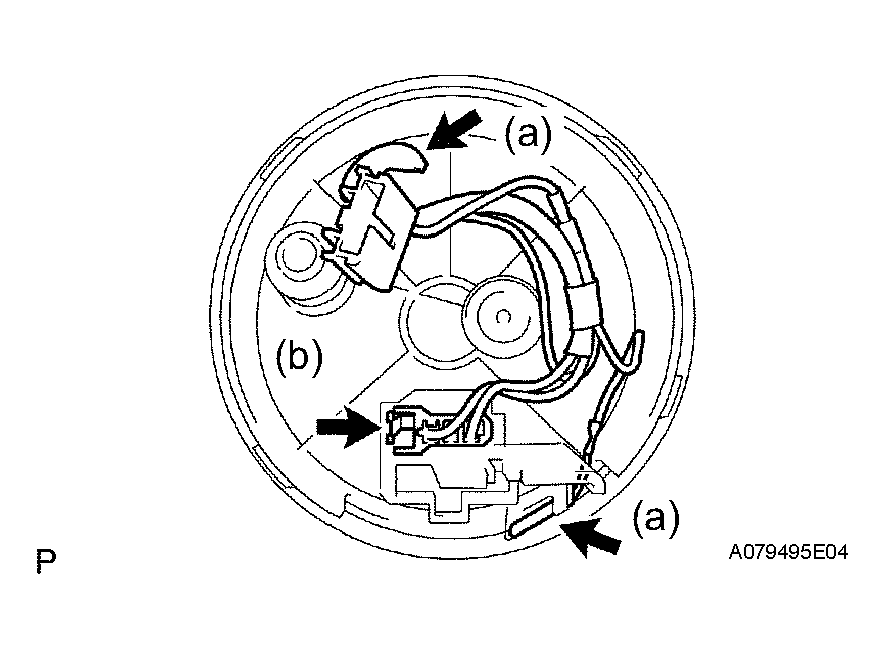

  Fig 5: Installing Fuel Suction Plate Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SENDER GAUGE ASSEMBLY
1. Slide the fuel sender gauge to engage with the claw.
2. Connect the fuel sender gauge connector.

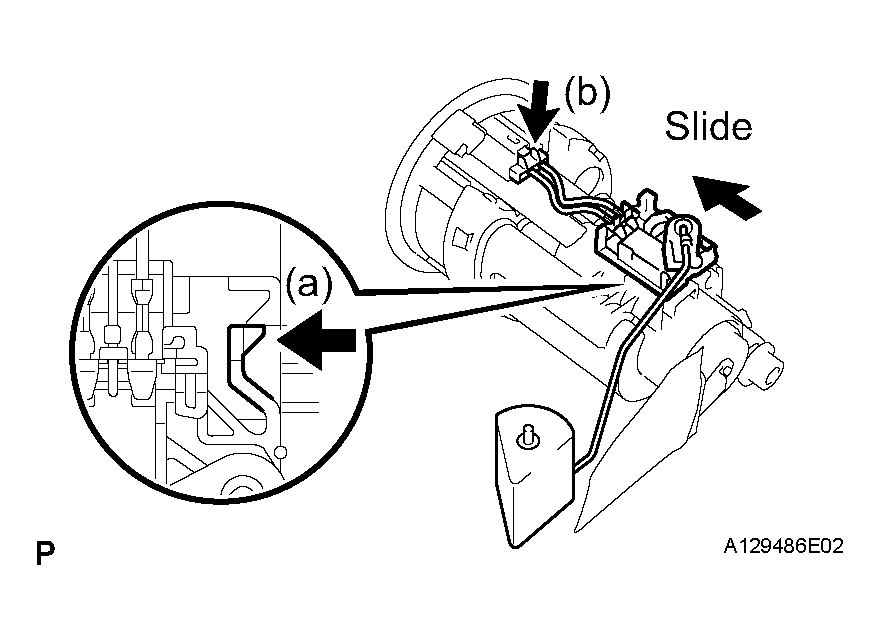

  Fig 6: Connecting Fuel Sender Gauge Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP CUSHION RUBBER
1. Install the fuel pump cushion rubber to the fuel pump.

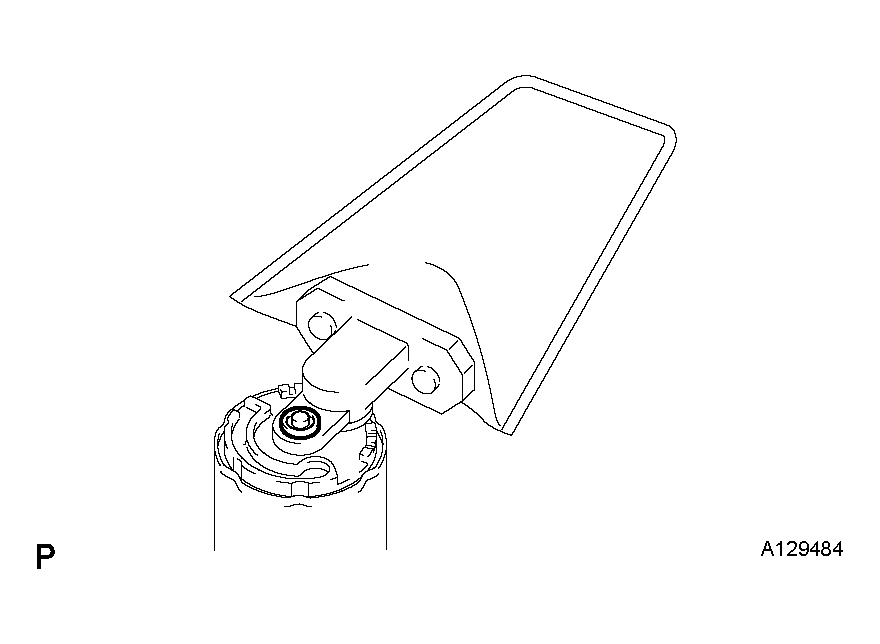

  Fig 7: Installing Fuel Pump Cushion Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUCTION SUPPORT NO.2
1. Install the fuel suction support No.2.

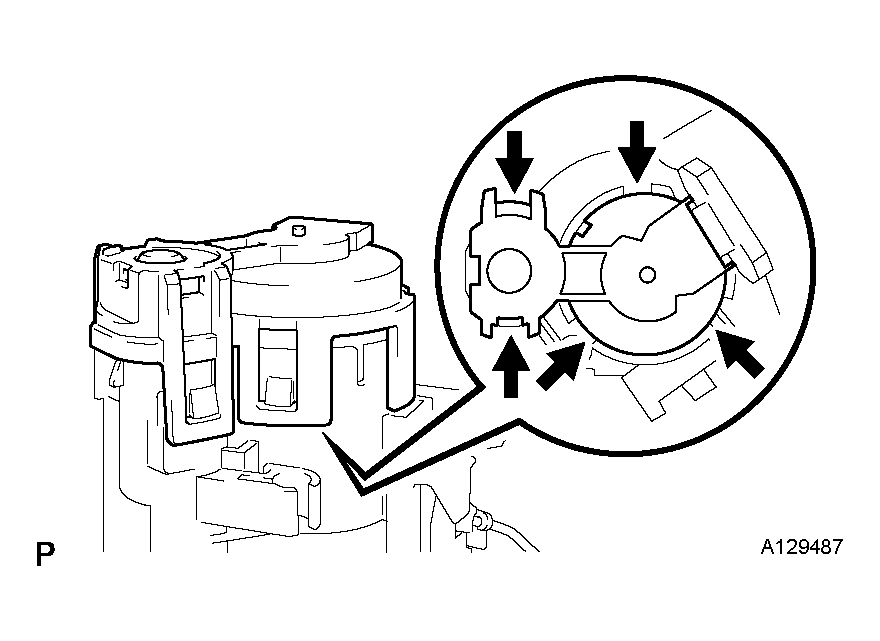

  Fig 8: Installing Fuel Suction Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
