Fuel Tank: Disassembly

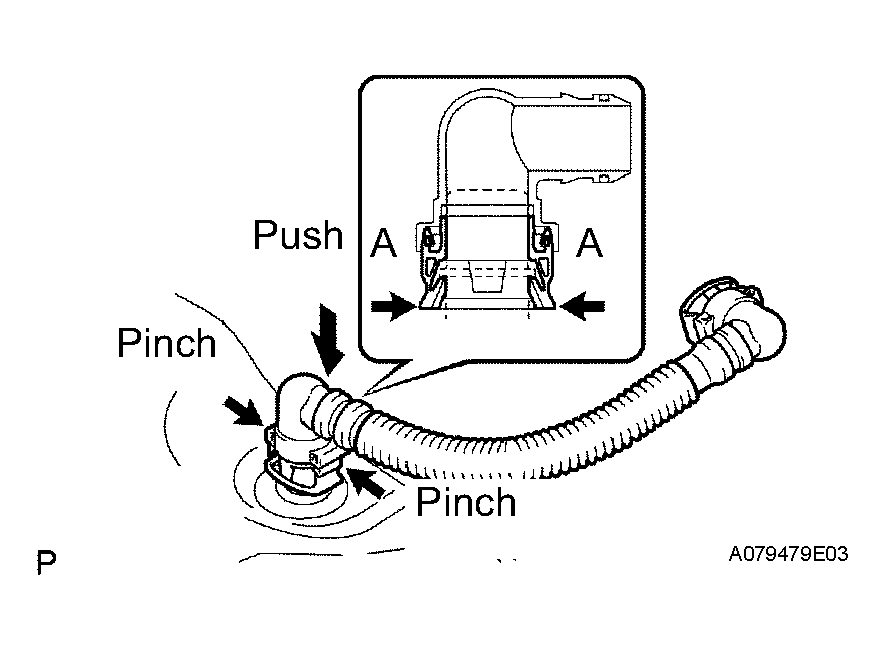

REMOVE FUEL TANK VENT HOSE
1. Push the connector deep into the charcoal canister to release the locking pin.
2. Pinch portion A.
3. Pull out the connector.

  Fig 1: Removing Fuel Tank Vent Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

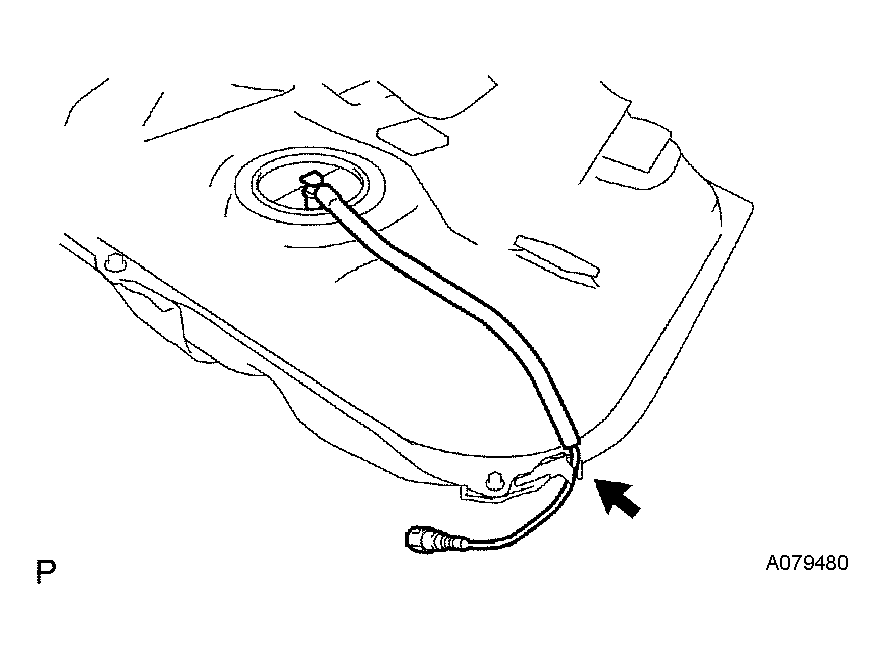

REMOVE FUEL PUMP TUBE SUB-ASSEMBLY
1. Remove the fuel pump tube from the fuel main tube support.

  Fig 2: Removing Fuel Pump Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

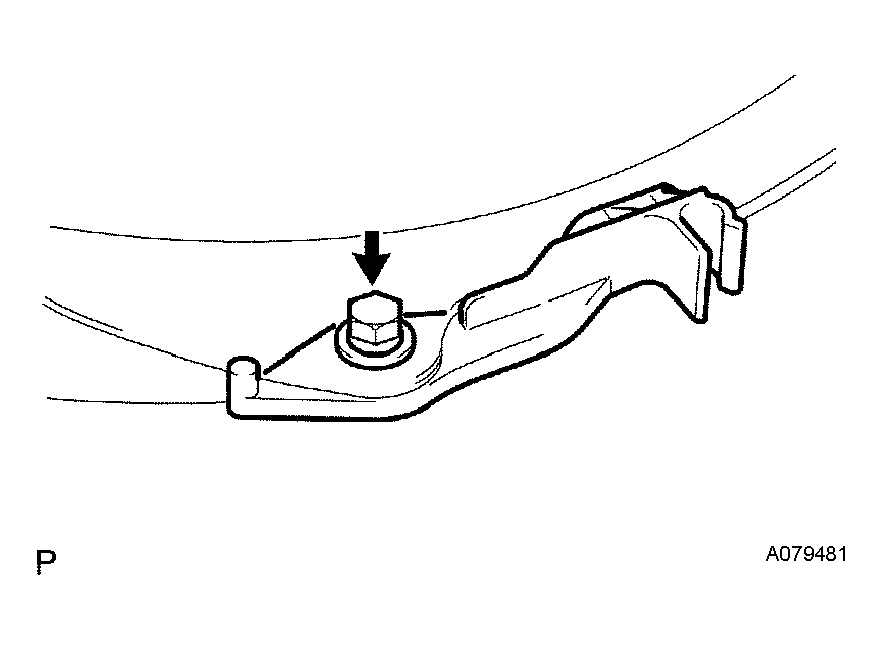

REMOVE FUEL MAIN TUBE SUPPORT
1. Remove the bolt and tube support.

  Fig 3: Removing Bolt And Tube Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

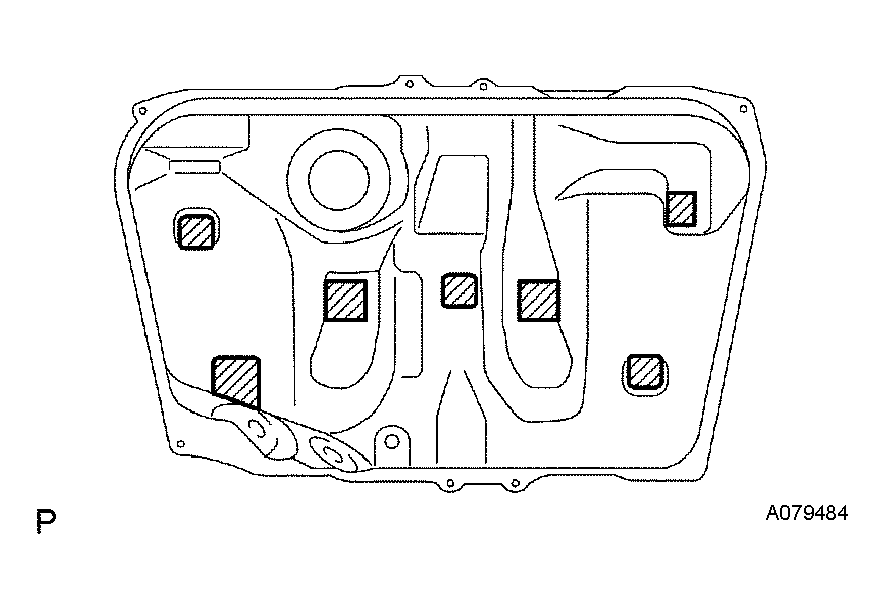

REMOVE FUEL TANK CUSHION NO.2
1. Remove the 7 fuel tank cushion No.2.

  Fig 4: Removing Fuel Tank Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
