Fuel Tank: Reassembly

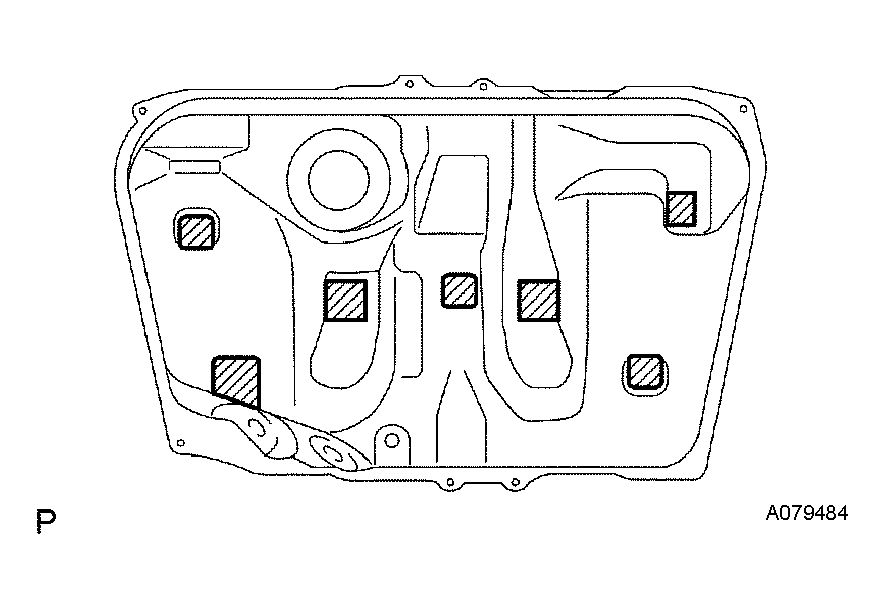

INSTALL FUEL TANK CUSHION NO.2
1. Install the 7 new fuel tank cushions to the fuel tank.

  Fig 1: Installing Fuel Tank Cushions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

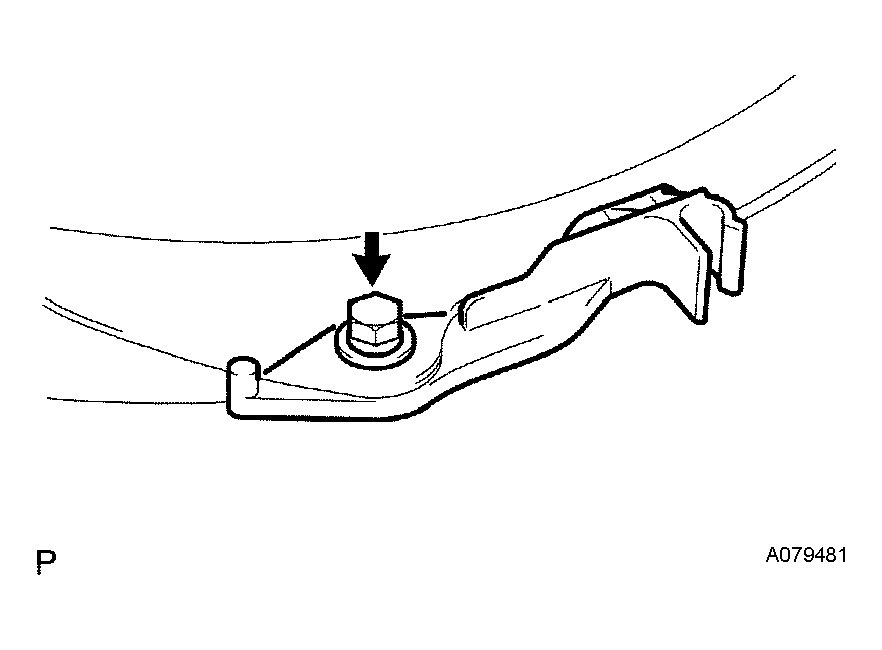

INSTALL FUEL MAIN TUBE SUPPORT
1. Install the fuel main tube support with the bolt.
  Torque: 5.4 N m (55 kgf cm, 48 in. lbf)

  Fig 2: Installing Fuel Main Tube Support With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

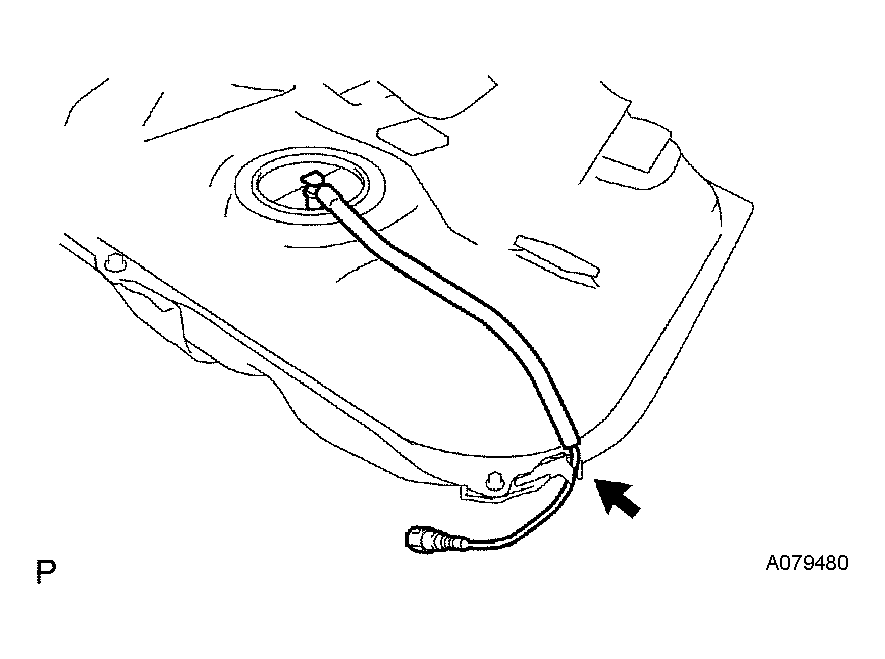

INSTALL FUEL PUMP TUBE SUB-ASSEMBLY
1. Install the fuel pump tube to the fuel main tube support.

  Fig 3: Installing Fuel Pump Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

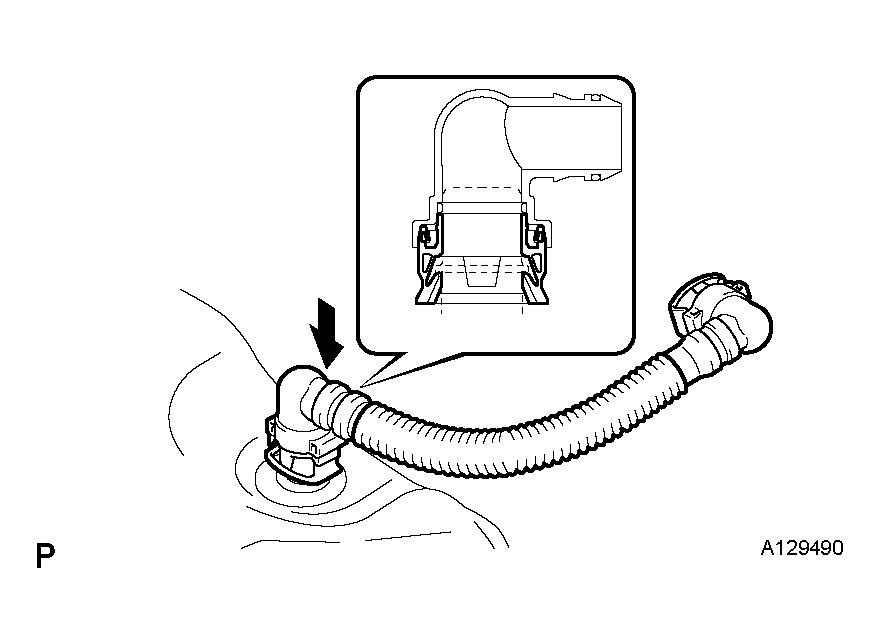

INSTALL FUEL TANK VENT HOSE
1. Install the fuel tank vent hose.

  Fig 4: Installing Fuel Tank Vent Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
