Knock Sensor: Inspection

  1. INSPECT KNOCK CONTROL SENSOR
    1. Using an ohmmeter, measure the resistance between the terminals.

      Resistance: 120 to 280 k at 20°C (68°F)

      If the result is not as specified, replace the sensor.

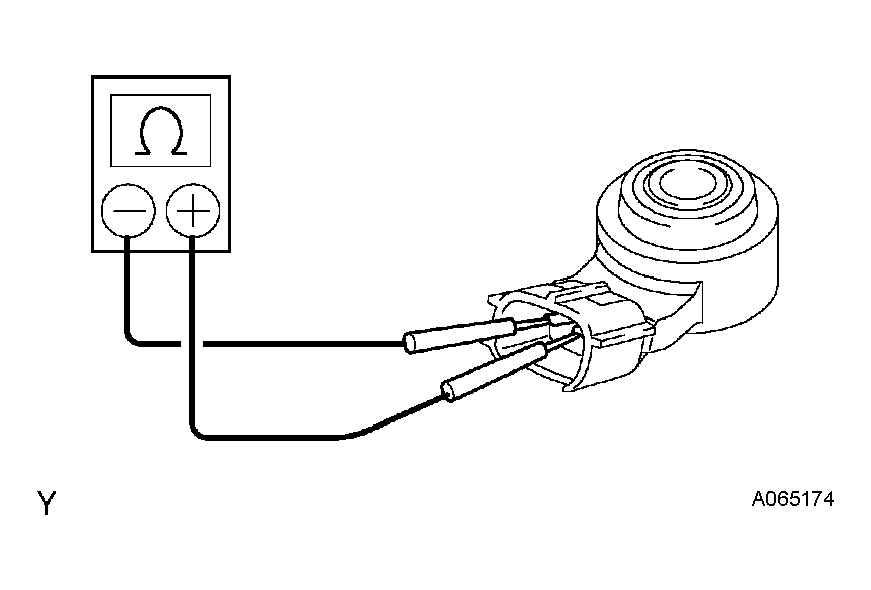

      Fig 1: Measuring Resistance Between Terminals
      G04375255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
