Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

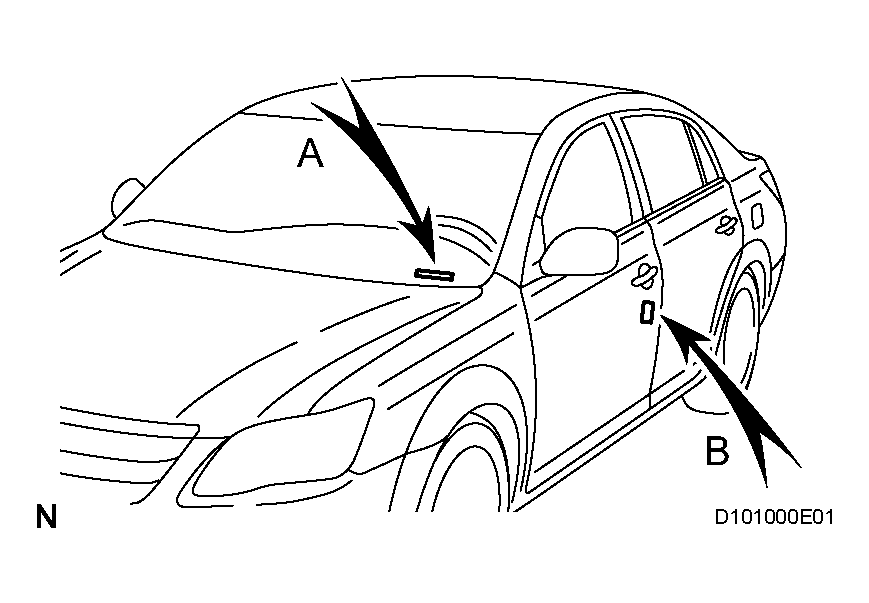

1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in Fig 1.
  A:

  Vehicle Identification Number Plate

  B:

  Certification Label

  Fig 1: Identifying Vehicle Identification Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER

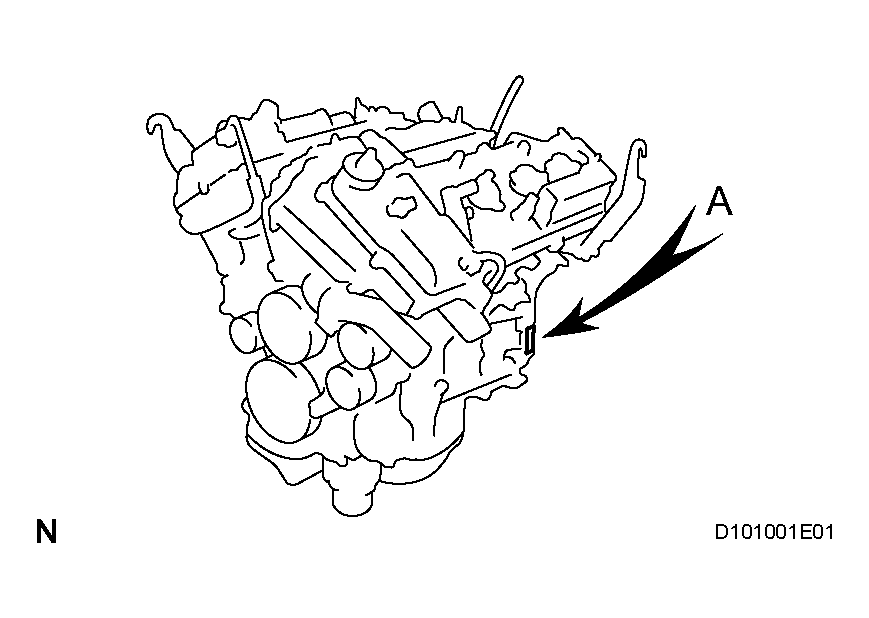

1. The engine serial number is stamped on the cylinder block of the engine.
  A:

  Engine Serial Number

  Fig 2: Identifying Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

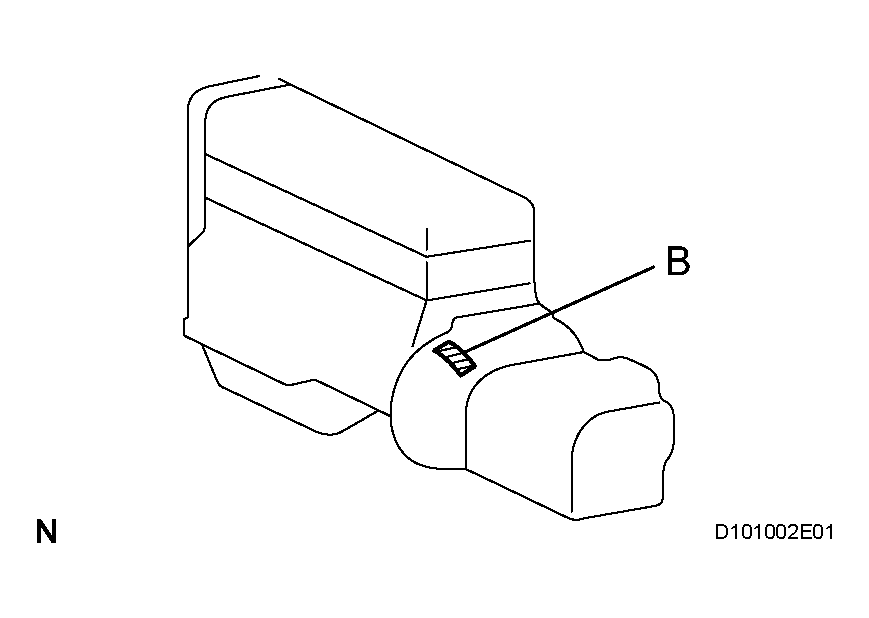

2. The transmission serial number is stamped on the housing as shown in Fig 3.
  B:

  Transmission Serial Number

  Fig 3: Identifying Transmission Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
