2GR-FE Charging: SST
2GR-FE CHARGING SSM CHART
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

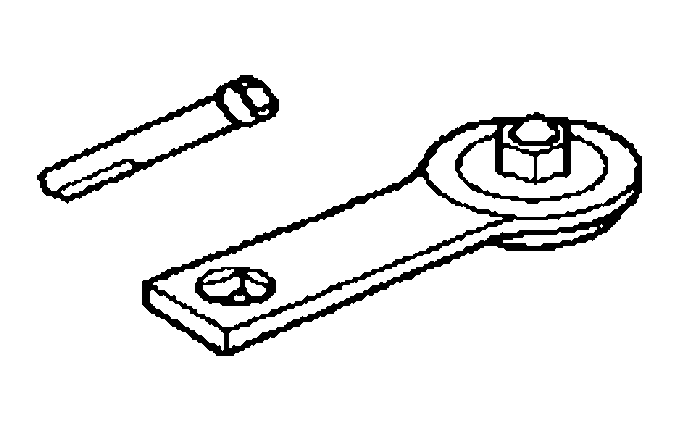

09820-63020 |
Alternator Pulley Wrench Set |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

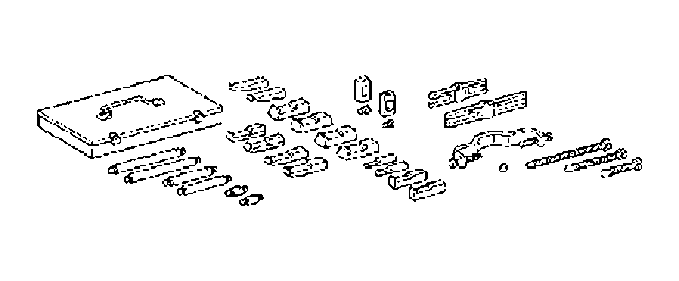

09950-40011 |
Puller B Set |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09951-04020) |
Hanger 200 |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

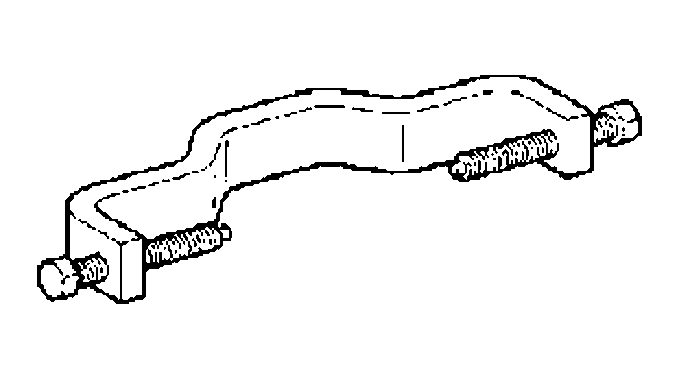

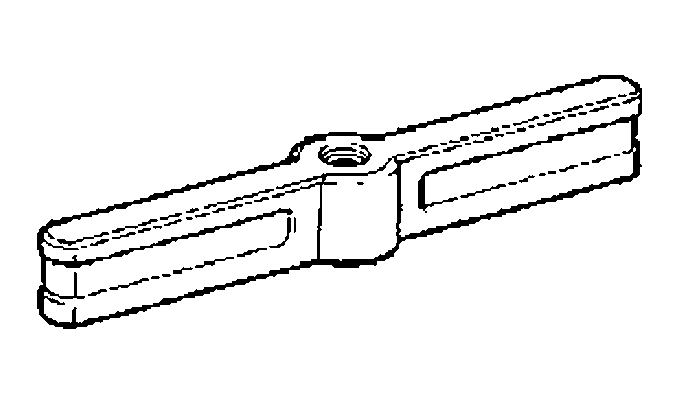

(09952-04010) |
Slide Arm |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

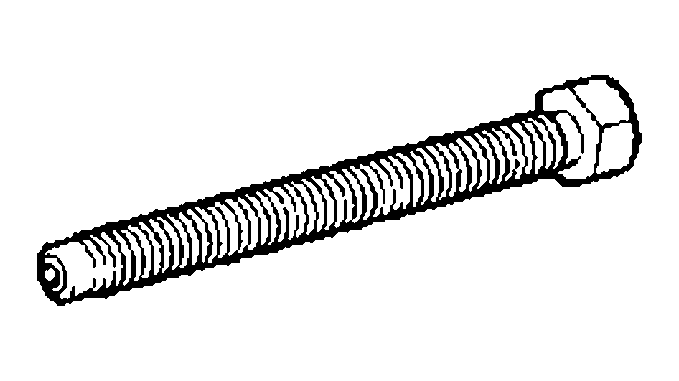

(09953-04020) |
Center Bolt 150 |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

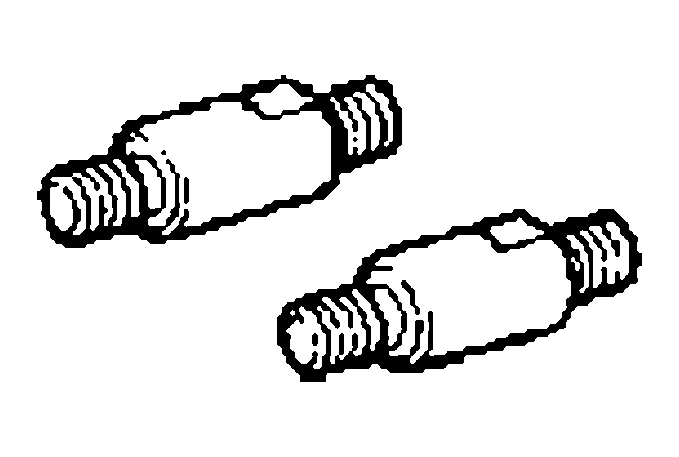

(09954-04010) |
Arm 25 |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

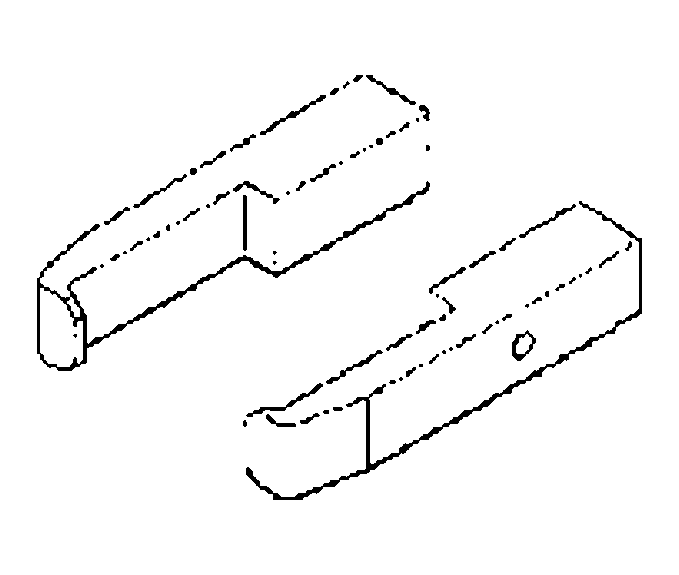

(09955-04071) |
Claw No.7 |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09957-04010) |
Attachment |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

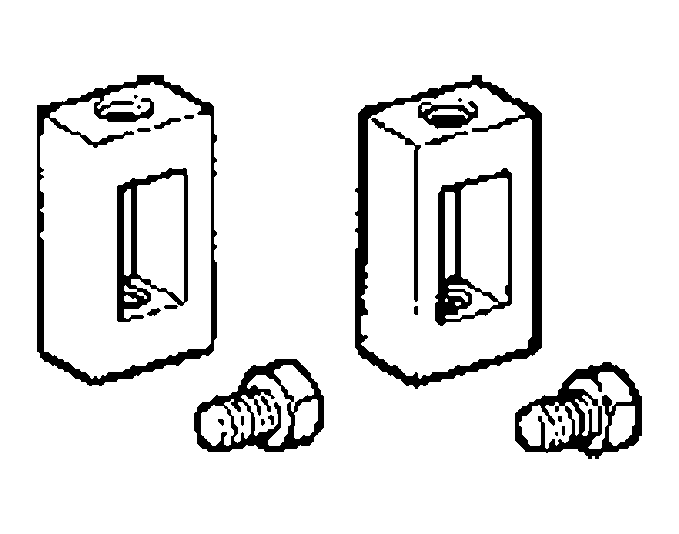

(09958-04011) |
Holder |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

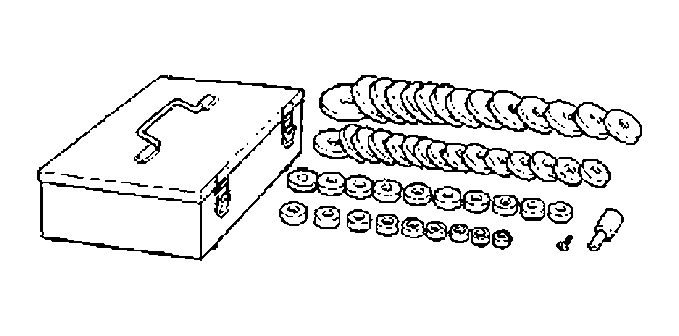

09950-60010 |
Replacer Set |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

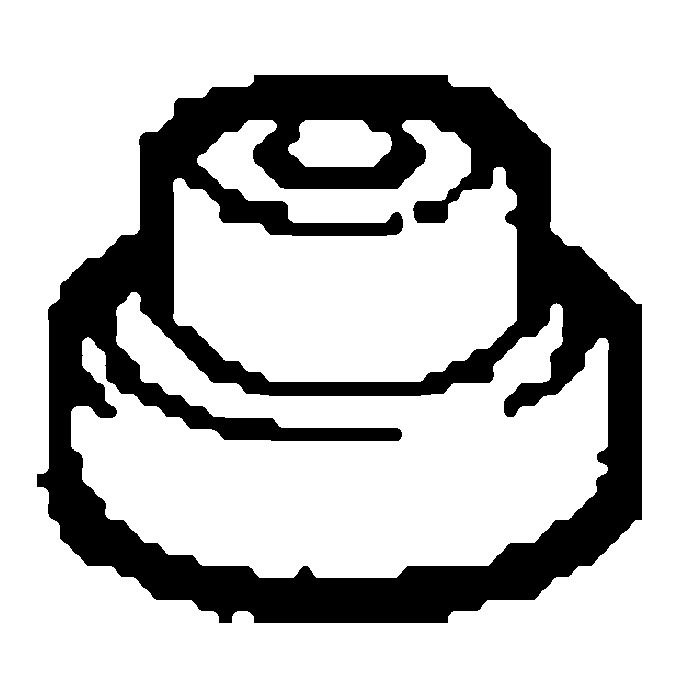

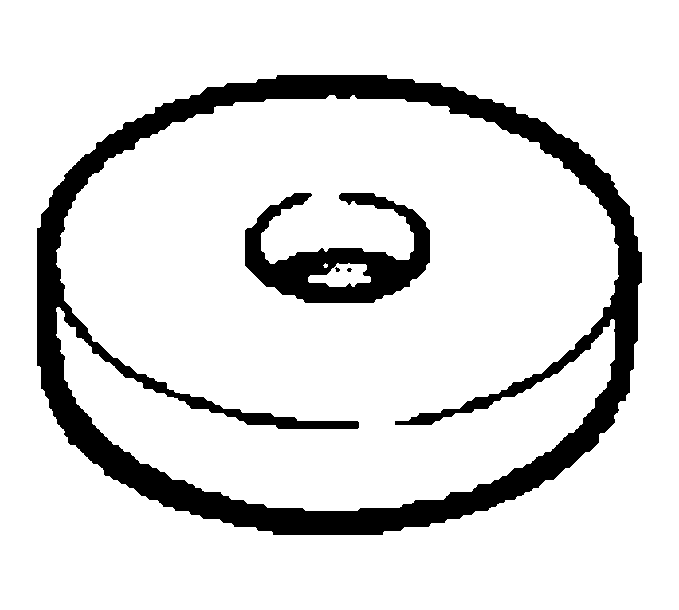

(09951-00250) |
Replacer 25 |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

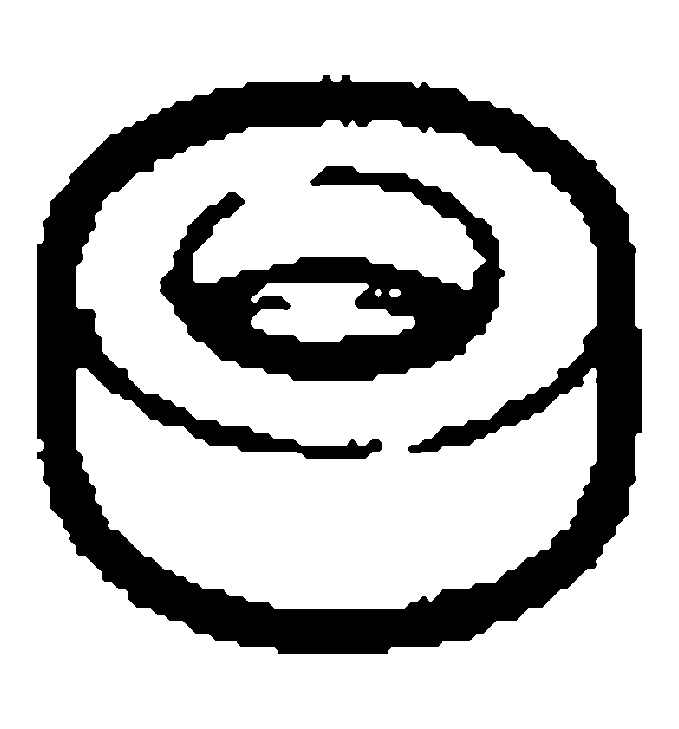

(09951-00470) |
Replacer 47 |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

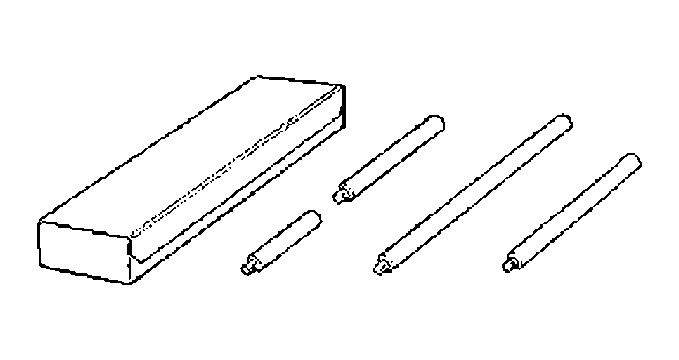

09950-70010 |
Handle Set |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

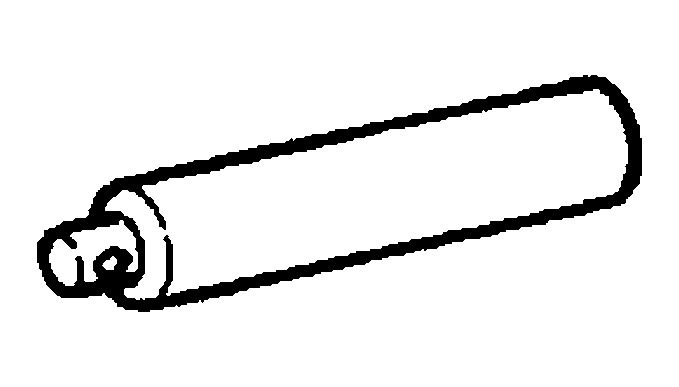

(09951-07100) |
Handle 100 |
