Engine Control Systems: Preparation: Clutch: Preparation

SST

CLUTCH - SST CHART

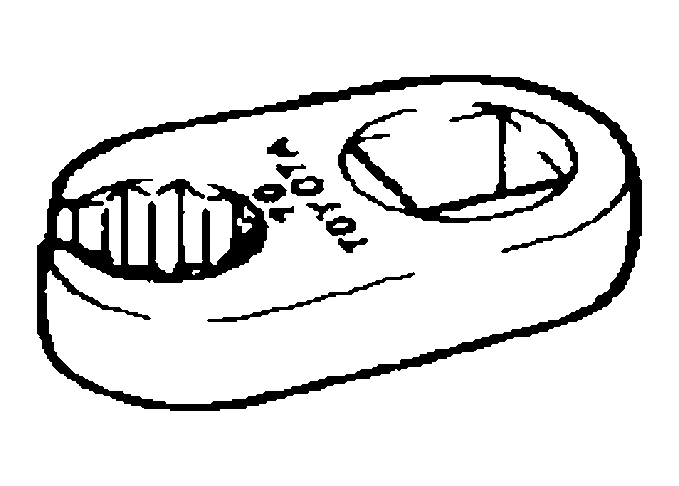

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09023-00101 Union Nut Wrench 10 mm	CLUTCH MASTER CYLINDER ASSY CLUTCH RELEASE CYLINDER ASSY CLUTCH ACCUMULATOR ASSY

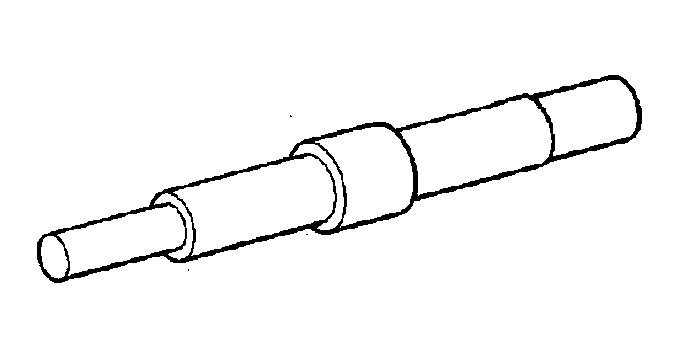

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09301-00220 Clutch Guide Tool	CLUTCH UNIT

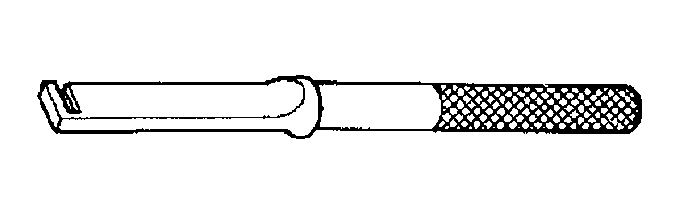

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09333-00013 Universal Joint Bearing Remover & Replacer	CLUTCH UNIT

Recommended Tools

CLUTCH - RECOMMENDED TOOLS CHART

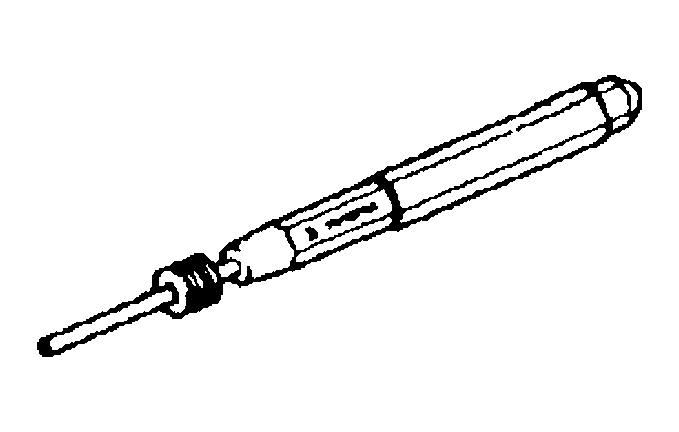

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09031-00030 Pin Punch	CLUTCH MASTER CYLINDER ASSY

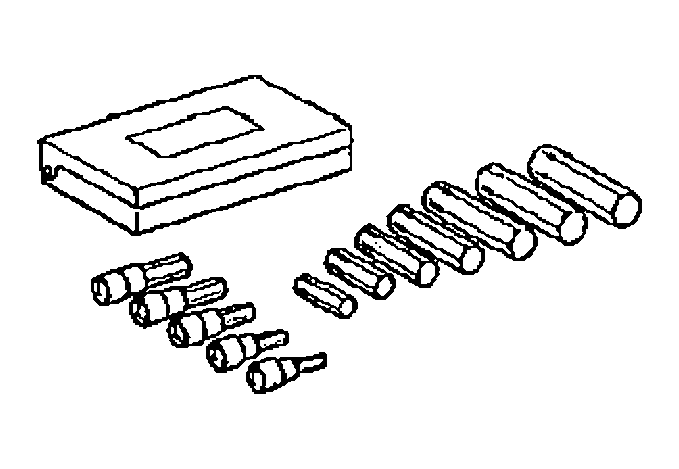

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09040-00011 Hexagon Wrench Set	CLUTCH MASTER CYLINDER ASSY CLUTCH PEDAL SUB-ASSY

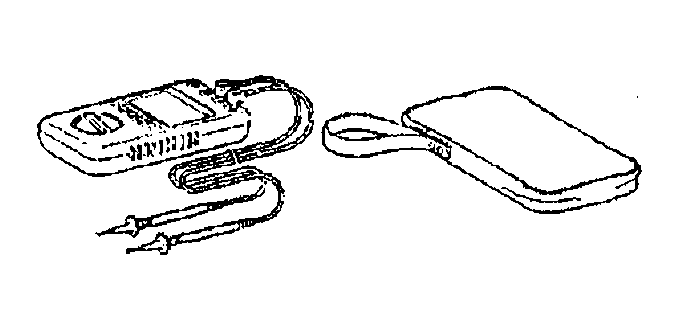

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09082-00040 TOYOTA Electrical Tester	CLUTCH START SWITCH ASSY

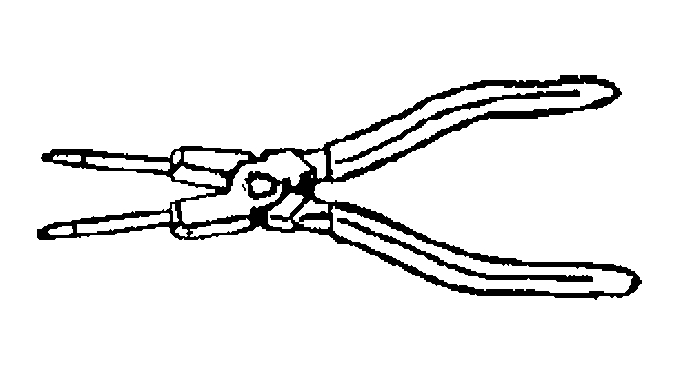

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09905-00013 Snap Ring Pliers	CLUTCH MASTER CYLINDER ASSY

Equipment

CLUTCH - EQUIPMENT CHART

Vernier calipers
Dial indicator with magnetic base
Torque wrench

Lubricant

CLUTCH - LUBRICANT CAPACITY AND CLASSIFICATION CHART

Item	Capacity	Classification
Brake fluid	-	SAE J1703 or FMVSS No. 116 DOT3
