Engine Mechanical: Preparation

SST

ENGINE MECHANICAL - SST CHART

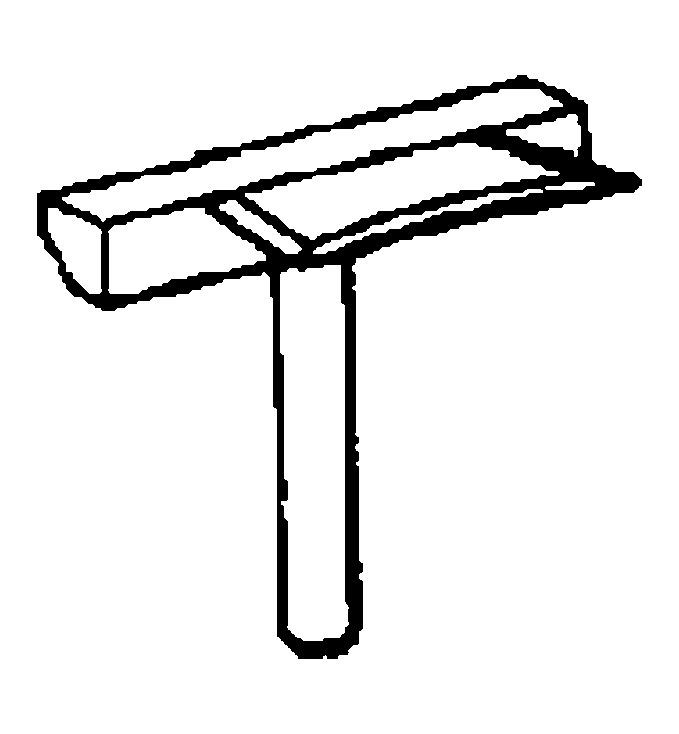

G04388619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09032-00100 Oil Pan Seal Cutter PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
G04388620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09201-01055 Valve Guide Bushing Remover & Replacer 5.5 CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
G04388621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09201-10000 Valve Guide Bushing Remover & Replacer Set CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
CYLINDER HEAD ASSY (2AZ-FE) (From July, 2003)

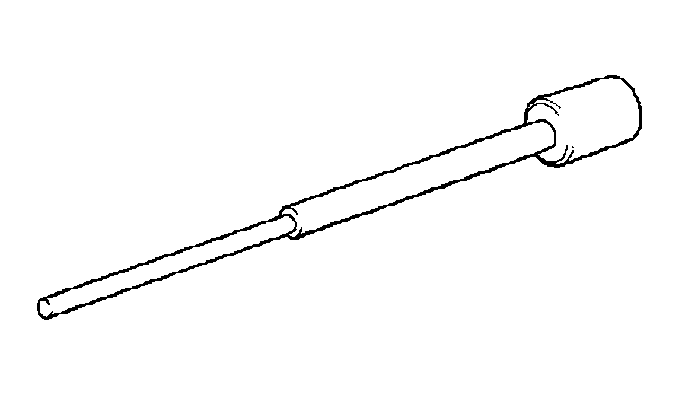

G04388622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09201-01050) Valve Guide Bushing Remover & Replacer 5 CYLINDER HEAD ASSY (2AZ-FE) (From July, 2003)
G04388623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09201-41020 Valve Stem Oil Seal Replacer CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
CYLINDER HEAD ASSY (2AZ-FE) (From July, 2003)

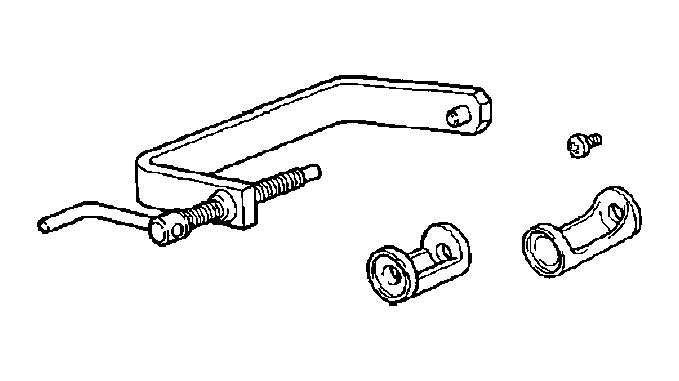

G04388624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09202-70020 Valve Spring Compressor CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
CYLINDER HEAD ASSY (2AZ-FE) (From July, 2003)
G04388625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

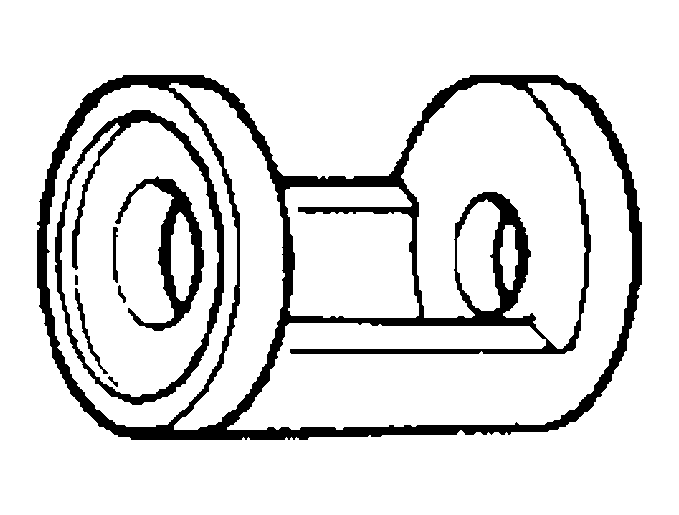

 (09202-00010) Attachment CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
CYLINDER HEAD ASSY (2AZ-FE) (From July, 2003)

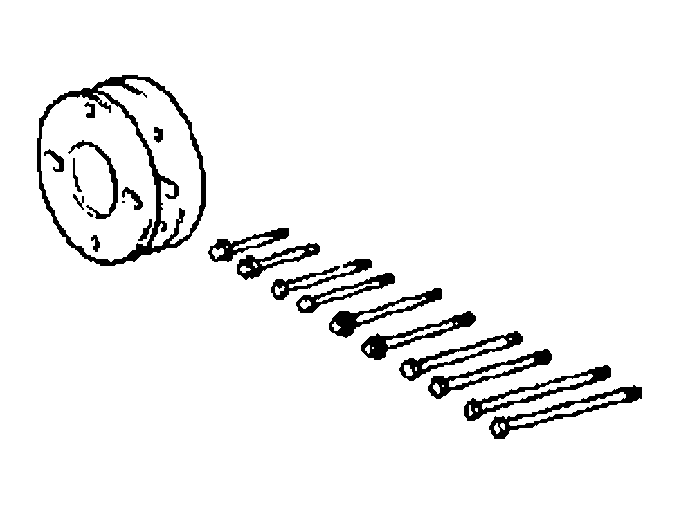

G04388626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09213-54015 Crankshaft Pulley Holding Tool PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
TIMING BELT (1MZ-FE/3MZ-FE)
ENGINE REAR OIL SEAL (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
ENGINE REAR OIL SEAL (2AZ-FE) (From July, 2003)
G04388627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

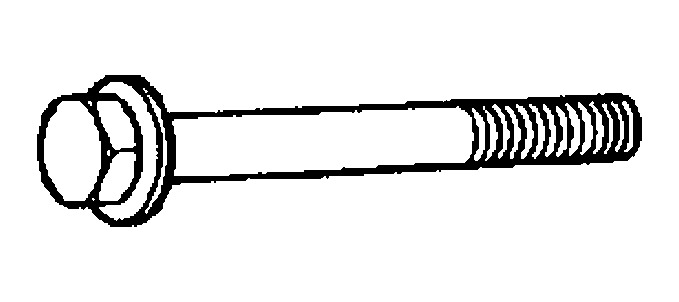

 (91651-60855) Bolt PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
TIMING BELT (1MZ-FE/3MZ-FE)
ENGINE REAR OIL SEAL (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
ENGINE REAR OIL SEAL (2AZ-FE) (From July, 2003)

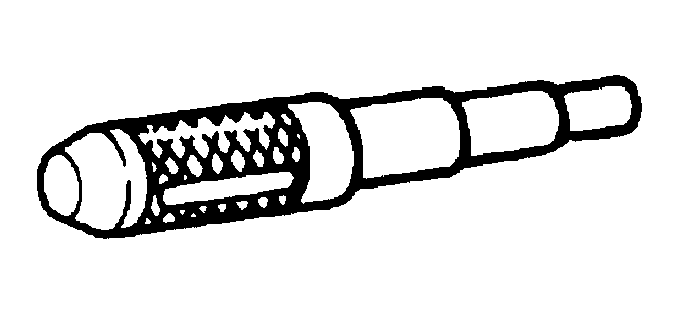

G04388628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09222-30010 Connecting Rod Bushing Remover & Replacer CYLINDER BLOCK ASSY (1MZ-FE/3MZ-FE)

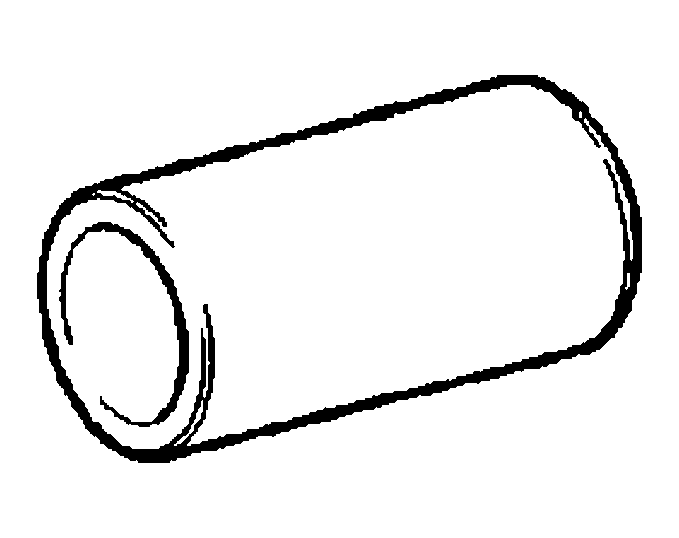

G04388629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09223-00010 Cover & Seal Replacer PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
OIL PUMP SEAL (1MZ-FE/3MZ-FE)

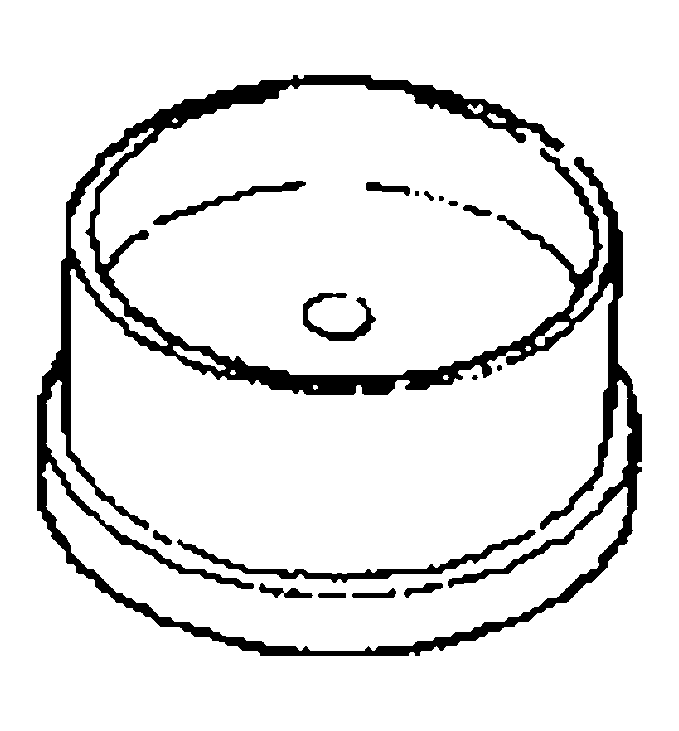

G04388630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09223-15030 Oil Seal & Bearing Replacer PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
ENGINE REAR OIL SEAL (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
ENGINE REAR OIL SEAL (2AZ-FE) (From July, 2003)

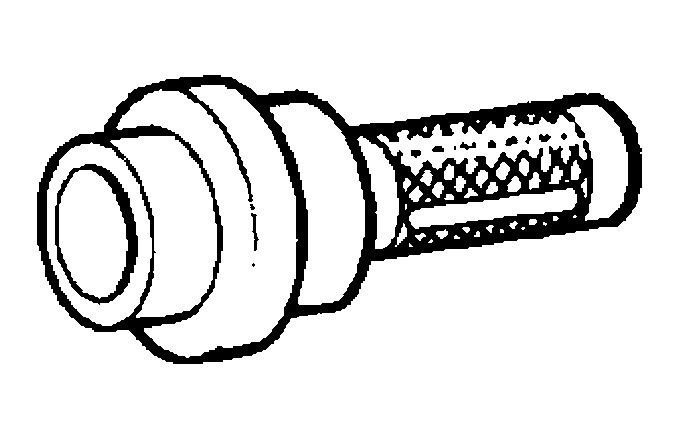

G04388631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09223-22010 Crankshaft Front Oil Seal Replacer PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

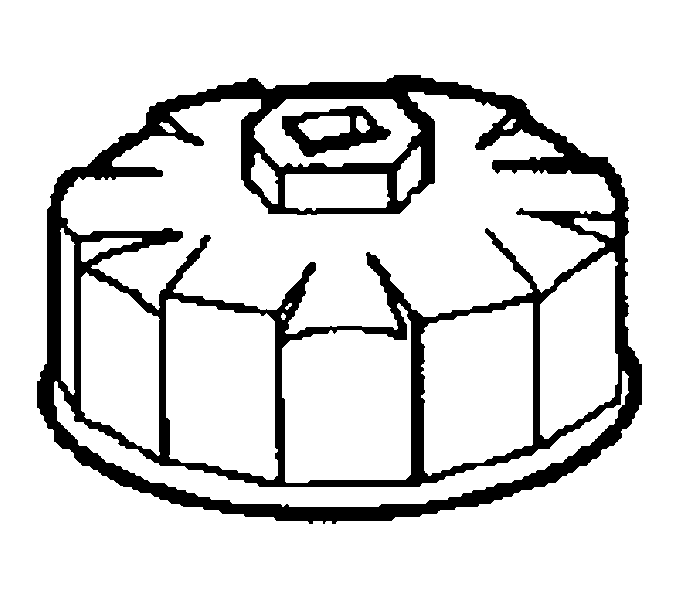

G04388632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09228-06501 Oil Filter Wrench PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)

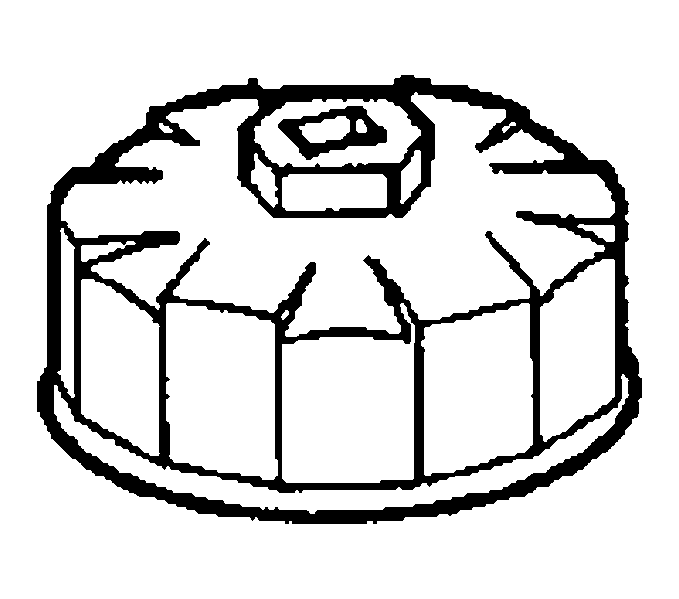

G04388633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09228-07501 Oil Filter Wrench PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)

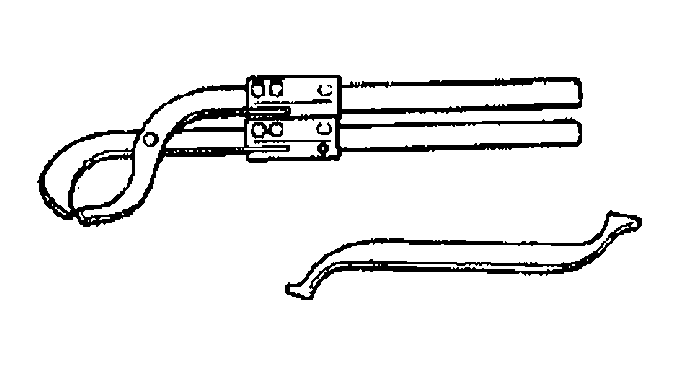

G04388634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

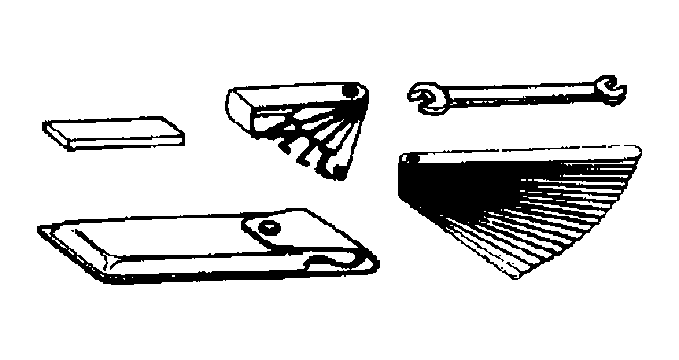

 09248-55040 Valve Clearance Adjust Tool Set VALVE CLEARANCE (1MZ-FE/3MZ-FE)

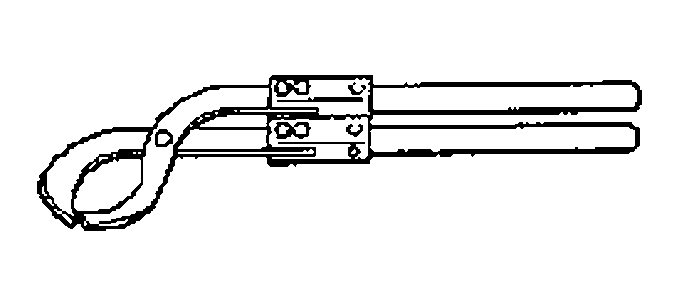

G04388635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09248-05410) Valve Lifter Press VALVE CLEARANCE (1MZ-FE/3MZ-FE)

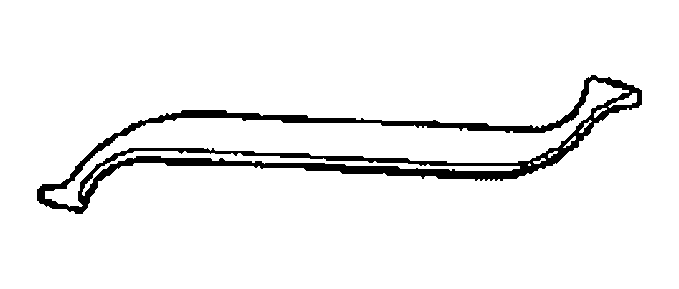

G04388636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09248-05420) Valve Lifter Stopper VALVE CLEARANCE (1MZ-FE/3MZ-FE)

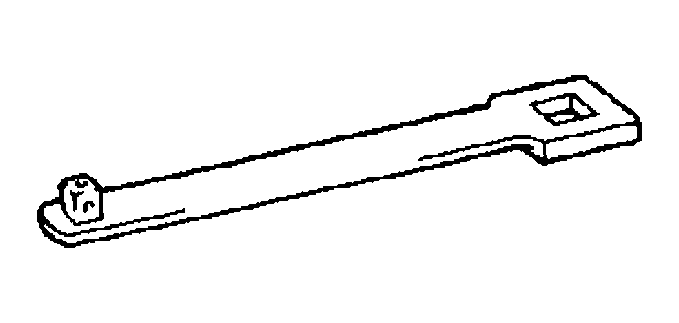

G04388637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09249-63010 Torque Wrench Adaptor CAMSHAFT (RH BANK) (1MZ-FE/3MZ-FE)
DRIVE BELT (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)

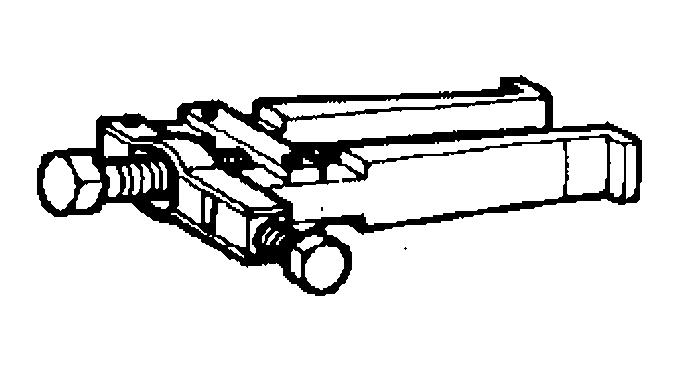

G04388638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09308-10010 Oil Seal Puller TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

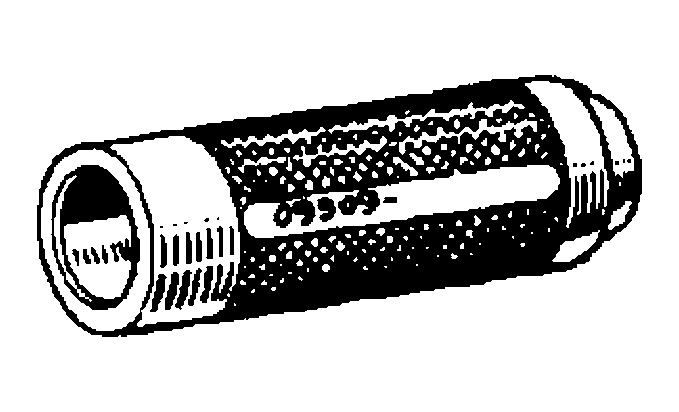

G04388639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09309-37010 Transmission Bearing Replacer PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)

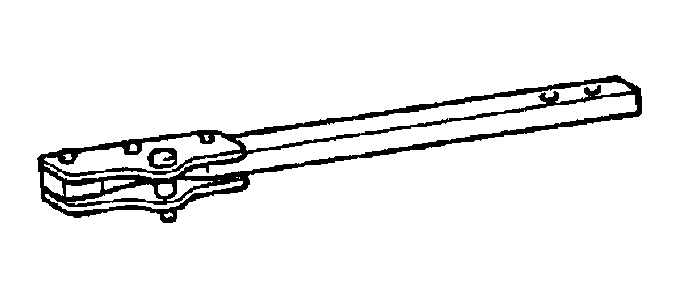

G04388640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09330-00021 Companion Flange Holding Tool PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
TIMING BELT (1MZ-FE/3MZ-FE)
ENGINE REAR OIL SEAL (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
ENGINE REAR OIL SEAL (2AZ-FE) (From July, 2003)

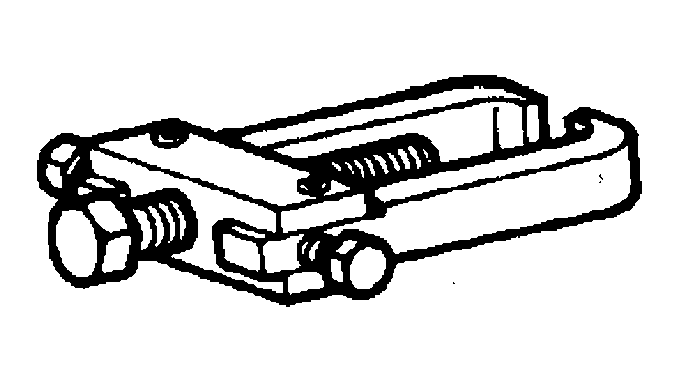

G04388641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09628-62011 Boll Joint Puller PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
G04388642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

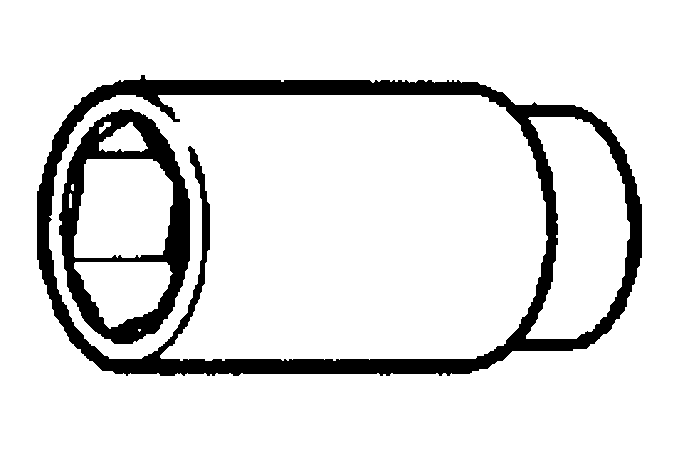

 09816-30010 Oil Pressure Switch Socket PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)

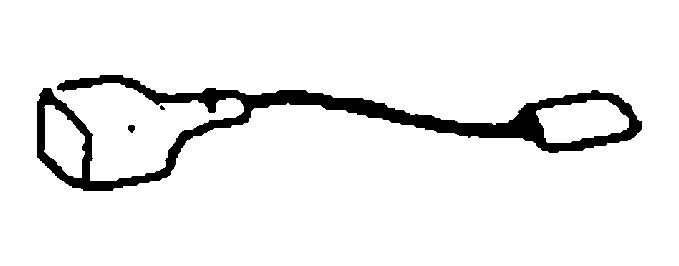

G04388643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18030 Tacho-pulse Pickup Wire No.2 ENGINE (1MZ-FE/3MZ-FE)
ENGINE (2AZ-FE) (From July, 2003)

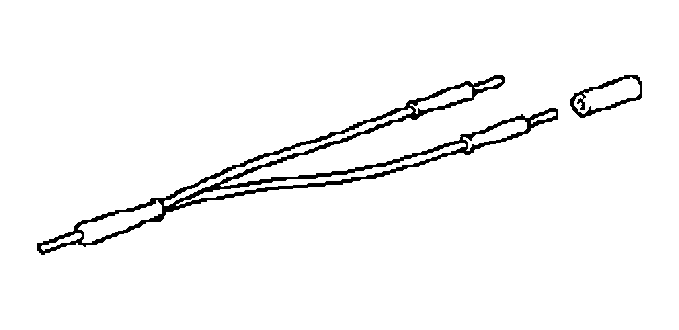

G04388644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18040 Diagnosis Check Wire No.2 ENGINE (1MZ-FE/3MZ-FE)
ENGINE (2AZ-FE) (From July, 2003)

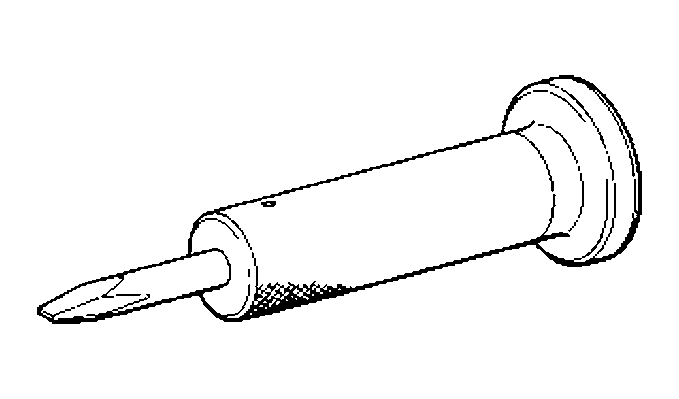

G04388645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09930-00010 Drive Shaft Nut Chisel PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
G04388646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

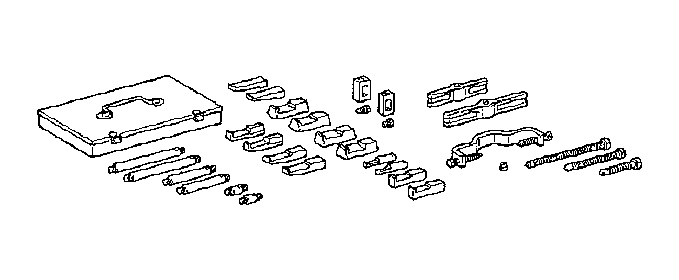

 09950-40011 Puller B Set CHAIN (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

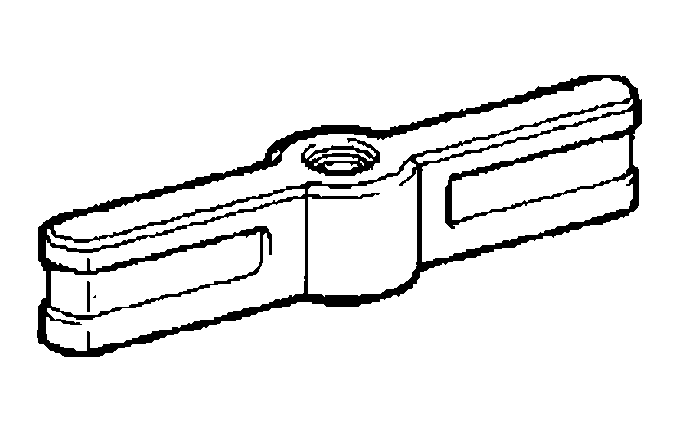

G04388647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-04010) Hanger 150 CHAIN (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

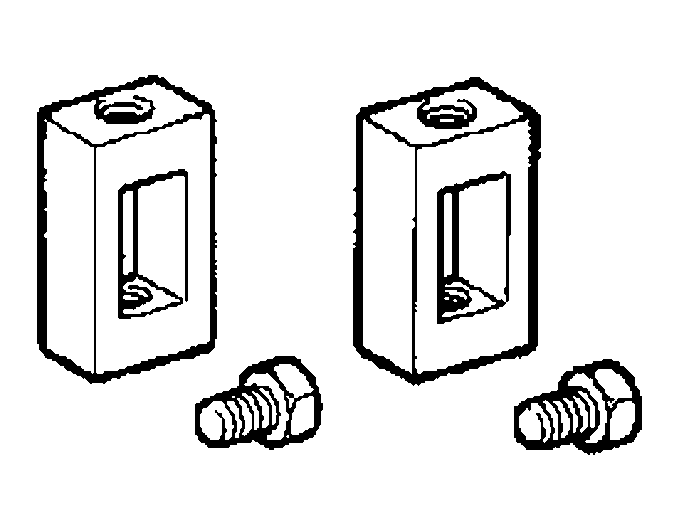

G04388648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09952-04010) Slide Arm CHAIN (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
G04388649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

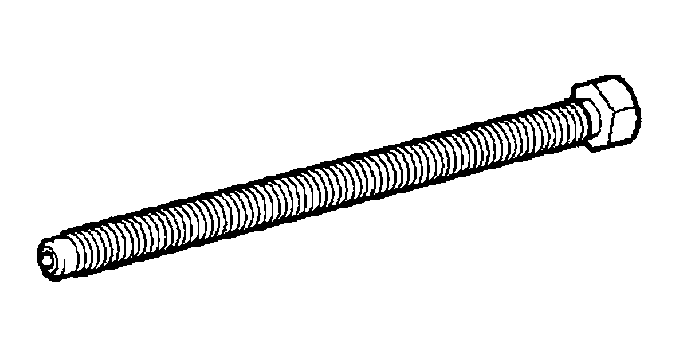

 (09953-04030) Center Bolt 200 CHAIN (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

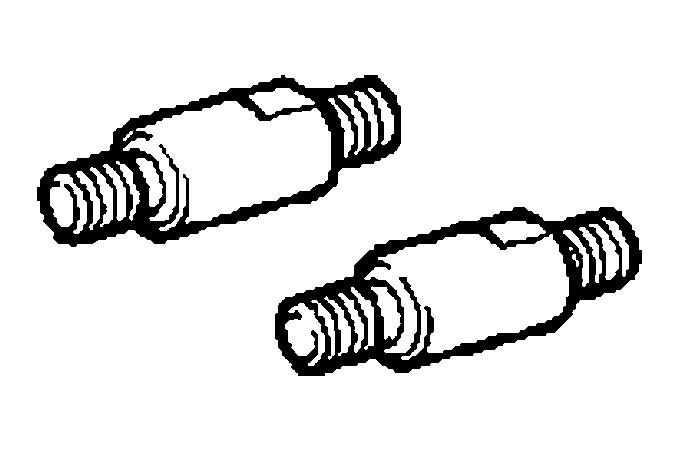

G04388650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09954-04010) Arm 25 CHAIN (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

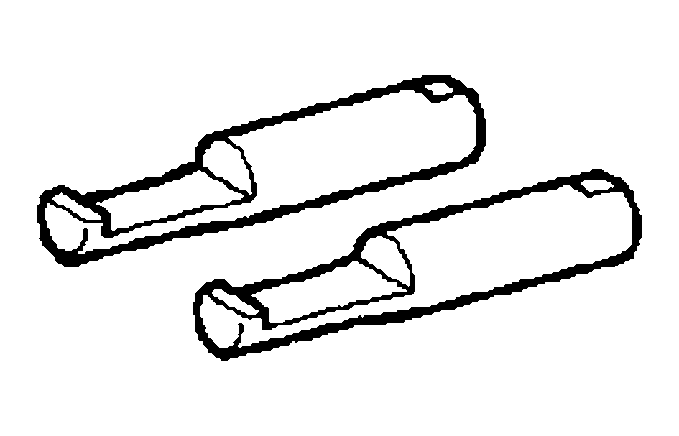

G04388651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09955-04041) Claw No.4 CHAIN (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

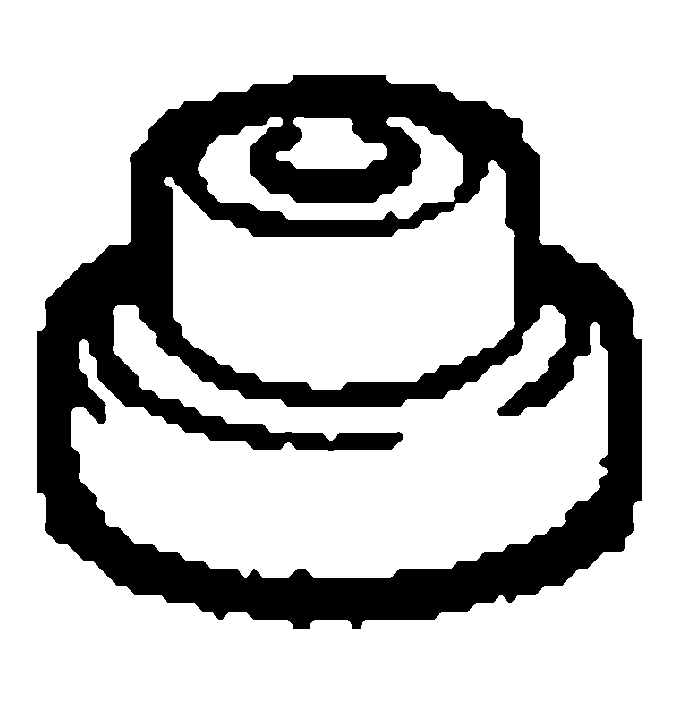

G04388652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09957-04010) Attachment CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

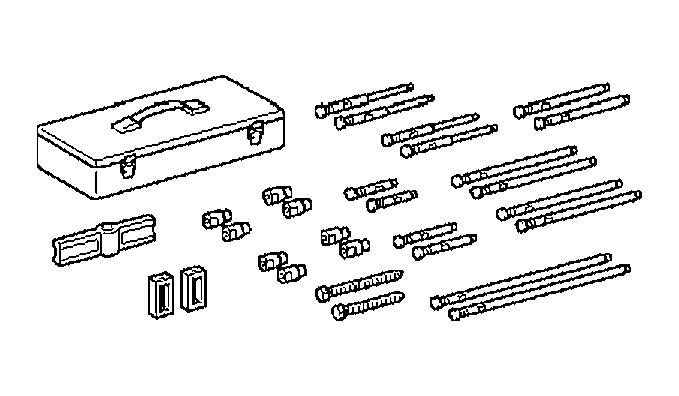

G04388653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09950-50013 Puller C Set PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
TIMING BELT (1MZ-FE/3MZ-FE)
OIL PUMP SEAL (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

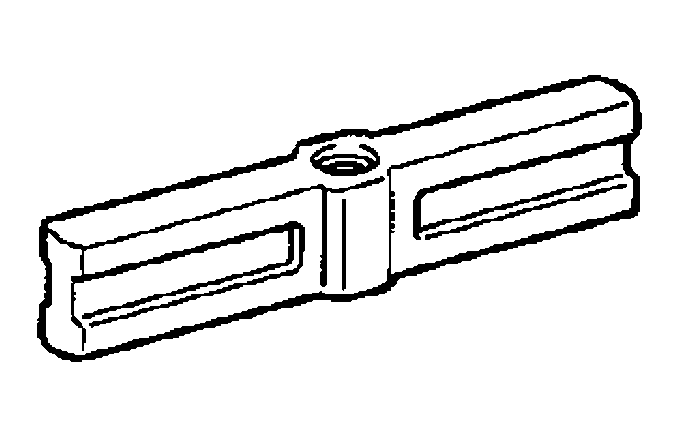

G04388654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-05010) Hanger 150 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
TIMING BELT (1MZ-FE/3MZ-FE)
OIL PUMP SEAL (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
G04388655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

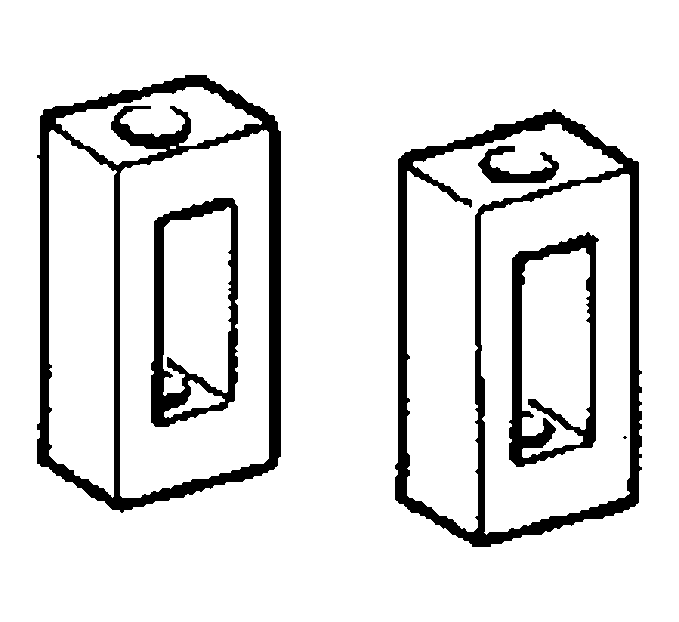

 (09952-05010) Slide Arm PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
TIMING BELT (1MZ-FE/3MZ-FE)
OIL PUMP SEAL (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

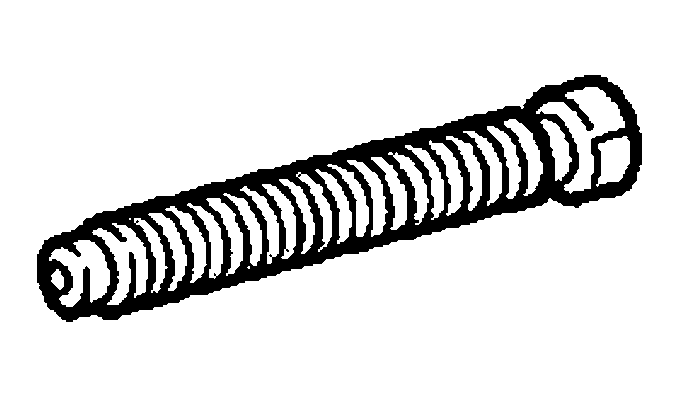

G04388656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09953-05010) Center Bolt 100 TIMING BELT (1MZ-FE/3MZ-FE)

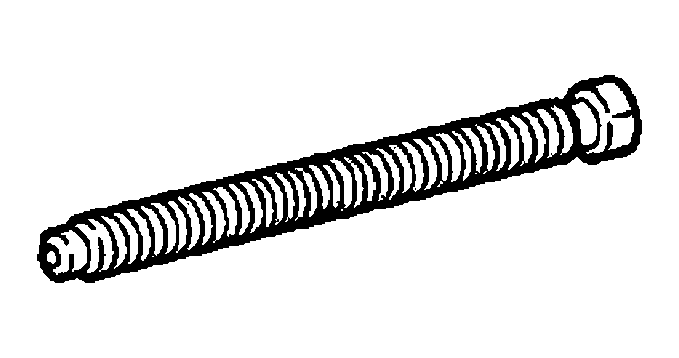

G04388657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09953-05020) Center Bolt 150 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
OIL PUMP SEAL (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

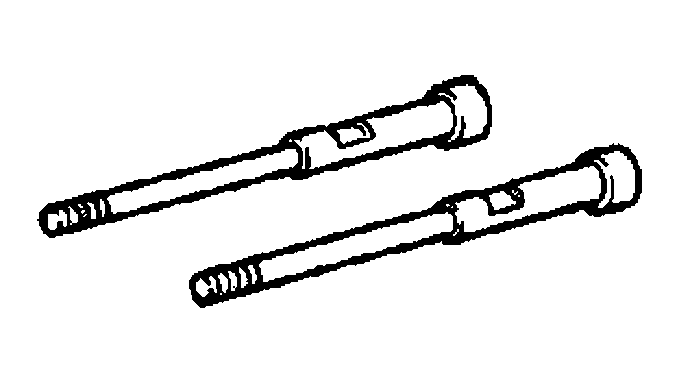

G04388658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09954-05010) Claw No.1 OIL PUMP SEAL (1MZ-FE/3MZ-FE)
G04388659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

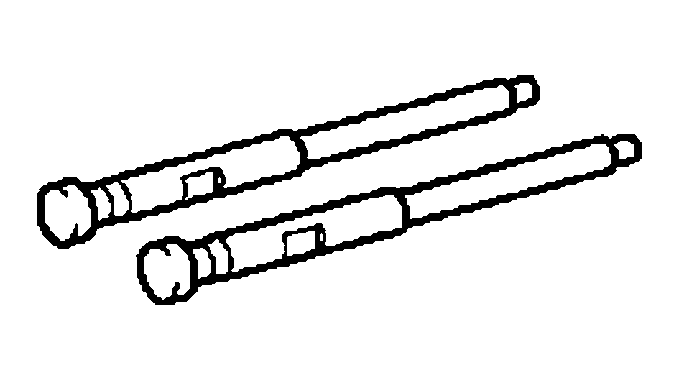

 (09954-05011) Claw No.1 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)

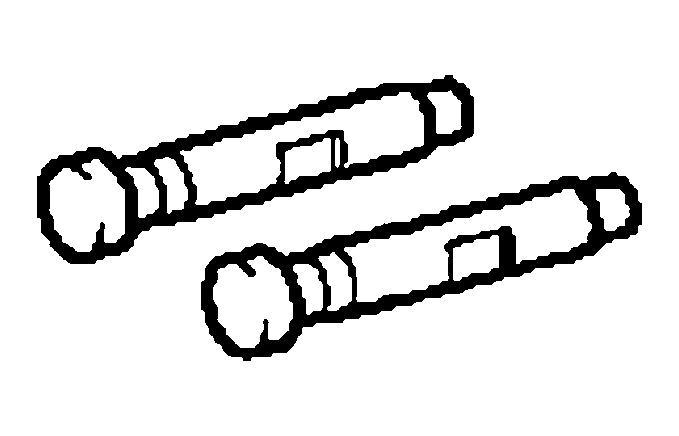

G04388660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09954-05021) Claw No.2 PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)

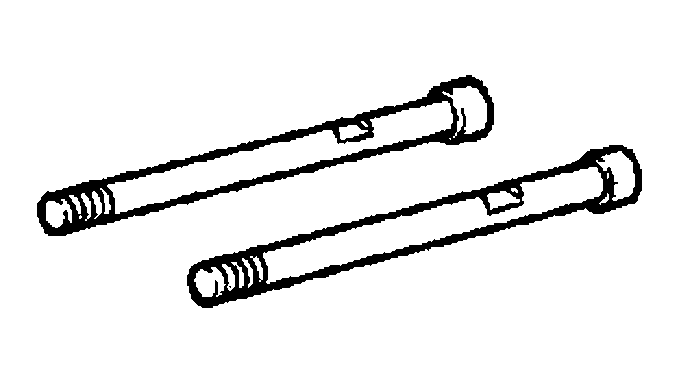

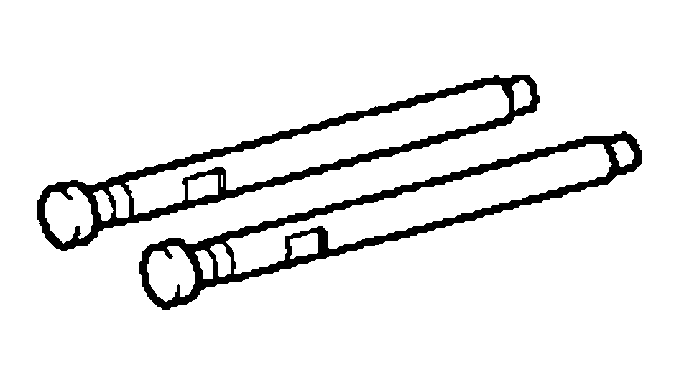

G04388661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09954-05030) Claw No.3 TIMING BELT (1MZ-FE/3MZ-FE)
G04388662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09954-05031) Claw No.3 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
G04388663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09957-04010) Attachment CHAIN (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
G04388664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

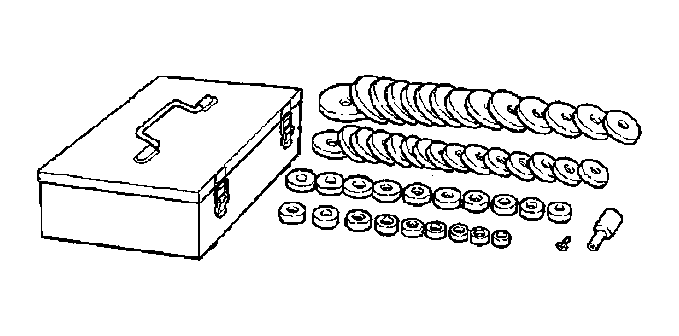

 09950-60010 Replacer Set PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
CYLINDER BLOCK ASSY (2AZ-FE) (From July, 2003)

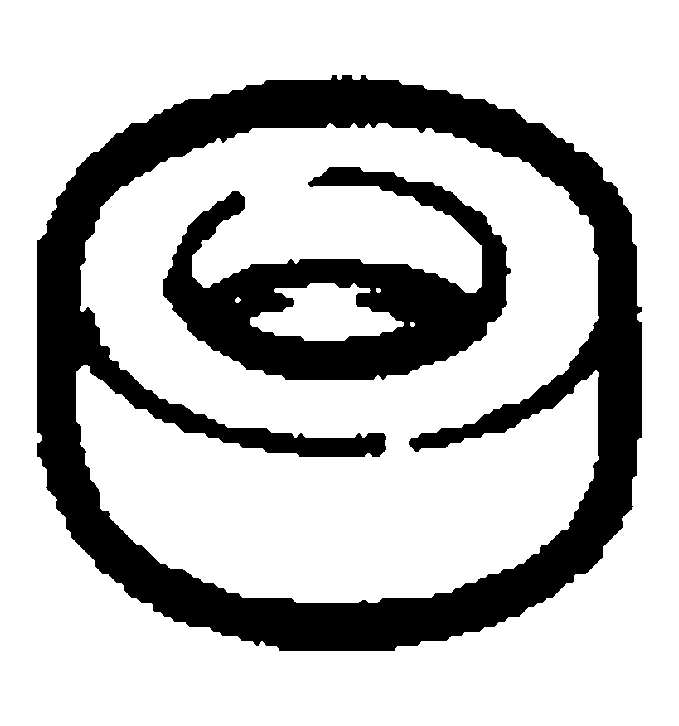

G04388665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-00200) Replacer 20 TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
CYLINDER BLOCK ASSY (2AZ-FE) (From July, 2003)

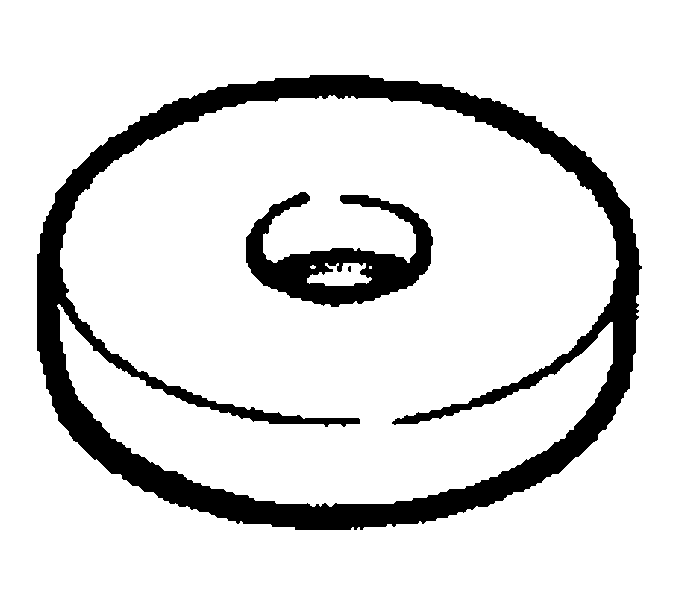

G04388666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-00430) Replacer 43 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)

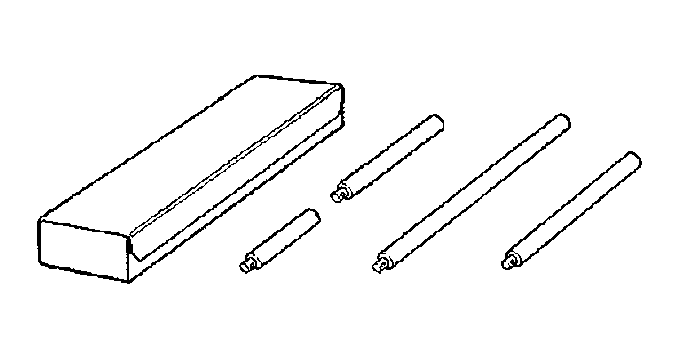

G04388667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09950-70010 Handle Set PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
ENGINE REAR OIL SEAL (1MZ-FE/3MZ-FE)
CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
ENGINE REAR OIL SEAL (2AZ-FE) (From July, 2003)
CYLINDER HEAD ASSY (2AZ-FE) (From July, 2003)
CYLINDER BLOCK ASSY (2AZ-FE) (From July, 2003)

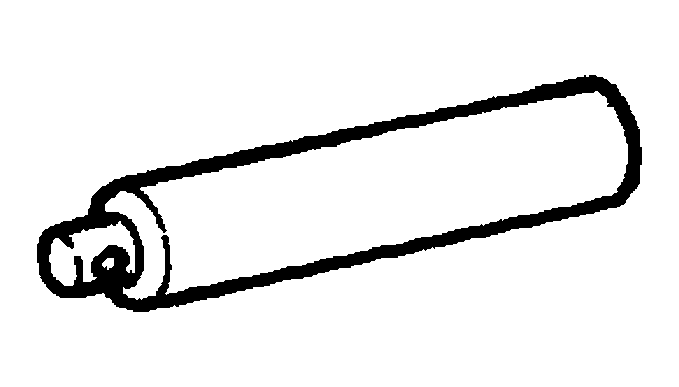

G04388668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-07100) Handle 100 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
ENGINE REAR OIL SEAL (1MZ-FE/3MZ-FE)
CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
ENGINE REAR OIL SEAL (2AZ-FE) (From July, 2003)
CYLINDER HEAD ASSY (2AZ-FE) (From July, 2003)
CYLINDER BLOCK ASSY (2AZ-FE) (From July, 2003)
G04388669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

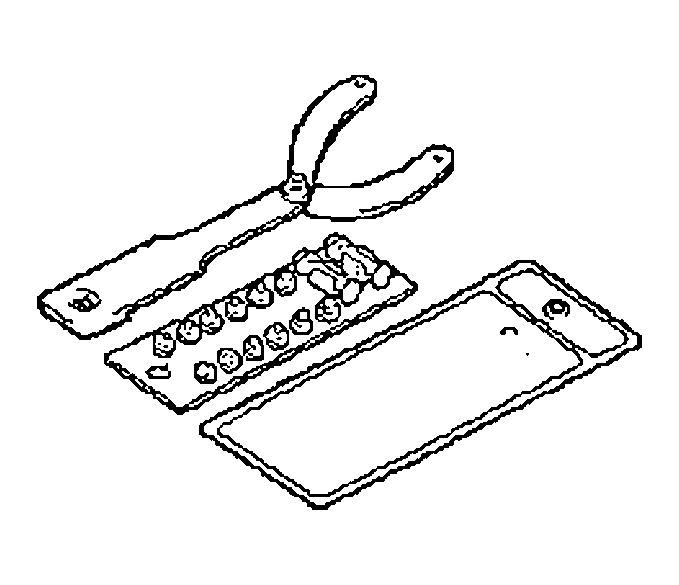

 09960-10010 Variable Pin Wrench Set PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
TIMING BELT (1MZ-FE/3MZ-FE)
CAMSHAFT (RH BANK) (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
ENGINE REAR OIL SEAL (2AZ-FE) (From July, 2003)

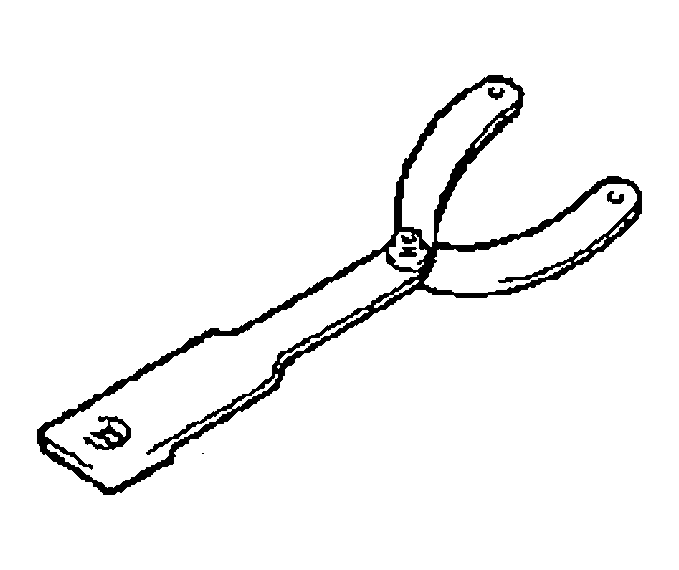

G04388670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09962-01000) Variable Pin Wrench Arm Assy PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
TIMING BELT (1MZ-FE/3MZ-FE)
CAMSHAFT (RH BANK) (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
ENGINE REAR OIL SEAL (2AZ-FE) (From July, 2003)

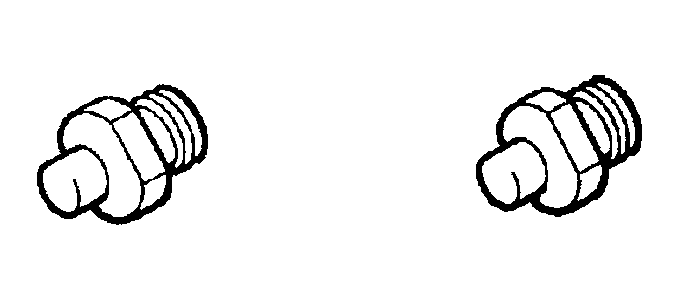

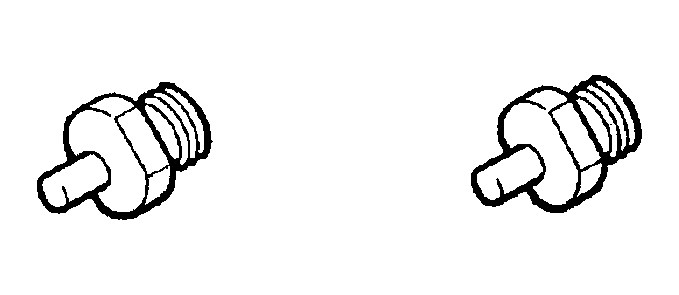

G04388671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09963-00500) Pin 5 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CAMSHAFT (RH BANK) (1MZ-FE/3MZ-FE)
G04388672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09963-00700) Pin 7 PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)

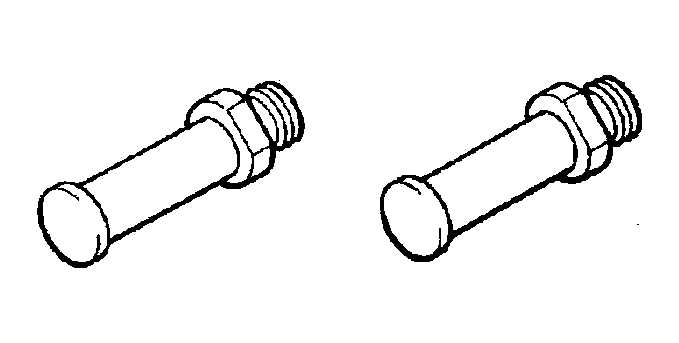

G04388673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09963-01000) Pin 10 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
TIMING BELT (1MZ-FE/3MZ-FE)
CAMSHAFT (RH BANK) (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL (2AZ-FE) (From July, 2003)
ENGINE REAR OIL SEAL (2AZ-FE) (From July, 2003)

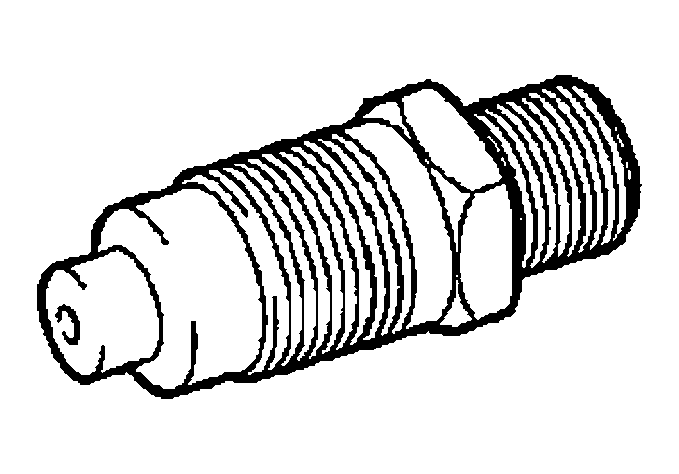

G04388674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09992-00500 Compression Gauge Attachment ENGINE (1MZ-FE/3MZ-FE)

Recommended Tools

ENGINE MECHANICAL - RECOMMENDED TOOLS CHART

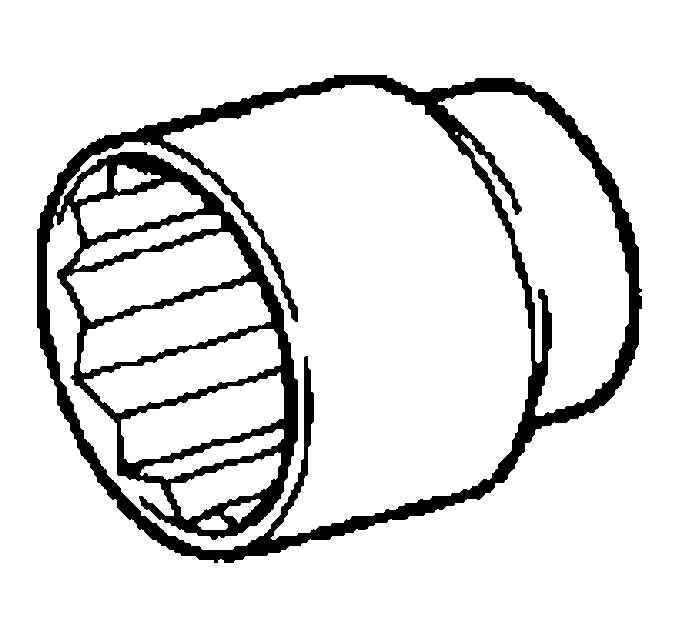

G04388675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09011-12301 Socket Wrench 30 mm PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)

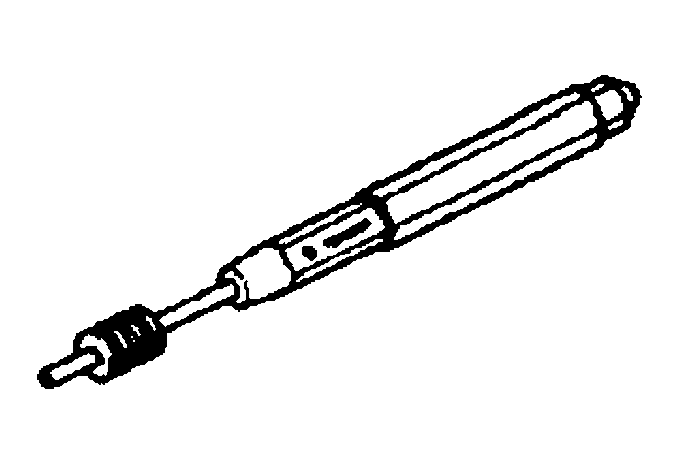

G04388676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09031-00040 Pin Punch. CYLINDER HEAD ASSY (2AZ-FE) (From July, 2003)
PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)

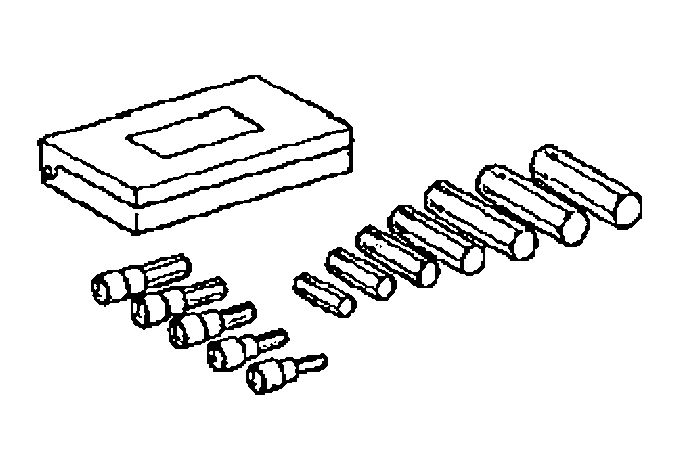

G04388677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09040-00011 Hexagon Wrench Set VALVE CLEARANCE (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CYLINDER HEAD GASKET (1MZ-FE/3MZ-FE)
CYLINDER HEAD GASKET NO.2 (1MZ-FE/3MZ-FE)
CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
CYLINDER BLOCK ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
G04388678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20050) Socket Hexagon Wrench 5 VALVE CLEARANCE (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
G04388679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20060) Socket Hexagon Wrench 6 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
G04388680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20080) Socket Hexagon Wrench 8 VALVE CLEARANCE (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CYLINDER HEAD GASKET (1MZ-FE/3MZ-FE)
CYLINDER HEAD GASKET NO.2 (1MZ-FE/3MZ-FE)
G04388681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20100) Socket Hexagon Wrench 10 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CYLINDER BLOCK ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)

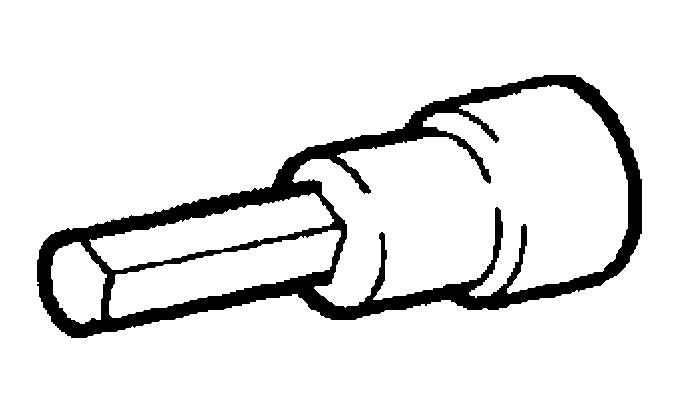

G04388682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20120) Socket Hexagon Wrench 12 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
G04388683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

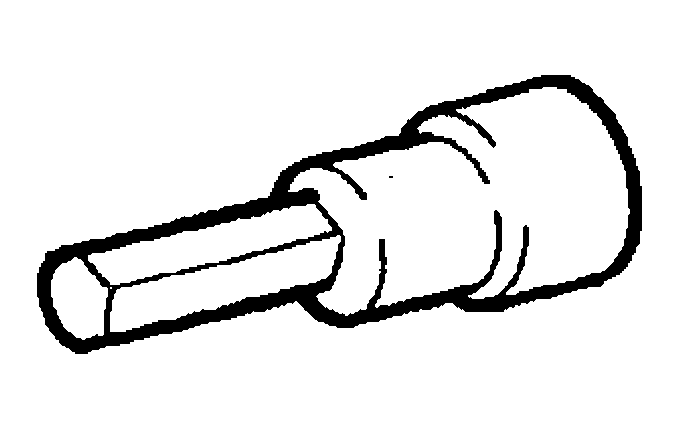

 (09043-20050) Socket Hexagon Wrench 5 VALVE CLEARANCE (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
G04388684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20060) Socket Hexagon Wrench 6 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
G04388685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20080) Socket Hexagon Wrench 8 VALVE CLEARANCE (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CYLINDER HEAD GASKET (1MZ-FE/3MZ-FE)
CYLINDER HEAD GASKET NO.2 (1MZ-FE/3MZ-FE)
G04388686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20100) Socket Hexagon Wrench 10 PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CYLINDER BLOCK ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)

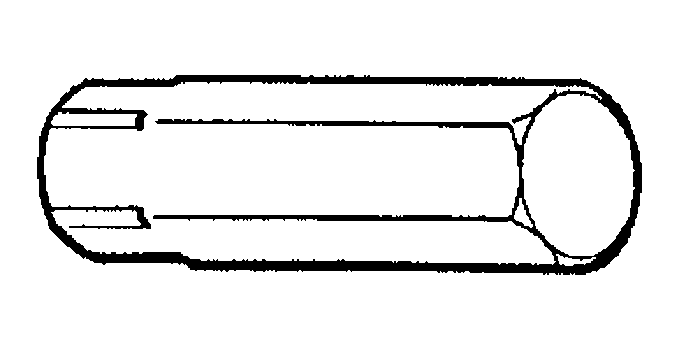

G04388687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-30140) Straight Hexagon Wrench 14 CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
G04388688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

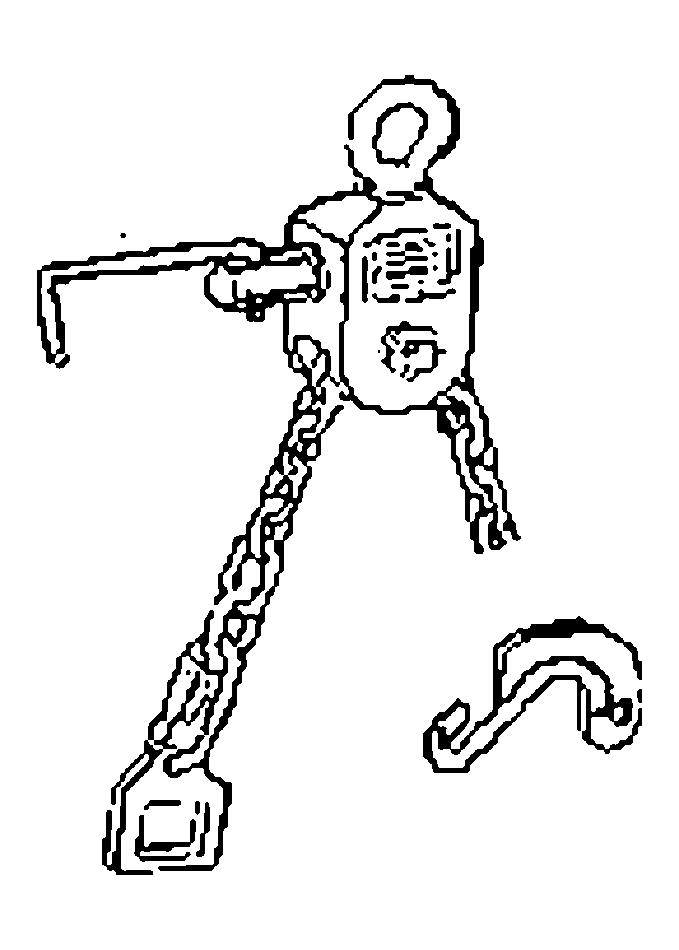

 09090-04020 Engine Sling Device PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CHAIN (2AZ-FE) (From July, 2003)
G04388689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09200-00010 Engine Adjust Kit VALVE CLEARANCE (1MZ-FE/3MZ-FE)
CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
CYLINDER BLOCK ASSY (1MZ-FE/3MZ-FE)
VALVE CLEARANCE (2AZ-FE) (From July, 2003)
CYLINDER HEAD ASSY (2AZ-FE) (From July, 2003)

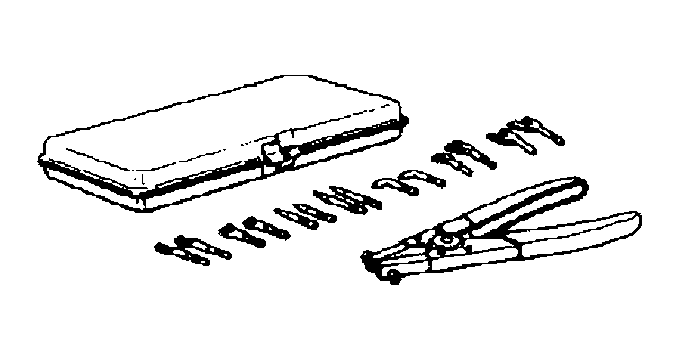

G04388690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09904-00010 Expander Set PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CAMSHAFT (RH BANK) (1MZ-FE/3MZ-FE)

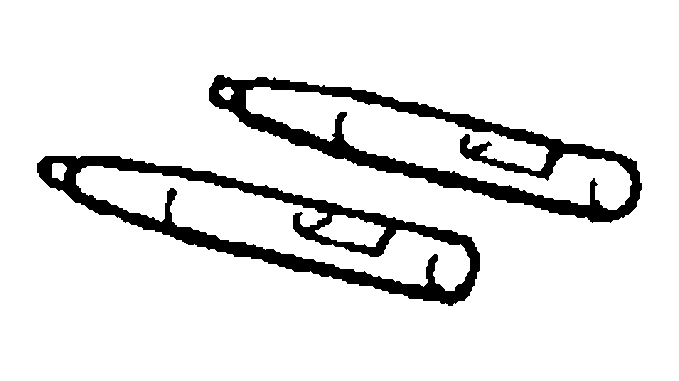

G04388691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09904-00040) No. 3 Claw PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CAMSHAFT (RH BANK) (1MZ-FE/3MZ-FE)

Equipment

ENGINE MECHANICAL - EQUIPMENT CHART

Abrasive compound Valve
Brush Piston
Caliper gauge
Carbide cutter
CO/HC meter
Compression gauge
Connecting rod aligner
Cylinder gauge
Dial indicator
Dye penetrant
Engine tune-up tester
Groove cleaning tool Piston ring groove
Heater
Hexagon wrench (1.5 mm) Timing belt tensioner
Micrometer
Pin hole grinder Connecting rod bushing
Piston ring compressor
Piston ring expander
Plastigage
Precision straight edge
Press
Reamer Cylinder
Ridge reamer Cylinder
Soft brush Cylinder head
Cylinder block
Solvent
Spring tester Valve spring
Steel square Valve spring
Thermometer
Torque wrench
Valve seat cutter
Valve guide bushing brush
V-block
Vernier caliper
Wire brush Valve
Cylinder head

SSM

ENGINE MECHANICAL - SSM CHART

08826-00080 Seal Packing Black or equivalent (FIPG) VALVE CLEARANCE (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CAMSHAFT (RH BANK) (1MZ-FE/3MZ-FE)
CAMSHAFT (LH BANK) (1MZ-FE/3MZ-FE)
CYLINDER HEAD GASKET NO.2 (1MZ-FE/3MZ-FE)
CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
VALVE CLEARANCE (2AZ-FE) (From July, 2003)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
CHAIN (2AZ-FE) (From July, 2003)
CAMSHAFT (2AZ-FE) (From July, 2003)
CYLINDER HEAD GASKET (2AZ-FE) (From July, 2003)
08826-00100 "Seal Packing 1282B," THREE BOND 1282B or equivalent (FIPG) PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
CYLINDER BLOCK ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
08833-00070 "Adhesive 1324," THREE BOND 1324 or equivalent PARTIAL ENGINE ASSY (1MZ-FE/3MZ-FE)
ENGINE REAR OIL SEAL (1MZ-FE/3MZ-FE)
CYLINDER HEAD ASSY (1MZ-FE/3MZ-FE)
CYLINDER BLOCK ASSY (1MZ-FE/3MZ-FE)
PARTIAL ENGINE ASSY (2AZ-FE) (From July, 2003)
ENGINE REAR OIL SEAL (2AZ-FE) (From July, 2003)
CYLINDER BLOCK ASSY (2AZ-FE) (From July, 2003)
scientia non olet · About LEMON Manuals
