Exterior/Interior Trim: Preparation

SST

EXTERIOR/INTERIOR TRIM - SST CHART

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

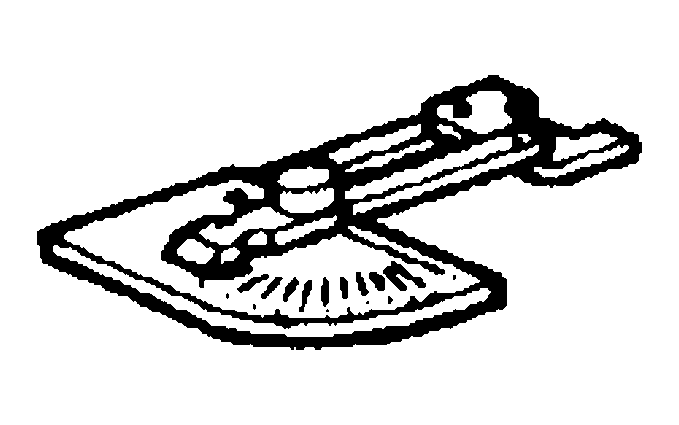

09244-01010 Angle Gauge

NAME PLATE

Recommended Tools

EXTERIOR/INTERIOR TRIM - RECOMMENDED TOOLS CHART

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

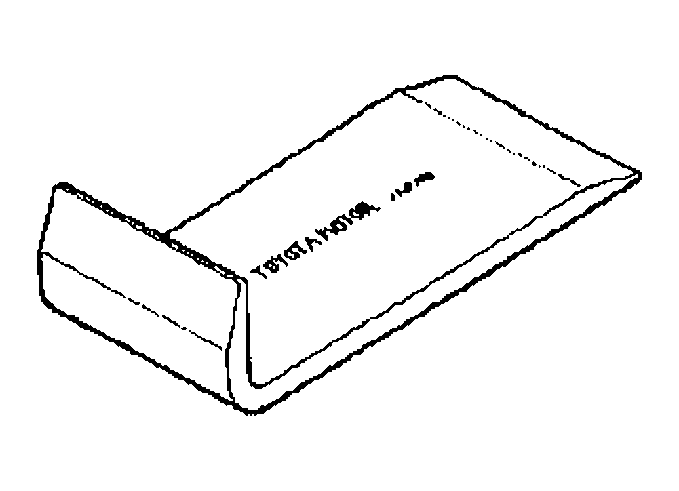

09070-20010 Moulding Remover

FRONT DOOR BELT MOULDING ASSY LH
ROOF HEADLINING ASSY
ROOF DRIP SIDE FINISH MOULDING CENTER LH

Equipment

EXTERIOR/INTERIOR TRIM - EQUIPMENT CHART

Torque wrench
