Accelerator Pedal ASSY (1MZ-FE/3MZ-FE): Replacement

REMOVE ACCELERATOR PEDAL ASSY
1. Disconnect the accelerator position sensor connector.
2. Remove the 2 bolts and the accelerator pedal.

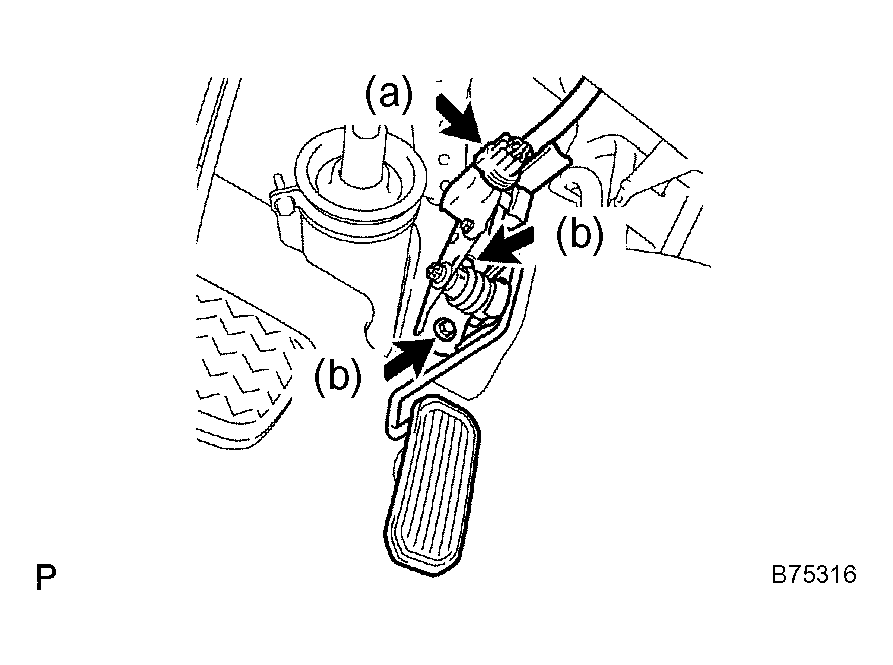

Fig 1: Identifying Accelerator Position Sensor Connector And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ACCELERATOR PEDAL ASSY
1. Connect the accelerator position sensor connector.
2. Install the accelerator pedal with the 2 bolts.
  Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
Fig 2: Identifying Accelerator Position Sensor Connector And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
