Steering Column: Preparation

SST

STEERING COLUMN - SST CHART

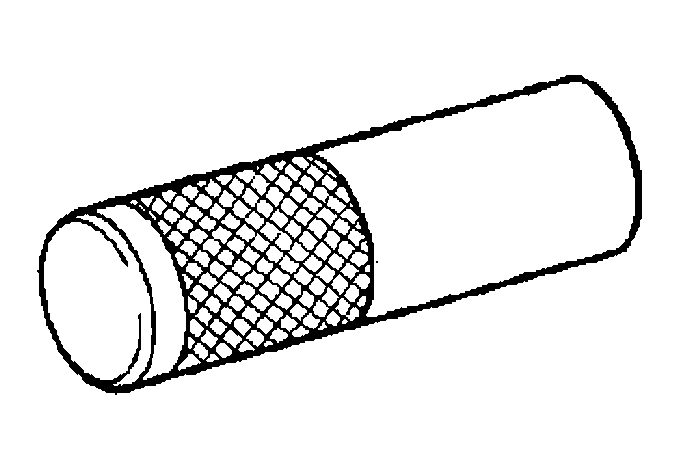

G04388897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09608-06041 Front Hub Inner Bearing Cone Replacer STEERING COLUMN ASSY (TMC MADE)

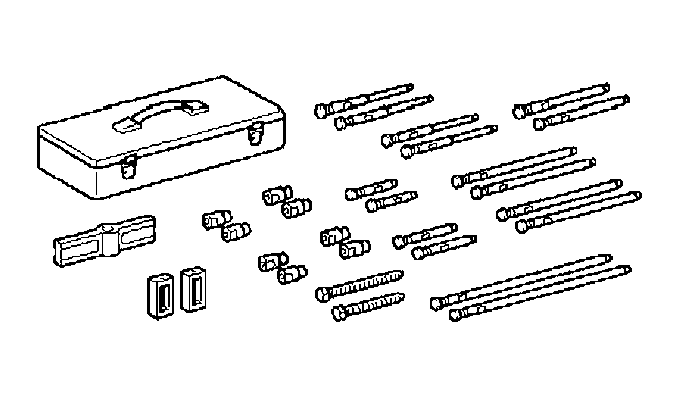

G04388898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09950-50013 Puller C Set STEERING COLUMN ASSY (TMC MADE)
STEERING COLUMN ASSY (TMMK MADE)

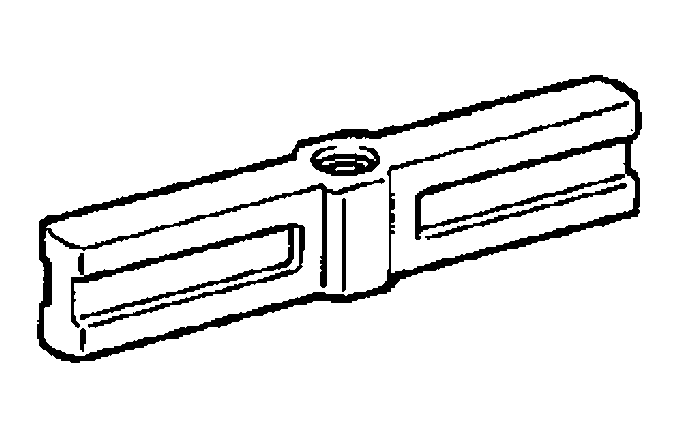

G04388899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-05010) Hanger 150 STEERING COLUMN ASSY (TMC MADE)
STEERING COLUMN ASSY (TMMK MADE)

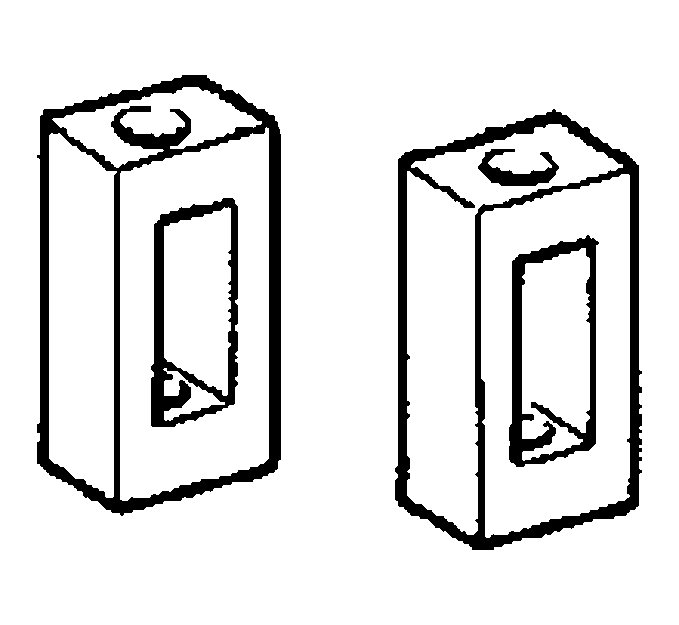

G04388900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09952-05010) Slide Arm STEERING COLUMN ASSY (TMC MADE)
STEERING COLUMN ASSY (TMMK MADE)

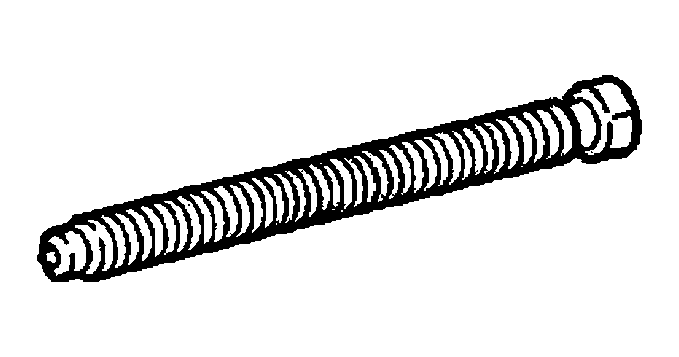

G04388901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09953-05020) Center Bolt 150 STEERING COLUMN ASSY (TMC MADE)
STEERING COLUMN ASSY (TMMK MADE)
G04388902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09954-05021) Claw No.2 STEERING COLUMN ASSY (TMC MADE)
STEERING COLUMN ASSY (TMMK MADE)

Recommended Tools

STEERING COLUMN - RECOMMENDED TOOLS CHART

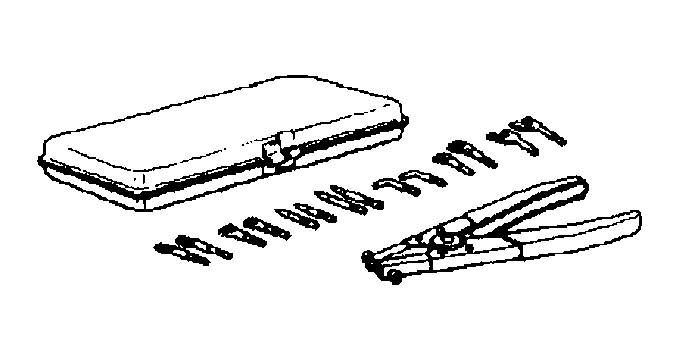

G04388903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09904-00010 Expander Set STEERING COLUMN ASSY (TMC MADE)

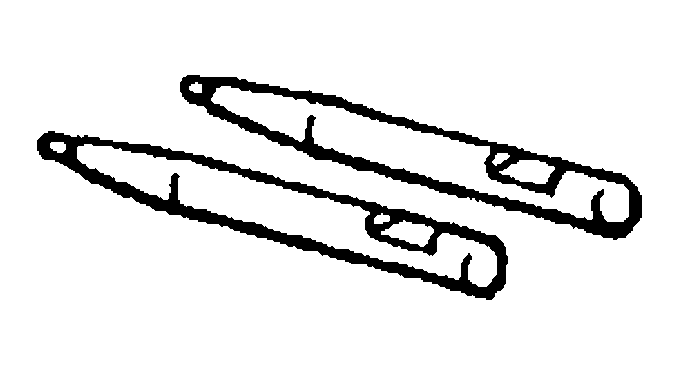

G04388904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09904-00050) No. 4 Claw STEERING COLUMN ASSY (TMC MADE)

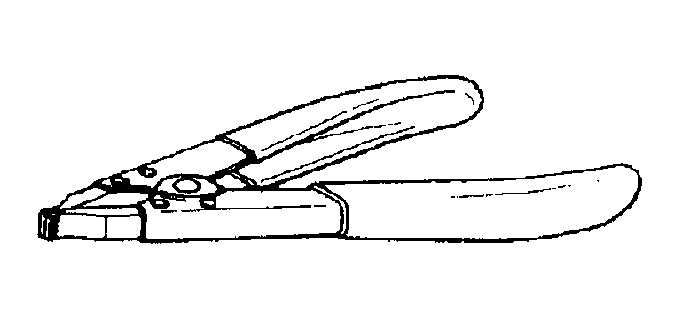

G04388905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09905-00012 Snap Ring No.1 Expander STEERING COLUMN ASSY (TMC MADE)

Equipment

STEERING COLUMN - EQUIPMENT CHART

Torque wrench
