Steering Control Systems: Preparation: Cooling: Preparation

SST

COOLING - SST CHART

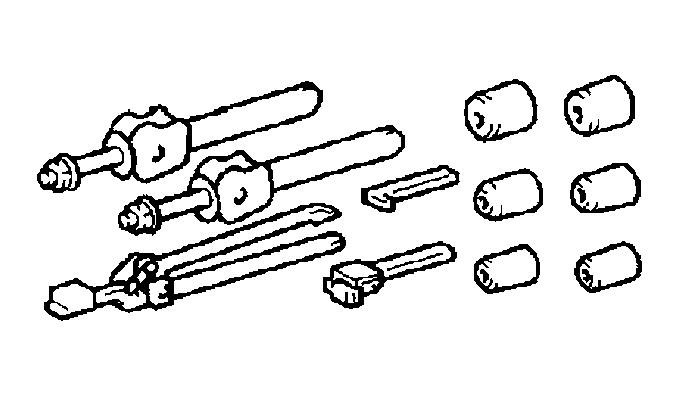

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09230-01010 Radiator Service Tool Set	RADIATOR ASSY (1MZ-FE/3MZ-FE) RADIATOR ASSY (2AZ-FE) (From July, 2003)

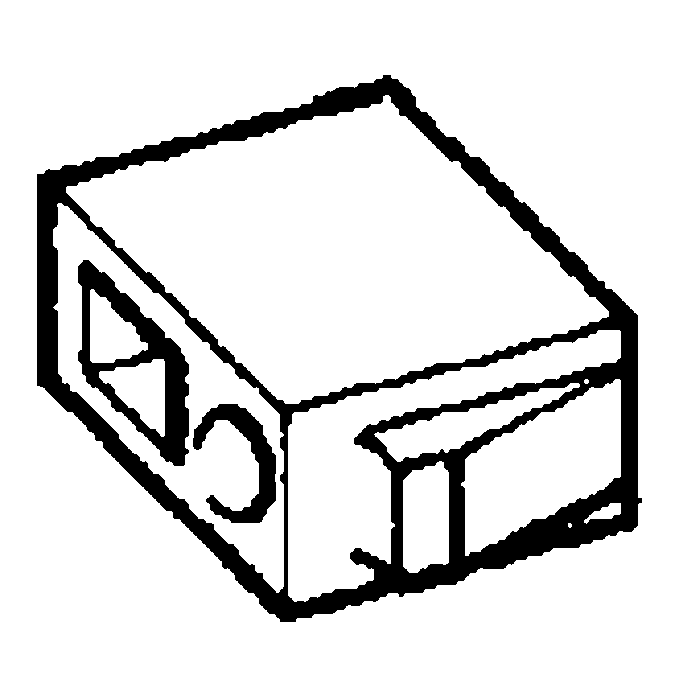

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09231-14010 Punch	RADIATOR ASSY (1MZ-FE/3MZ-FE) RADIATOR ASSY (2AZ-FE) (From July, 2003)

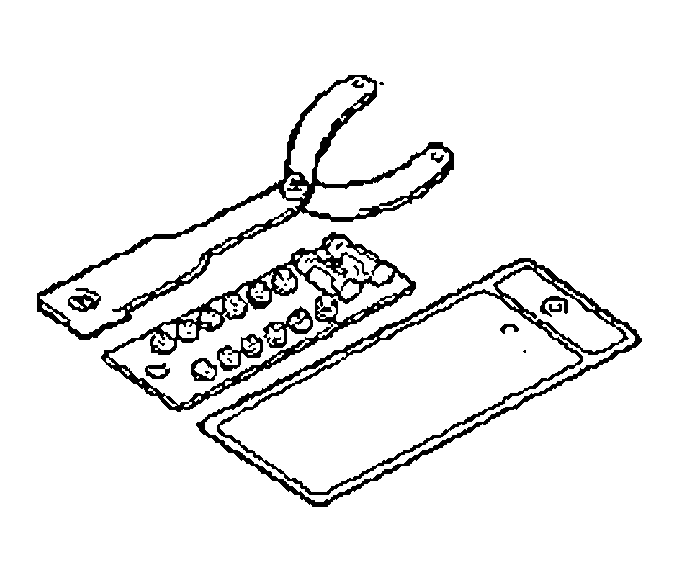

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09960-10010 Variable Pin Wrench Set	WATER PUMP ASSY (2AZ-FE) (From July, 2003)

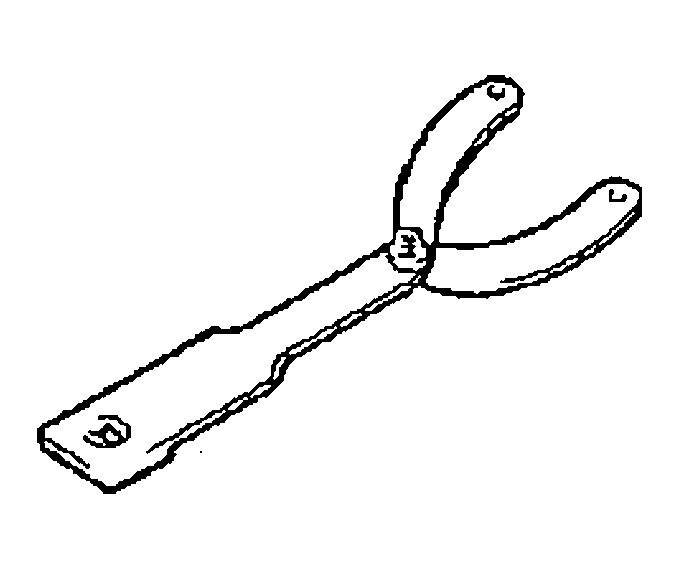

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09962-01000) Variable Pin Wrench Arm Assy	WATER PUMP ASSY (2AZ-FE) (From July, 2003)

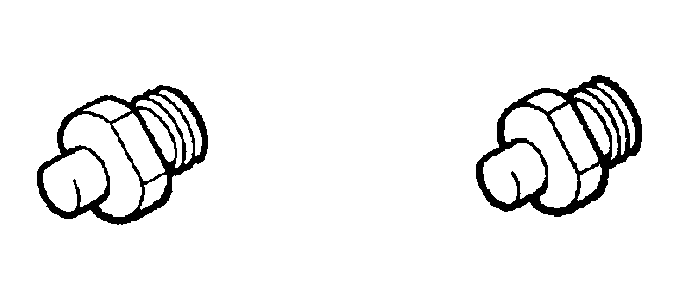

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09963-00700) Pin 7	WATER PUMP ASSY (2AZ-FE) (From July, 2003)

Recommended Tools

COOLING - RECOMMENDED TOOLS CHART

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

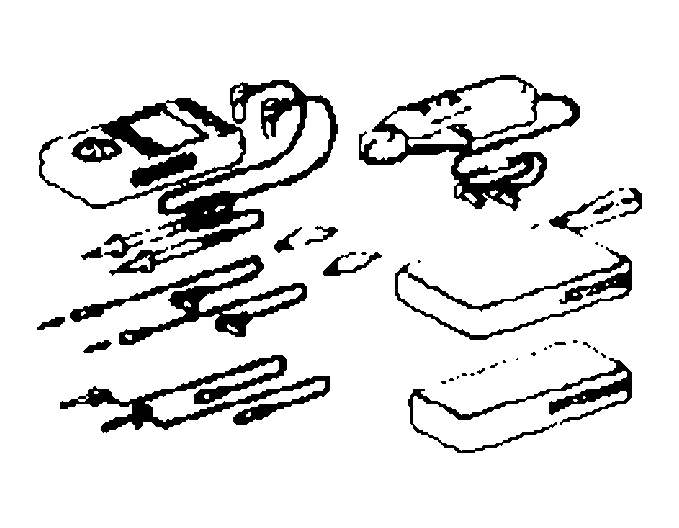

09082-00050 TOYOTA Electrical Tester Set

COOLING FAN SYSTEM (2AZ- FE) (From July, 2003) COOLING FAN SYSTEM (1MZ- FE/3MZ-FE)

Equipment

COOLING - EQUIPMENT CHART

Heater
Radiator cap tester
Thermometer
Torque wrench
Vernier caliper

SSM

COOLING - SSM CHART

08826-00080 Seal Packing Black or equivalent (FIPG)

WATER PUMP ASSY (1MZ-FE/3MZ-FE) WATER PUMP ASSY (2AZ-FE) (From July, 2003)

Coolant

COOLANT CAPACITY AND CLASSIFICATION CHART

Item	Capacity	Classification
Engine coolant 2AZ-FE 1MZ-FE/3MZ-FE	6.2 liters (6.6 US qts, 5.4 lmp. qts) 9.2 liters (9.7 US qts, 8.1 lmp. qts)	"Toyota Super Long Life Coolant", "Toyota Long Life Coolant" or equivalent
