Front Suspension: Preparation

SST

FRONT SUSPENSION - SST CHART

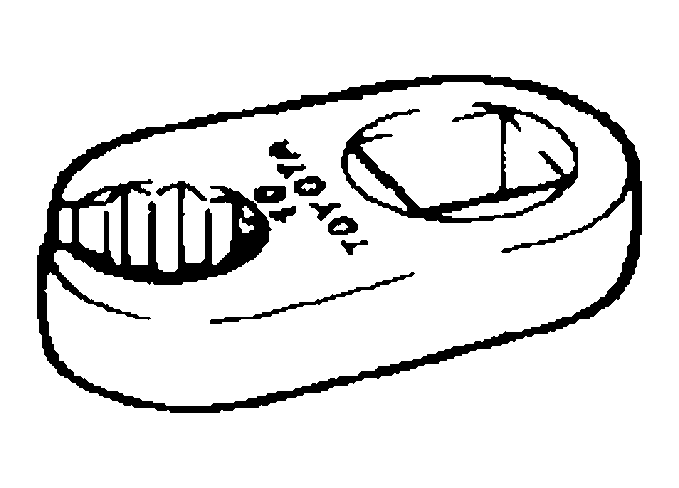

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09023-00101 Union Nut Wrench 10 mm	STABILIZER BAR FRONT

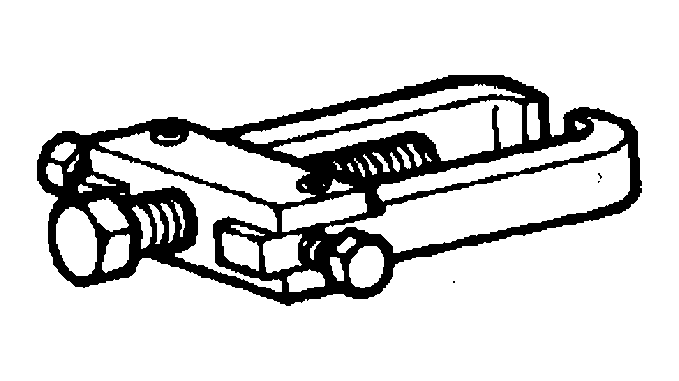

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09628-62011 Ball Joint Puller	JOINT ASSY, LWR BALL, LH STABILIZER BAR FRONT

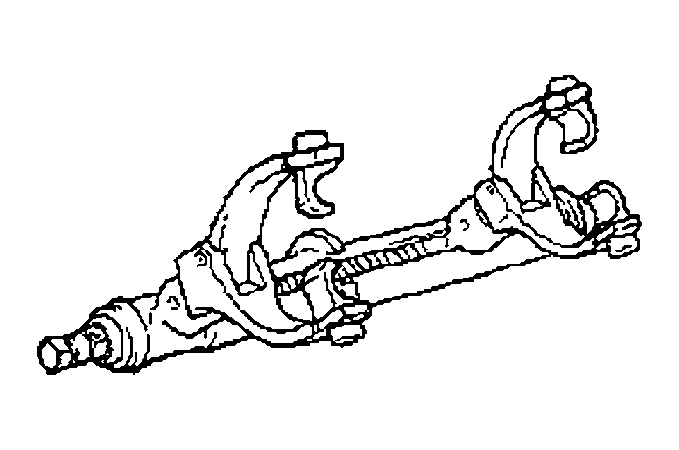

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09727-30021 Coil Spring Compressor	FRONT SHOCK ABSORBER WITH COIL SPRING

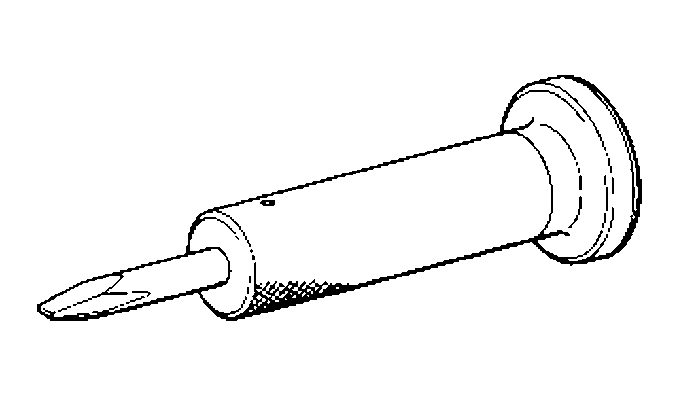

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09930-00010 Drive Shaft Nut Chisel	JOINT ASSY, LWR BALL, LH

Recommended Tools

FRONT SUSPENSION - RECOMMENDED TOOLS CHART

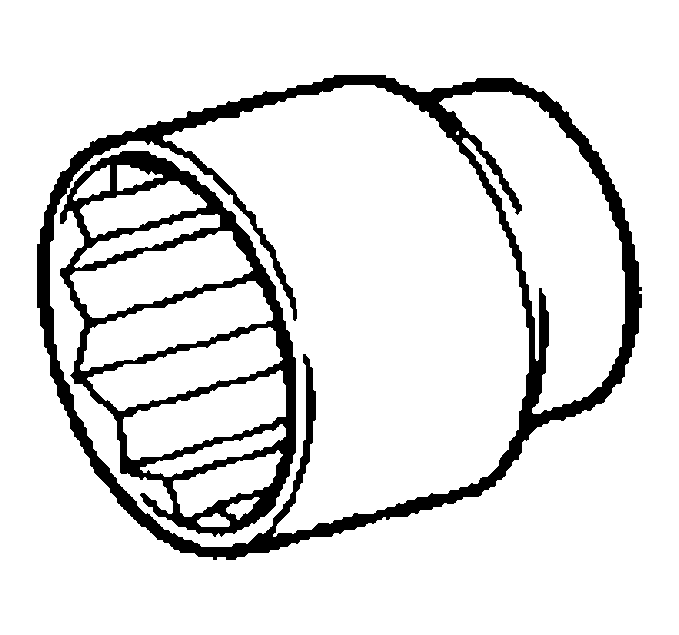

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09011-12301 Socket Wrench 30 mm	LOWER BALL JOINT ASSY FRONT LH

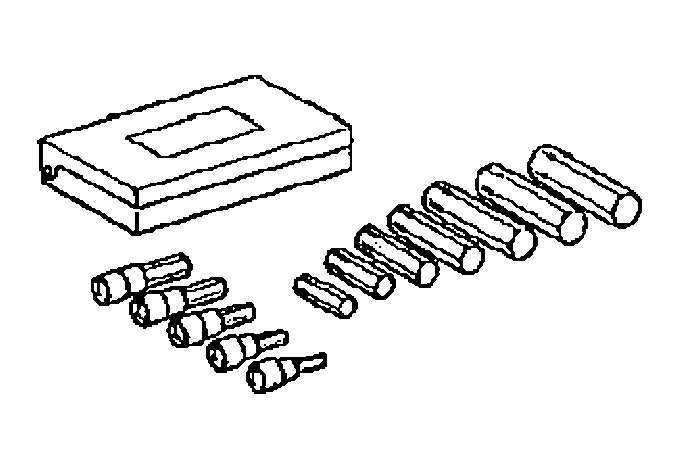

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09040-00011 Hexagon Wrench Set	FRONT SHOCK ABSORBER WITH COIL SPRING STABILIZER BAR FRONT

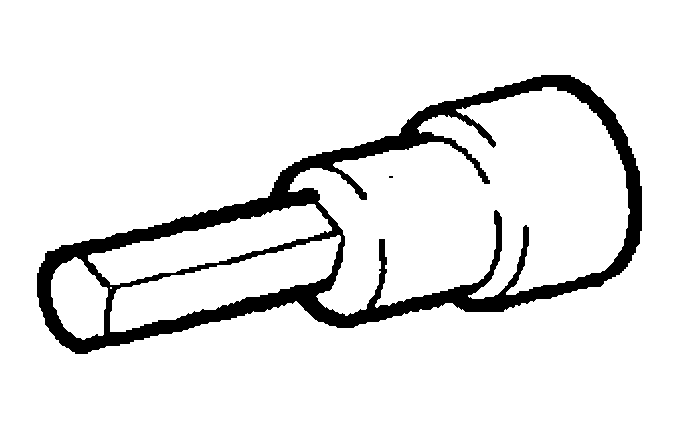

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09043-20060) Socket Hexagon Wrench 6	FRONT SHOCK ABSORBER WITH COIL SPRING STABILIZER BAR FRONT

Equipment

FRONT SUSPENSION - EQUIPMENT CHART

Torque wrench
Dial indicator with magnetic base
Tire pressure gauge
Alignment tester
Toe-in gauge
Angle gauge
Plastic hammer
Engine Sling Device
Universal Engine Lifter
Chain Block
