Accelerator Pedal ASSY (2AZ-FE): Replacement

  1. REMOVE ACCELERATOR PEDAL ASSY
    1. Disconnect the accelerator position sensor connector.
    2. Remove the 2 bolts and the accelerator pedal.

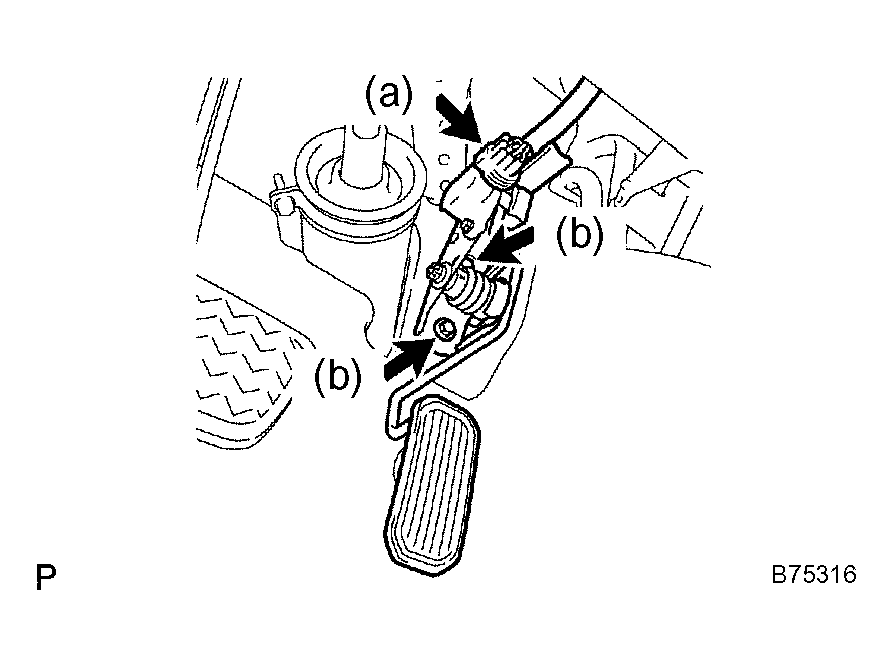

    Fig 1: Identifying Bolts And Accelerator Position Sensor Connector
    G04391293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ACCELERATOR PEDAL ASSY
    1. Connect the accelerator position sensor connector.
    2. Install the accelerator pedal with the 2 bolts.

      Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)

Fig 2: Identifying Accelerator Position Sensor Connector And Bolts
G04391294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
