ECM (2AZ-FE): Replacement

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE FRONT DOOR SCUFF PLATE RH (See step 17 on  REPLACEMENT  )
  3. REMOVE COWL SIDE TRIM SUB-ASSY RH (See step 16 on  REPLACEMENT  )
  4. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1 (See step 14 on  REPLACEMENT  )
  5. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See step 24 on  REPLACEMENT  )
  6. REMOVE ECM
    1. Remove the 2 wire harness clamps.
    2. Disconnect the 5 ECM connectors.
    3. Remove the 2 nuts and ECM.
    Fig 1: Identifying ECM Wire Harness Clamps And Nuts
    G04391287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE ECM BRACKET
    1. Remove the 2 screws and ECM bracket.
    Fig 2: Removing ECM Bracket Screws
    G04391288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE ECM BRACKET NO. 2
    1. Remove the 2 screws and ECM bracket.

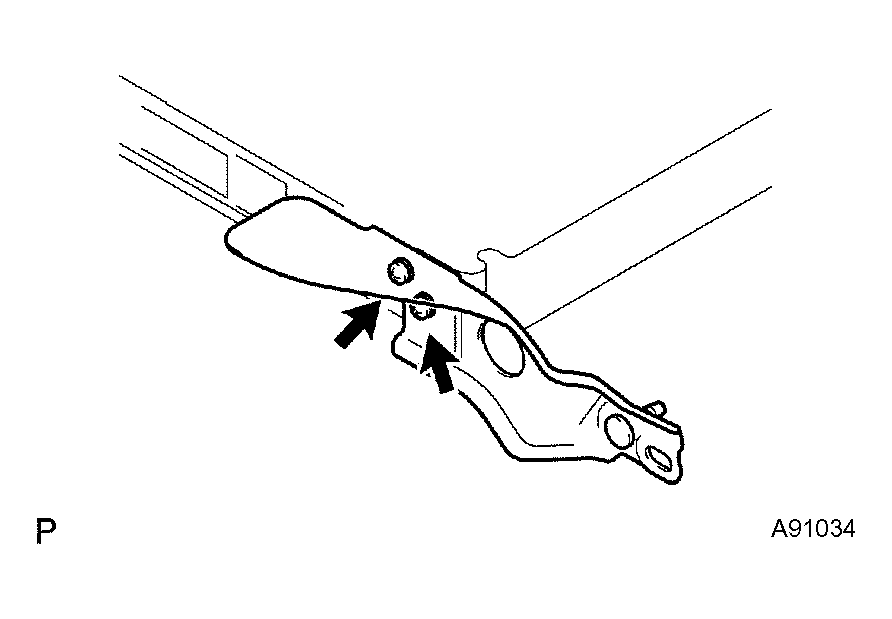

    Fig 3: Removing ECM Bracket No. 2 Screws
    G04391289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL ECM BRACKET NO. 2
    1. Install the ECM bracket with the 2 screws.
    Fig 4: Installing ECM Bracket No. 2 Screws
    G04391290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL ECM BRACKET
    1. Install the ECM bracket with the 2 screws.

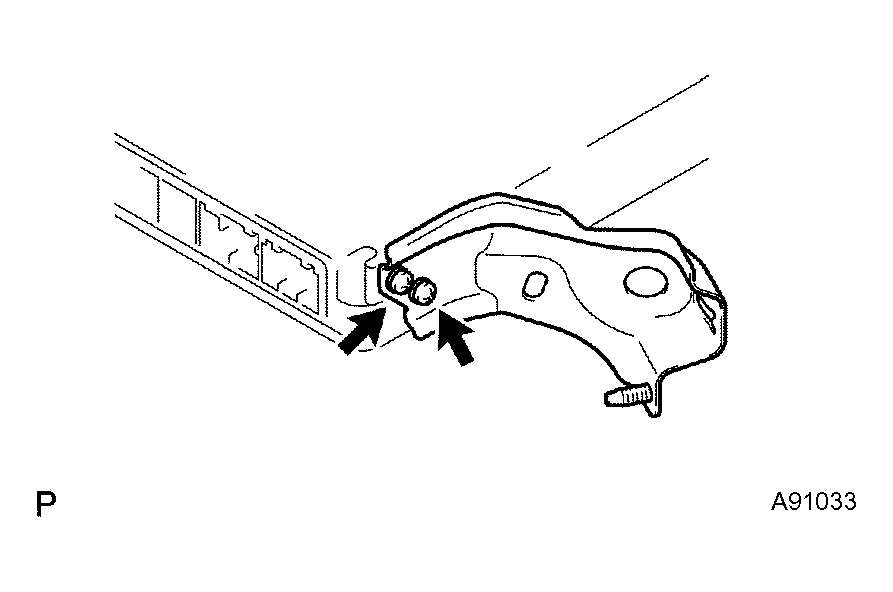

    Fig 5: Installing ECM Bracket Screws
    G04391291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL ECM
    1. Install the 2 wire harness clamps.
    2. Connect the 5 ECM connectors.
    3. Install the ECM with the 2 nuts.

      Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

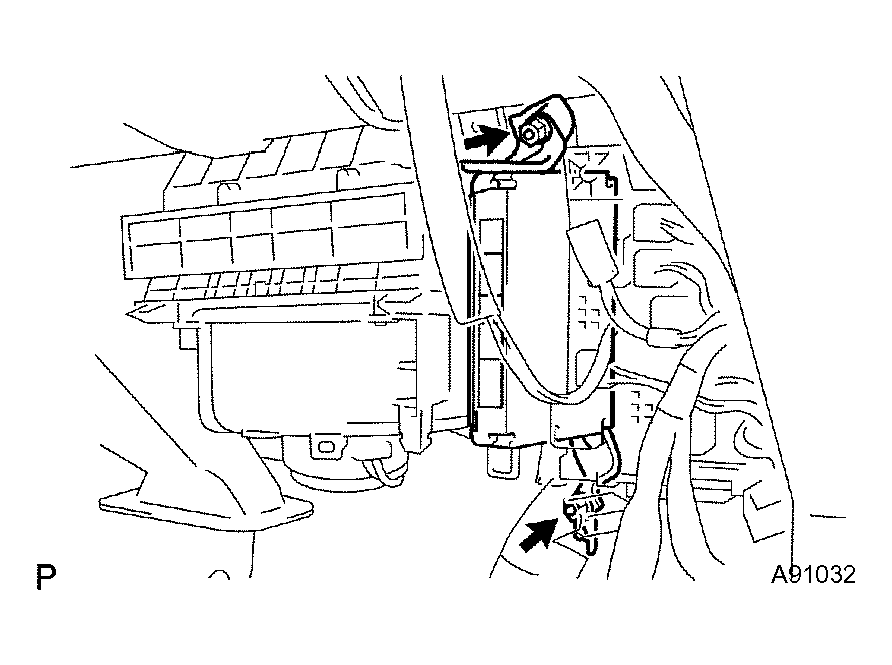

    Fig 6: Identifying ECM Wire Harness Clamps And Nuts
    G04391292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INSTRUMENT PANEL SUB-ASSY LOWER (See  REPLACEMENT  )
  13. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1 (See  REPLACEMENT  )
  14. INSTALL COWL SIDE TRIM SUB-ASSY RH (See  REPLACEMENT  )
  15. INSTALL FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  16. CONNECT BATTERY NEGATIVE TERMINAL
