Engine Control System: Preparation

SST

ENGINE CONTROL SYSTEM - SST CHART

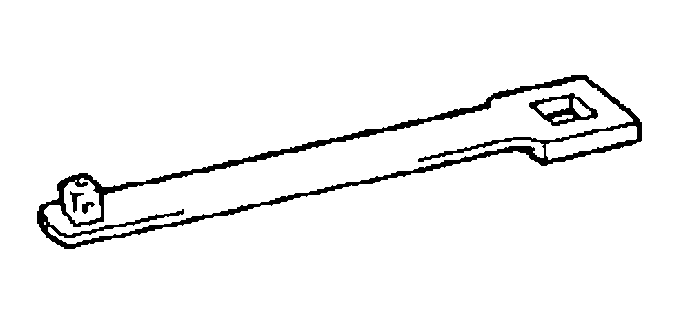

G04388593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09249-63010 Torque Wrench Adaptor KNOCK SENSOR (1MZ-FE/3MZ-FE)

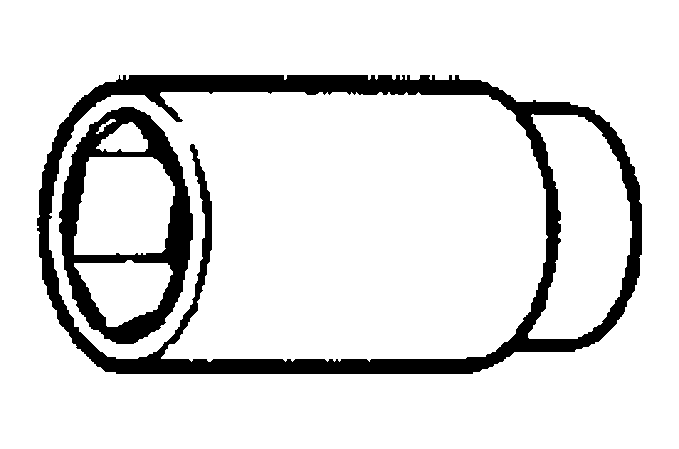

G04388594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09816-30010 Oil Pressure Switch Socket KNOCK SENSOR (1MZ-FE/3MZ-FE)

Recommended Tools

ENGINE CONTROL SYSTEM - RECOMMENDED TOOLS CHART

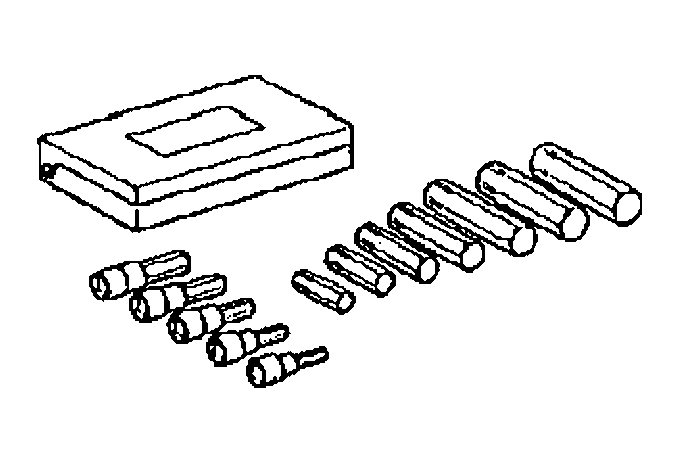

G04388595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09040-00011 Hexagon Wrench Set THROTTLE BODY ASSY (1MZ-FE/3MZ-FE)

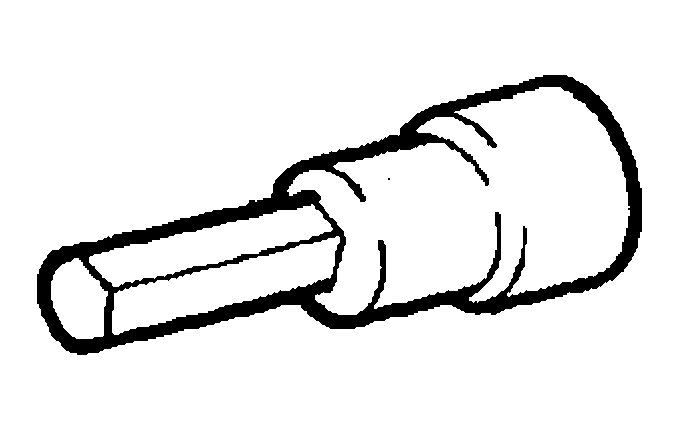

G04388596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20050) Socket Hexagon Wrench 5 THROTTLE BODY ASSY (1MZ-FE/3MZ-FE) KNOCK SENSOR (1MZ-FE/3MZ-FE)

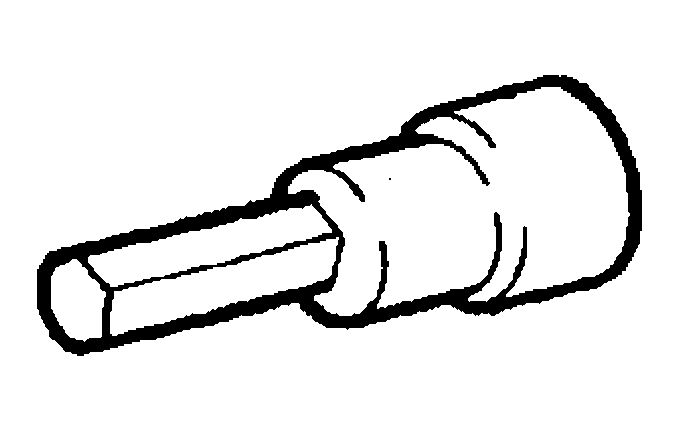

G04388597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20080) Socket Hexagon Wrench 8 KNOCK SENSOR (3MZ-FE)

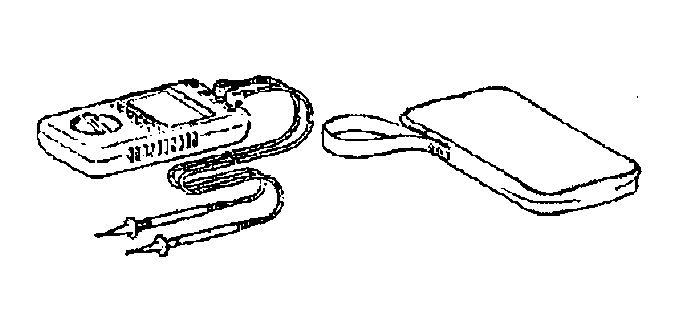

G04388598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00040 TOYOTA Electrical Tester SFI SYSTEM (1MZ-FE/3MZ-FE)

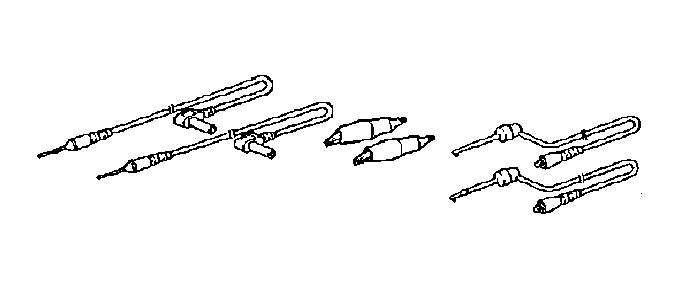

G04388599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09083-00150) Test Lead Set SFI SYSTEM (1MZ-FE/3MZ-FE)
SFI SYSTEM (2AZ-FE) (From July, 2003)

Equipment

ENGINE CONTROL SYSTEM - EQUIPMENT CHART

Ohmmeter
Radiator cap tester
Service Wire Harness
Torque wrench
