2UZ-FE Engine Mechanical: SST

2UZ-FE ENGINE MECHANICAL SST

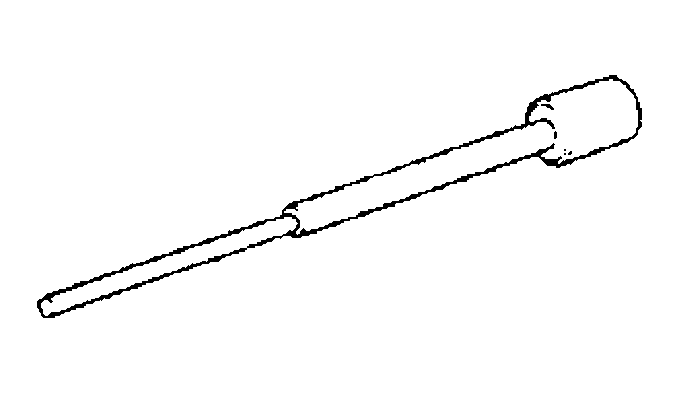

G04434636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09201-01055 Valve Guide Bushing Remover & Replacer 5.5 -
G04434637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

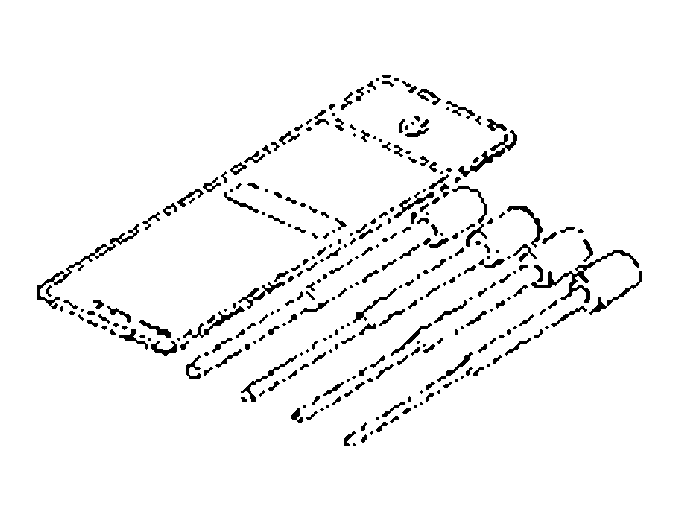

 09201-10000 Valve Guide Bushing Remover & Replacer Set -

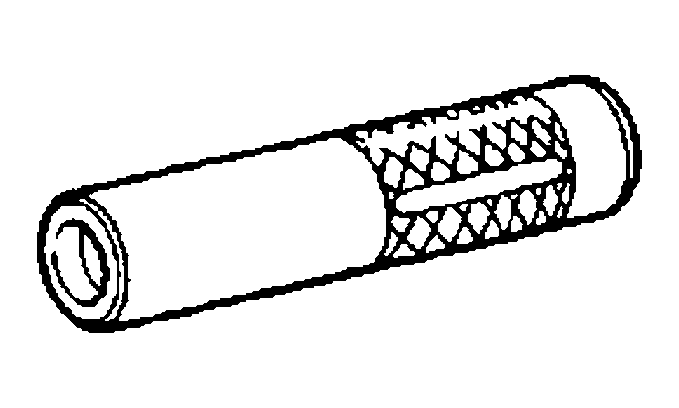

G04434638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09201-41020 Valve Stem Oil Seal Replacer -

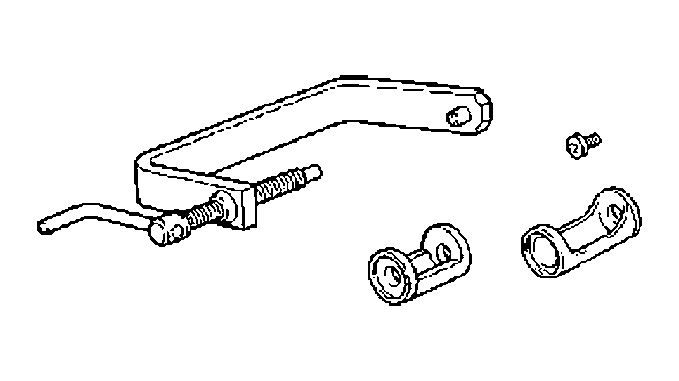

G04434639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09202-70020 Valve Spring Compressor -

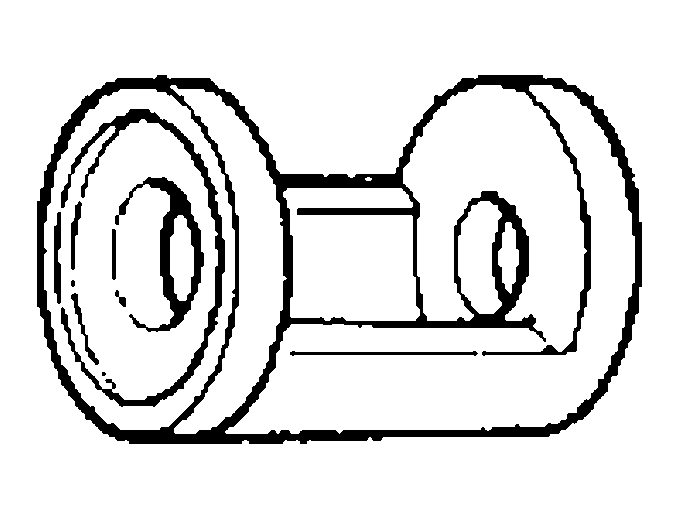

G04434640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09202-00010) Attachment -

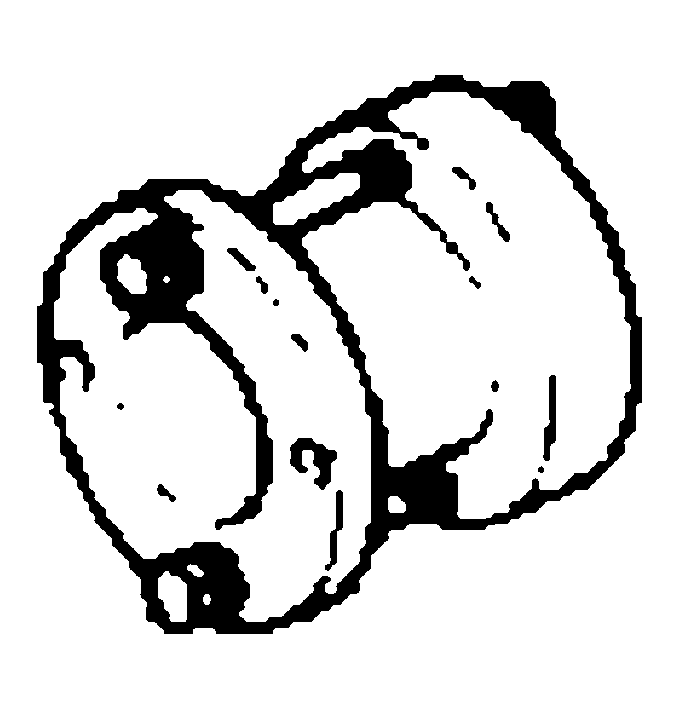

G04434641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09213-70011 Crankshaft Pully Holding Tool -

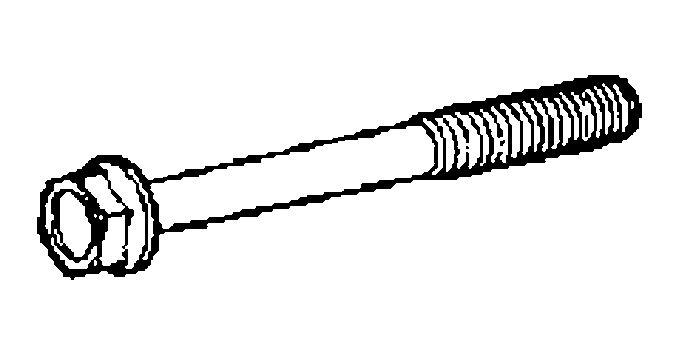

G04434642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09213-70020) Bolt -

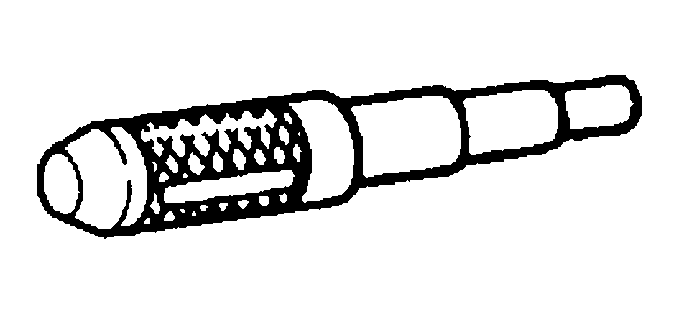

G04434643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09222-30010 Connecting Rod Bushing Remover & Replacer -

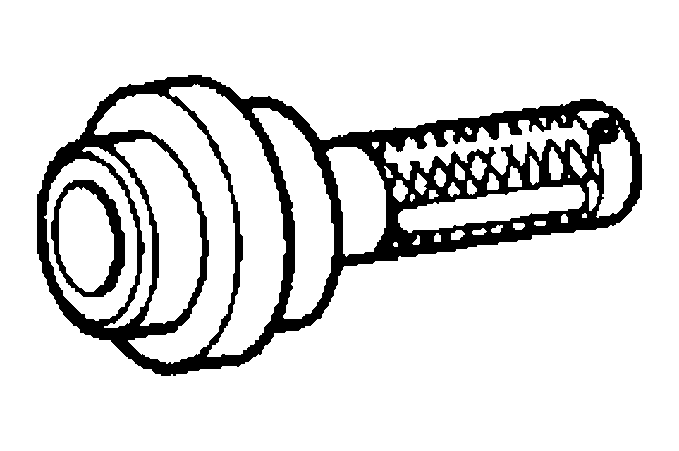

G04434644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09223-46011 Crankshaft Front Oil Seal Replacer Crankshaft damper sub-assembly
Crankshaft timing pulley

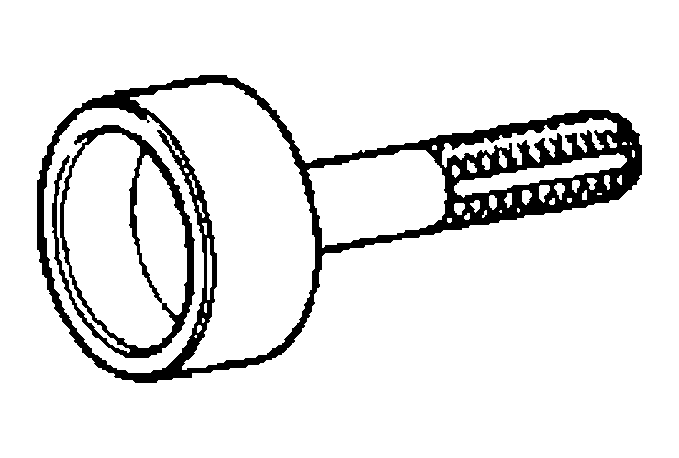

G04434645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09223-56010 Crankshaft Rear Oil Seal Replacer -

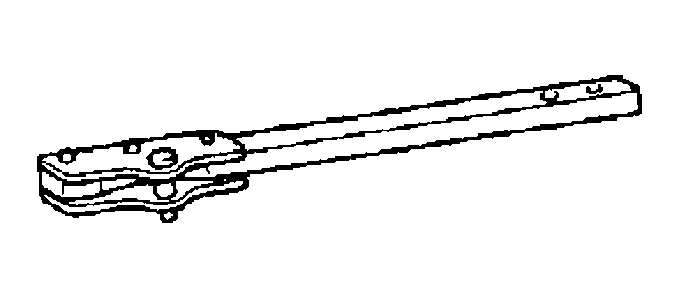

G04434646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09330-00021 Companion Flange Holding Tool Crankshaft pulley

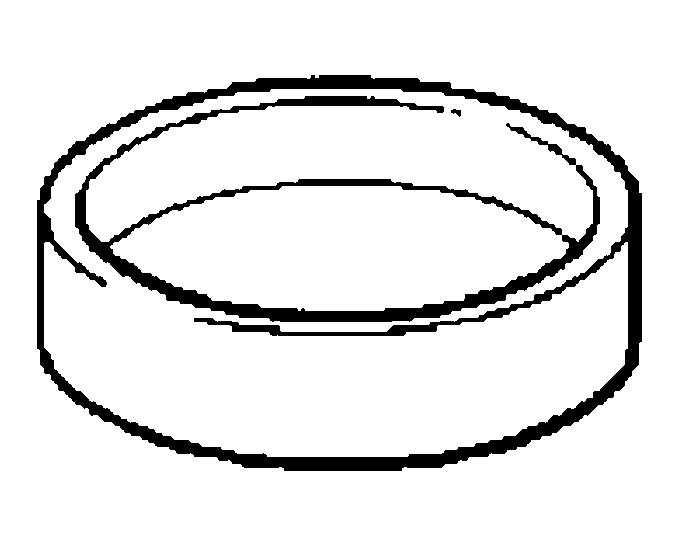

G04434647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09550-60010 Differential Side Bearing Replacer -

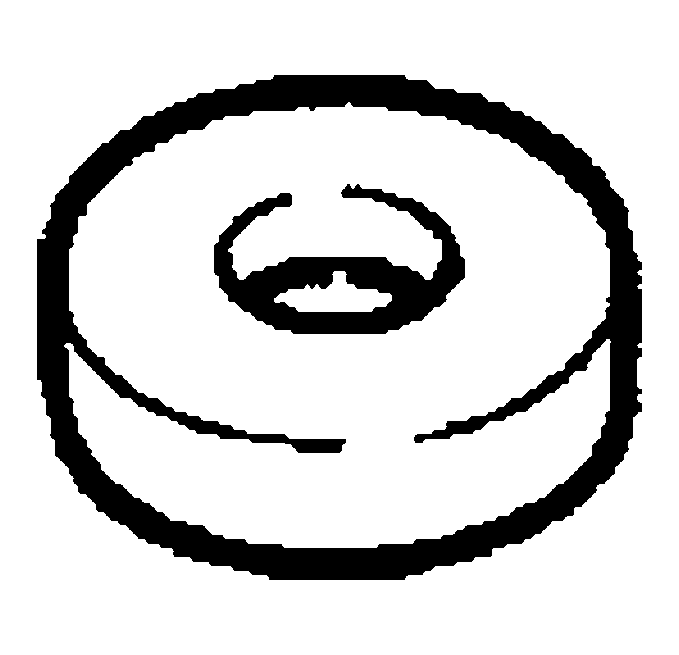

G04434648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-00300) Replacer 30 -
G04434649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

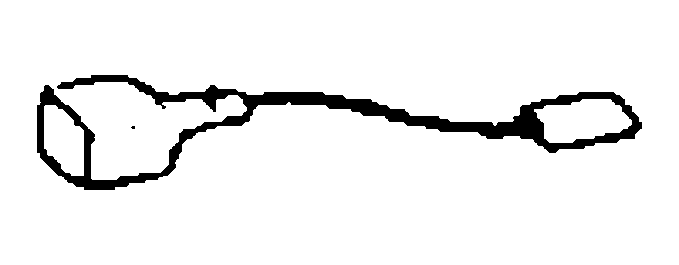

 09843-18030 Tacho-pulse Pickup Wire No.2 -
G04434650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

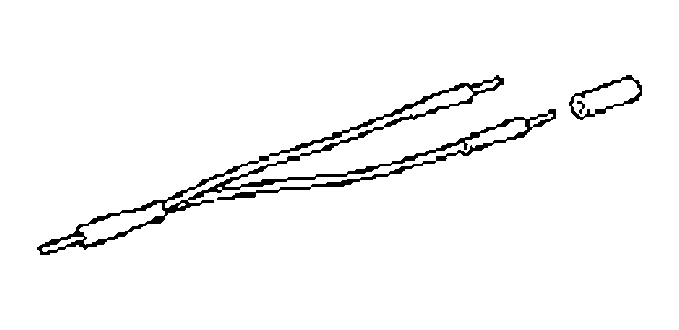

 09843-18040 Diagnosis Check Wire No.2 -
G04434651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

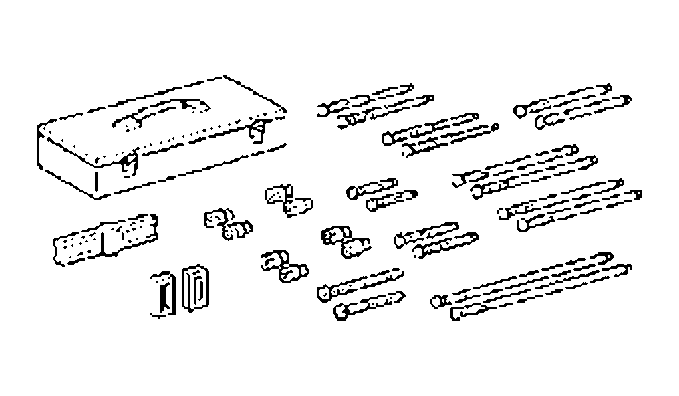

 09950-50013 Puller C Set -

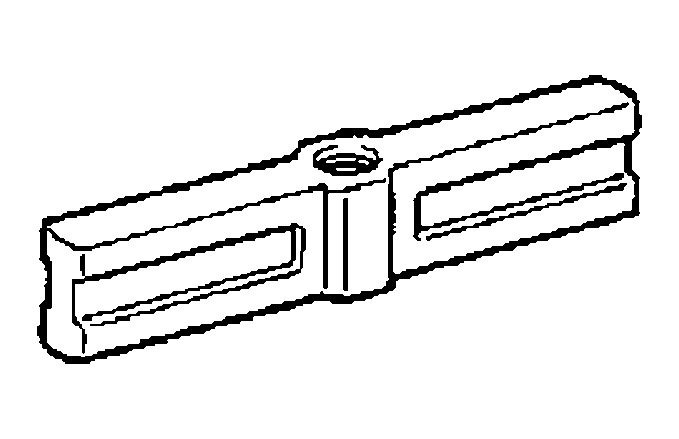

G04434652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-05010) Hanger 150 Crankshaft pulley
Crankshaft timing pulley

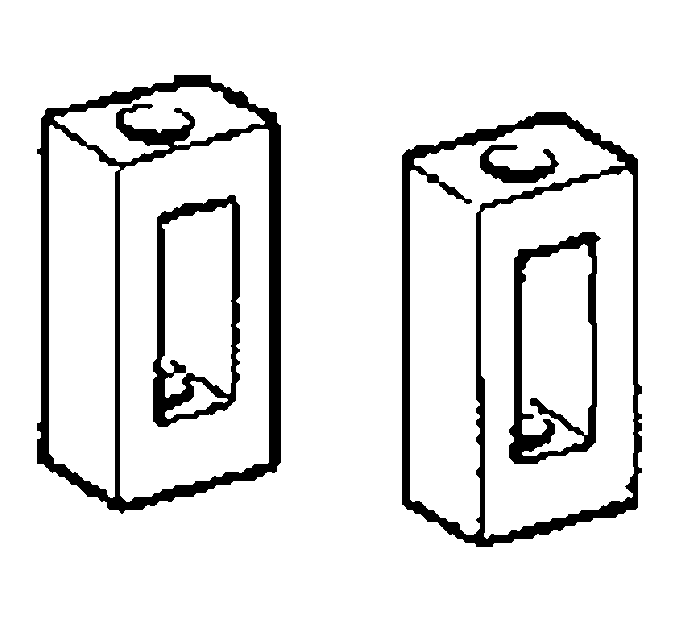

G04434653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09952-05010) Slide Arm Crankshaft pulley
Crankshaft timing pulley

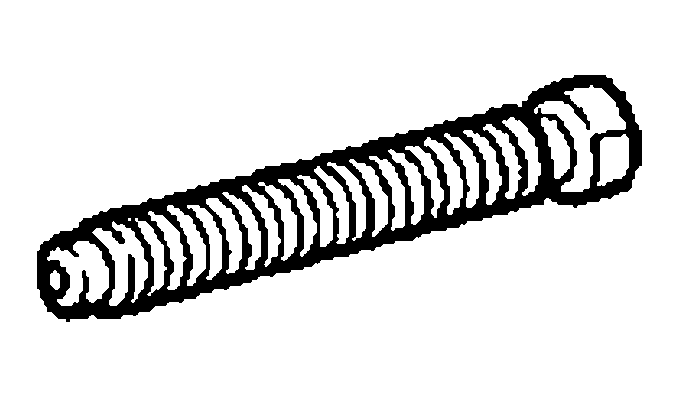

G04434654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09953-05010) Center Bolt 100 Crankshaft pulley
Crankshaft timing pulley

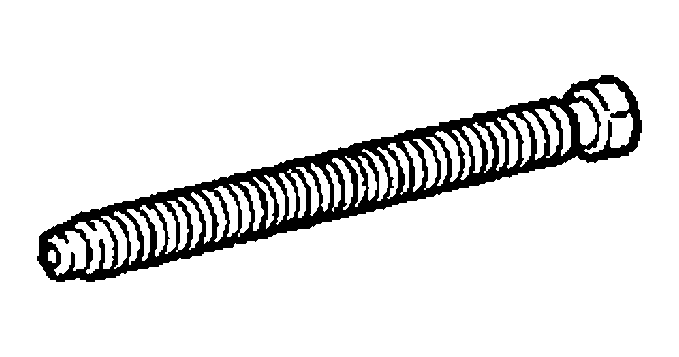

G04434655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09953-05020) Center Bolt 150 Crankshaft pulley
Crankshaft timing pulley
G04434656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

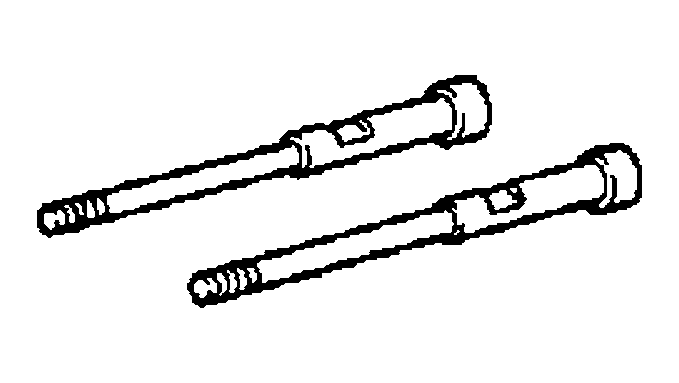

 (09954-05010) Claw No.1 Crankshaft timing pulley

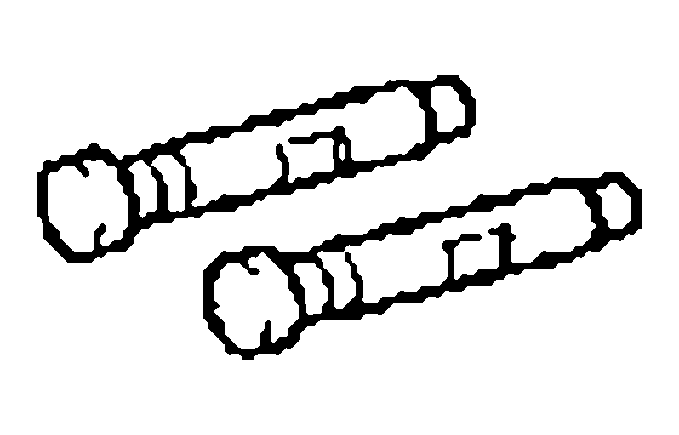

G04434657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09954-05021) Claw No.2 Crankshaft Pulley
G04434658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09950-60010 Replacer Set -

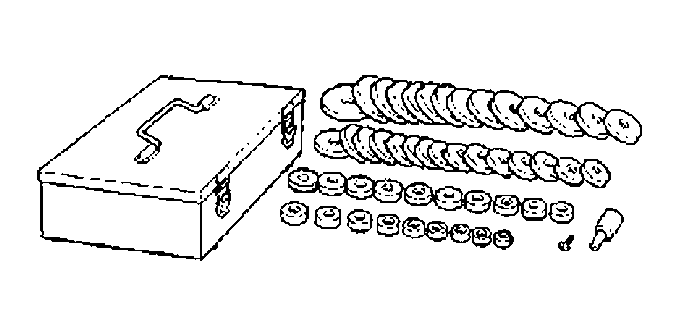

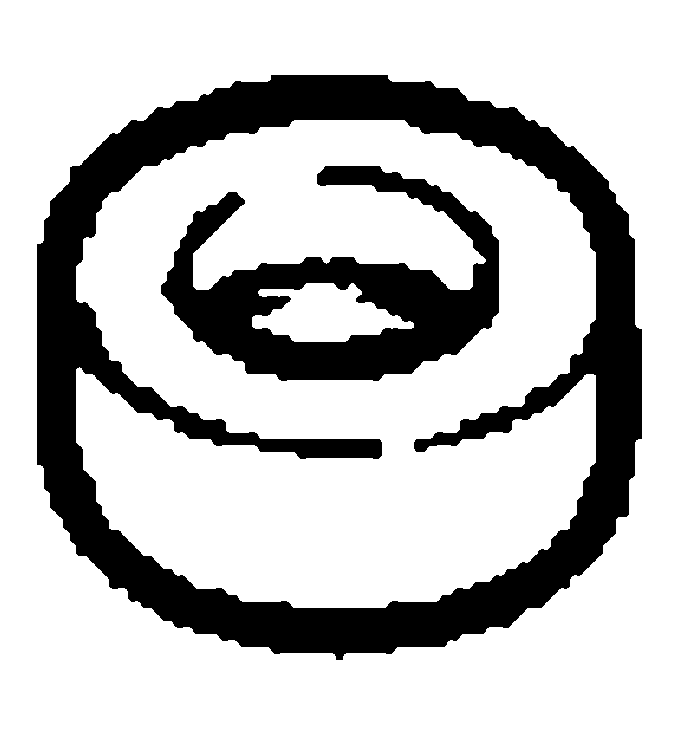

G04434659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-00240) Replacer 24 -

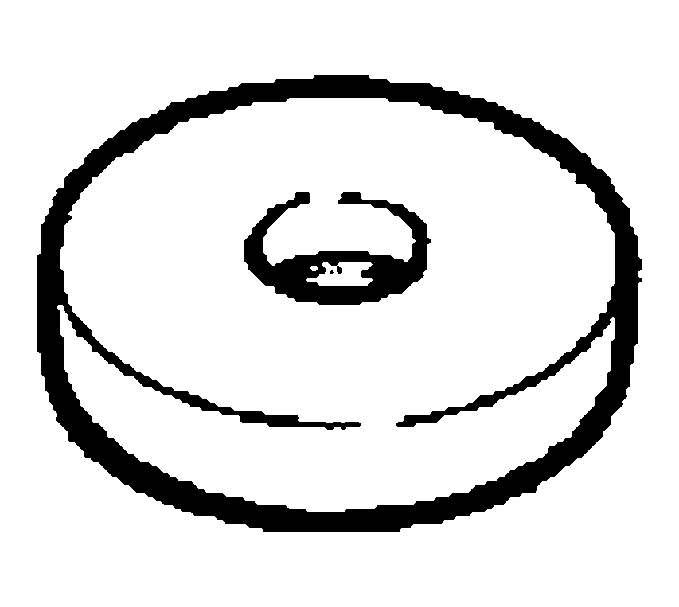

G04434660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-00440) Replacer 44 -
G04434661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

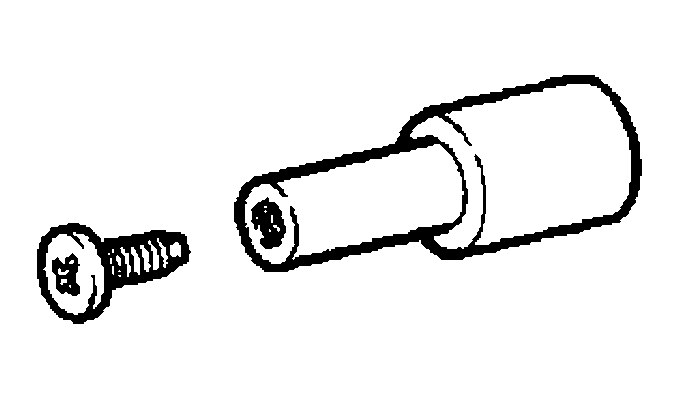

 (09952-06010) Adapter -

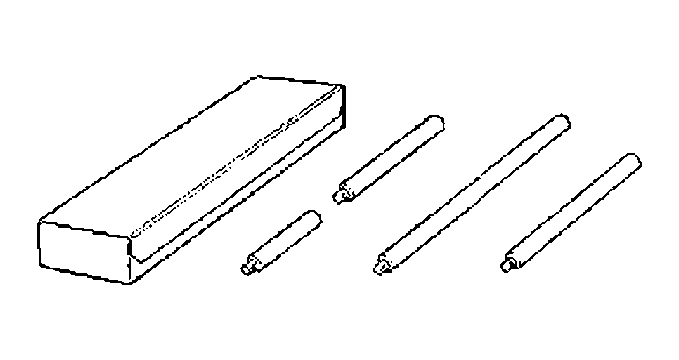

G04434662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09950-70010 Handle Set -

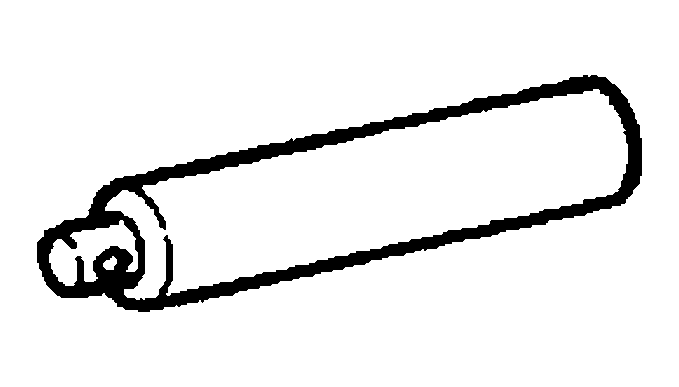

G04434663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09951-07100) Handle 100 -

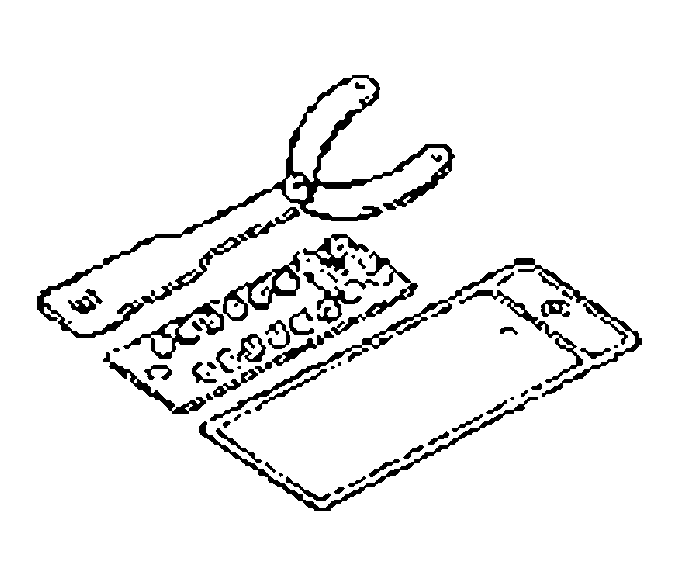

G04434664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09960-10010 Variable Pin Wrench Set Camshaft sub gear
G04434665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

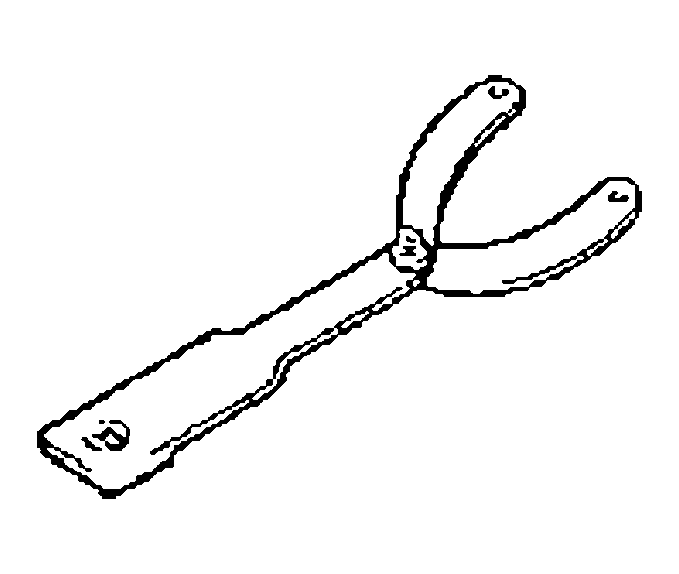

 (09962-01000) Variable Pin Wrench Arm Assy -

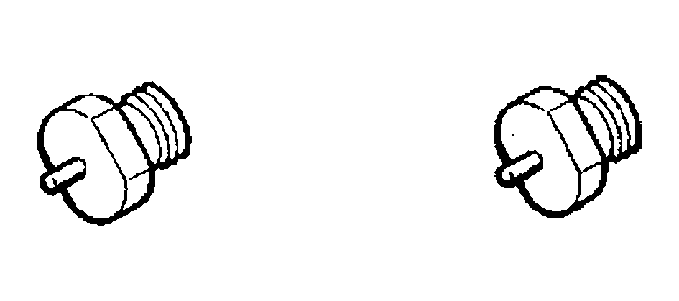

G04434666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09963-00350) Pin 3.5 -

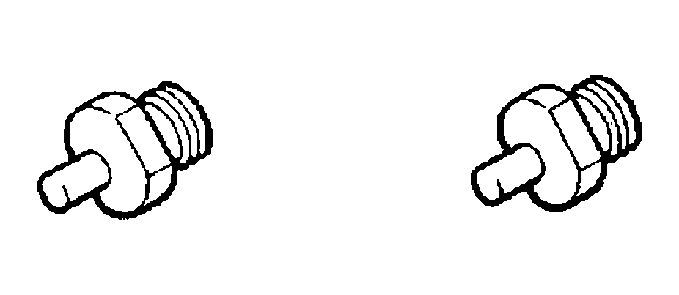

G04434667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09963-00500) Pin 5 -
G04434668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

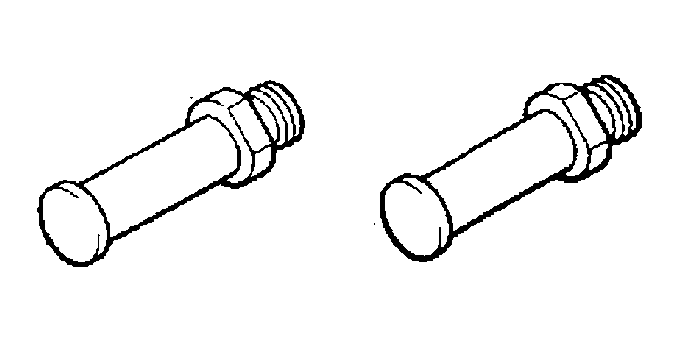

 (09963-01000) Pin 10 -
