Parts Location

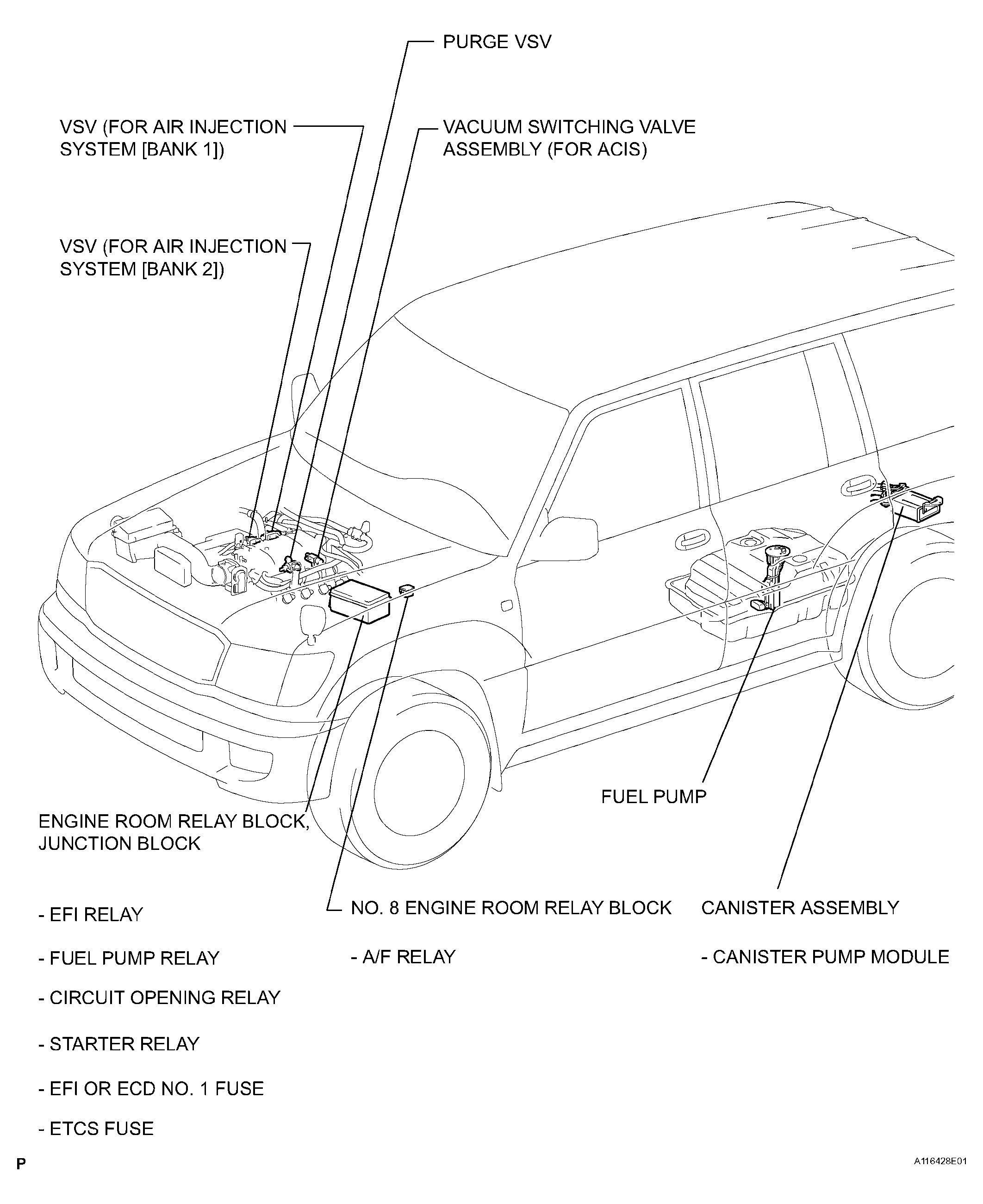

Fig 1: Identifying SFI System Parts Location (1 Of 4)
G04435032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

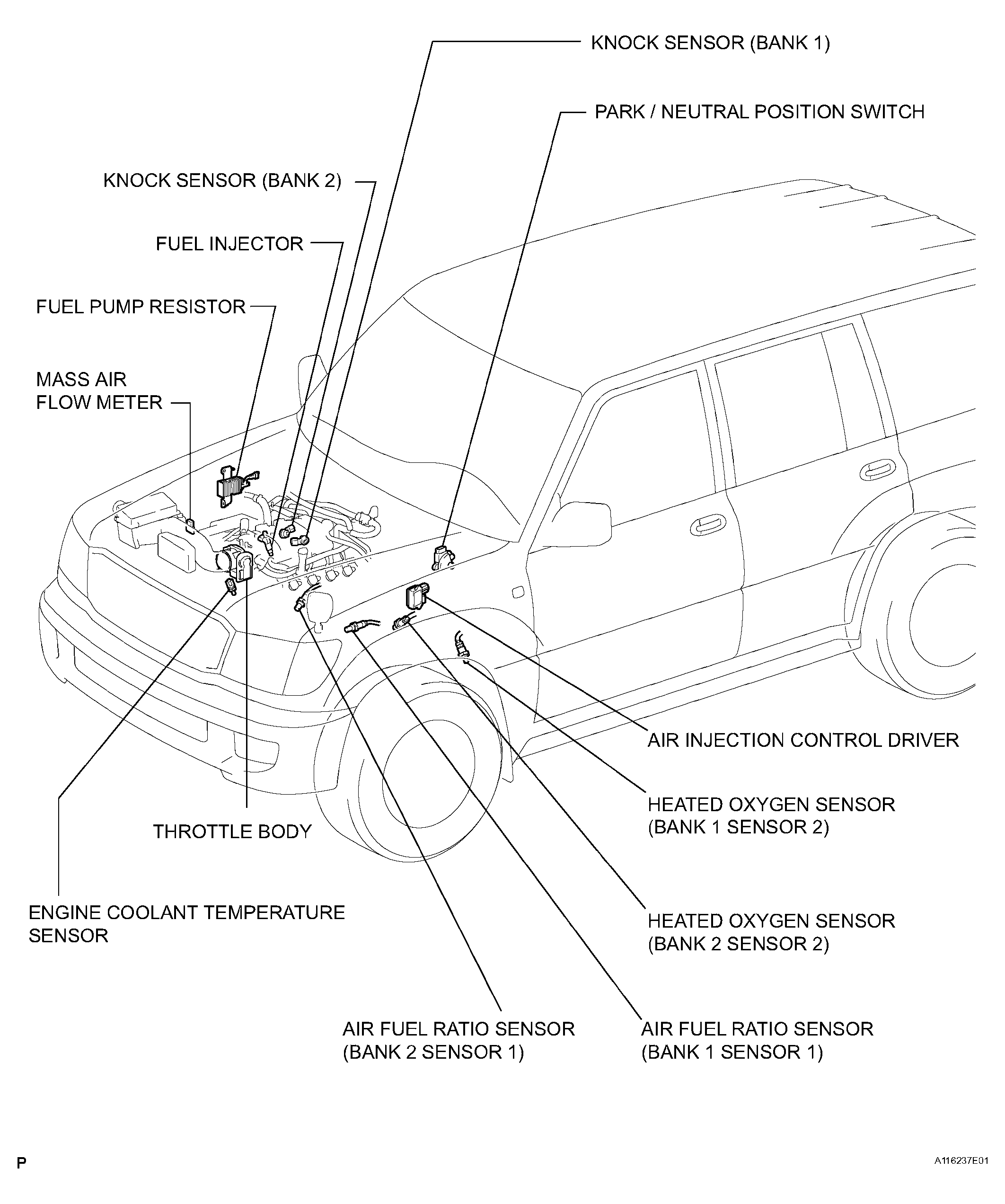

Fig 2: Identifying SFI System Parts Location (2 Of 4)
G04435033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

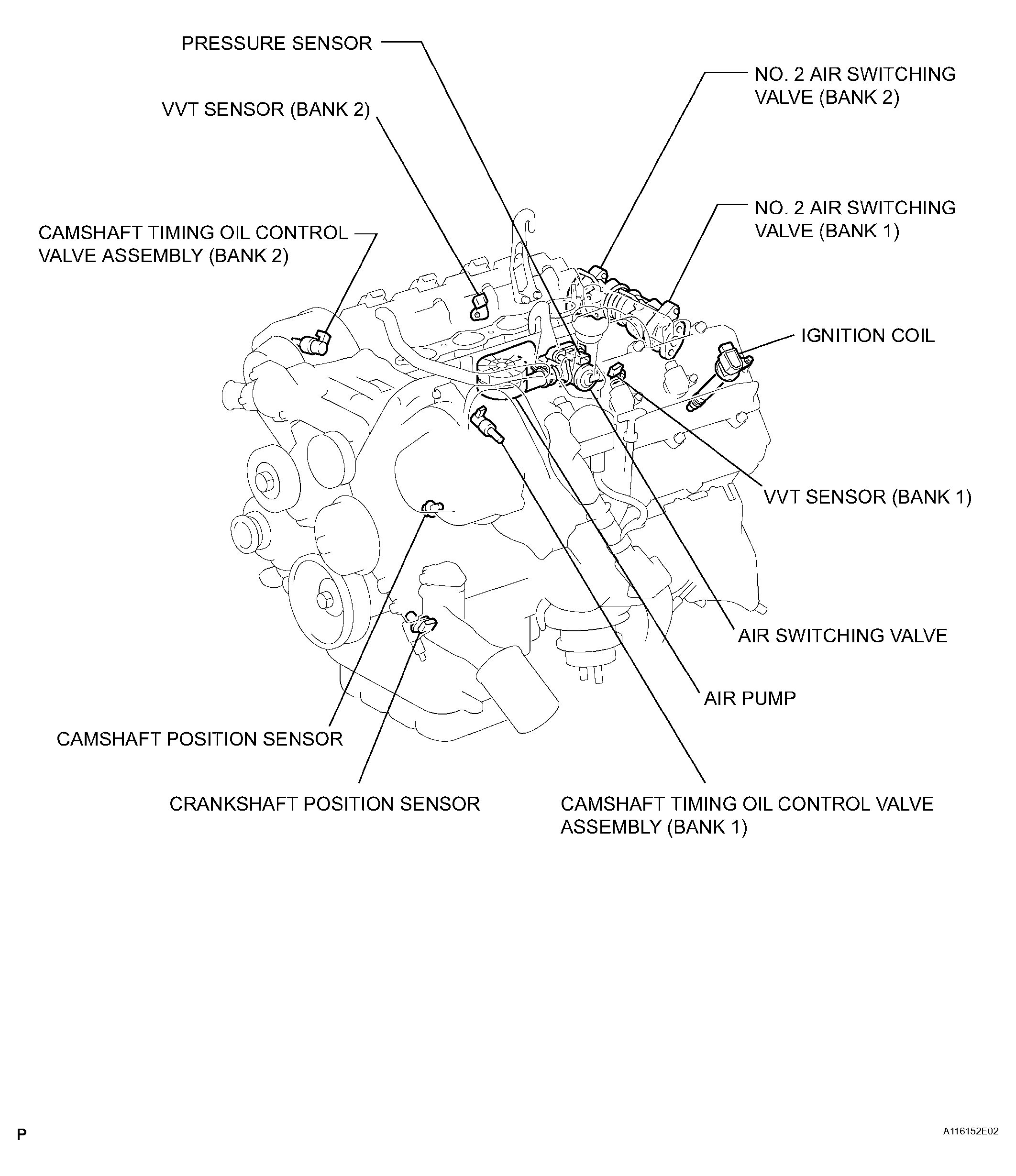

Fig 3: Identifying SFI System Parts Location (3 Of 4)
G04435034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

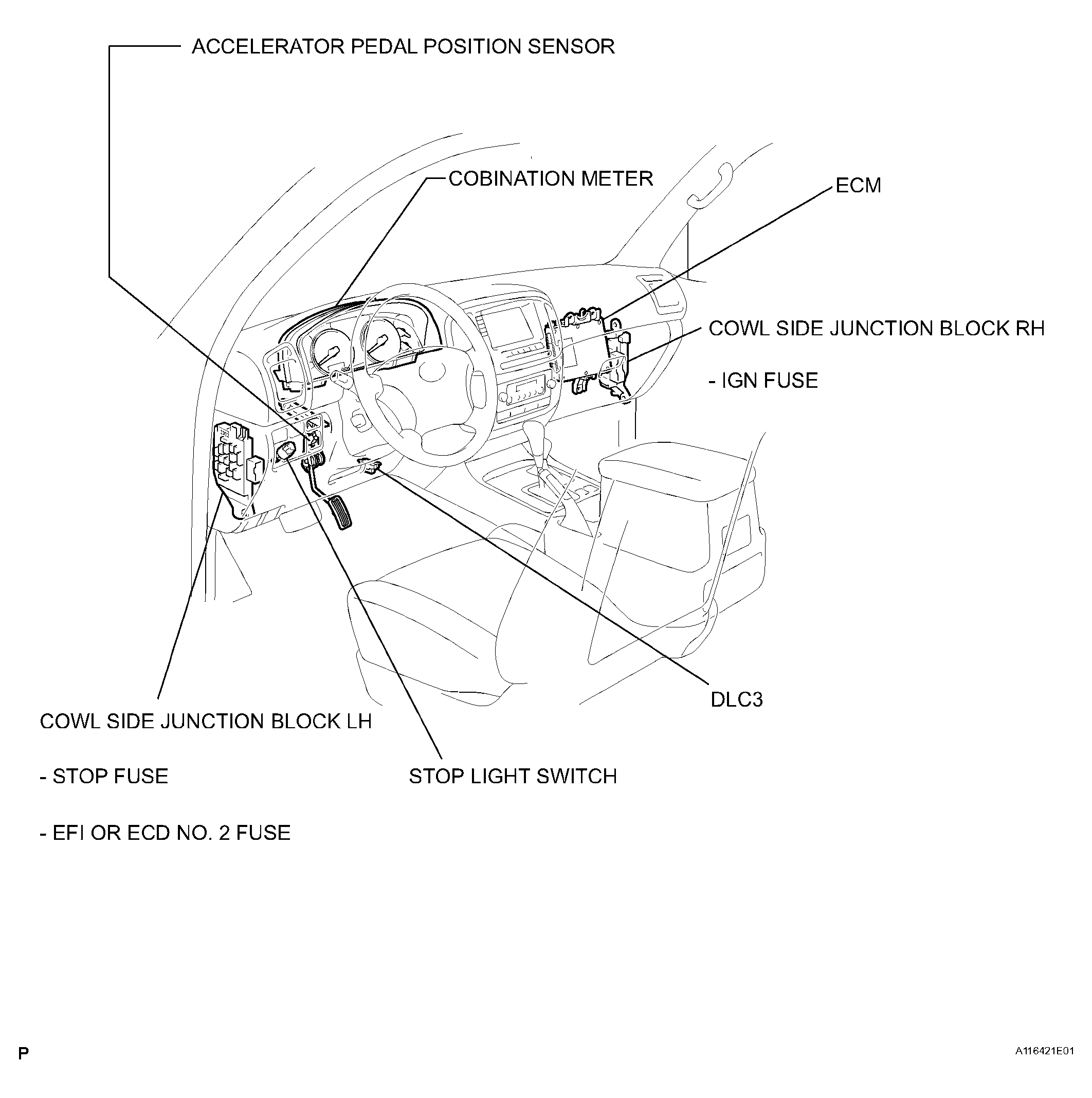

Fig 4: Identifying SFI System Parts Location (4 Of 4)
G04435035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
