Terminals Of ECM

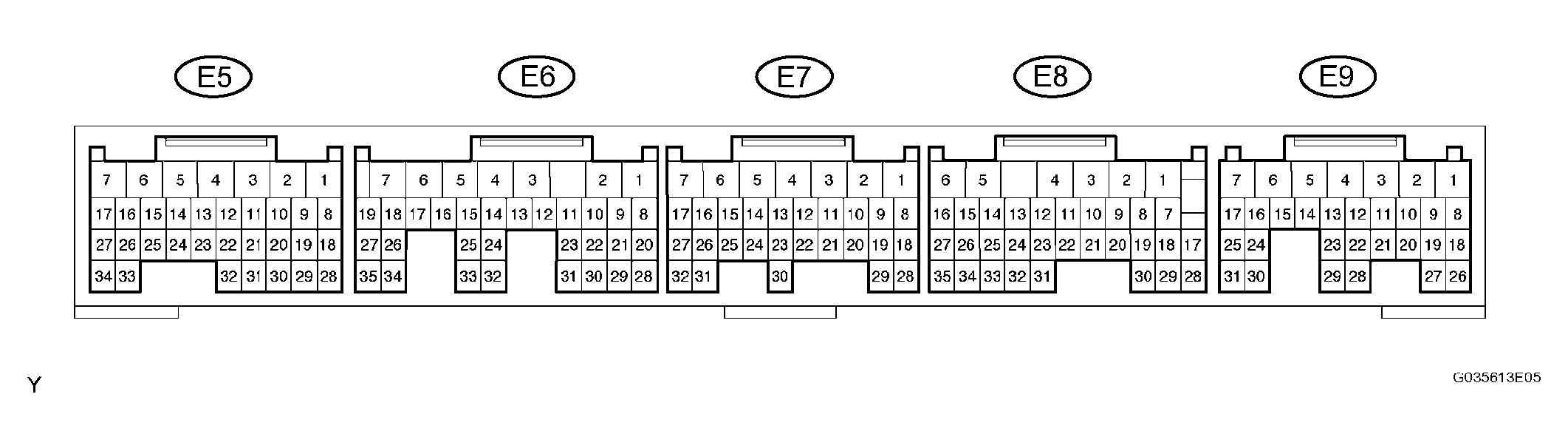

Fig 1: Identifying ECM Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard normal voltage between each pair of ECM terminals is shown in ECM TERMINALS TABLE  . The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The Fig 1 can be used as a reference to identify the ECM terminal locations.

HINT:

*: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

1. WAVEFORM 1

   Fuel injector

   WAVEFORM 1 (FUEL INJECTOR)



   ECM Terminal Names	Between #10 (to #80) and E01
   Tester Range	20 V/DIV., 20 msec./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as engine rpm increases.

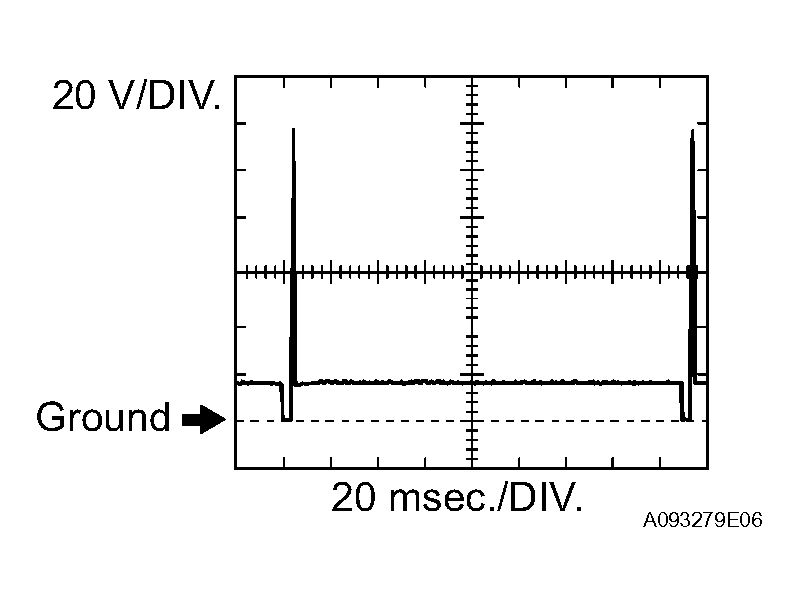

   Fig 2: Identifying Waveform 1 (Fuel Injector)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

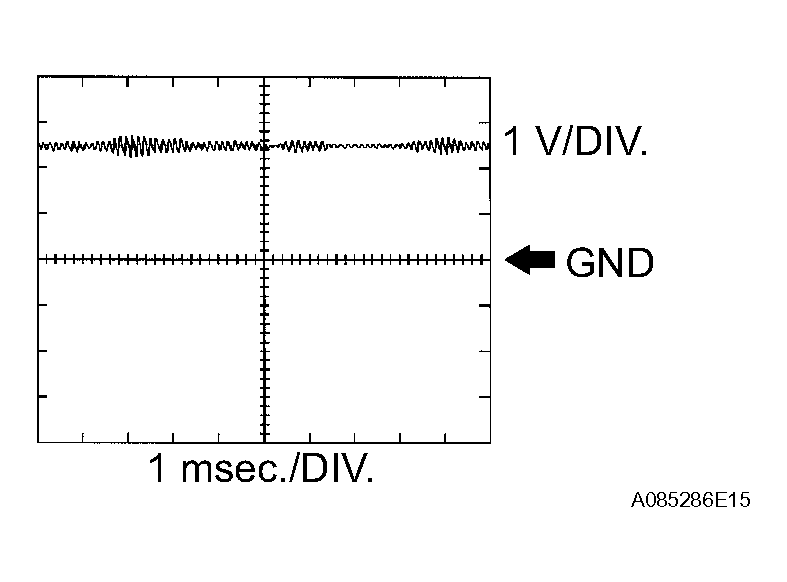

2. WAVEFORM 2

   Knock sensor

   WAVEFORM 2 (KNOCK SENSOR)



   ECM Terminal Name	Between KNK1 and EKNK Between KNK2 and EKN2
   Tester Range	1 V/DIV., 1 msec./DIV.
   Condition	Maintain engine RPM at 2,000 rpm after engine warmed-up

   HINT:

   • The wavelength becomes shorter as engine rpm increases.
   • The waveforms and amplitudes displayed differ slightly depending on the vehicle.
   Fig 3: Identifying Waveform 2 (Knock Sensor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. WAVEFORM 3

   Camshaft timing oil control valve (OCV)

   WAVEFORM 3 CAMSHAFT TIMING OCV



   ECM Terminal Name	Between OC1+ and OC1- Between OC2+ and OC2-
   Tester Range	5 V/DIV., 200 msec./DIV.
   Condition	Accelerate slowly after engine warmed up

   HINT:

   In the DATA LIST, the items OCV DUTY B1 and B2 show the duty ratio of voltage flowing to the OCV (see Fig 4 ).

   OCV DUTY B1, B2 = A/B x 100 (%)

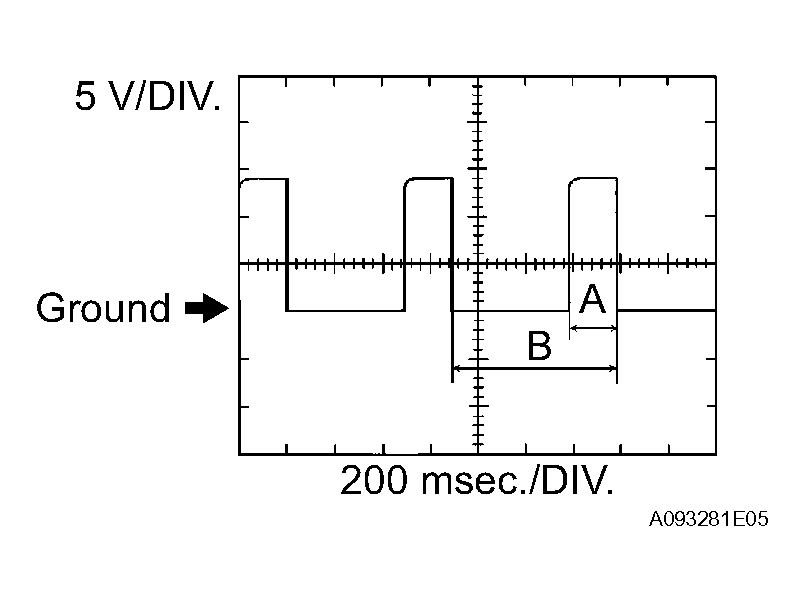

   Fig 4: Identifying Waveform 3 (Camshaft Timing Oil Control Valve)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

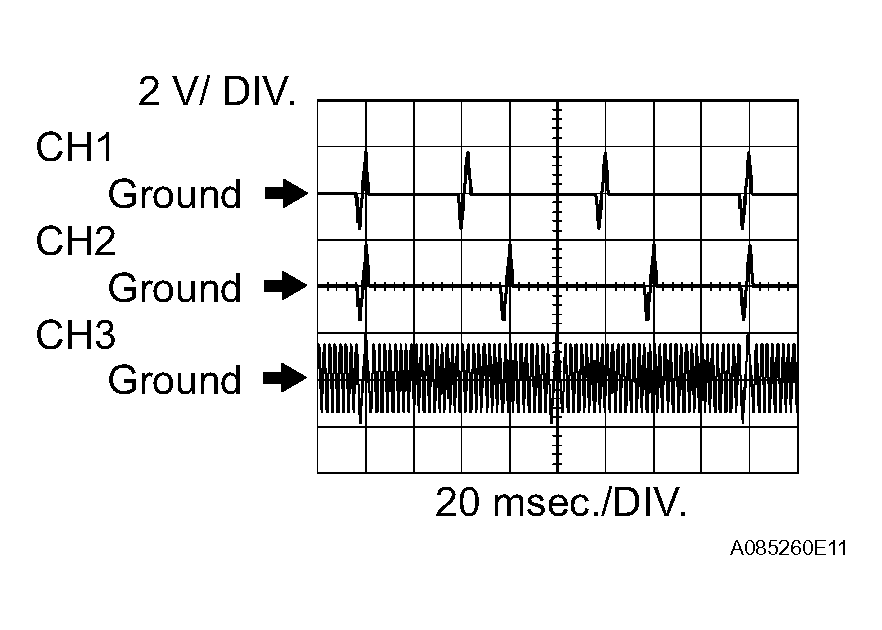

4. WAVEFORM 4

   Variable Valve Timing (VVT) sensor (bank 1, 2) and Crankshaft position sensor

   WAVEFORM 4 VVT SENSOR (BANK 1, 2) AND CRANKSHAFT POSITION SENSOR



   ECM Terminal Name	CH1: Between VV1+ and VV1- CH2: Between VV2+ and VV2- CH3: Between NE+ and NE-
   Tester Range	2 V/DIV., 20 msec./DIV.
   Condition	Idle after engine warmed-up

   HINT:

   The wavelength becomes shorter as engine rpm increases.

   Fig 5: Identifying Waveform 4 (Variable Valve Timing Sensor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

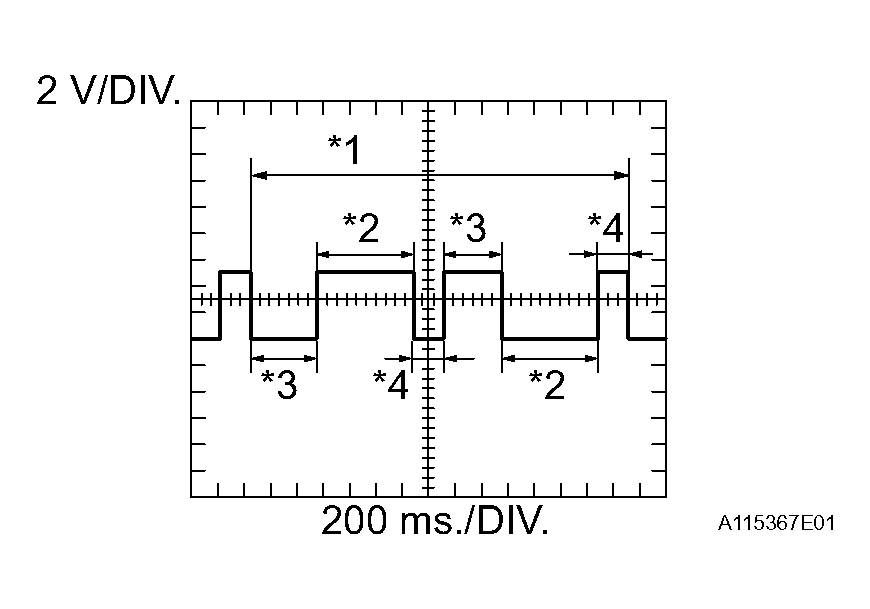

5. WAVEFORM 5

   Camshaft position sensor

   WAVEFORM 5 CAMSHAFT POSITION SENSOR



   ECM Terminal Name	Between G2+ and G2-
   Tester Range	2 V/DIV., 200 msec./DIV.
   Condition	Idle after engine warmed up

   HINT:

   • The wavelength becomes shorter as engine rpm increases.
   • *1: Crank angle
   • *2: 180°
   • *3: 120°
   • *4: 60°
     Fig 6: Identifying Waveform 5 (Camshaft Position Sensor)

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

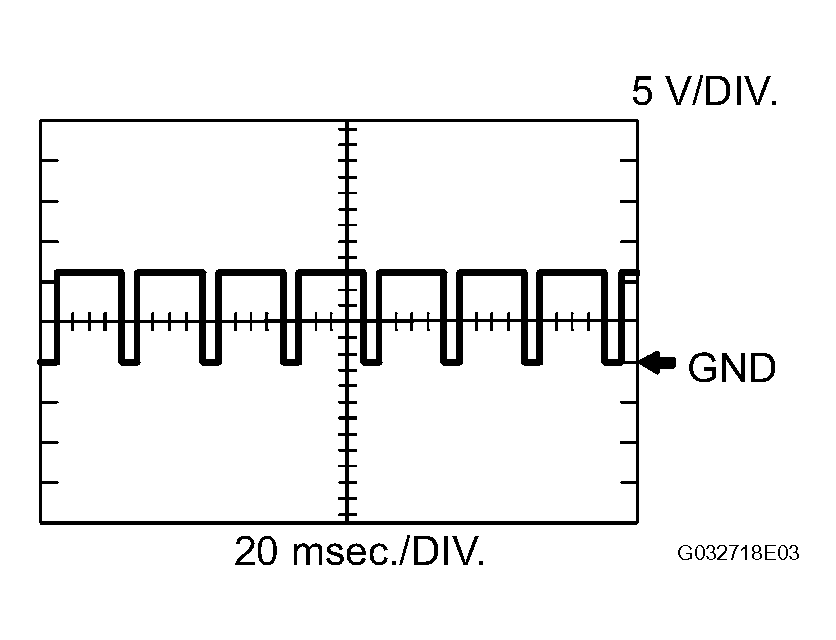

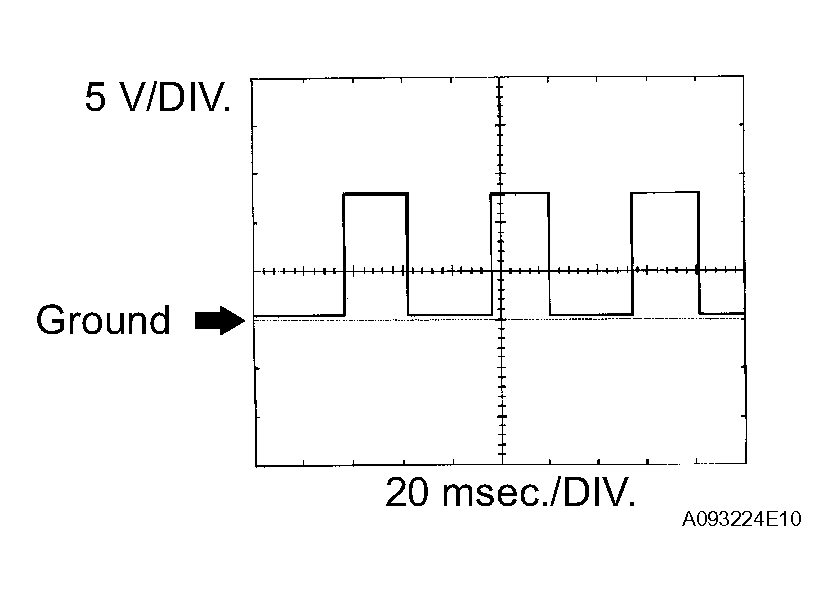

6. WAVEFORM 6

   Vehicle speed signal

   WAVEFORM 6 VEHICLE SPEED SIGNAL



   ECM Terminal Name	Between SPD and E1
   Tester Range	5 V/DIV., 20 msec./DIV.
   Condition	Driving by 40 km/h (25 mph)

   Fig 7: Identifying Waveform 6 (Vehicle Speed Signal)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. WAVEFORM 7

   Throttle actuator positive terminal

   WAVEFORM 7 THROTTLE ACTUATOR POSITIVE TERMINAL



   ECM Terminal Name	Between M+ and ME01
   Tester Range	5 V/DIV., 1 msec./DIV.
   Condition	Idle after engine warmed-up

   HINT:

   The duty ratio varies depending on the throttle opening operation.

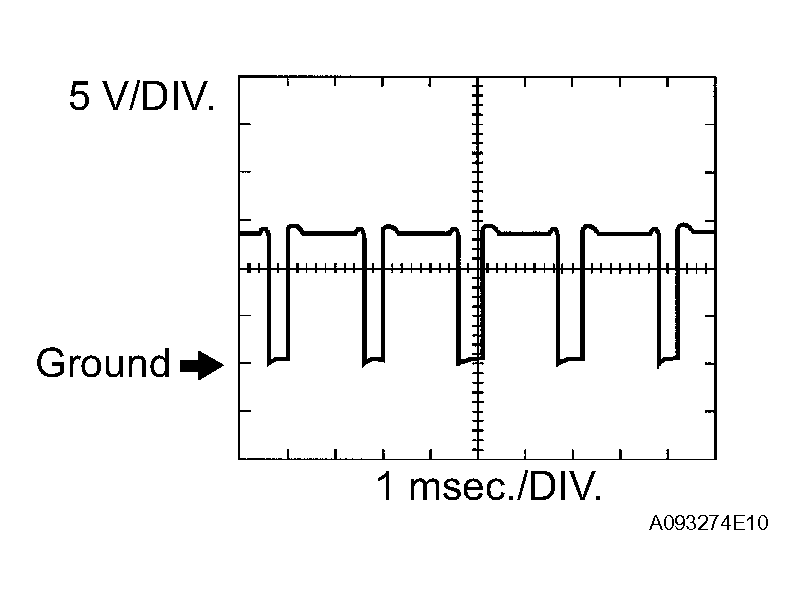

   Fig 8: Identifying Waveform 7 (Throttle Actuator Positive Terminal)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. WAVEFORM 8

   Throttle actuator negative terminal

   WAVEFORM 8 THROTTLE ACTUATOR NEGATIVE TERMINAL



   ECM Terminal Name	Between M-and ME01
   Tester Range	5 V/DIV., 1 msec./DIV.
   Condition	Idle after engine warmed-up

   HINT:

   The duty ratio varies depending on the throttle opening operation.

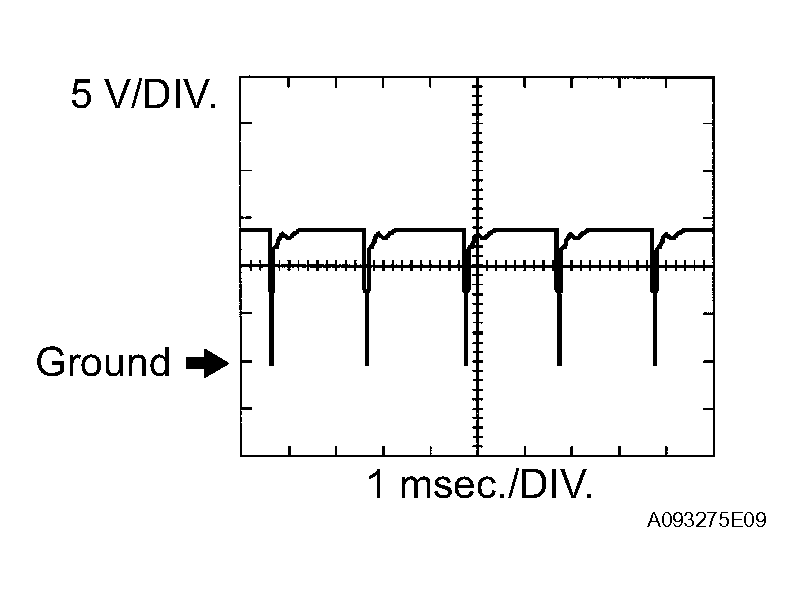

   Fig 9: Identifying Waveform 8 (Throttle Actuator Negative Terminal)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

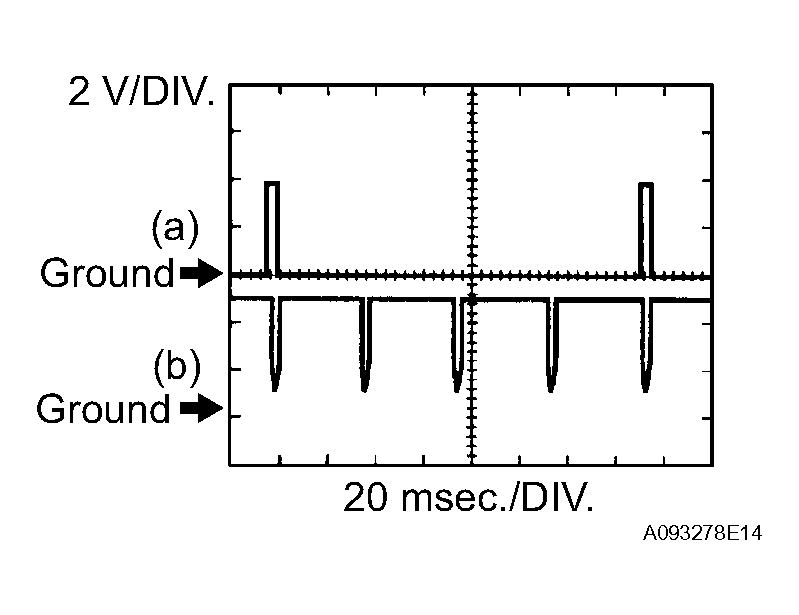

9. WAVEFORM 9

   Igniter IGT signal (from ECM to igniter) and Igniter IGF signal (from igniter to ECM)

   WAVEFORM 9 IGNITER IGT SIGNAL (FROM ECM TO IGNITER) AND IGNITER IGF SIGNAL (FROM IGNITER TO ECM)



   ECM Terminal Name	(a) Between IGT1 (to IGT8) and E1 (b) Between IGF1 (IGF2) and E1
   Tester Range	2 V/DIV., 20 msec./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as engine rpm increases.

   Fig 10: Identifying Waveform 9 (Igniter IGT Signal)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. WAVEFORM 10

    Heated oxygen (HO2) sensor

    WAVEFORM 10 HO2 SENSOR



    ECM Terminal Names	Between OX1B and E2
    Tester Ranges	0.2 V/DIV., 200 msec./DIV.
    Conditions	Engine speed maintained 2,500 rpm for 2 minutes after warming up sensor

    HINT:

    In the DATA LIST, item O2S B1S2 shows the ECM input values from the heated oxygen sensor.

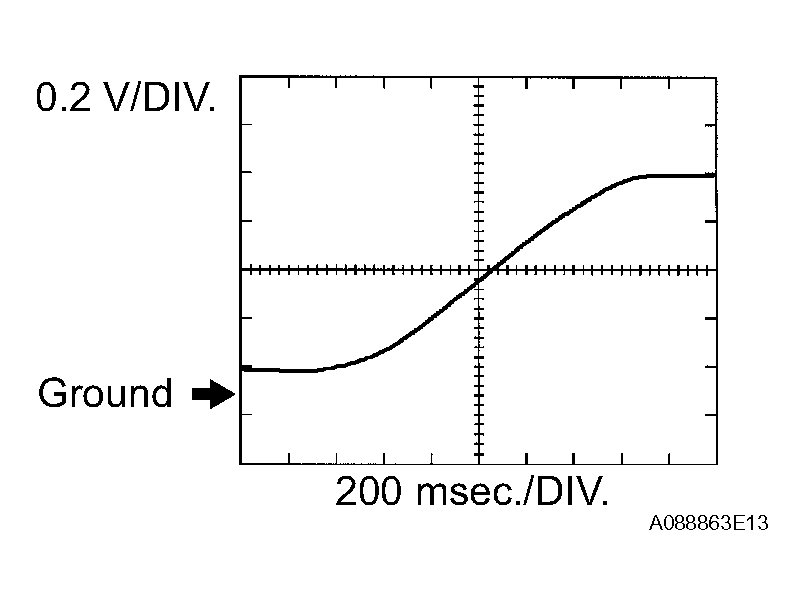

    Fig 11: Identifying Waveform 10 (HO2 Sensor)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

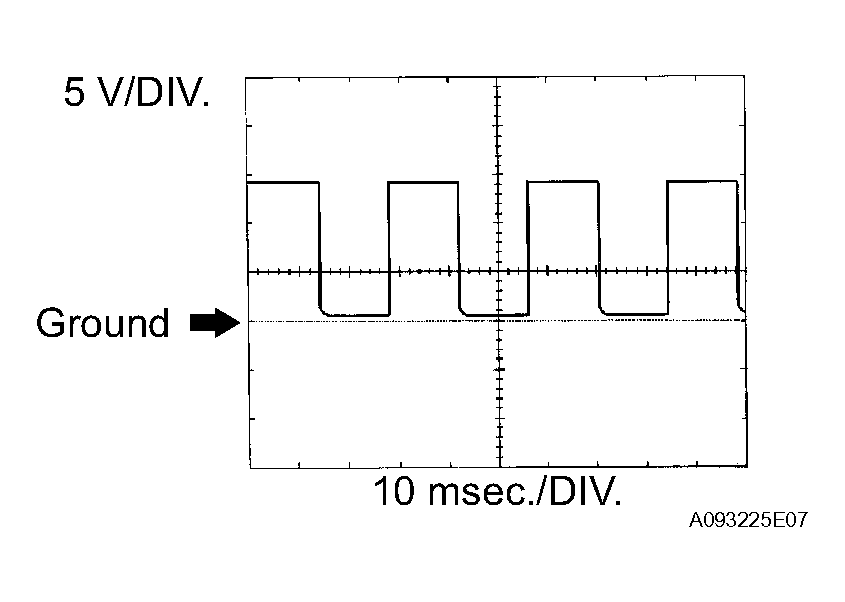

11. WAVEFORM 11

    Engine speed signal

    WAVEFORM 11 ENGINE SPEED SIGNAL



    ECM Terminal Names	Between TACH and E1
    Tester Range	5 V/DIV., 10 msec./DIV.
    Condition	Idling

    HINT:

    The wavelength becomes shorter as engine rpm increases.

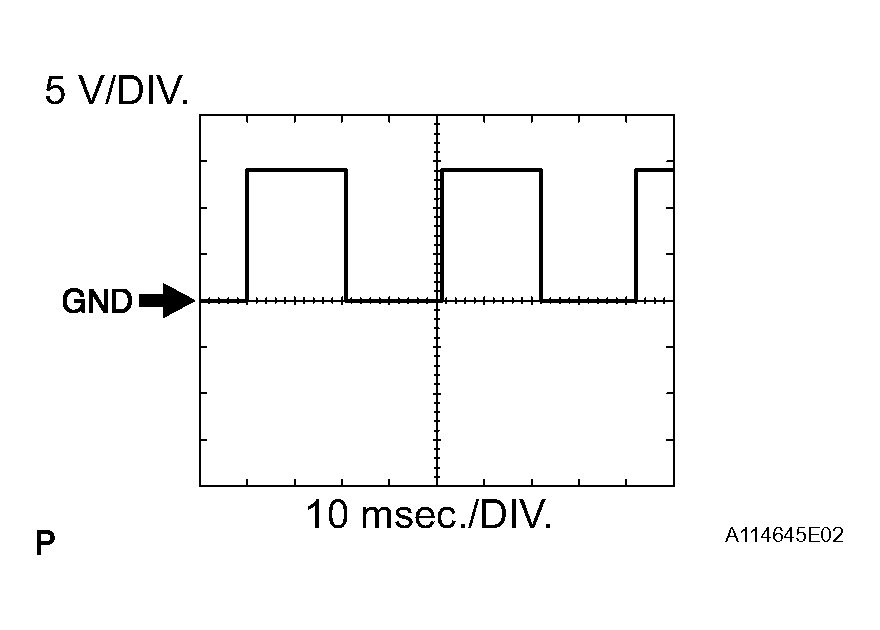

    Fig 12: Identifying Waveform 11 (Engine Speed Signal)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. WAVEFORM 12

    Air fuel ratio (A/F) sensor heater signal

    WAVEFORM 12 (A/F SENSOR HEATER SIGNAL)



    ECM Terminal Names	Between HA1A and E04 Between HA2A and E04
    Tester Range	5 V/DIV., 10 msec./DIV.
    Condition	Idling

    Fig 13: Identifying Waveform 12 (A/F Sensor Heater Signal)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. WAVEFORM 13

    Purge VSV

    WAVEFORM 13 PRUGE VSV



    ECM Terminal Names	Between PRG and E1
    Tester Range	10 V/DIV., 50 msec./DIV.
    Condition	Idling

    HINT:

    The wavelength becomes shorter as vehicle speed increases.

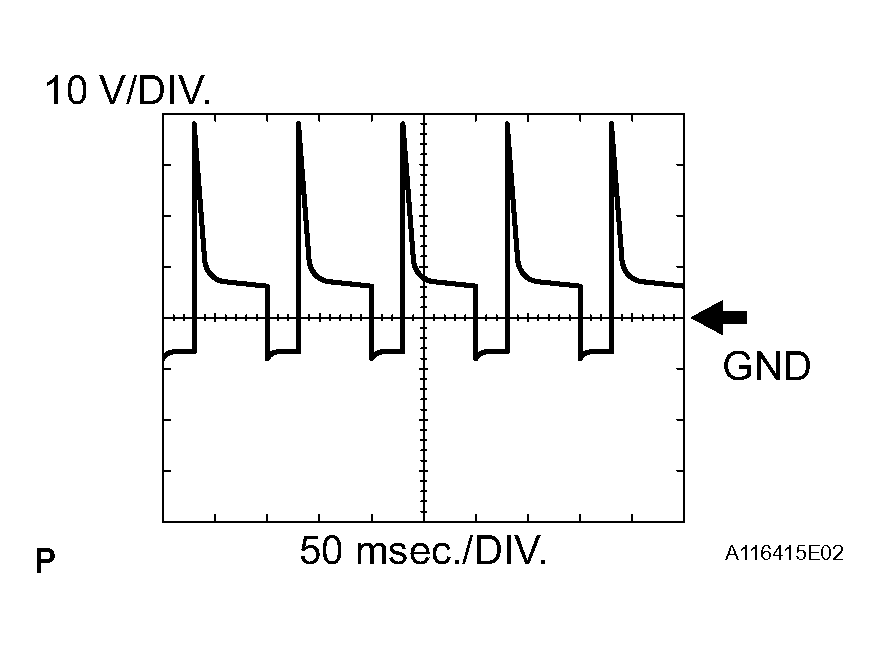

    Fig 14: Identifying Waveform 13 (Purge VSV)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

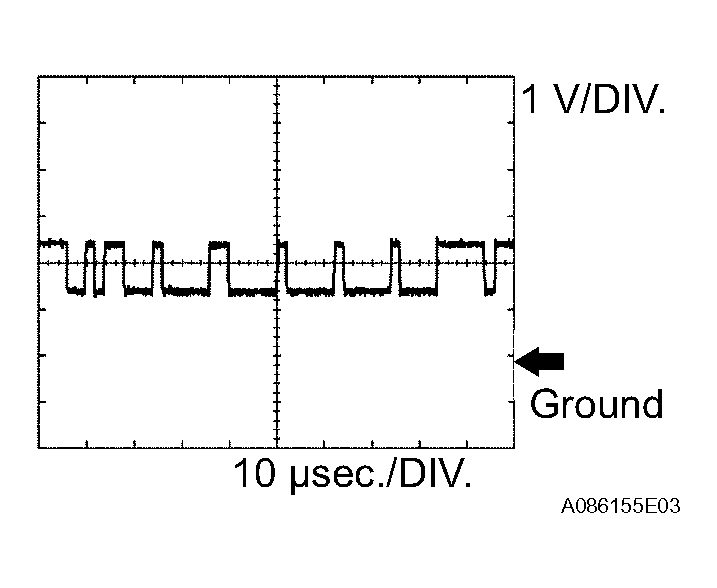

14. WAVEFORM 14

    CAN communication signal

    WAVEFORM 14 CAN COMMUNICATION SIGNAL



    ECM Terminal Names	Between CANH and E1
    Tester Range	1 V/DIV., 10 sec./DIV.
    Condition	Stop engine and ignition switch ON

    HINT:

    The waveform varies depending on the CAN communication signal.

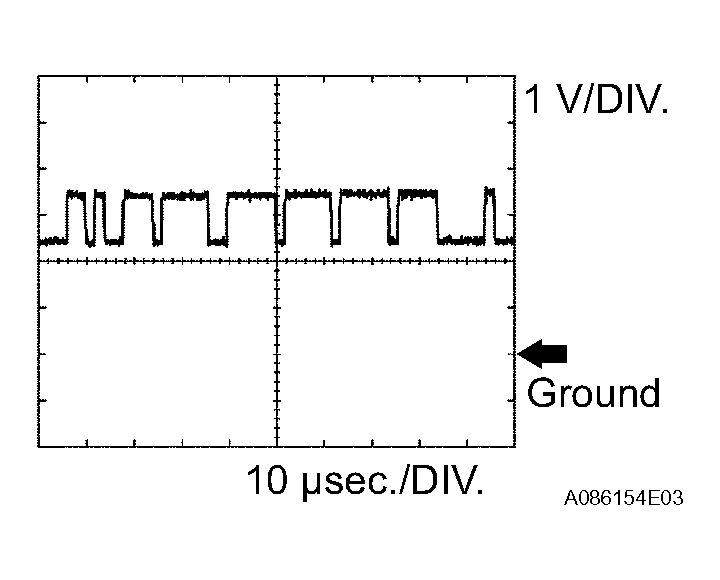

    Fig 15: Identifying Waveform 14 (CAN Communication Signal)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. WAVEFORM 15

    CAN communication signal

    WAVEFORM 15 CAN COMMUNICATION SIGNAL



    ECM Terminal Names	Between CANL and E1
    Tester Range	1 V/DIV., 10 sec./DIV.
    Condition	Stop engine and ignition switch ON

    HINT:

    The waveform varies depending on the CAN communication signal.

    Fig 16: Identifying Waveform 15 (CAN Communication Signal)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. WAVEFORM 16

    Terminal DI of air injection control driver

    WAVEFORM 16 TERMINAL DI OF AIR INJECTION CONTROL DRIVER



    ECM Terminal Names	Between AIDI and E1
    Tool setting	5 V/DIV, 20 to 40 msec./DIV
    Condition	Performing ACTIVE TEST using intelligent tester (air injection control system)

    Fig 17: Identifying Waveform 16 (Terminal DI Of Air Injection Control Driver)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    The wavelength changes when the air injection control driver detects malfunctions in the air injection system (see DTC P0412: SECONDARY AIR INJECTION SYSTEM SWITCHING VALVE "A" Circuit ).
