Camshaft Position Sensor: Installation

  1. INSTALL CAMSHAFT POSITION SENSOR
    1. Install the camshaft position sensor with the bolt and stud bolt.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  2. INSTALL NO. 3 TIMING BELT COVER SUBASSEMBLY BANK 1 (See  INSTALLATION  )
  3. CONNECT NO. 1 RADIATOR HOSE (See  INSTALLATION  )

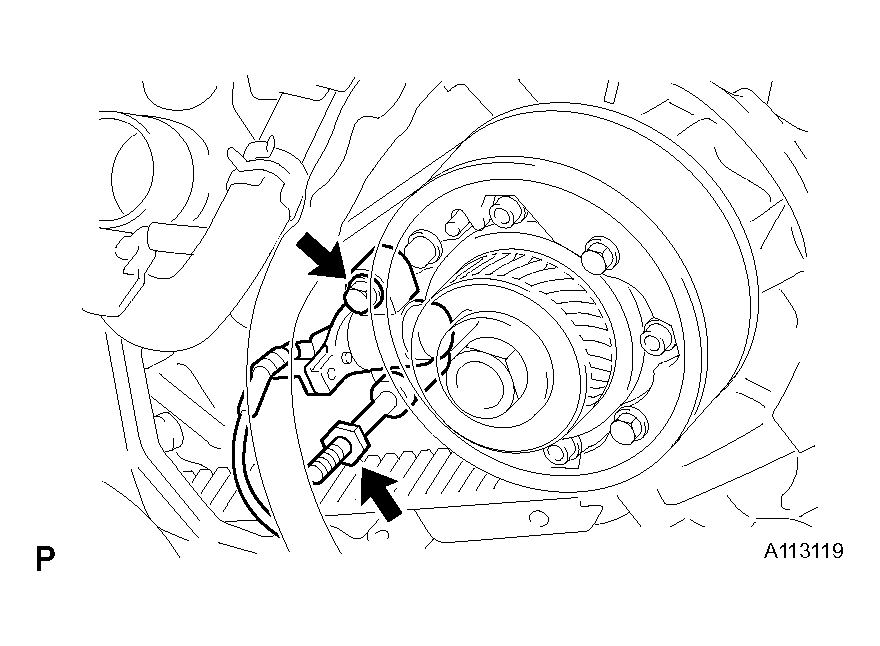

    Fig 1: Installing Camshaft Position Sensor
    G04435525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INTAKE AIR CONNECTOR PIPE (See  INSPECTION PROCEDURE   )
  5. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSPECTION PROCEDURE   )
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  8. ADD ENGINE COOLANT (See  COOLANT  )
  9. CHECK FOR ENGINE COOLANT LEAKS
    1. Check for engine coolant leaks (see ON-VEHICLE INSPECTION ).
