Camshaft Timing Oil Control Valve Assembly: Inspection

INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

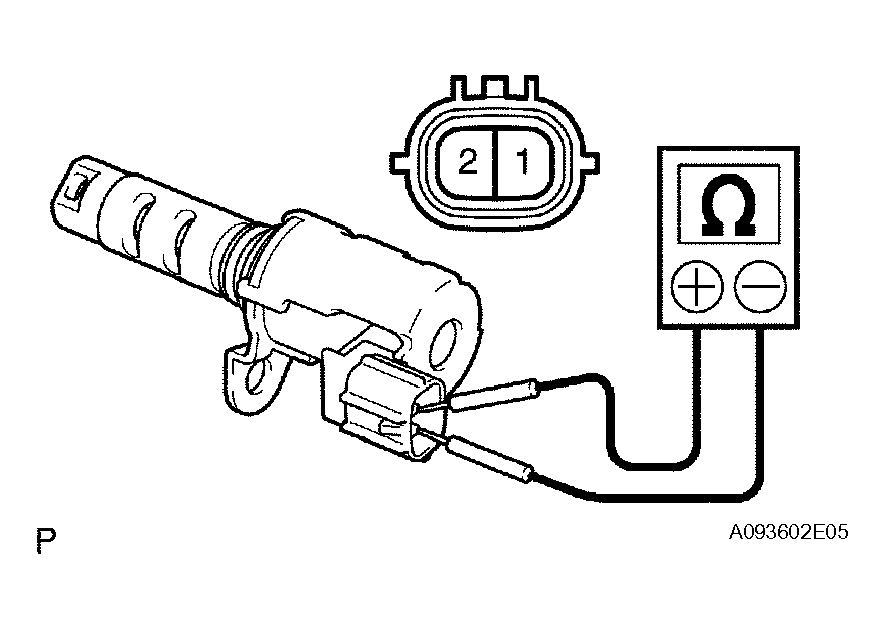

Measure the resistance between the terminals.
Standard resistance: 6.9 to 7.9 Ω at 20°C (68°F)

If the result is not as specified, replace the oil control valve assembly.

Fig 1: Measuring Resistance Between Oil Control Valve Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

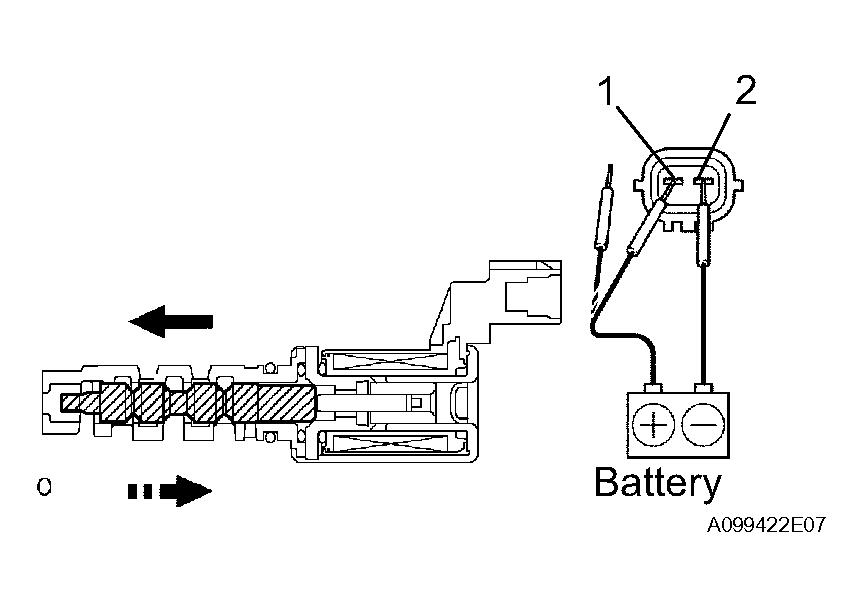

Connect the battery's positive (+) lead to terminal 1 and negative (-) lead to terminal 2, and check the movement of the valve.

Fig 2: Checking Movement Of Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP

CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

Condition	Specified Condition
Battery positive (+) voltage is applied	Valve moves in left arrow direction shown in Fig 2
Battery positive (+) voltage is cut off	Valve moves in right arrow direction shown in Fig 2

If the result is not as specified, replace the oil control valve assembly. If the valve cannot return properly because of foreign matter, a small pressure leak in the advanced direction may occur and a DTC may be output.
