Camshaft Timing Oil Control Valve Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE V-BANK COVER SUB-ASSEMBLY
1. Remove the 2 nuts, 2 bolts and V-bank cover.
REMOVE INTAKE AIR CONNECTOR PIPE
1. Disconnect the 3 hoses.
2. Remove the 2 bolts.
3. Loosen the 2 clamp bolts and remove the intake air connector.
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.
3. Remove the O-ring from the oil control valve.

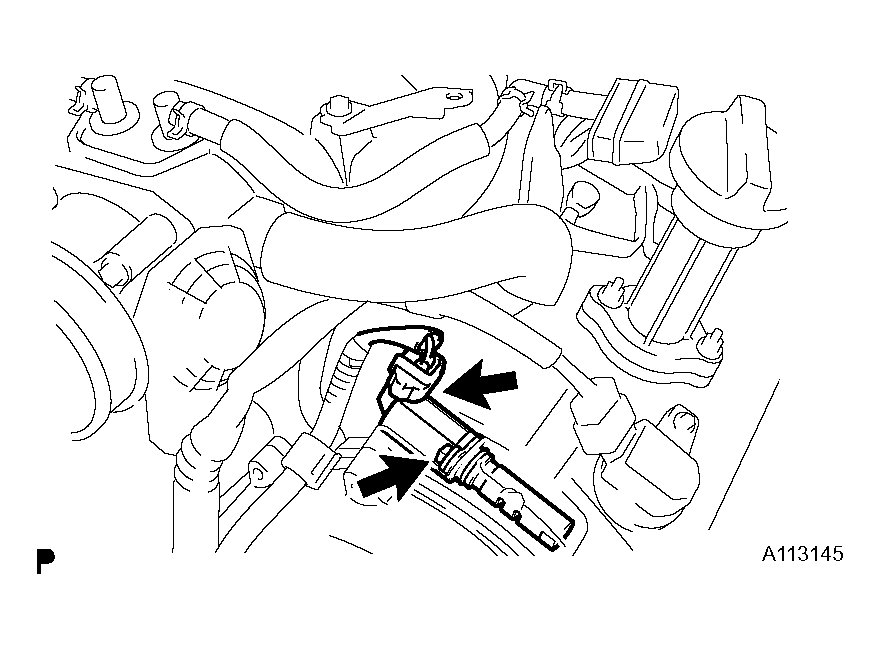

  Fig 1: Removing Oil Control Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.
3. Remove the O-ring from the oil control valve.

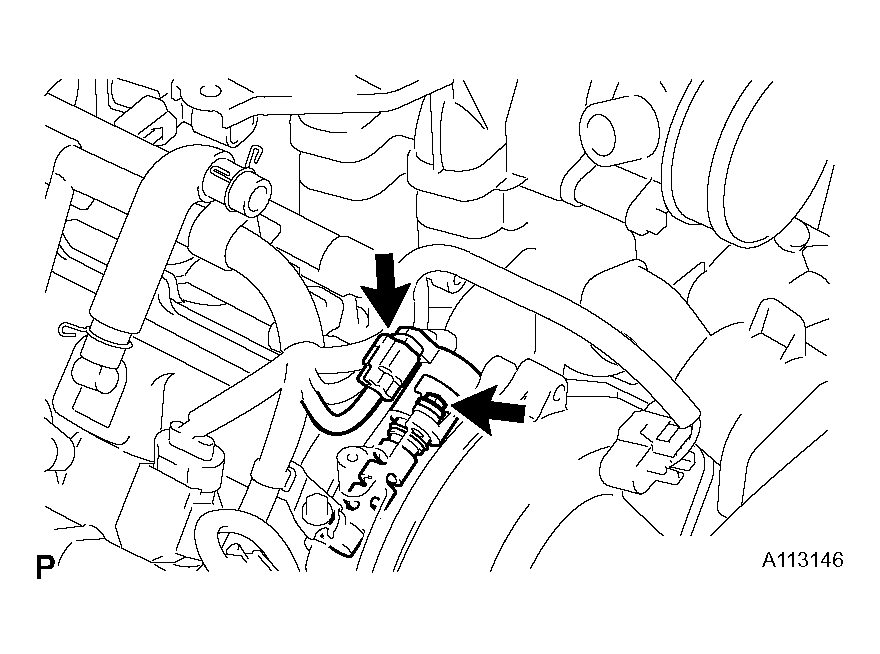

  Fig 2: Removing Camshaft Timing Oil Control Valve Assembly (For Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
